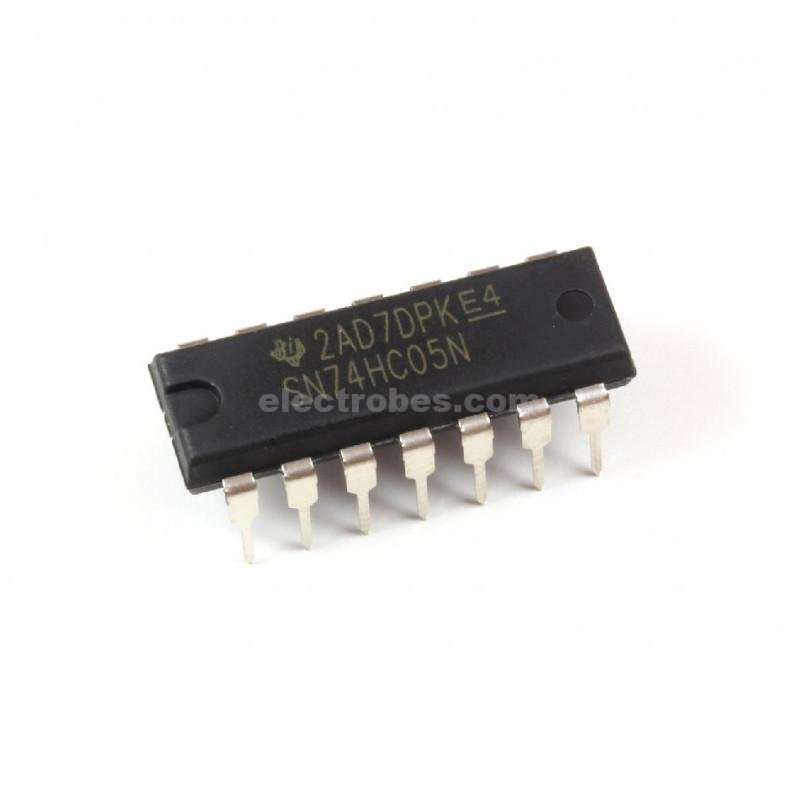

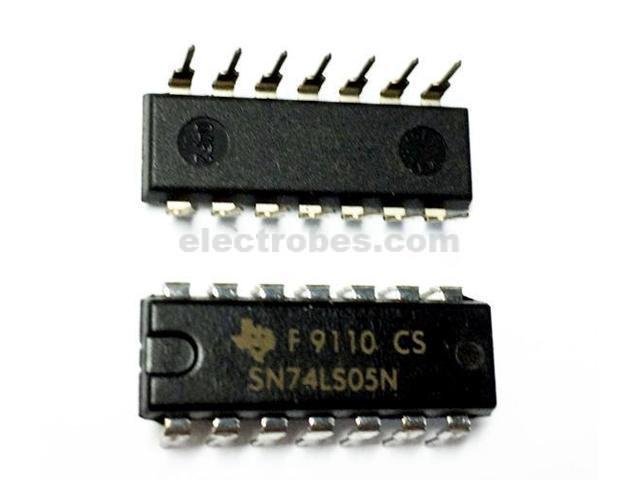

74LS05 7405 HEX Inverter SN7405 Open Collector IC

  • IC, HEX INVERTER, 74HC05
  • Logic Type: Inverter
  • Output Current: 5.2mA
  • No. of Inputs: 1
  • Supply Voltage Min: 2V
  • Supply Voltage Max: 6V
  • Logic Case Style: DIP
  • No. of Pins: 14
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Packaging: Each
  • Base Number: 74
  • IC Generic Number: 74HC05
  • Logic Function Number: 7405
  • Logic IC Base Number: 7405
  • Logic IC Family: HC
  • Logic IC Function: Hex Inverters with Open Drain Outputs
  • MSL: MSL 1 – Unlimited
  • Operating Temperature Range: -40°C to +85°C
  • Output Current Max: 4mA
  • SVHC: No SVHC (16-Dec-2013)
  • Supply Voltage: 5V
  • Supply Voltage Range: 2V to 6V
Compare
Availability:

In stock

 40

In stock

74HC05 is a high-speed Si-gate CMOS device. It contains six inverters. The device has also outputs that are open-drain. Therefore, can be connected to other open-drain outputs to implement active-LOW
wired-OR or active-HIGH wired-AND functions. 74HC05  suitable for use in automotive applications.

Features:

  •  Automotive product qualification in accordance with Automotive Electronics Council (Grade 1).
  • Operating temperature ranges between -40°C to +85°C and from -40°C to +125°C.
  • Supply Voltage between 2.0 V to 6.0 V.
  • Also has a CMOS level Input levels.
  • Lastly, has Multiple package options
