74244 74LS244 /SN74LS244N / SN74LS244 3-State Output Octal Buffer or Line Driver IC
Applications
- The IC can be used for Noise Removing.
- It has wide use in Power meter and Power analyzers.
You can download this Datasheet for 74LS14 Hex Inverter Schmitt Trigger from the link given below:
Availability:
In stock
₨ 40
In stock
74LS244 Octal 3-State Buffer/Line Driver/Line Receiver
74LS244 is Octal Buffer and Line Driver designed to be employed as memory address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC board density.

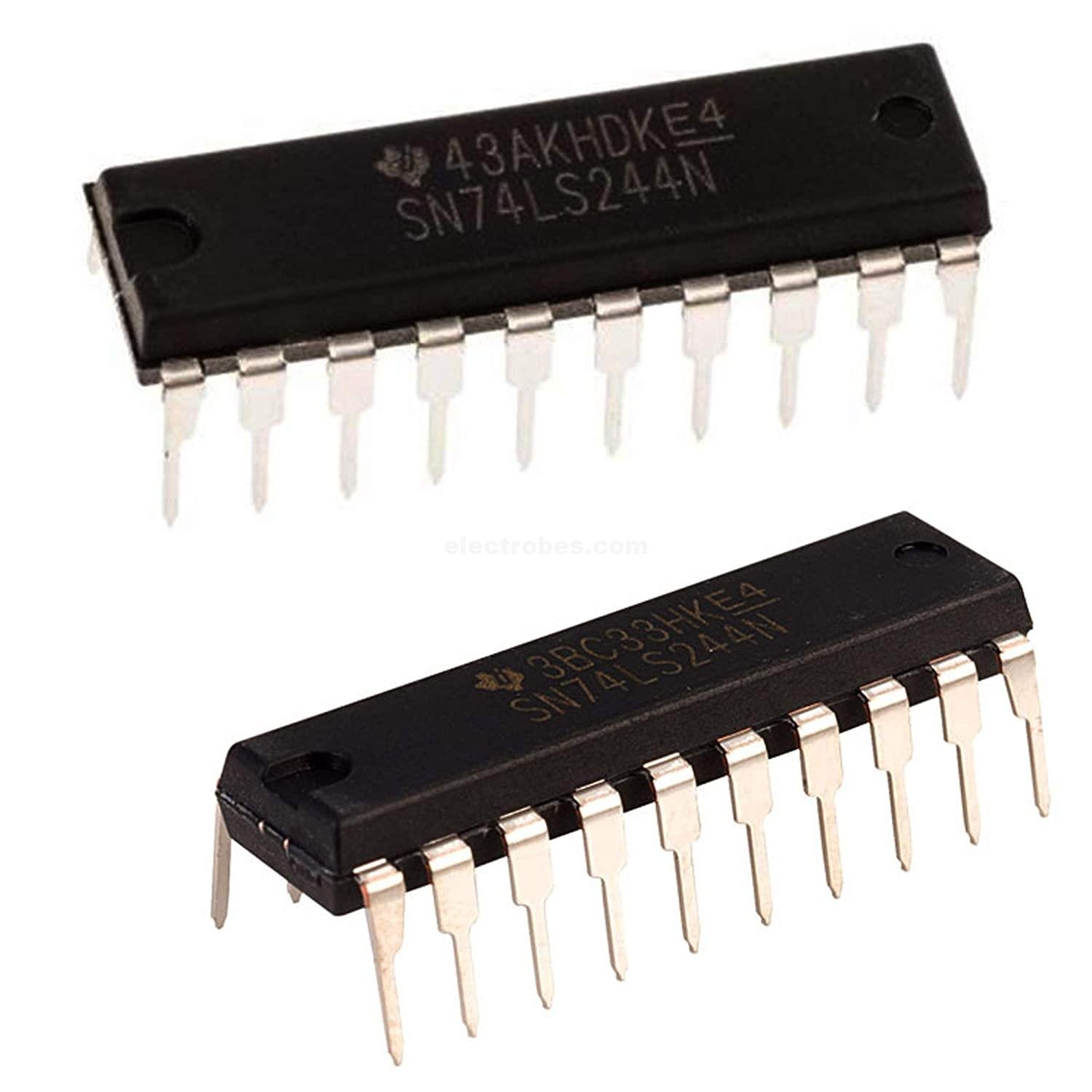

Images/Pinout of 74LS244 Octal 3-State Buffer/Line Driver/Line Receiver:
Features of 74LS244 Octal 3-State Buffer/Line Driver/Line Receiver:
- Operating Voltage Range 4.5V to 5V up to a maximum of5.5V.
- Operating Temperature range : -55°C to +125°C.
- VH (Output High): 2.7V to 3.4V.
- VL (Output Low): 0.36V to 0.5V.
- Power Consumption: 3.3mA to 3.8mA.
- Operating Speed (Mhz):600-800.
Applications of 74LS244 Octal 3-State Buffer/Line Driver/Line Receiver:
- Logical Decision making.
- Circuits involving conditional operations.
- DIY projects for various logic gates based applications
- Technology Family: TTL
- Max Supply Voltage: 7V
- Max Input Voltage: 7V
- Min VCC: 4.75V
- VCC (Max): 5.25V
- Storage Temperature Range: -65ºC to +150ºC
- No. of Channels: 6
- Inputs per channel: 1
- IOL (Max): 16mA
- IOH (Max): 0.8mA
- Output type: Push-Pull
- It can be used as a noise impunity device.
- It comes in multiple packages with all 14-Pins, SO, SSOP, SOIP, and PDIP.
