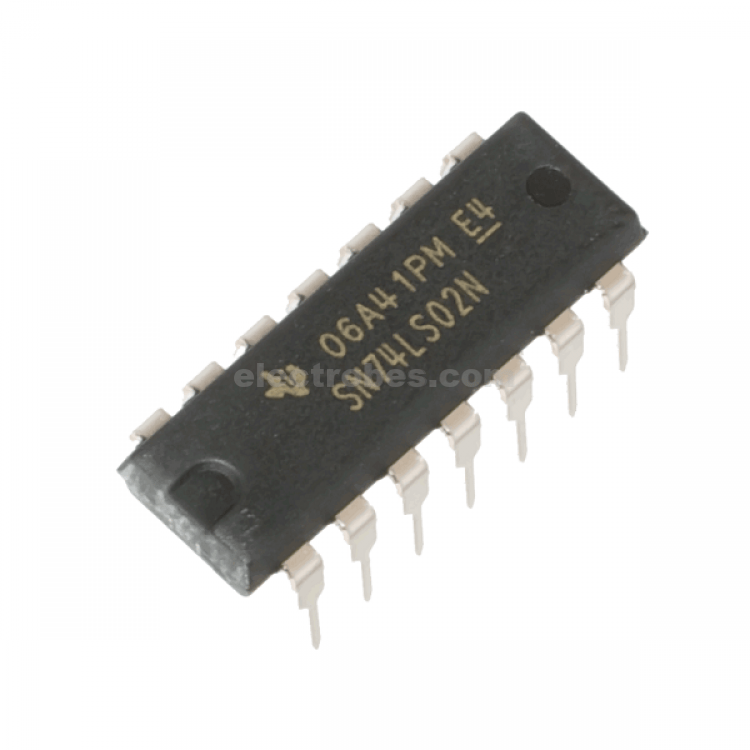

74LS02 Quad 2-input NOR Gate IC
- Operating voltage range: +4.75 to +5.25V
- Maximum supply voltage: 7V
- Maximum current allowed to draw through each gate output: 8mA
- TTL outputs
- Low power consumption
- Maximum ESD: 3.5KV
- Typical Rise Time: 15ns
- Typical Fall Time: 15ns
- Operating temperature :0°C to 70°C
- Storage Temperature: -65°C to 150°C
- Operating temperature: 0°C to 75°C
Availability:
In stock
₨ 45
In stock

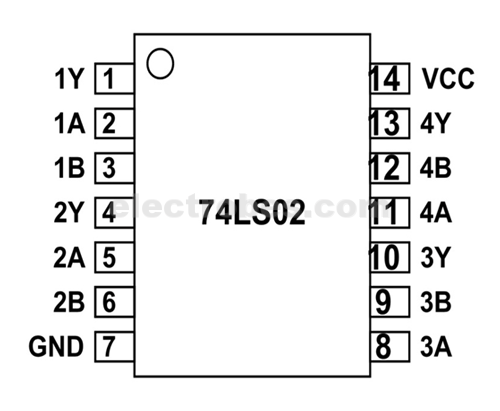

| Pin Number | Description |
| NORGATE 1 | |
| 2 | 1A-INPUT1 of GATE 1 |
| 3 | 1B-INPUT2 of GATE 1 |
| 1 | 1Y-OUTPUT of GATE1 |
| NORGATE 2 | |
| 5 | 2A-INPUT1 of GATE 2 |
| 6 | 2B-INPUT2 of GATE 2 |
| 4 | 2Y-OUTPUT of GATE2 |
| NORGATE 3 | |
| 8 | 3A-INPUT1 of GATE 3 |
| 9 | 3B-INPUT2 of GATE 3 |
| 10 | 3Y-OUTPUT of GATE3 |
| NORGATE 4 | |
| 11 | 4A-INPUT1 of GATE 4 |
| 12 | 4B-INPUT2 of GATE 4 |
| 13 | 4Y-OUTPUT of GATE4 |
| SHARED TERMINALS | |
| 7 | GND- Connected to ground |
| 14 | VCC-Connected to positive voltage to provide power to all four gates |
