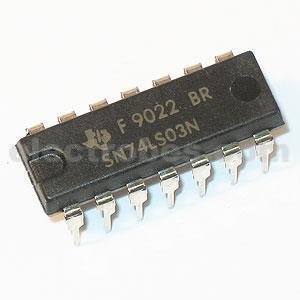

74LS03 Quad 2-input Positive NAND with Open Collector Output Gate IC
- Operating voltage range: +4.75 to +5.25V
- Maximum supply voltage: 7V
- Maximum current allowed to draw through each gate output: 8mA
- TTL outputs
- Low power consumption
- Maximum ESD: 3.5KV
- Typical Rise Time: 15ns
- Typical Fall Time: 15ns
- Operating temperature :0°C to 70°C
- Storage Temperature: -65°C to 150°C
- Operating temperature: 0°C to 75°C
Availability:
Only 1 left in stock
₨ 40
Only 1 left in stock
74LS03

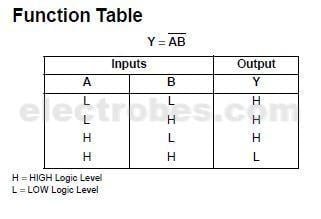

Quad 2-Input NAND Gates with Open-Collector Outputs
General Description
This device contains four independent gates each of which
performs the logic NAND function. The open-collector outputs
require external pull-up resistors for proper logical
operation.
