Discrete Electronic Components, ICs, Logic Gates Compare

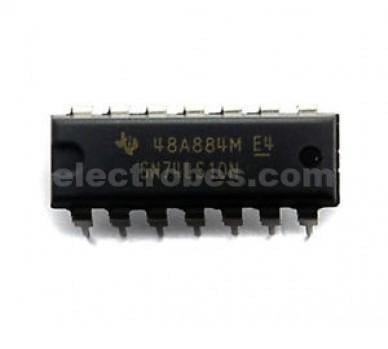

74LS10 Tripple 3 input NAND Gate IC
- Operating voltage range: +4.75 to +5.25V
- Recommended operating voltage: +5V
- Maximum supply voltage:7V
- Maximum current allowed to draw through each gate output: 8mA
- TTL outputs
- Low power consumption
- Typical Rise Time: 18ns
- Typical Fall Time: 18ns
- Operating temperature:0°C to 70°C
- Storage Temperature: -65°C to 150°C
Availability:
In stock
₨ 30
In stock
