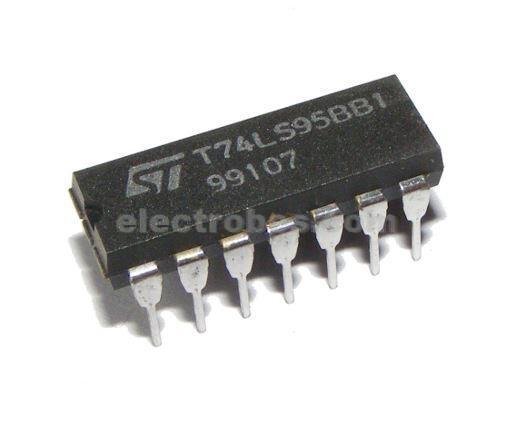

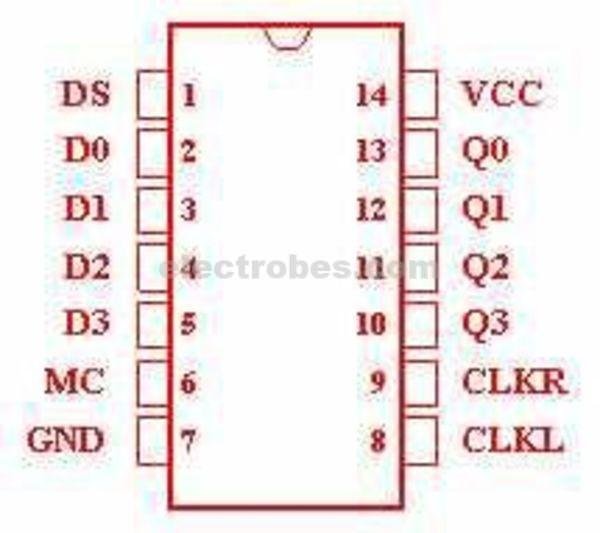

74LS95 4-BIT SHIFT REGISTER / PARALLEL IN AND SERIAL OUT
- Product Category: Counter Shift Registers
- Counting Sequence: Serial/Parallel to Parallel
- Number of Circuits: 1
- Number of Bits: 4 bit
- Package/Case: PDIP-14
- Logic Family: LS
- Logic Type: Bipolar
- Number of Input Lines: 5
- Propagation Delay Time: 32 ns
- Supply Voltage – Max: 5.25 V
- Minimum Operating Temperature: 0 °C
- Maximum Operating Temperature: + 70 °C
- Function: Shift Register
- Series: SN74LS95B
- Mounting Style: DIP
- Number of Output Lines: 4
- Product Type: Counter Shift Registers
- Subcategory: Logic ICs
- Unit Weight: 1 g
Availability:
In stock
₨ 60
In stock
The 74LS95 is a 4-bit Shift Register with serial and parallel synchronous operating modes. The serial shift right and parallel load are activated by separate clock inputs which are selected by a mode control input. The data is transfered from the serial or parallel D inputs to the Q outputs synchronous with the HIGH to LOW transition of the appropriate clock input.
The serial shift right and parallel load are activated by separate clock inputs which are selected by a mode control input.The data is transferred from the serial or parallel D inputs to the Q outputs synchronous with the HIGH to LOW transition of the appropriate clock input.
The LS95 is fabricated with the Schottky barrier diode process for high speed.
Features & Specifications
- 4-bit Shift Register with Serial and Parallel Synchronous Operating Modes
- Separate Shift and Load Clock Inputs
- Input Clamp Diodes
- Operating Temperature up to 70oC
- Standard TTL Switching Voltages
