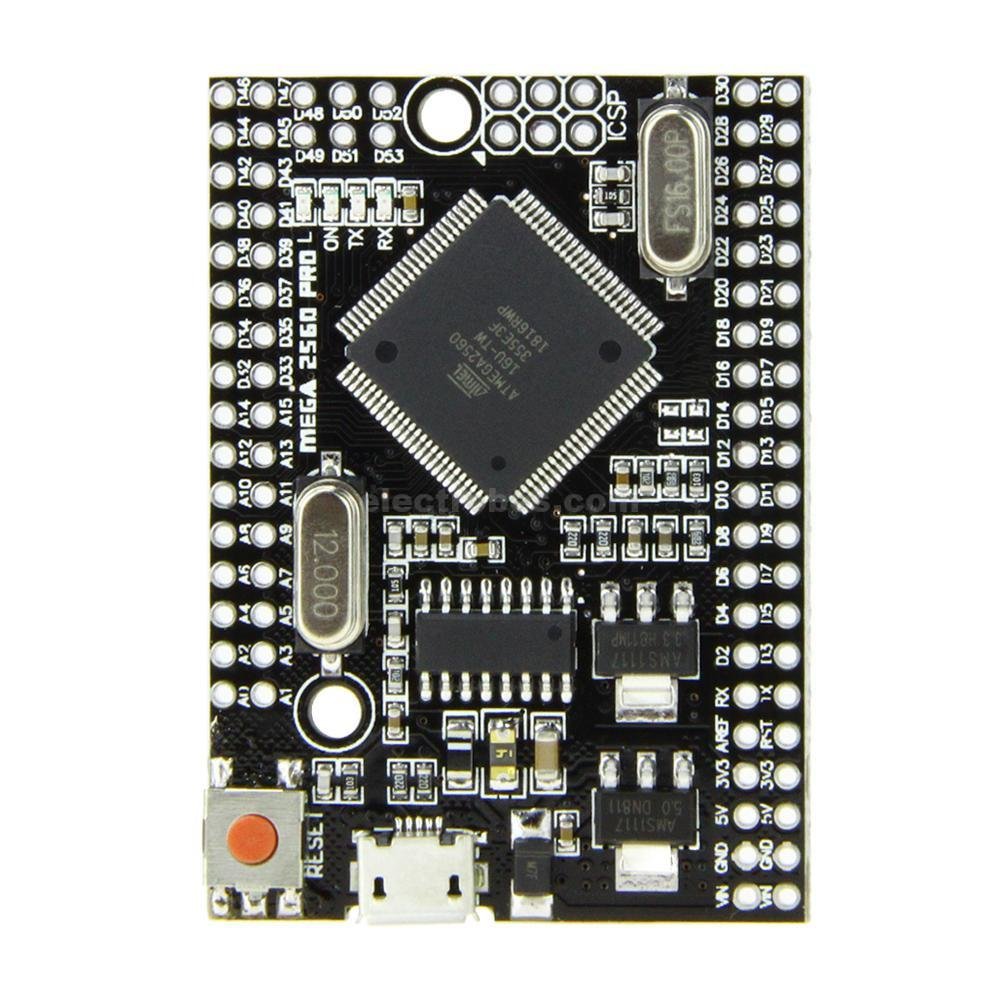

Arduino MEGA 2560 PRO Mini Compatible With ATMEGA2560-16AU And CH340G
This board is the compact microcontroller fully compatible to the ever-popular Arduino Mega 2560.
It features a genuine Atmel ATmega2560 running at 16Mhz and leverages a CH340G for UART/USB interface to a micro USB.
Equipped with 54 (fifty-four) Digital I/O and 16 (sixteen) Analogue I/O it provides plenty of interfacing options.
In stock
₨ 3,500
In stock
Arduino MEGA 2560 PRO Mini With Embedded USB CH340G ATMEGA2560-16AU Chip
Features:
- Item type: MEGA 2560 Pro Embedded USB CH340G ATMEGA2560-16AU Chip
- Form factor-Mega PRO
- Microcontroller-ATmega 2560 (16 MHz)
- USB-UART-CH340G interface (12 MHz)
- input voltage-6-9 V (peak 18 V)
- PC-Micro USB connection socket
- 70 digital I / O
- 16 analog entries
- 14 PWM
- 4 UART bus
- The board used the CH340G chip as a UART-USB converter. When you work on the 12 MHz frequency, giving a stable result of the exchange of data (it is necessary to install drivers in the computer).
- Mega PRO (Embed) 2560 CH340G / ATmega2560-connects to the computer through the micro USB cable (used for almost all Android smartphones).
- You can supply power on board through the Micro USB connector or to power the heads. The voltage regulator (LDO) can treat the incoming voltage from 6 V to 9 V (peak 18 V) DC. Output current for 5 V-around 3.3 Ma, for V-approximately 800 mA (keep in mind that the higher the input voltage, the lower the outgoing current). That will provide reliable power for most of your initial projects.
Package Include:
1x MEGA 2560 Pro Embedded USB CH340G ATMEGA2560-16AU Chip for arduino Mega 2560
- Microcontroller: ATmega2560
- USB-TTL converter: CH340
- Power Out: 5V-800mA
- Power IN: 5V
- Power IN. VIN/DC Jack: 5V
- Power Consumption: 5V 220mA
- Logic Level: 5V
- USB: Micro USB
- Clock Frequency: 16MHz
- Operating Supply Voltage: 5V
- Digital I/O: 54
- Analog I/O: 16
- Memory Size: 256kb
- Data RAM Type/Size: 8Kb
- Data ROM Type/Size: 4Kb
- Interface Type: ISP
- Operating temperature: −40С°/+85С°

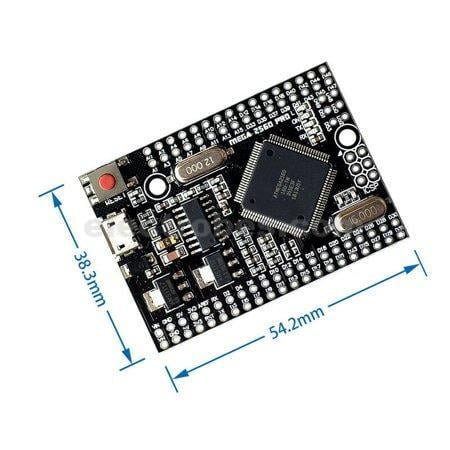

- Length × Width: 38×54mm
