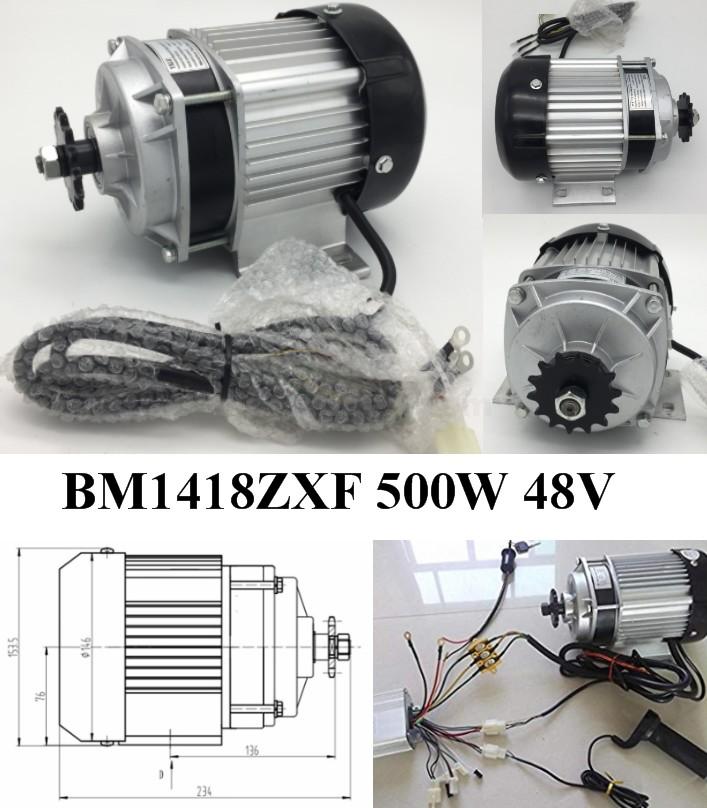

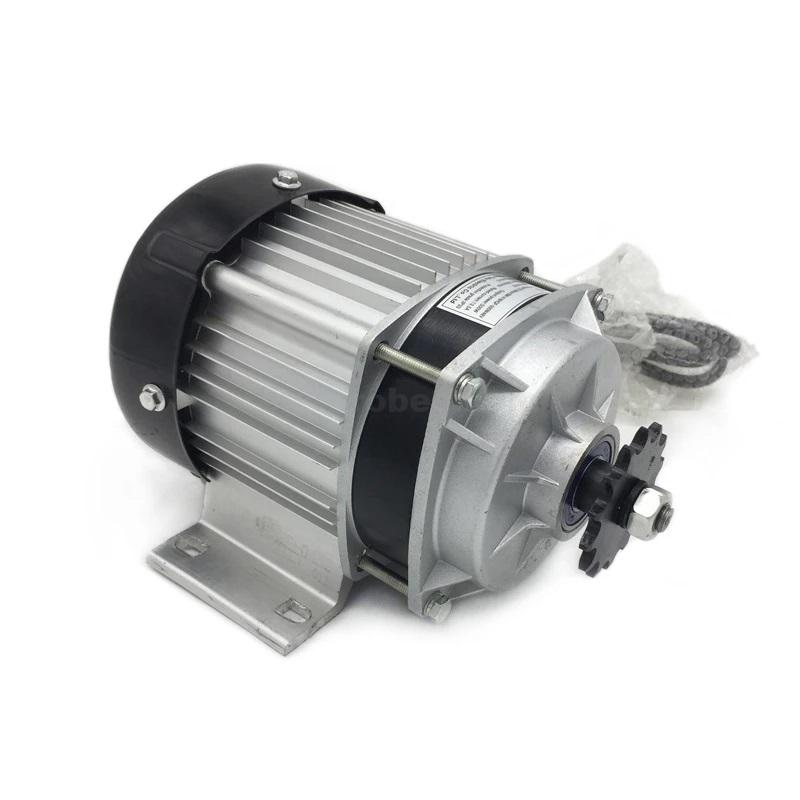

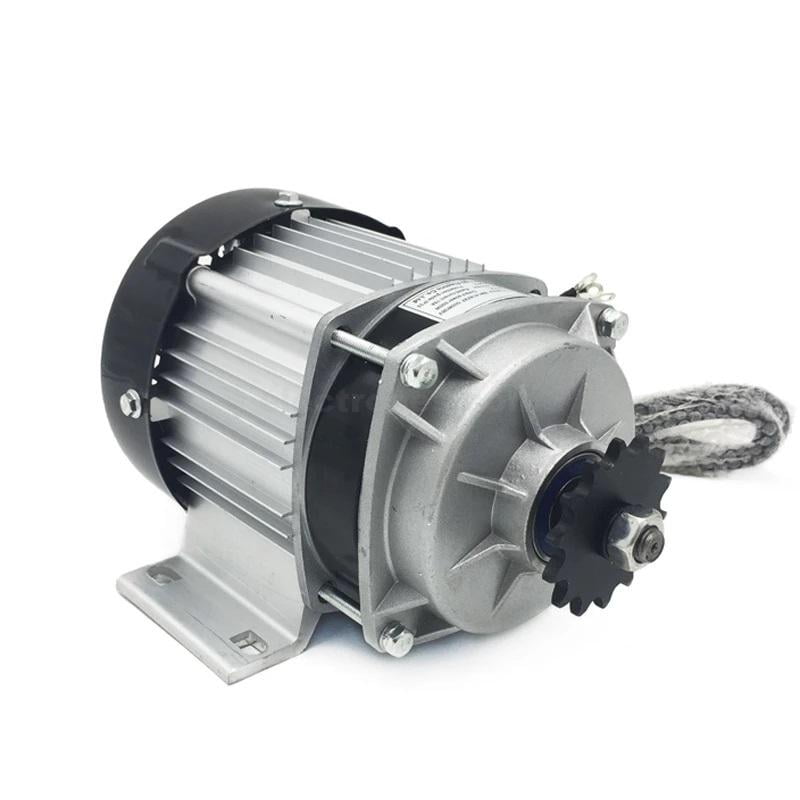

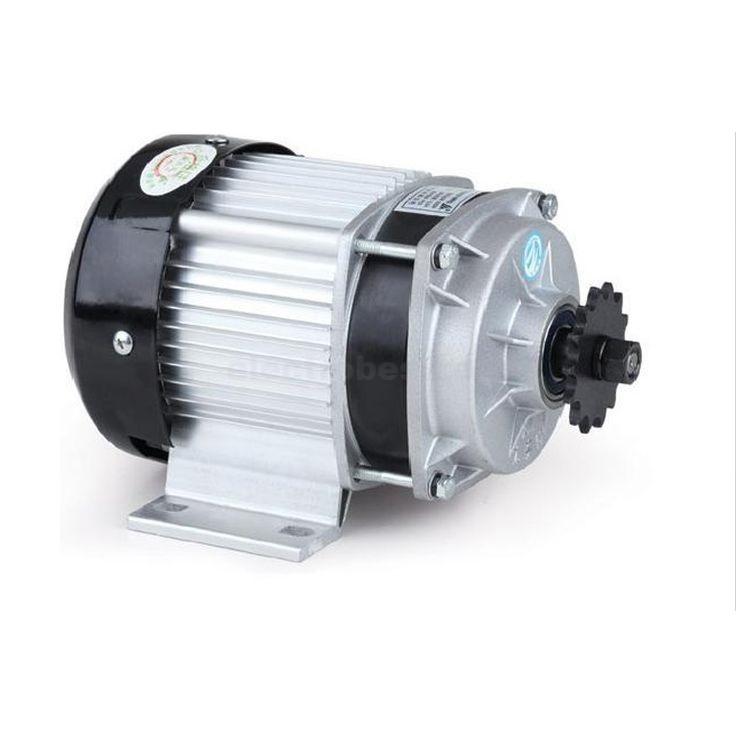

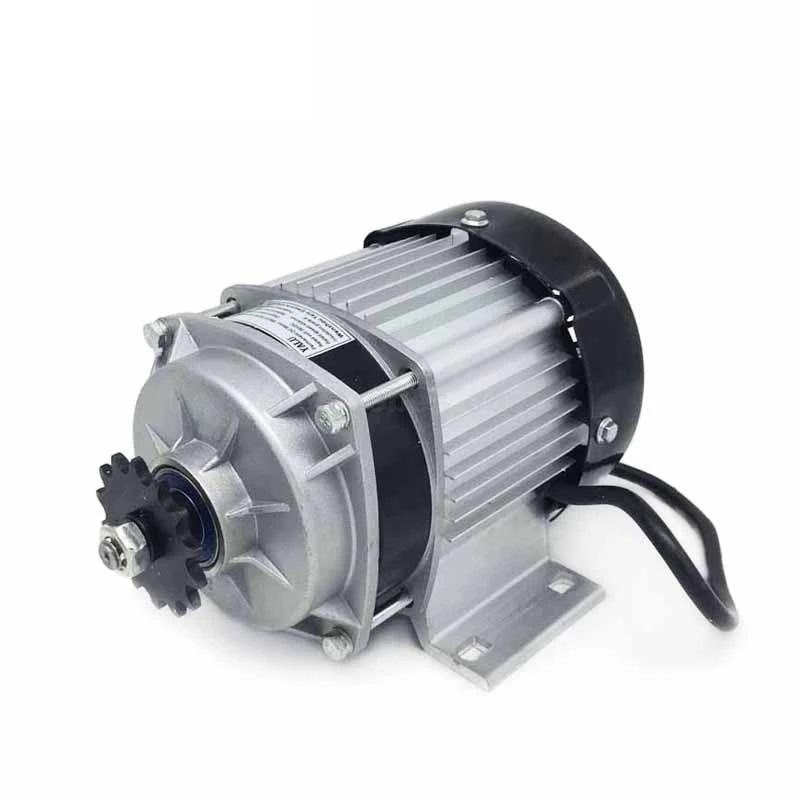

BM1418ZXF 500W 48V brushless DC Motor Bike Tricycle Ebike BLDC
₨ 25,000
"BM1418ZXF 500W 48V brushless DC Motor Bike Tricycle Ebike BLDC" added to wishlist
Please login to continue
BM1418ZXF 500W 48V brushless Motor Bike Tricycle Electric Conversion parameters of the motor
Specifications:
- Rated speed: 2800rpm
- Reduction ratio: 6 to 1
- Actual speed: 450 rpm
- Weight: 4.08KG
- Applicable chain: 420 chain
- Load capacity: about 300kg
- Phase: 120 degrees
- Applicable models: light cargo tricycle, bike etc
Features:
- Used For : Medium-sized cargo tricycle
- This motor has fan, Better heat dissipation, it is more durable !
- This motor has Model 420 , 14 tooth Sprocket
- Excellent universal 48V Brushless motor, suitable for bikes, scooters, buggies, karts and more!
- In reality, it can be used for a variety of different applications!
Note that you will need controller and a hall effect throttle to hook up to the controller.
Package Included:
– 1 x Brushless Motor
– 1 x 420 Chain Sprocket
- Motor type: Brushless DC Motor
- Power rating: 500w
- Rated speed: 2800rpm
- Reduction ratio: 6 to 1
- Actual speed: 450 rpm
- Weight: 4.08KG
- Applicable chain: 420 chain
- Load capacity: about 300kg
- Phase: 120 degrees
- Applicable models: light cargo tricycle, bike etc
