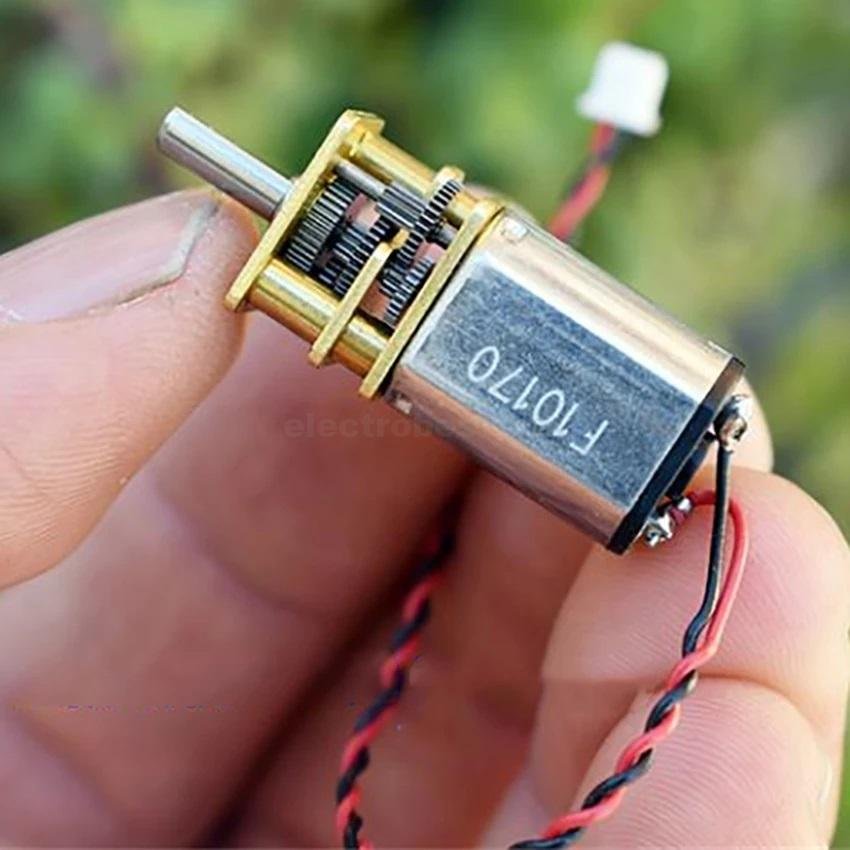

Metal Gear GA12-N20 Precision Motor 5V 90RPM DIY Robotic Four-wheel Drive Car
Availability:
Out of stock
₨ 300
Out of stock
GA12-N20 Metal Gear 5V 90RPM Precision Motor DIY Four-wheel Drive 2wd Mould Electric Lock
Specifications:
- size: 24 * 12 * 10mm
- Motor shaft diameter: 3mm D type shaft
- Motor shaft length: 9mm
- Length of wire: 8 ~ -14 cm with wire
- Voltage range: 3V-6V suitable 5V
- Motor parameters: When the power is applied 3V, the current is 0.04A, about 52 rpm
- When power is 3V, the current is 0.04A, about 90 rpm
- When power is 6V, the current is 0.04A, about 104 rpm
Features:
- Rated Voltage: 5V,
- Speed: 90RPM ±5%,
- Shaft Diameter: 3mm, D Shaft,
- Shaft Length: 9mm
APPLICATION:
Great replacement for the rusty or damaged DC geared motor, Widely used in Intelligent remote Control car, model plane, automatic, Boat, Home Appliance, Car
ADVANTAGES:
- Light weight geared Electric Motor, Benefiting from high torque and low noise, Small volume, big torsion.
- Good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.
Package Includes:
1pc GA12-N20 DC Geared Motor with wire
- size: 24 * 12 * 10mm
- Motor shaft diameter: 3mm D type shaft
- Motor shaft length: 9mm
- Length of wire: 8 ~ -14 cm with wire
- Voltage range: 3V-6V suitable 5V
- Motor parameters: When the power is applied 3V, the current is 0.04A, about 52 rpm
- When power is 3V, the current is 0.04A, about 90 rpm
- When power is 6V, the current is 0.04A, about 104 rpm
