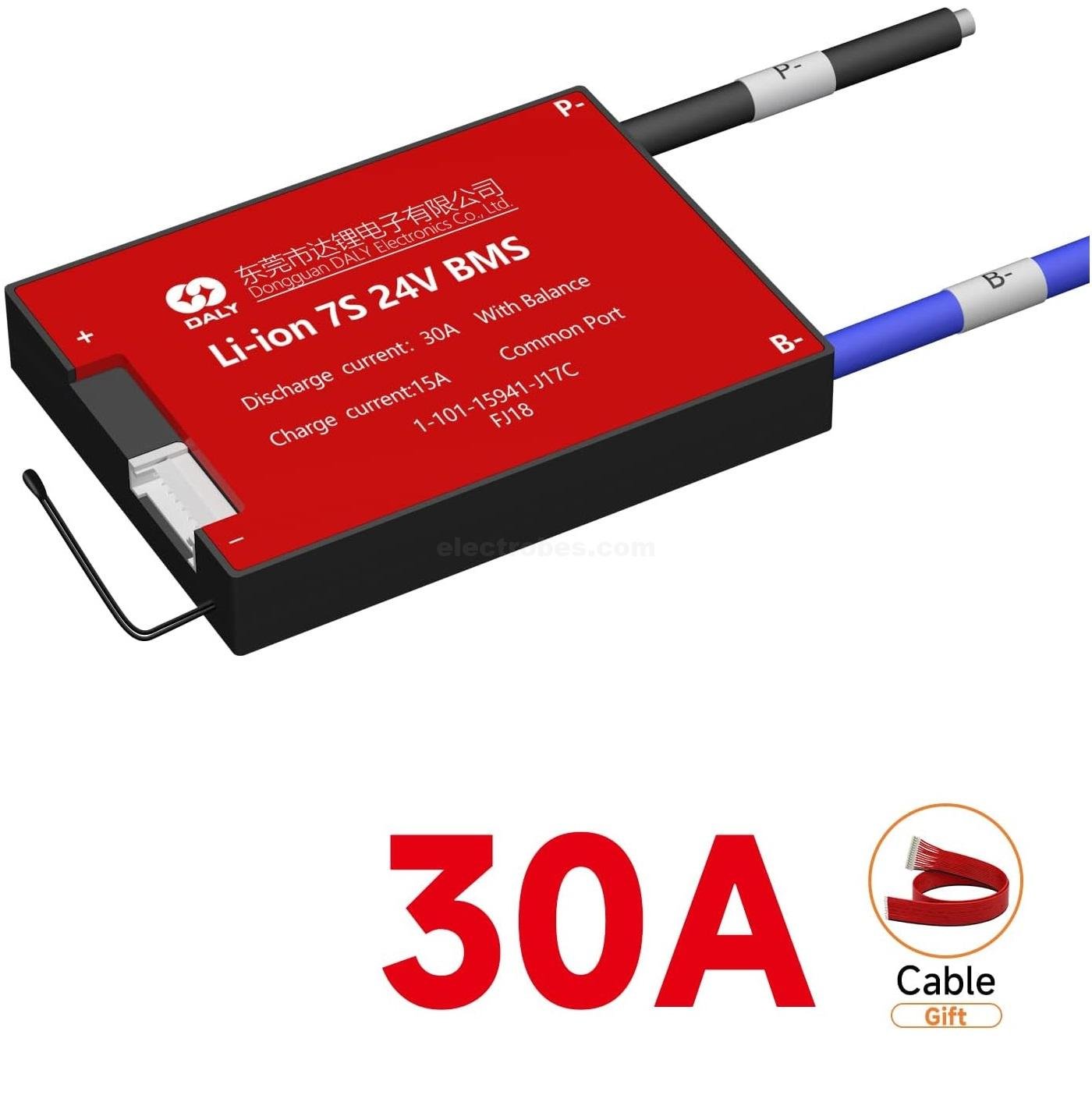

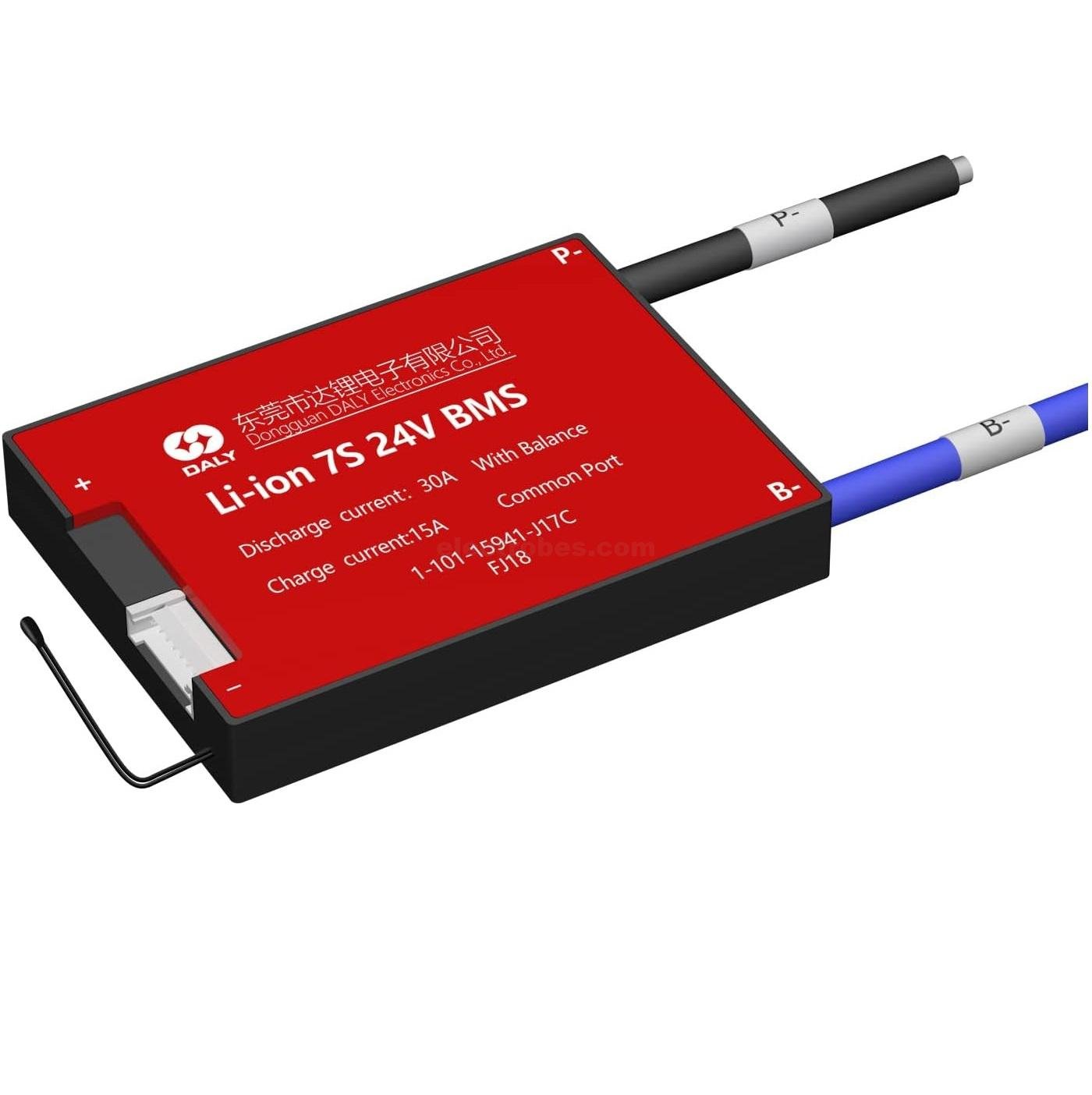

DALY 24V BMS Li-ion 7S 30A with Balance Wire and Temperature Sensor for Rated 3.7V Lithium Battery Power Bank Short Circuit Protection

DL 7S 24V 30A PCB is used for 7 series Li-ion 24V battery pack. The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc. BMS manufactured by  high quality MOS and IC imported . Keep your battery long cycle service life time.

Introduction about this BMS:

This is a 7S fixed configuration basically it cannot be used for any other battery pack configurations. Because it is only a Lithium ion battery management system only. As a result that they cannot be used for LiFePo4 and Li-Metal or LTO batteries. It is strictly for Li-Ion battery packs only.

Over charge and over discharge protection:

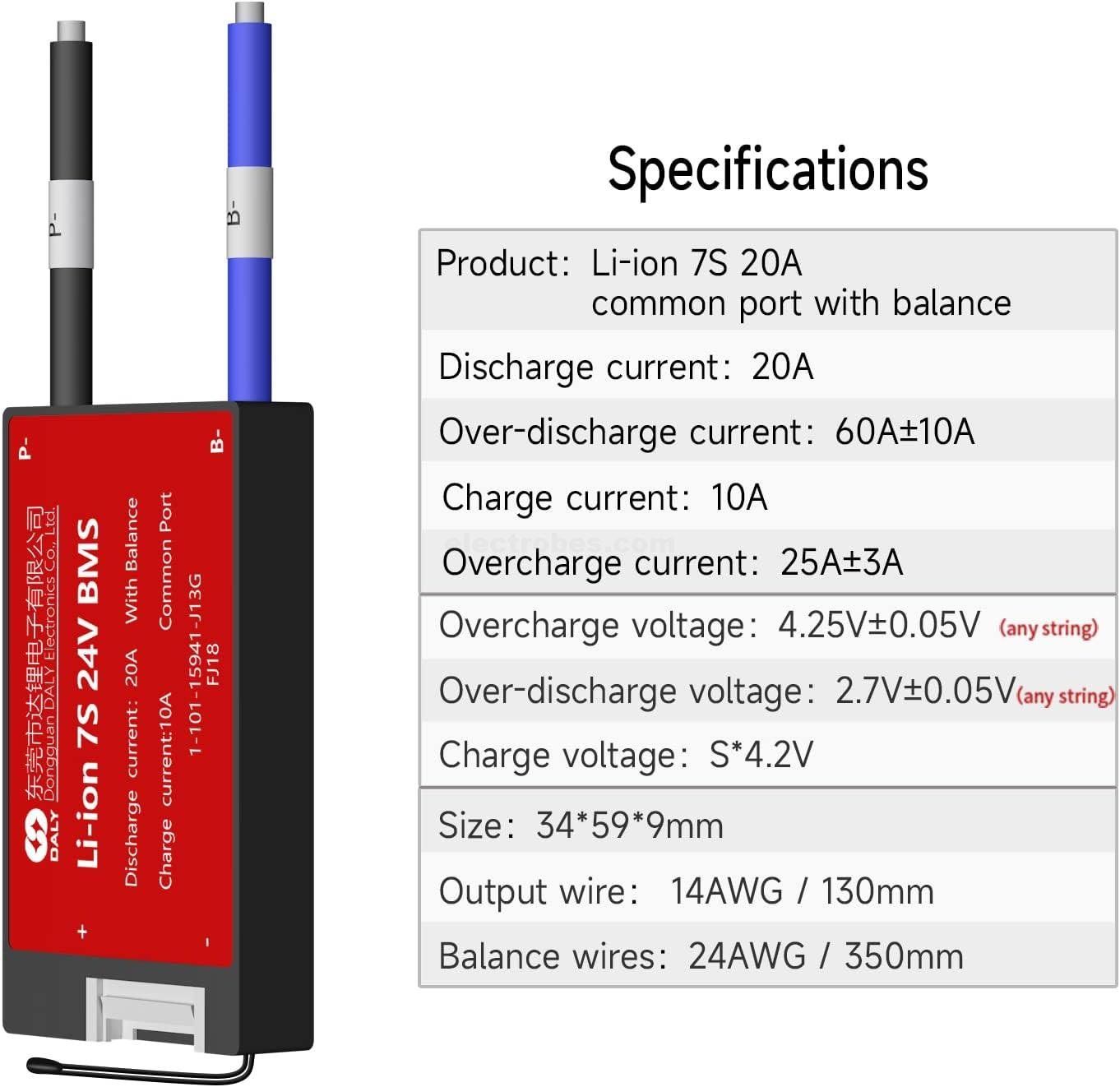

The Li-ion battery pack will stop charge after the cell voltage reaches 4.25V and stop discharge when its voltage reaches 3V.

Temperature Protection:

In high temperatures the BMS ranges from 70℃ discharging battery protection.

Meanwhile in low temperatures the BMS ranges up to -20℃ battery protection.

Short circuit protection:

When there is a defect or damage to the circuit at same time the BMS will shut down the whole Battery.

Certifications Approved:

ISO/ FCC/ RoHS/ PSE and CE APPROVED

Applications:

Solar and RV, Electric bikes and Skateboard including camping boats and Power tools, Lawn moving and household energy storage systems etc.

Conclusion:

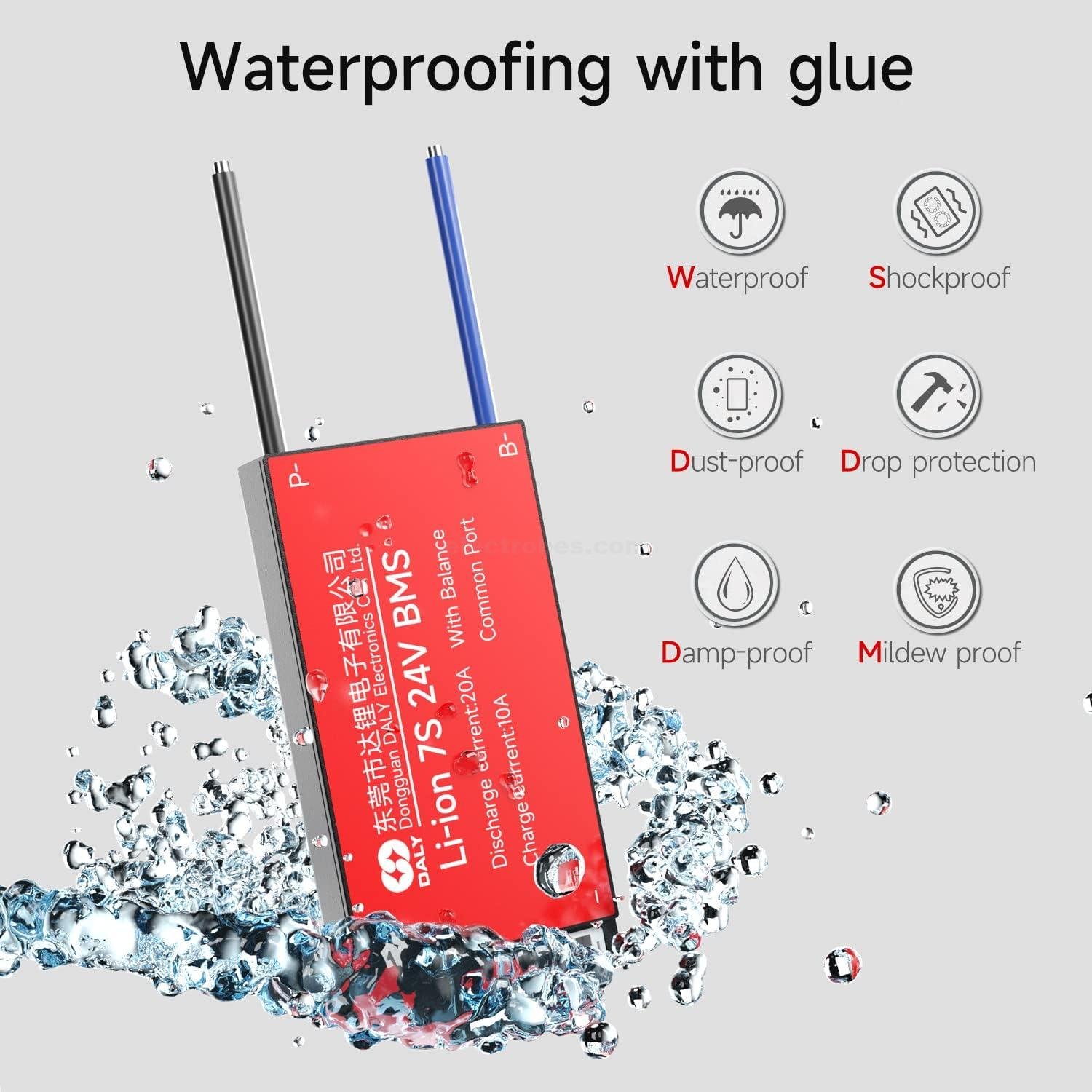

Most important that it is only a waterproof BMS available in lithium industry.

This BMS is also for all kinds of lithium-ion cells including 18650, 21700, 36500 cylindrical cells and prismatic cells.

Package Includes:

• 7S Li-ion 30A rated voltage with 24V BMS

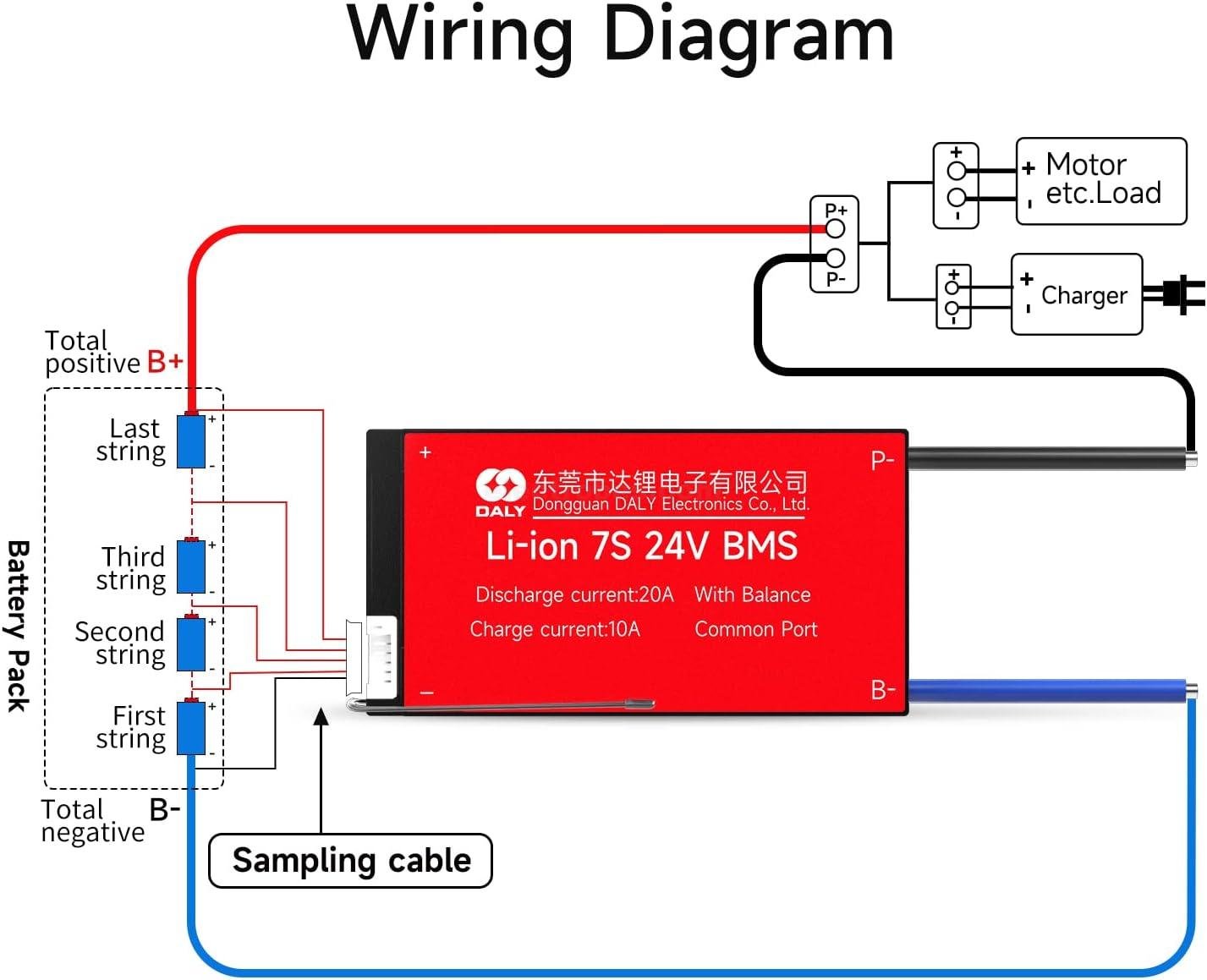

• Balanced wire sense cable (8 Wire sense cable with connector)
