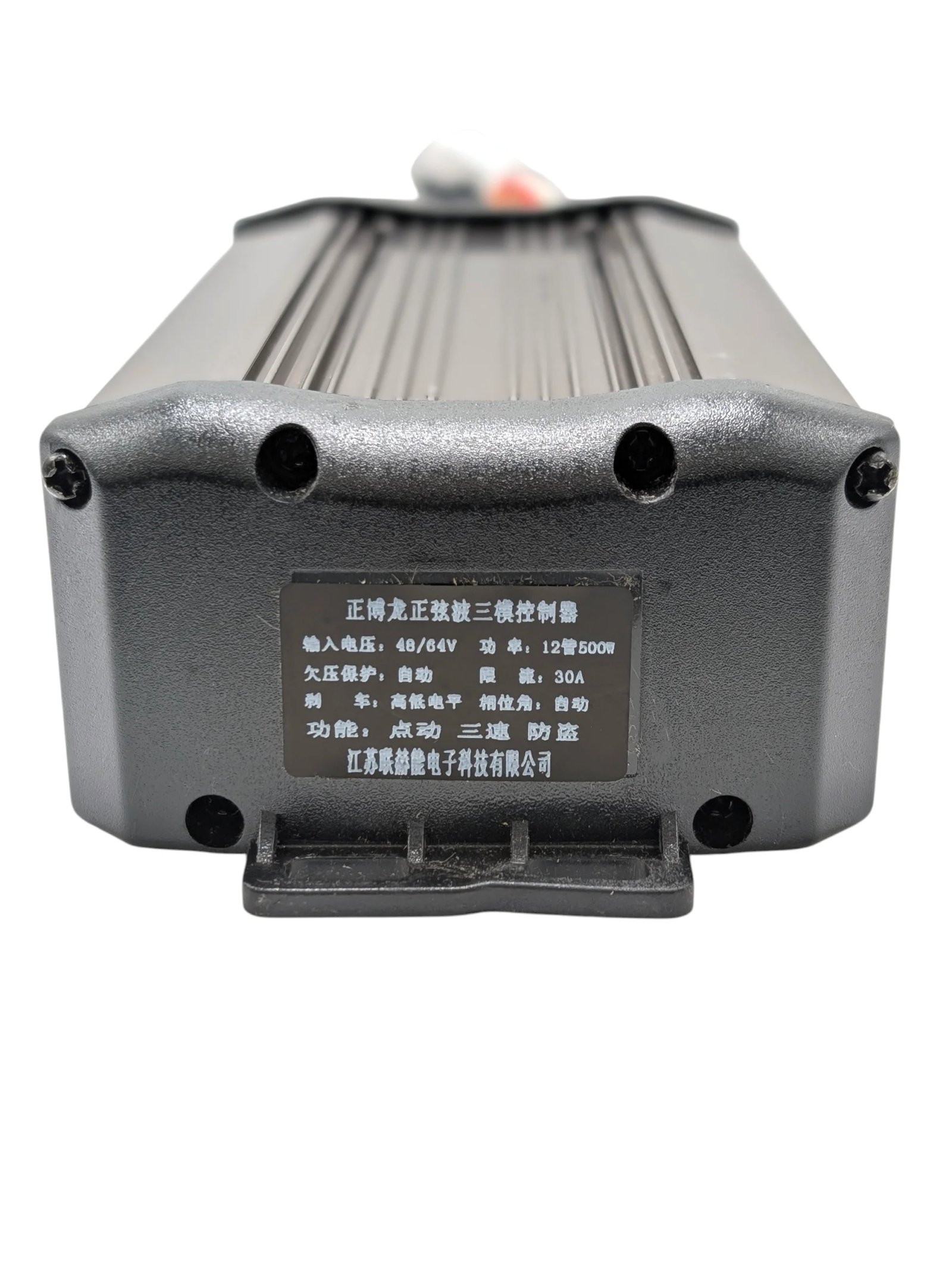

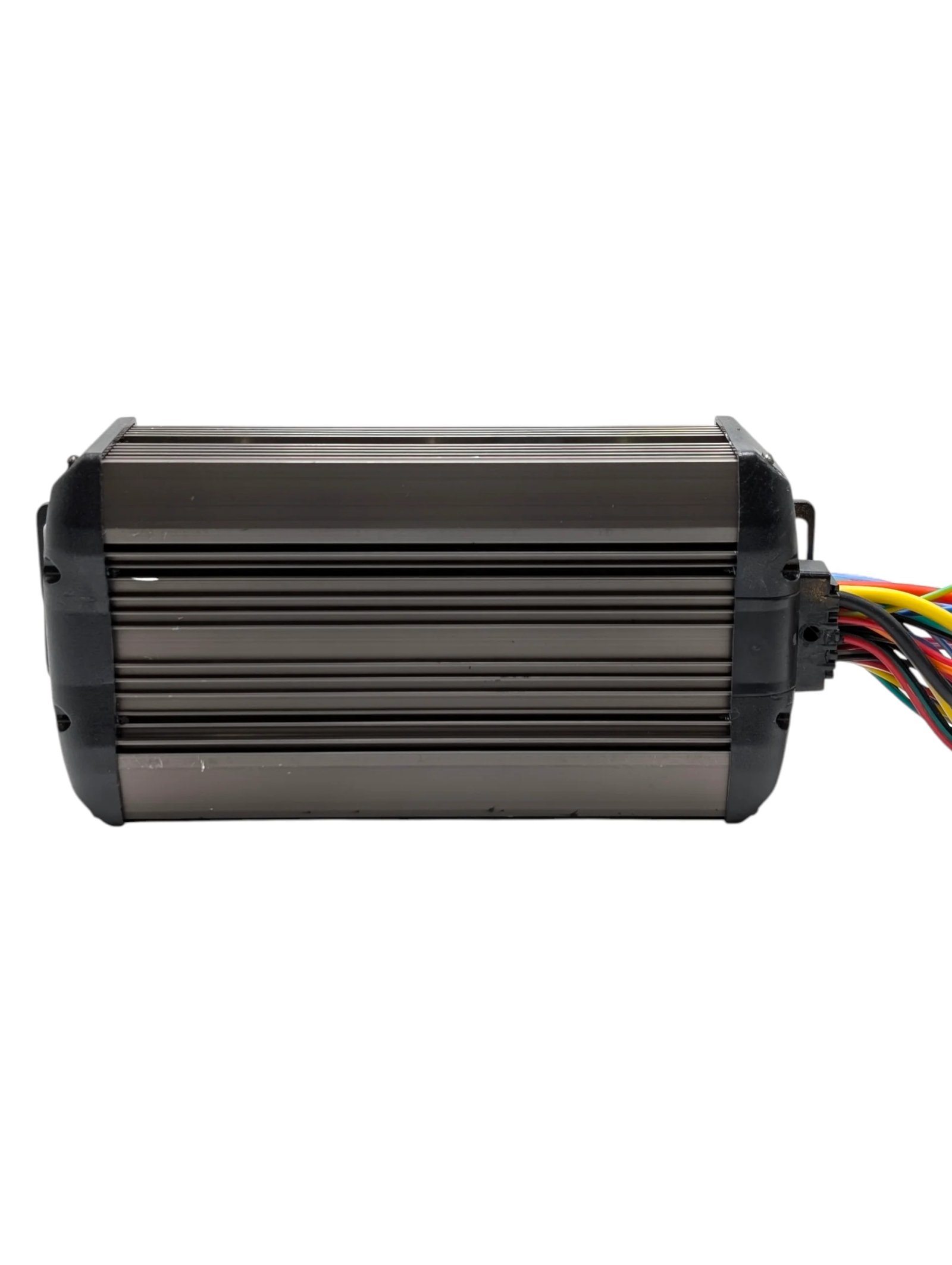

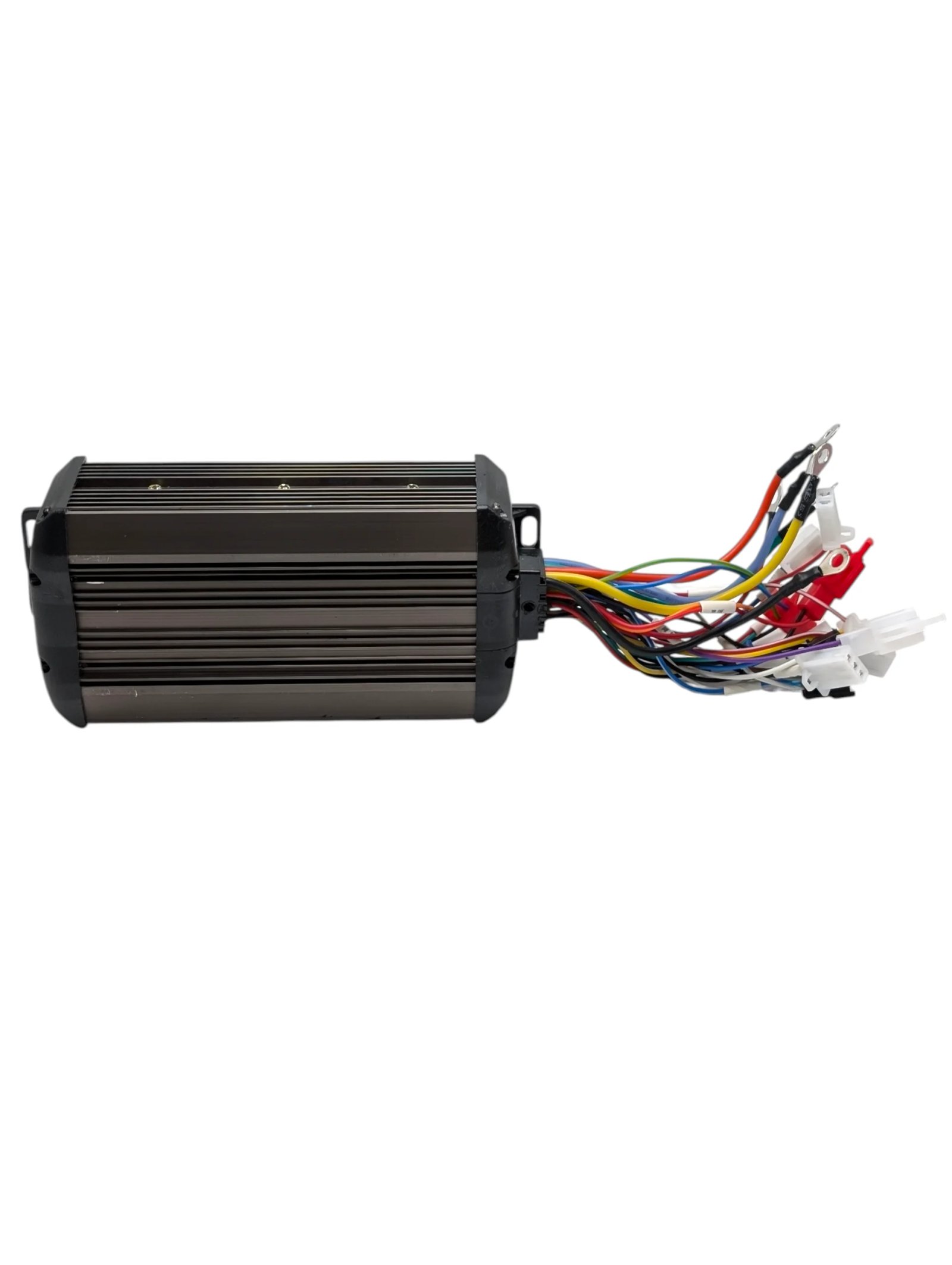

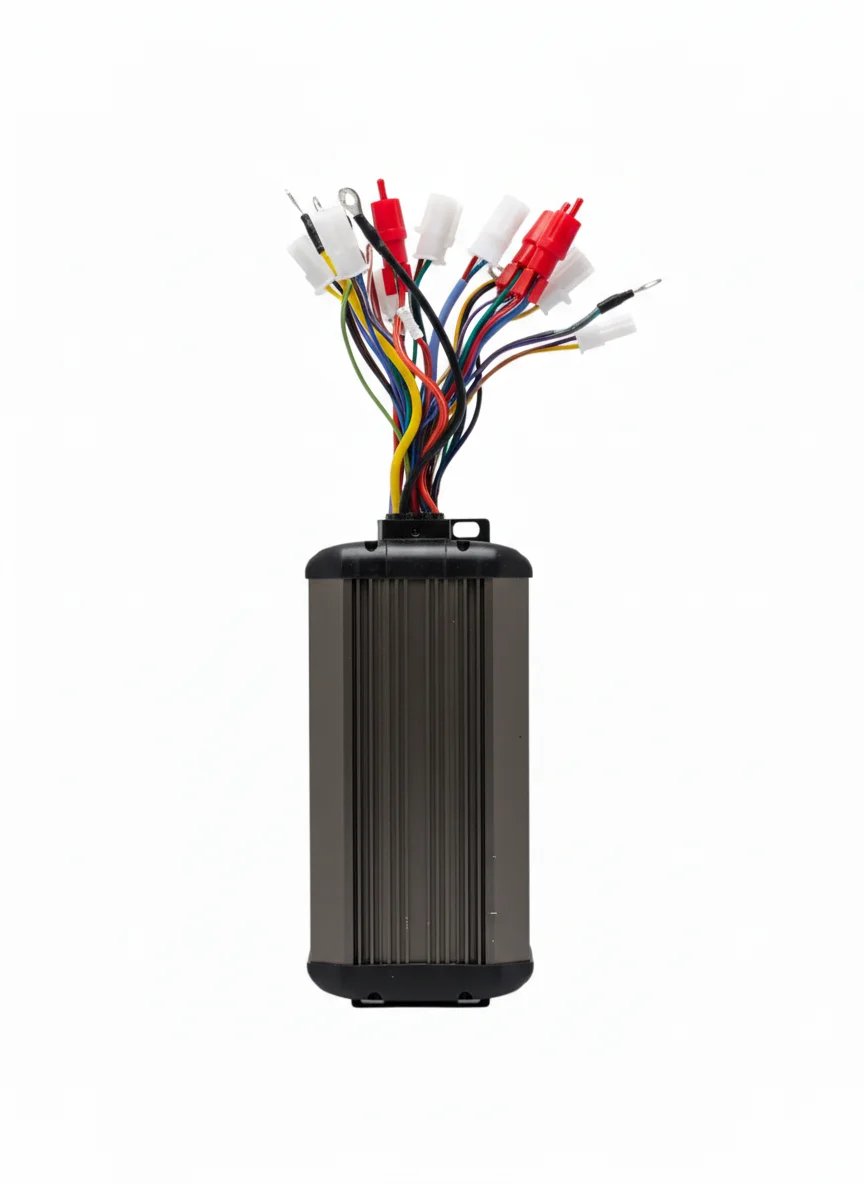

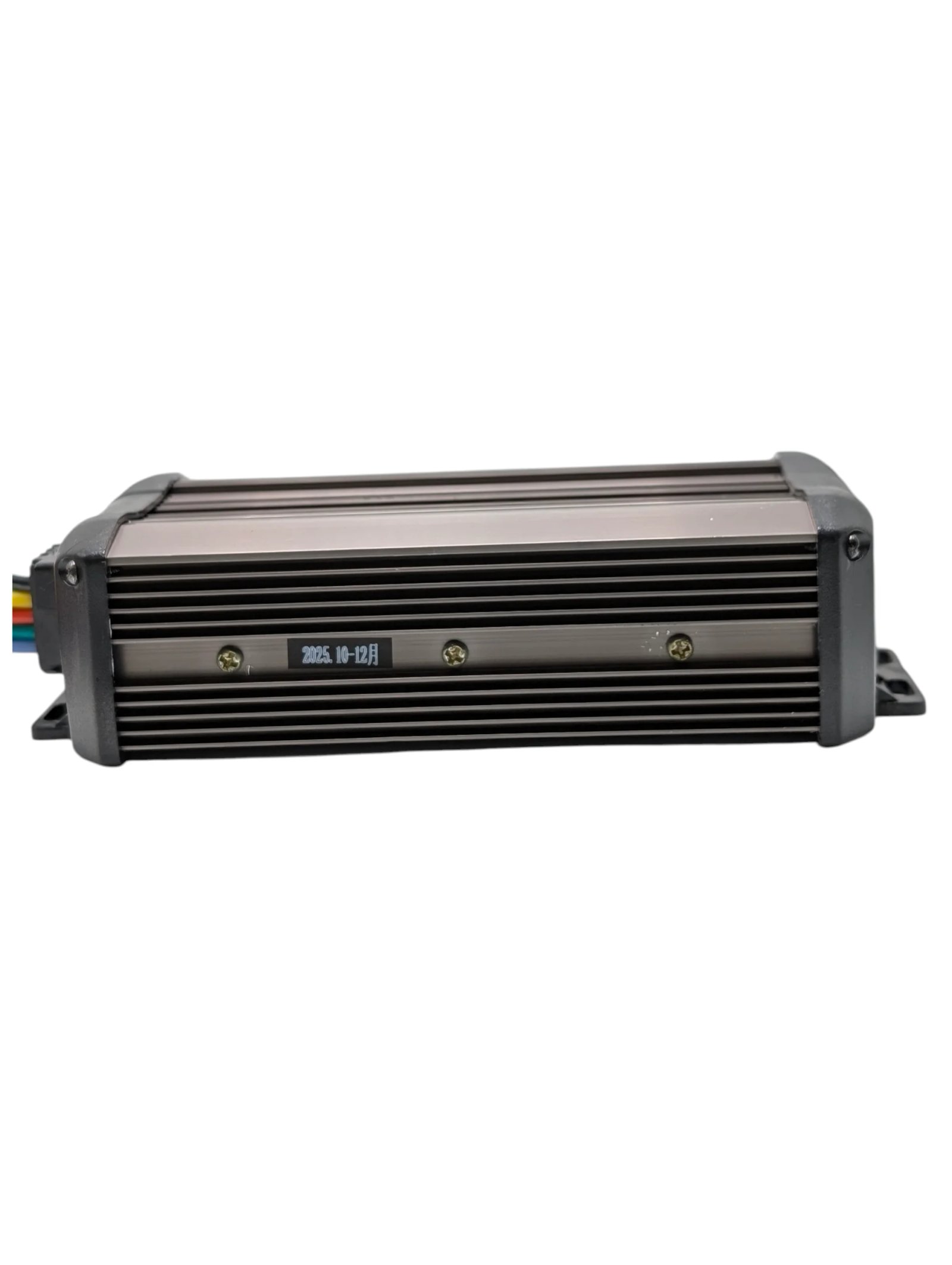

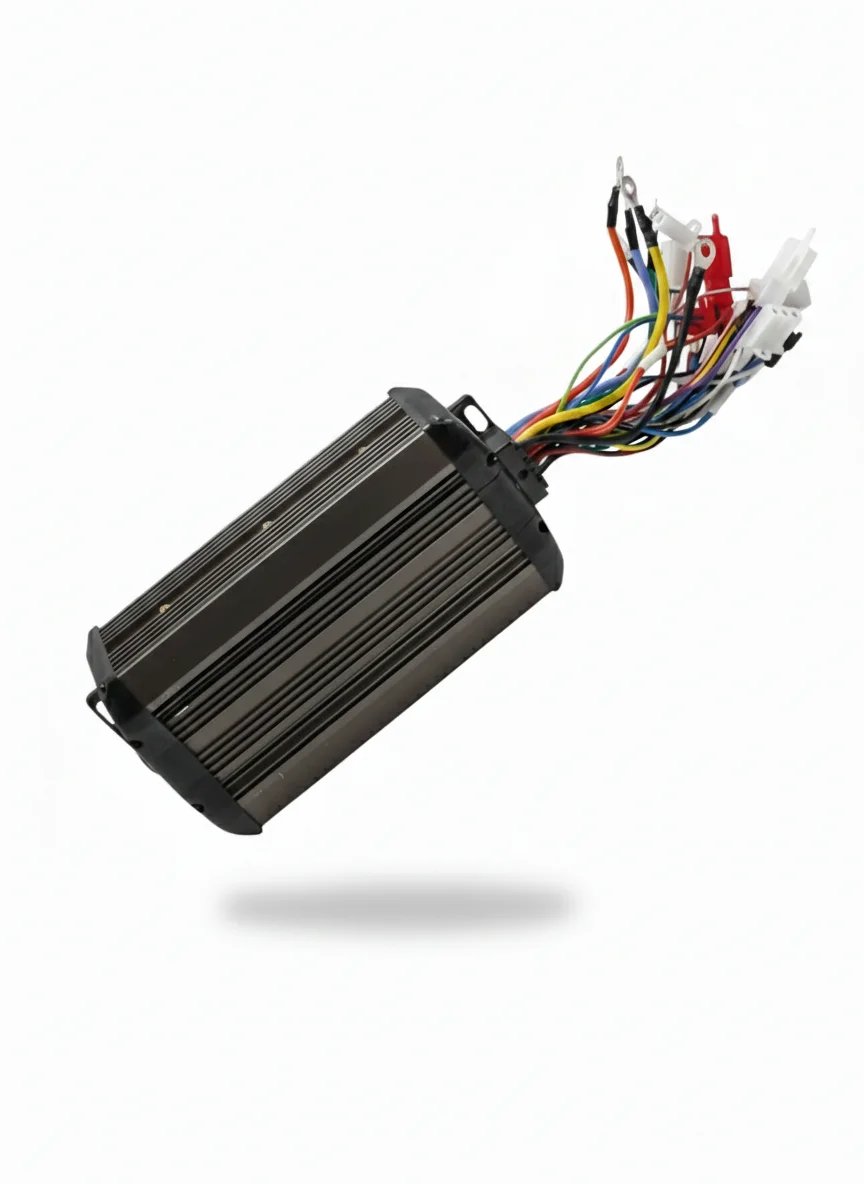

DC 48V 500W Brushless Motor Controller for E-bike Scooter Electric Bicycle

Description:

The DC 48–64V 500W Brushless Motor Controller is a high-efficiency control unit designed for electric bicycles, e-scooters, and light electric vehicles. It ensures smooth motor operation, stable power delivery, and reliable speed control for brushless DC (BLDC) motors.

Built with advanced protection features and durable electronic components, this controller supports Hall-sensor based brushless motors, delivering efficient performance, low noise, and long service life. It is ideal as a replacement or upgrade controller for 500W electric drive systems.

Specifications:

• Brand new
• Size: approx. 103*70*35mm
• Rated Voltage: 48-64V
• Rated Current: 30A
• Rated Power: 500W
• Matching Motor: Brushless motor
• Under Voltage Protection: 41V
• Throttle Voltage: 1V to 4.2V
• Phase Angle: 60/120 degrees
• Brake Level: Low /High
• Heat Dissipation: Natural cooling
• Ambient Temperature: -20 degrees to 50 degrees
• Protection Grade: IP55

Features:

• Motor brushless controller for electric bicycle & scooter.
• 12pcs MOS tubes.
• Fine workmanship.
• Easy to install.
• Long service life.

Operation Notice:

• Connect power, motor, and throttle, and power lock, but not connect the Hall lines. Connect the adaptive learning wire.
• Switch on the power lock, roll the throttle. If the motor works well, connect the Hall lines.
• If the motor rolling reversely, disconnect the adaptive learning wire and check the motor again, before connecting the Hall wire.

Package Included:

• 1 x Motor Brushless Controller

Note:

• Please allow 0-1cm size errors due to manual measurement.
• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
