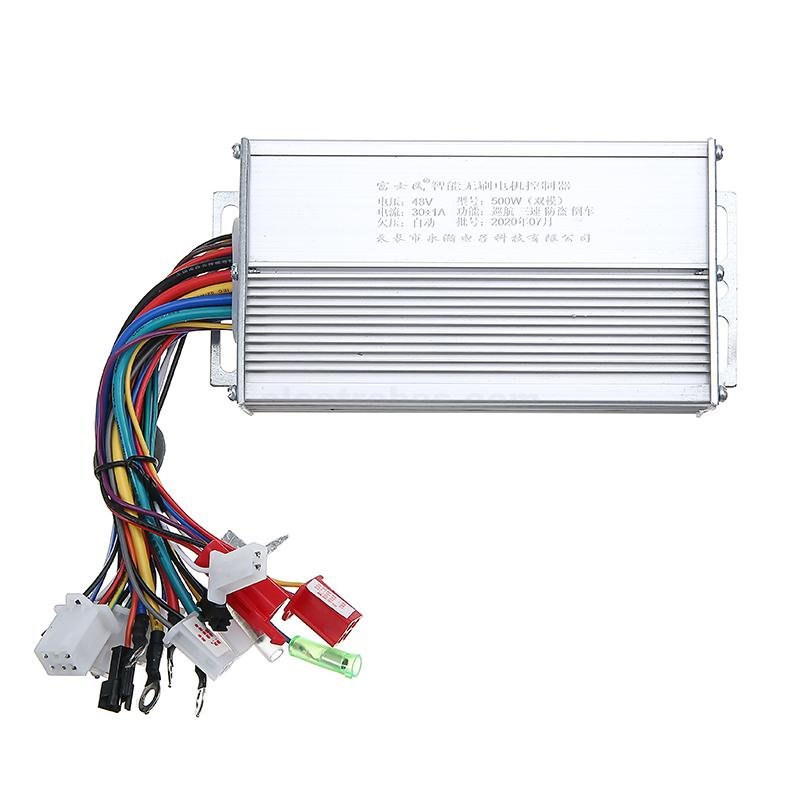

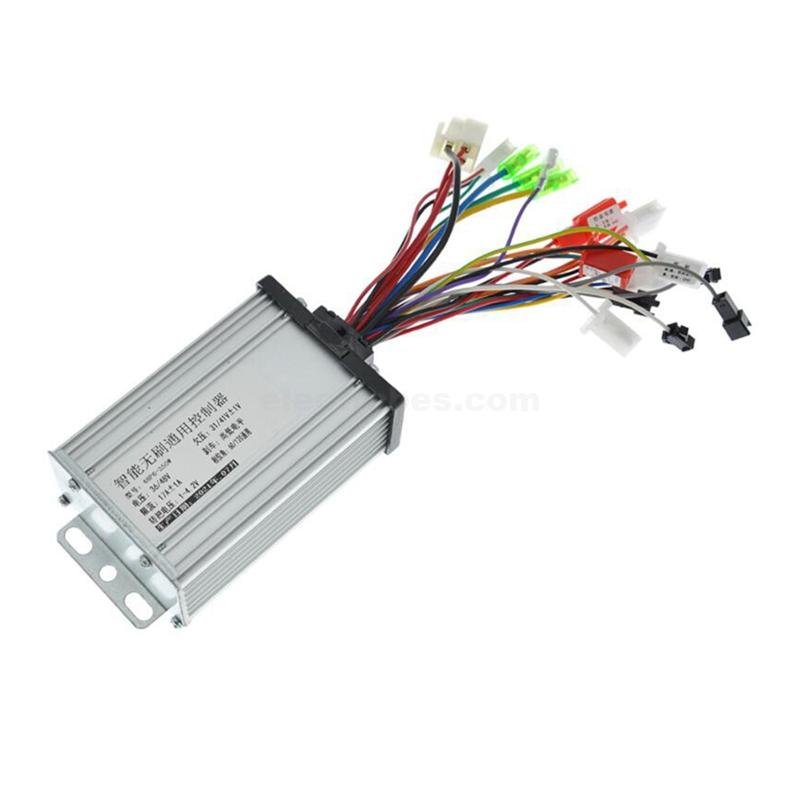

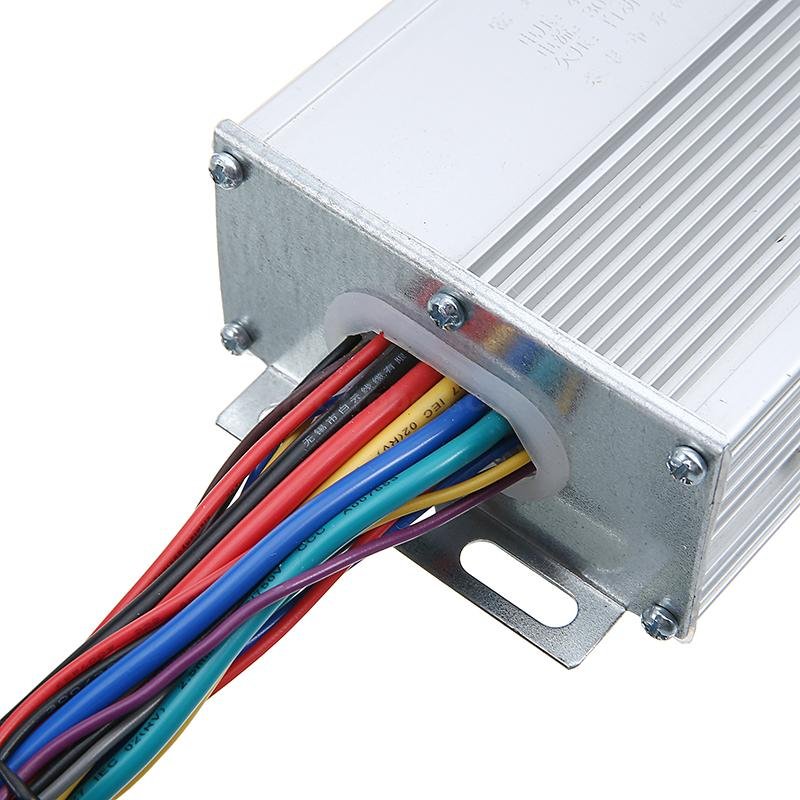

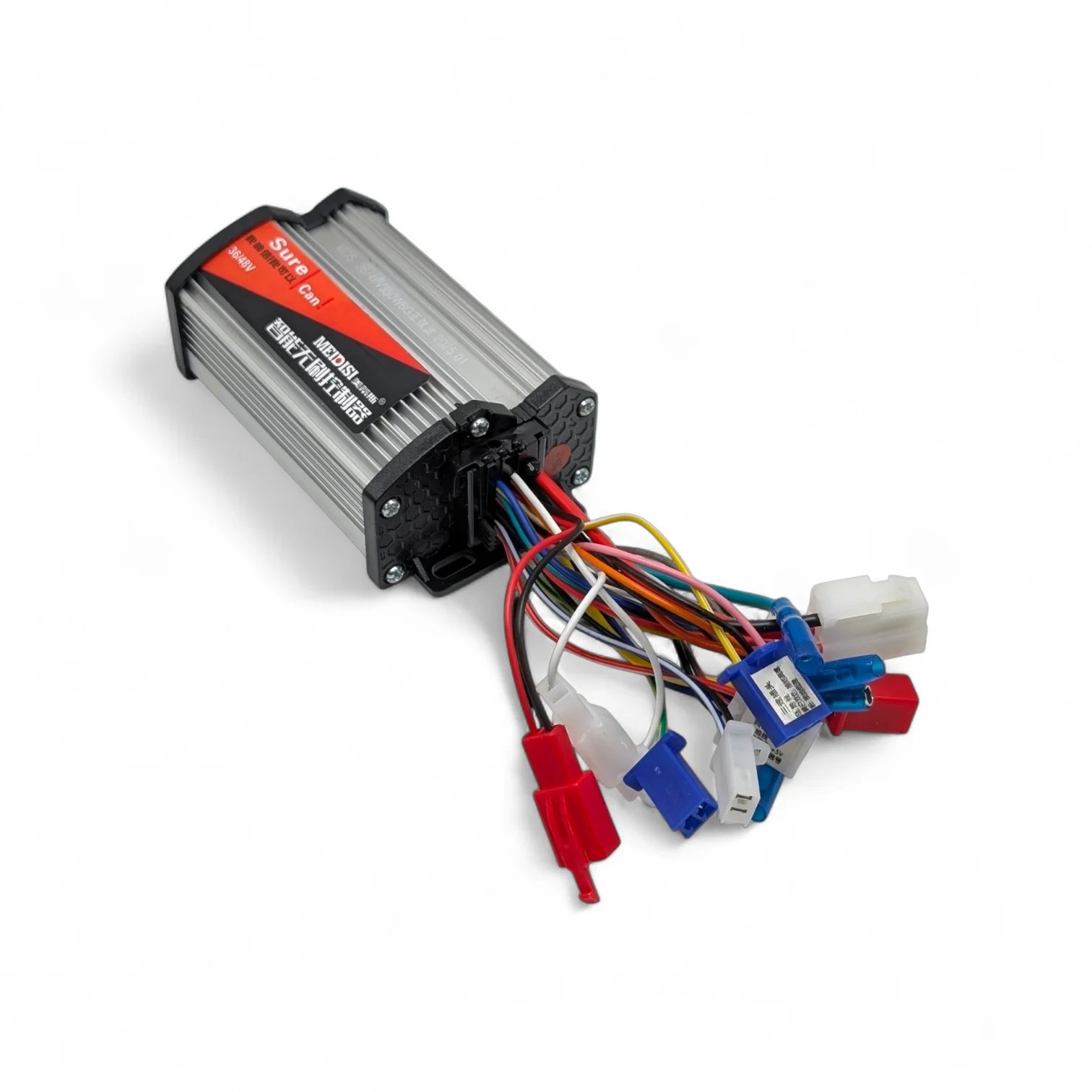

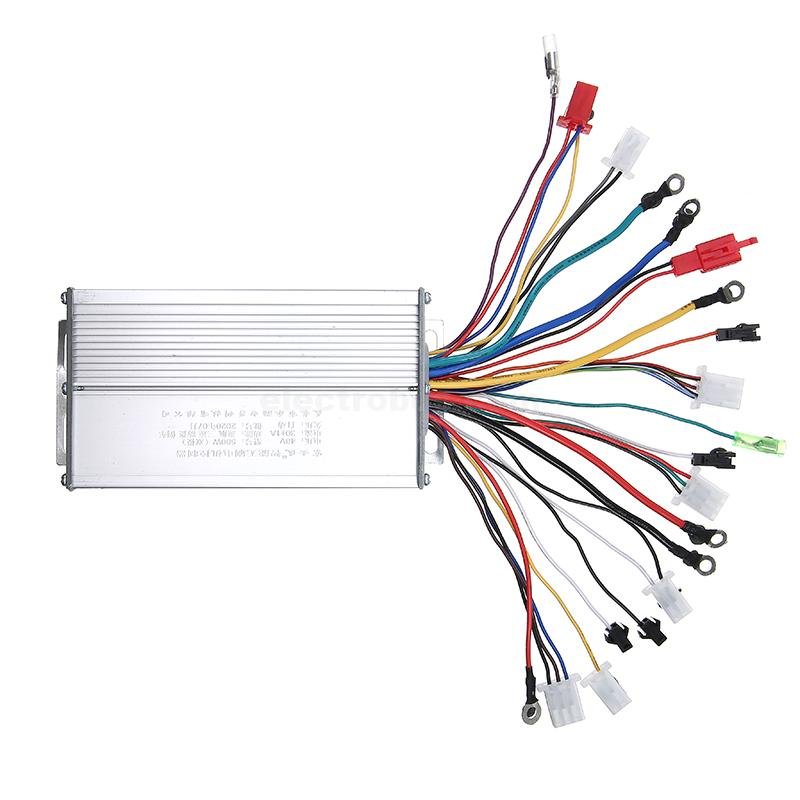

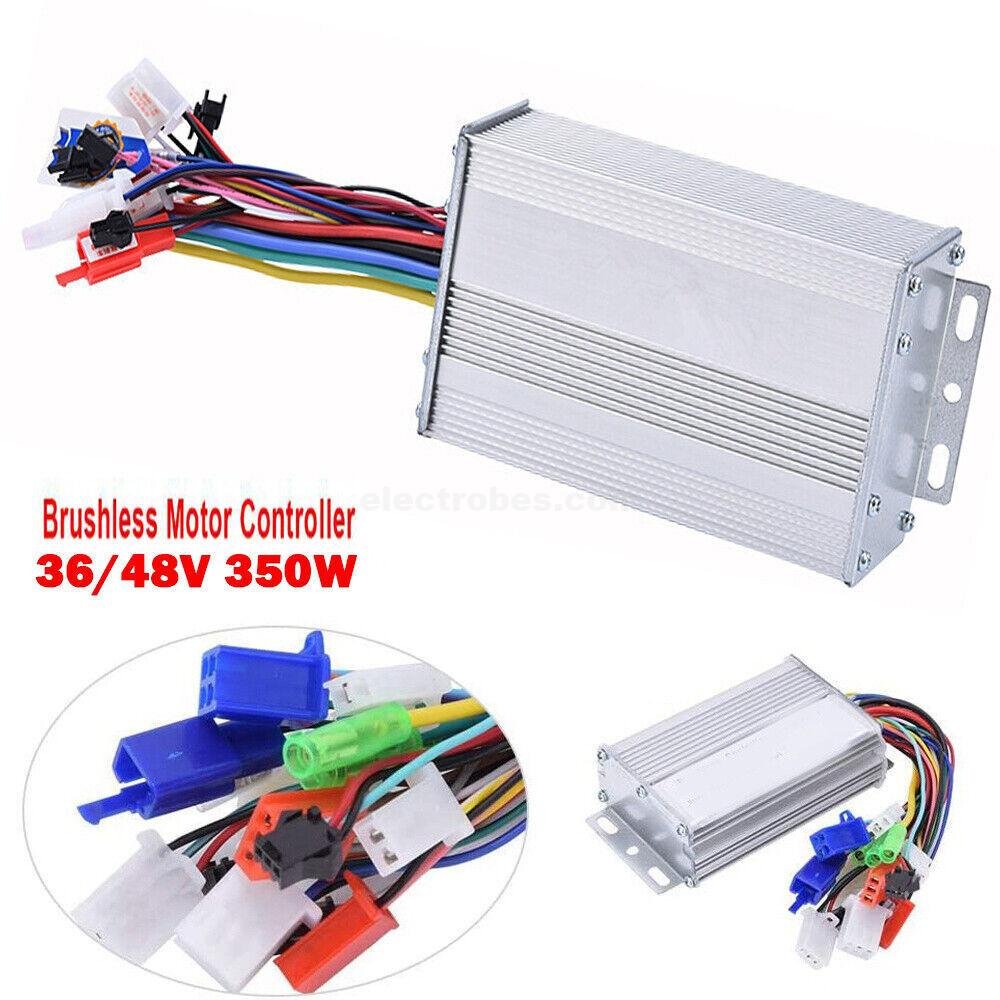

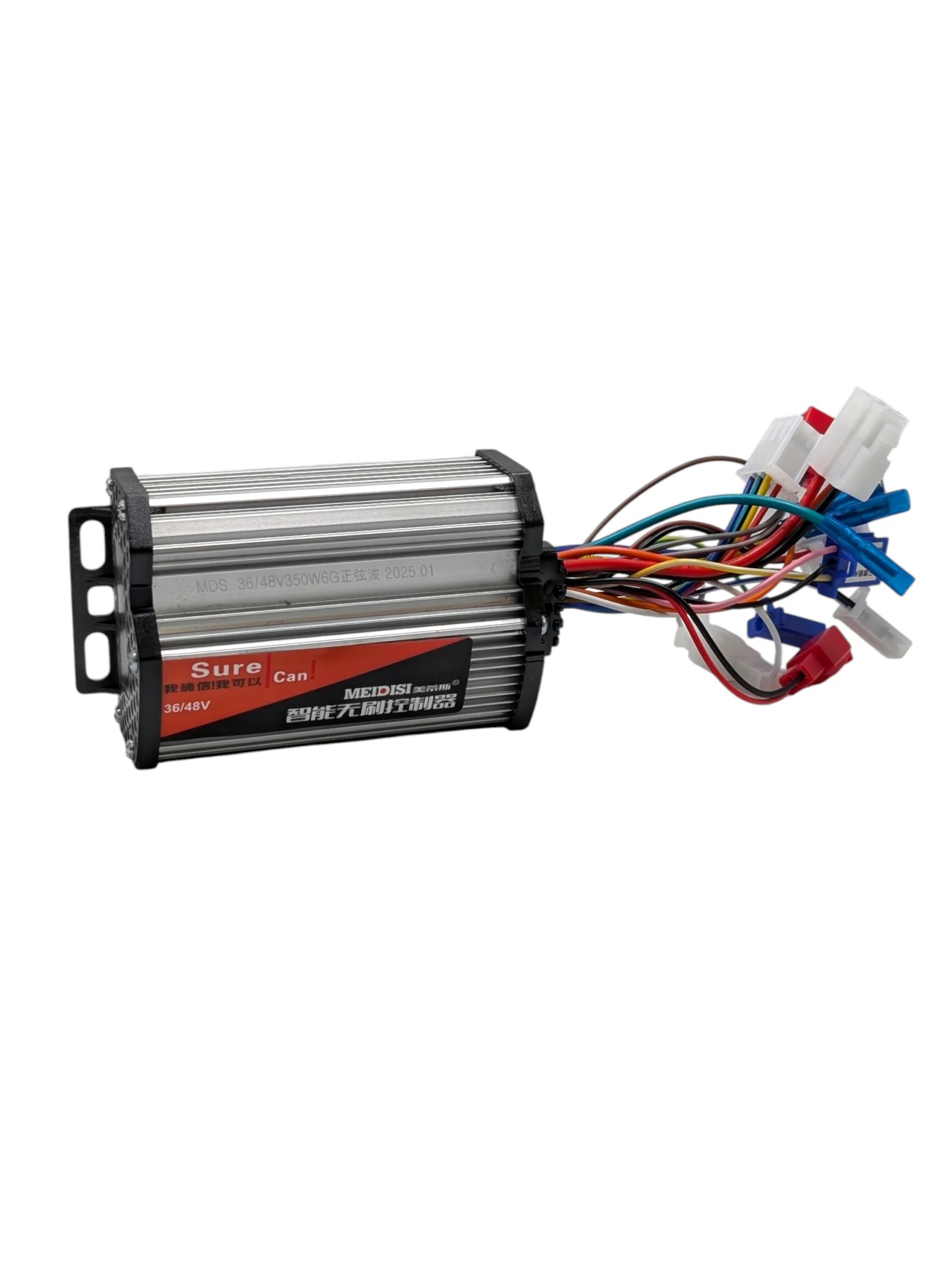

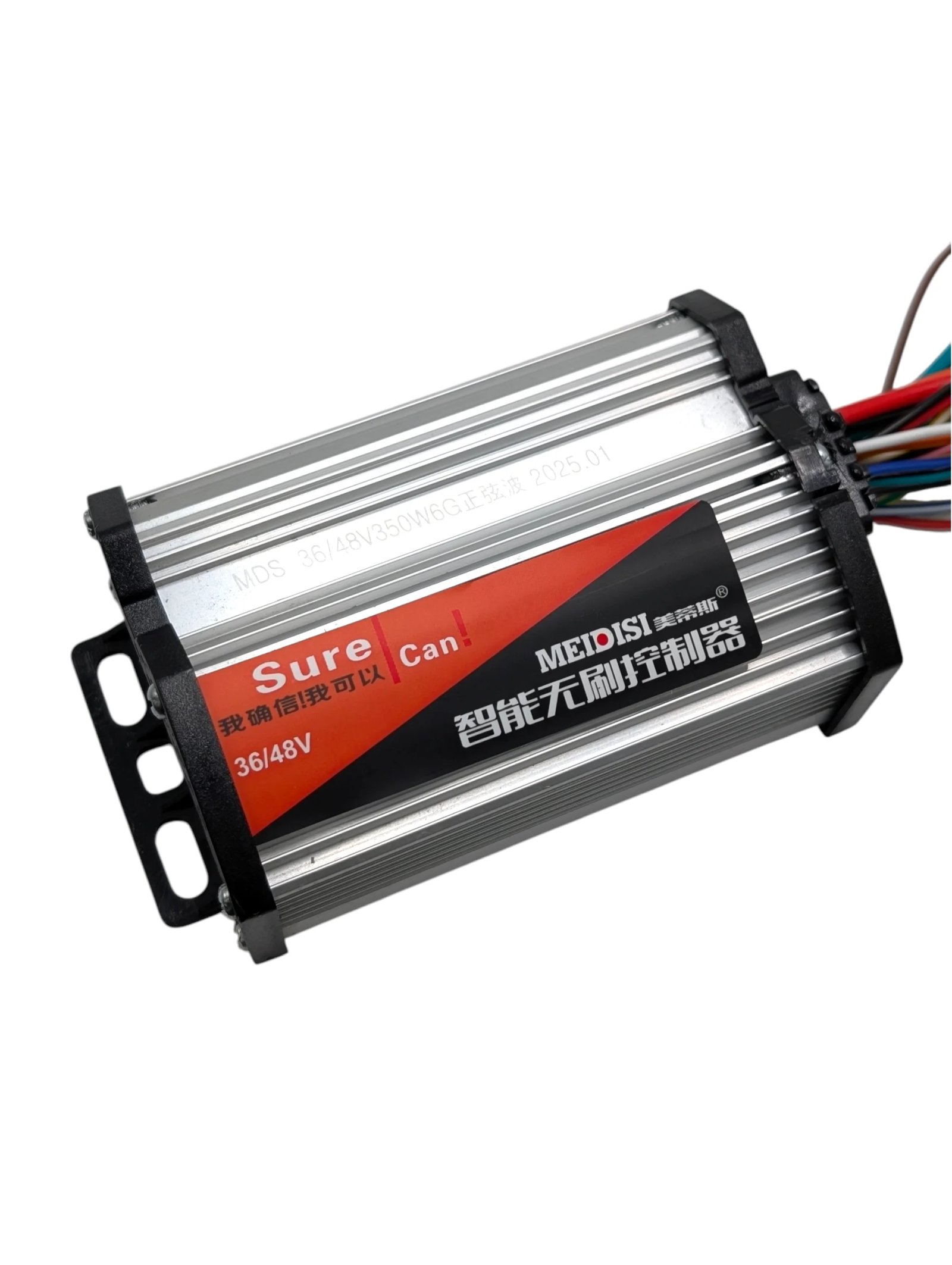

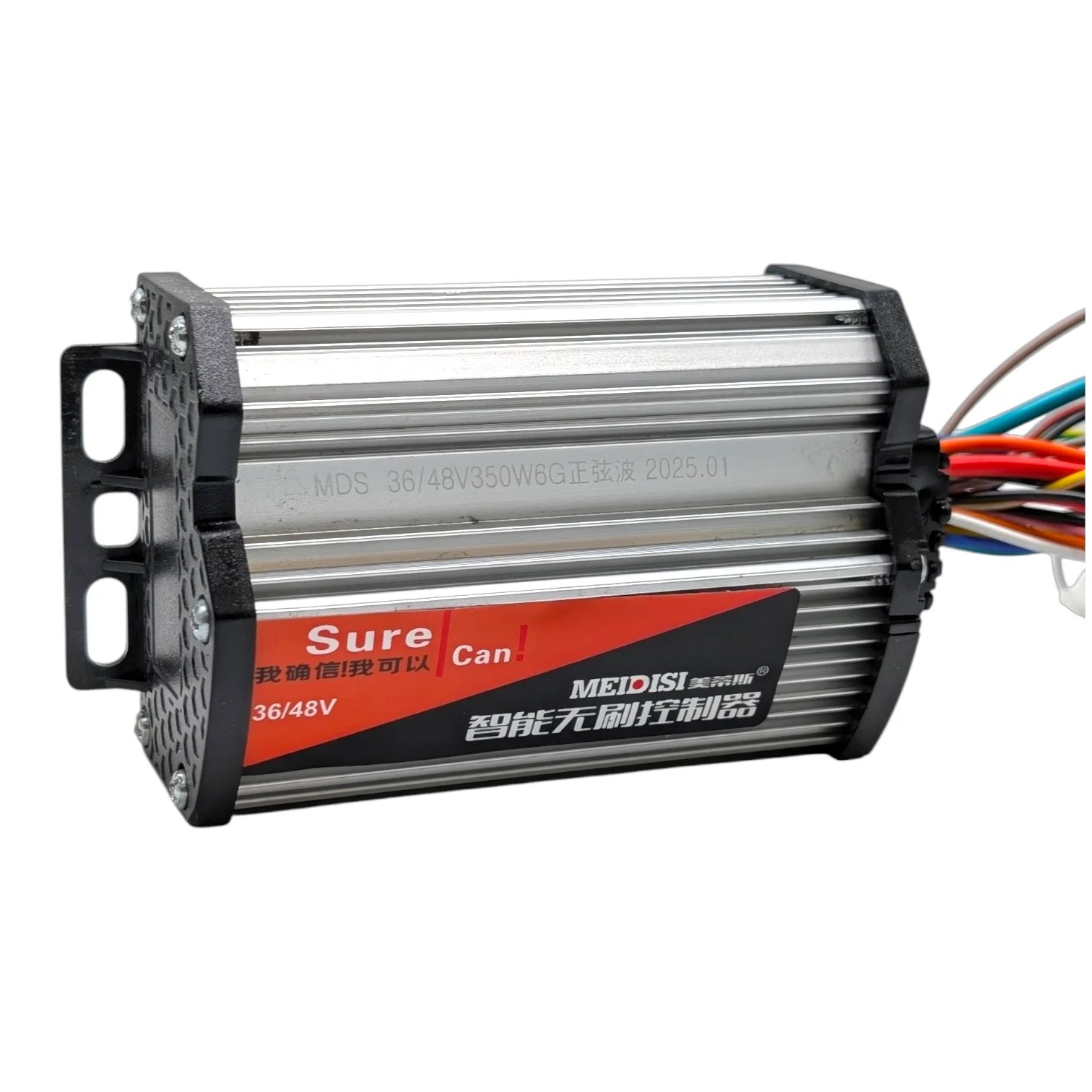

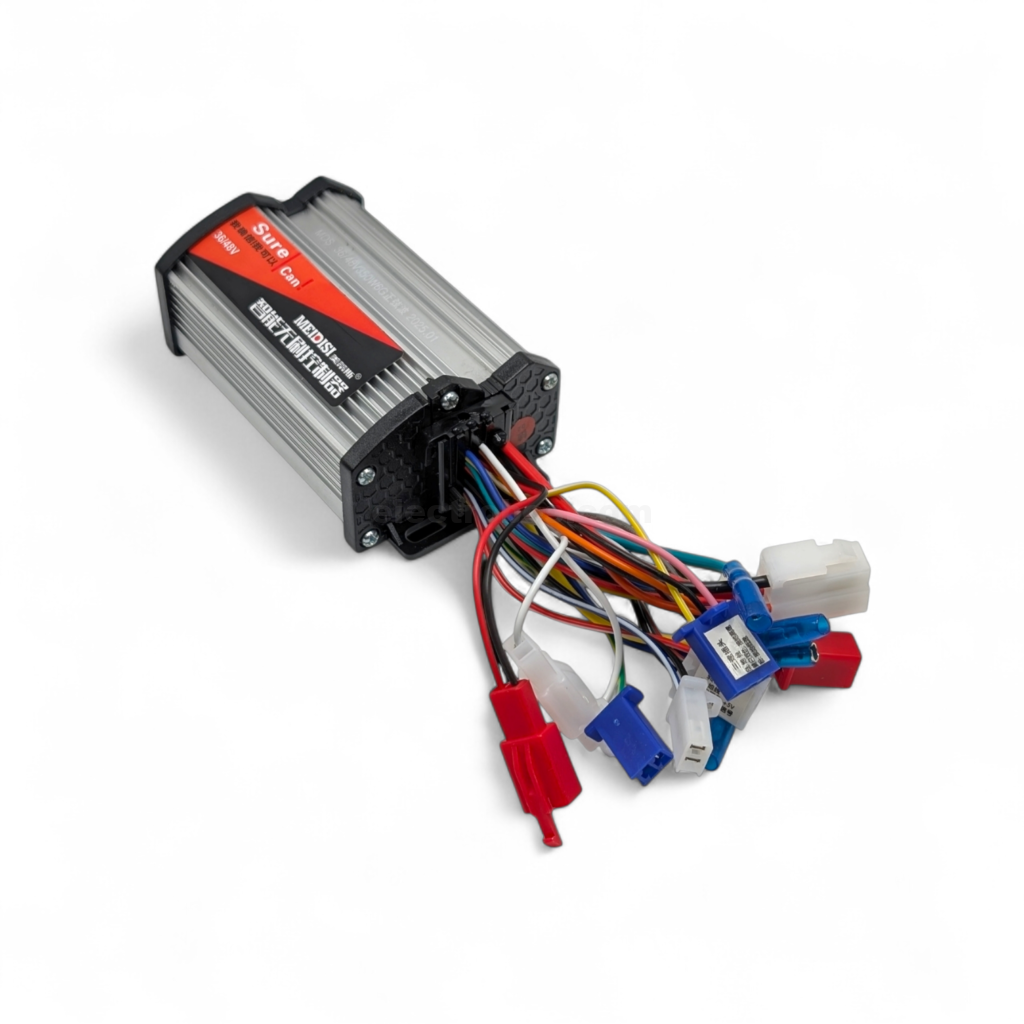

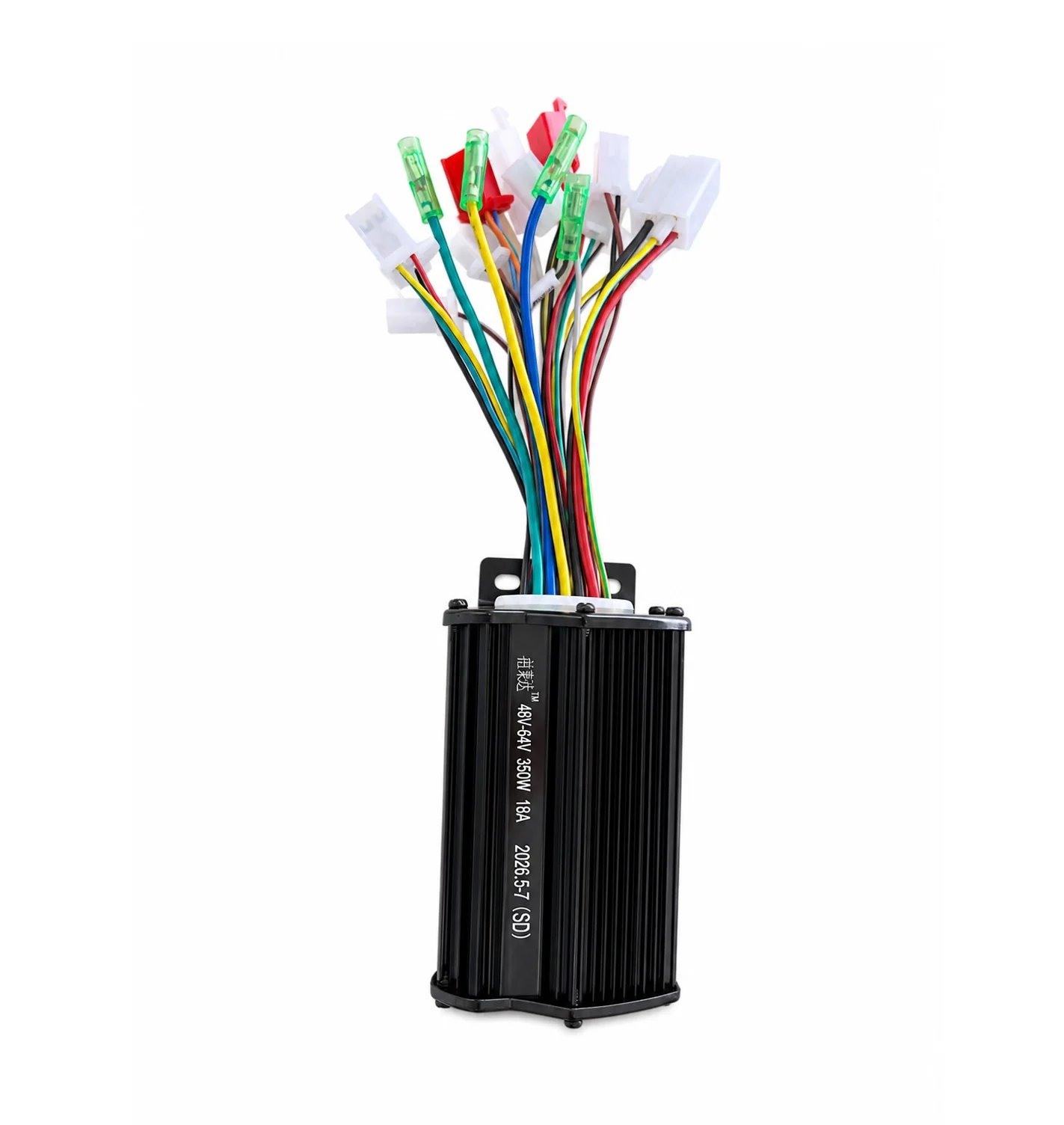

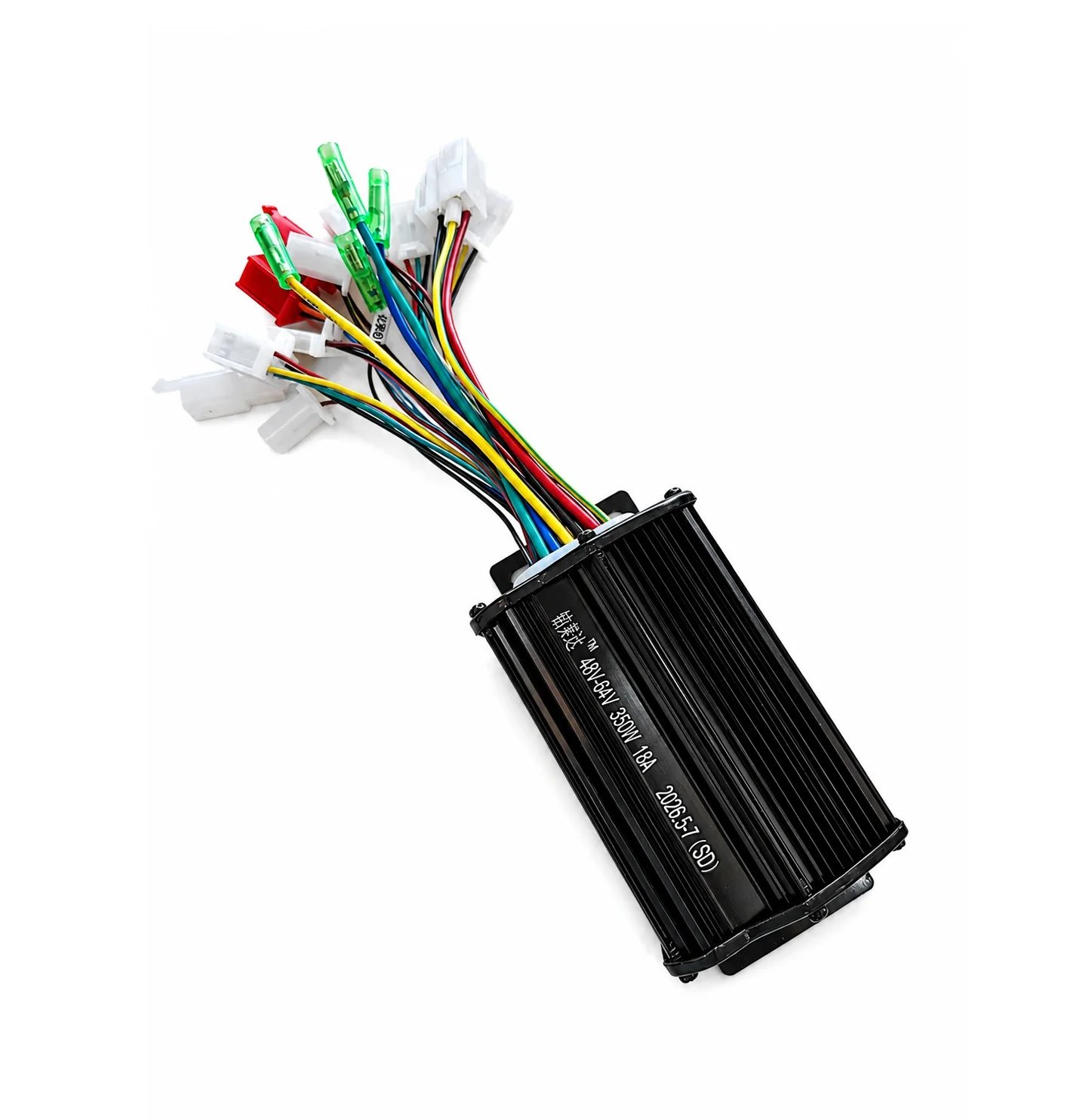

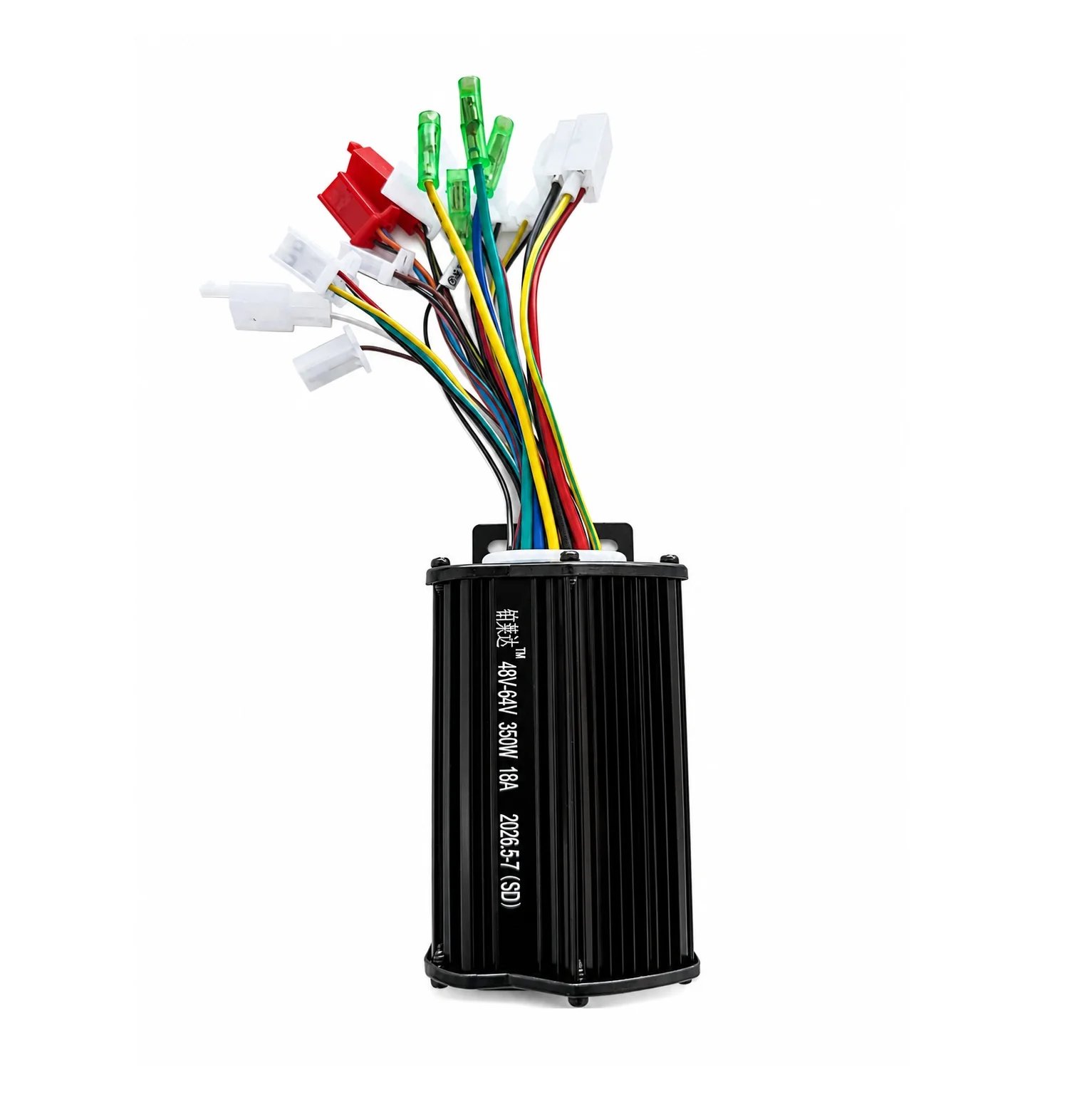

DC 48V 350W Brushless Motor Controller for E-bike Scooter Electric Bicycle

Description:

Waterproof designed brush-less motor controller for outdoor application.

Only those 8 wires(3 phase-cables & 5 hall-cables) DC brushless motor that can work with this controller, other brushless motors are not compatible.

It has 4 groups necessary cables(power cables, E-lock cables, Throttle-cables & Motor-phase cables), when hook up these 4 groups cables, the E-bike can run normally. Besides, these controllers have other optional functions, users can hook them up according to your applications.

Three-speed Anti- theft; EBS, Cruise.

Specifications:

• Brand new
• Size: approx. 103*70*35mm
• Rated Voltage: 48-64V
• Rated Current: 7A
• Rated Power: 350W
• Matching Motor: Brushless motor
• Under Voltage Protection: 41V
• Throttle Voltage: 1V to 4.2V
• Phase Angle: 60/120 degrees
• Brake Level: Low /High
• Heat Dissipation: Natural cooling
• Ambient Temperature: -20 degrees to 50 degrees
• Protection Grade: IP55

Features:

• Motor brushless controller for electric bicycle & scooter.
• 12pcs MOS tubes.
• Fine workmanship.
• Easy to install.
• Long service life.

Operation Notice:

• Connect power, motor, and throttle, and power lock, but not connect the Hall lines. Connect the adaptive learning wire.
• Switch on the power lock, roll the throttle. If the motor works well, connect the Hall lines.
• If the motor rolling reversely, disconnect the adaptive learning wire and check the motor again, before connecting the Hall wire.

Package Included:

• 1 x Motor Brushless Controller

Note:

• Please allow 0-1cm size errors due to manual measurement.
• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
