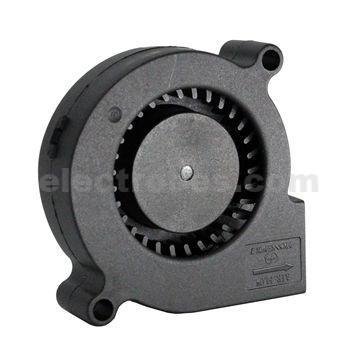

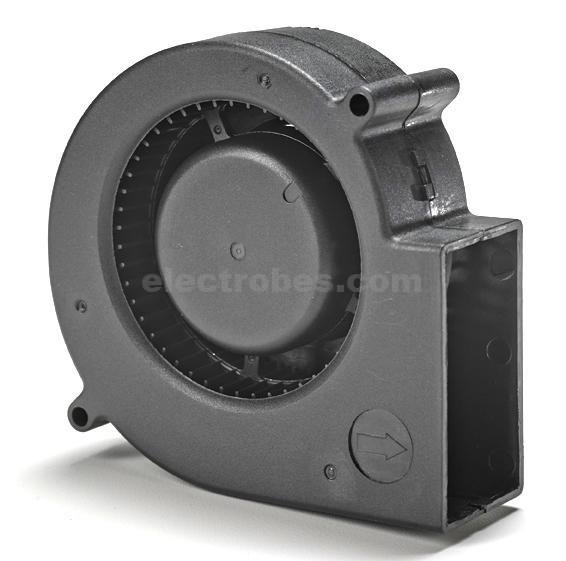

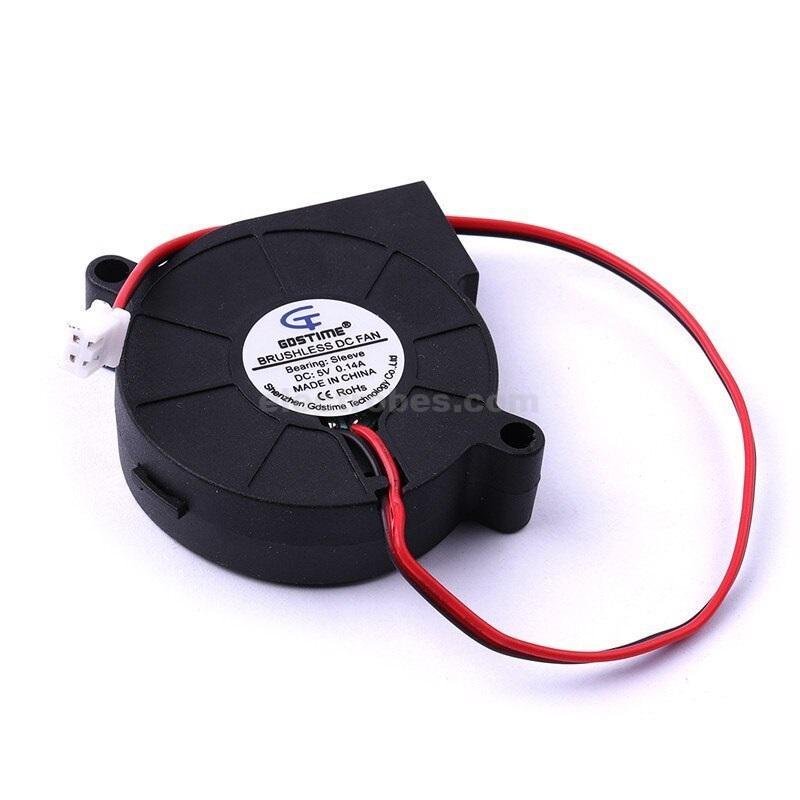

DC 5V Mini Blower Fan DC Turbo Brushless Cooling Fan
Compare Availability:
In stock
₨ 250
In stock
Features:
- The ideal production for cooling.
- Brushless DC fan Ultra quiet at medium speed, silent socket design
- Made from excellent flame retardant materials, it is safe and reliable.
- It is small, delicate, thin and strictly functional.
Notes:
- Check the voltage whether fit your need, power the fan with corresponding voltage.
- Make sure the “+” (RED wire) and “－”（Black wire）are connected to power correctly.
- Nominal voltage: DC 5V.
- Nominal current: 0.14A.
- Power: 1.75W.
- Blast capacity: 4.59CFM.
- Shell material: PBT & 30% fiberglass & V0 retarder.
- Blade: 5015S.
- Turbine diameter: 48mm.
- Wire length: about 20cm.
- Rotation speed: 5000 rpm.
- Net Weight: about 30g.
- Size: 60x60x15 mm
- Frame: Plastic (black) 94V-0
- Impeller: Plastic (black) 94V-0
- Lead wires: UL type or equivalent, red +, black –
- Operating temperature: -10℃ ~ +70℃, 5% ~ 90%RH
- Storage temperature: -40℃ ~ +80℃, 5% ~ 90%RH
- Optional bearing types: Ball bearing(B)/sleeve bearing(S)/hydraulic bearing(R)
