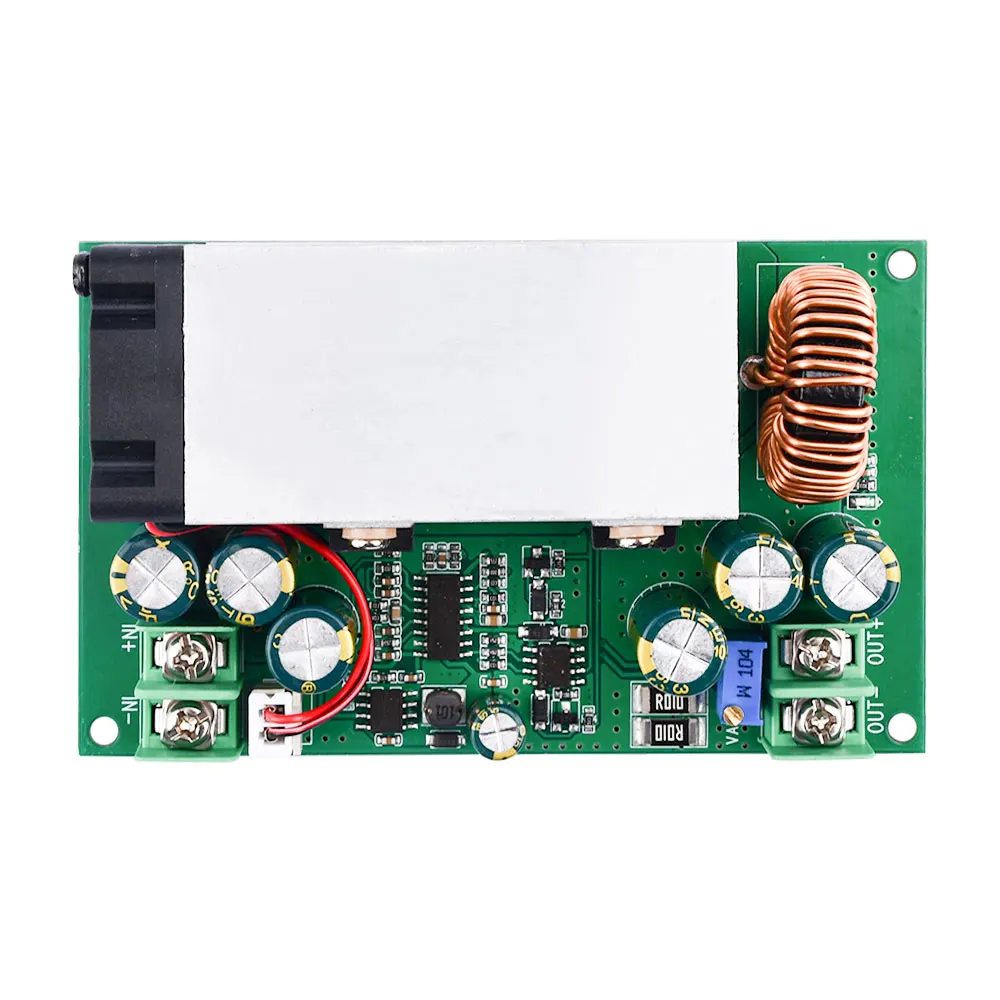

600W DC-DC Buck Converter – Overview

This module is a high-power step-down (buck) converter designed for solar systems, battery banks, and high-current DC loads. It typically uses multiple MOSFET switching stages + large inductors + heavy heatsinking.

Unlike small modules (XL4015/4016), this is a semi-industrial DC regulator board.

Core Specifications

Electrical Parameters

• Input Voltage: 12V – 75V DC
• Output Voltage: 2.5V – 50V DC (adjustable)
• Maximum Output Current: 25A
• Maximum Output Power: 600W
• Efficiency: Up to ~95%

Regulation & Control

• Conversion Type: Step-down (buck topology)
• Control Mode:
  • Constant Voltage (CV)
  • Constant Current (CC)
• Adjustment:
  • Voltage potentiometer
  • Current limiting potentiometer

👉 This CV/CC capability makes it usable as a battery charger module.

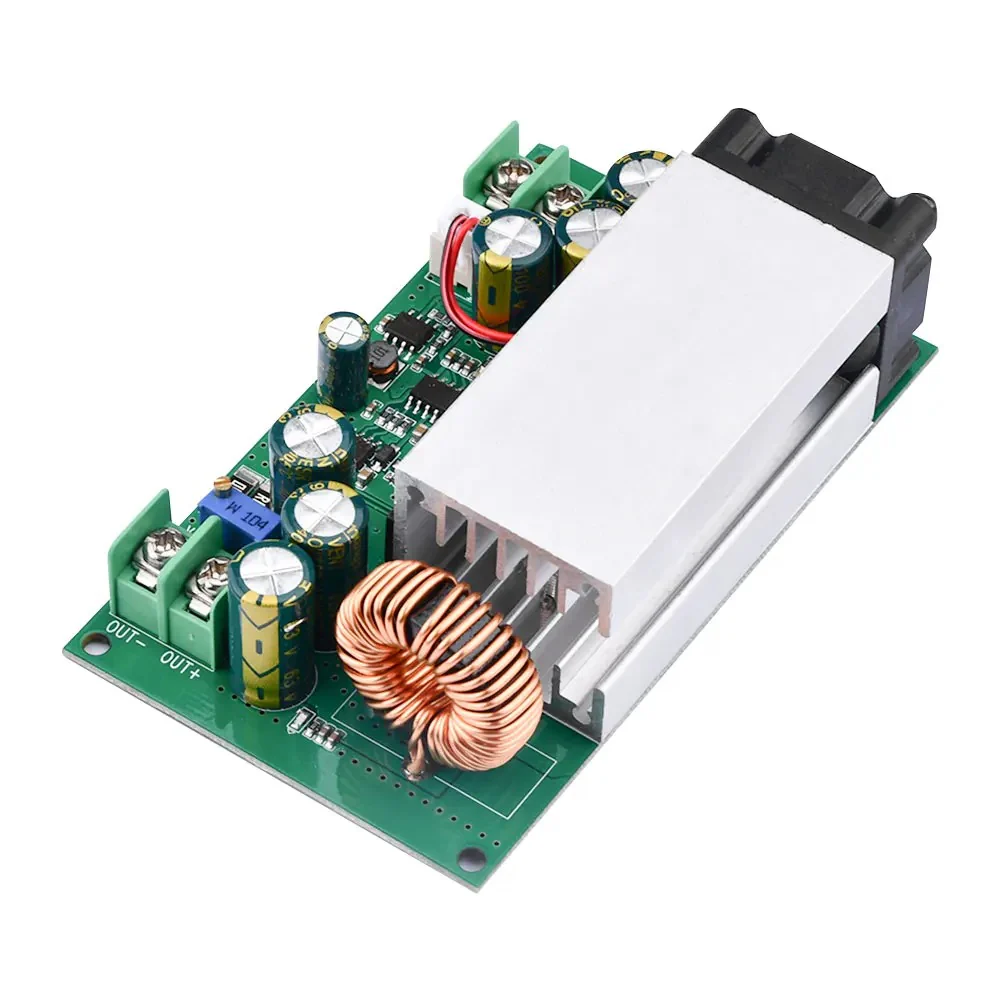

Thermal & Mechanical Design

• Cooling System:
  • Large aluminum heatsink
  • Often dual cooling fans (in many variants)
• Construction: Heavy-duty PCB with thick copper traces
• Mounting: Screw terminals for high current connections

Protection Features

Typical protections include:

• Over-current protection
• Short-circuit protection
• Thermal protection
• Input undervoltage lockout (varies by version)

Working Principle (Simplified)

• Uses high-frequency PWM switching
• Multiple MOSFETs switch input DC
• Inductor smooths current
• Feedback loop regulates voltage/current

👉 Same principle as XL4016, but scaled for much higher current and power density

Key Features

• High power capability up to 600W
• Wide input range (good for solar panels)
• Adjustable voltage and current
• High efficiency (~95%)
• Suitable for continuous heavy loads
• Integrated heat dissipation system

Typical Applications

• Solar panel → battery charging
• DC power supplies (lab / workshop)
• EV / e-bike battery regulation
• High-power LED drivers
• Motor controllers
• Telecom or backup systems

Real-World Performance (Important Reality Check)

1. 600W is NOT continuous in most cases

• Real continuous power:
  • 300–450W without aggressive cooling
  • Full 600W requires:
    • Strong airflow
    • Good input voltage margin
    • Proper wiring

2. Current capability reality

• Rated: 25A
• Practical:
  • ~15–20A stable continuous
  • 25A = peak / short-duration

3. Input vs Output relationship

Example:

• Output: 12V × 25A = 300W
• Input (90% efficiency):
  • ≈ 333W
• At 12V input → ~28A input current ⚠️ (very high)

👉 This is why:

• Thick wires
• Proper connectors
• Cooling

are mandatory.

4. Voltage headroom requirement

• Input must be ≥ output + ~3–5V
• Example:
  • For 48V output → need ~52–55V input minimum

Advantages

• Very high power for low cost
• Wide voltage range (solar-friendly)
• CV + CC functionality (charging capable)
• High efficiency (~90–95%)
