DS18B20 Temperature Sensor Waterproof Digital Thermal Probe Temp Sensor – 1M Lead Length
- Sensors For Arduino DS18b20 Temperature Sensor Module
- Product Type : Temperature sensor Module
- Voltage range : 3.5 – 5V DC
- Length : 100 cm.
Availability:
In stock
₨ 280 ₨ 290
In stock

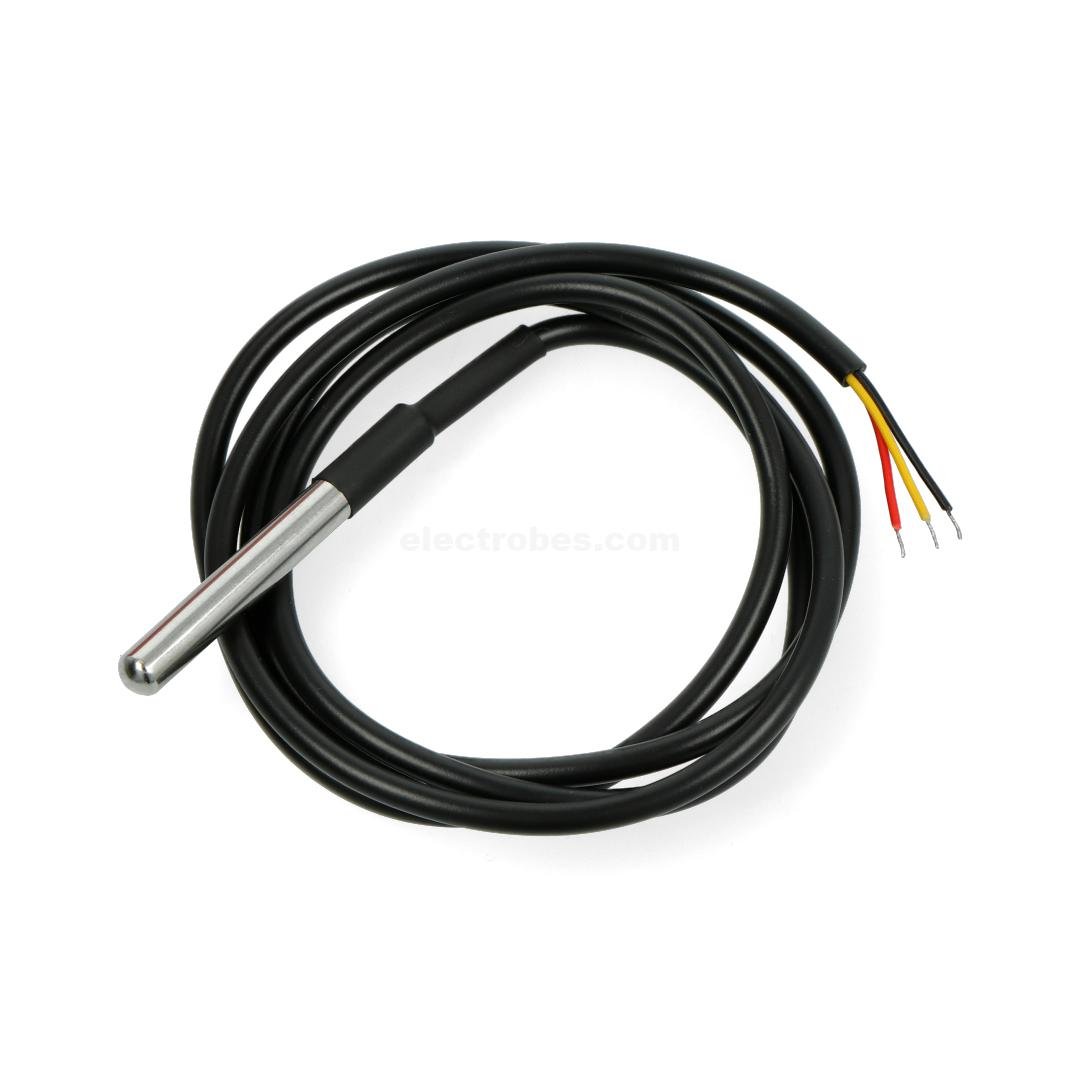

DS18B20 Temperature Sensor Waterproof Digital Thermal Probe Temp Sensor – 1 Meter Lead Length
Description:
- This is a waterproofed version of the DS18B20 Temperature sensor.
- Handy for when you need to measure something far away, or in wet conditions.
- While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C.
- Because they are digital, you don’t get any signal degradation even over long distances.
- The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor. Usable with 3.0-5.5V systems.
- Because each DS18B20 contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus.
- This allows for placing temperature sensors in many different places.
- Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings, equipment or machinery, and process monitoring and control.
Features:
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into chip
- Multiple sensors can share one pin
- Temperature-limit alarm system
- Query time is less than 750ms

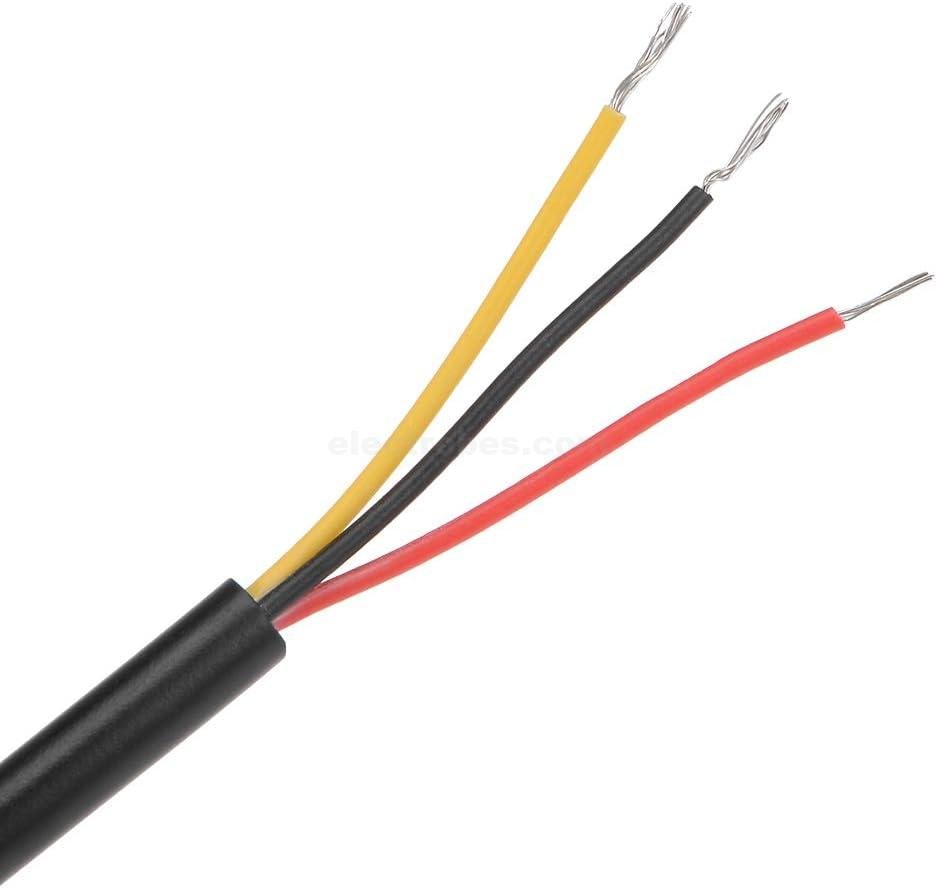

3 wires interface:
- Red wire – VCC
- Black wire – GND
- Yellow wire – DATA
Package Includes:
1 x DS18B20 Temperature Sensor
- Power Supply: 3.0V – 5.5V
- Lead Length: 1M / 39.37″

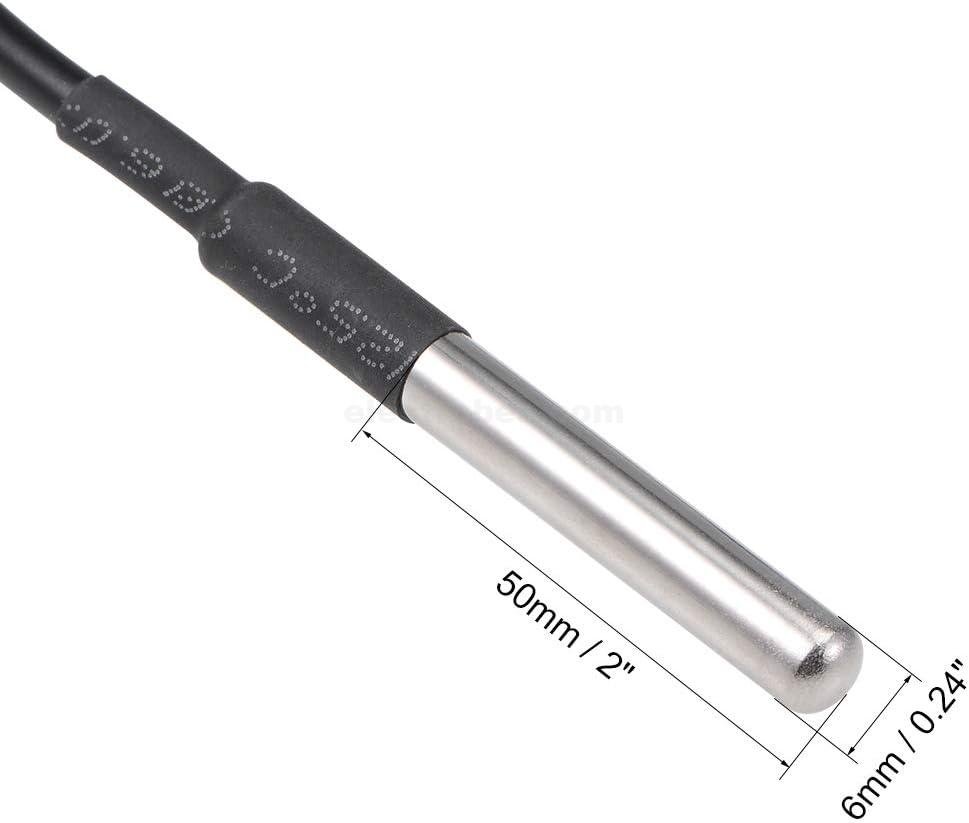

- Housing Size: 6mm x 50mm / 0.24 x 2″ (D*L)
- Temperature Sensing Range: -55 ℃ ~ +125 ℃
- Material: Stainless Steel, Plastic
