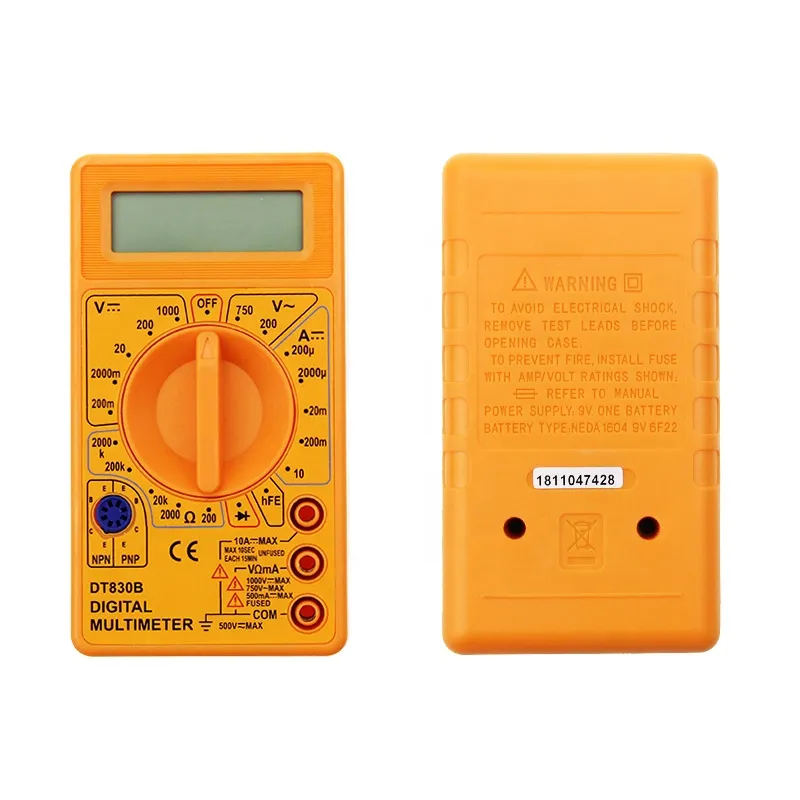

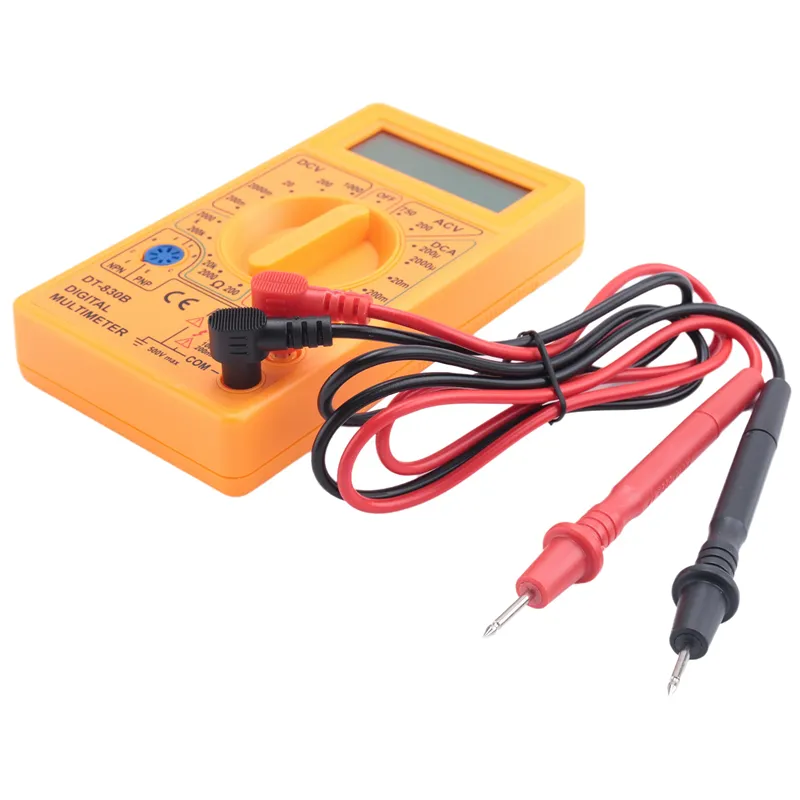

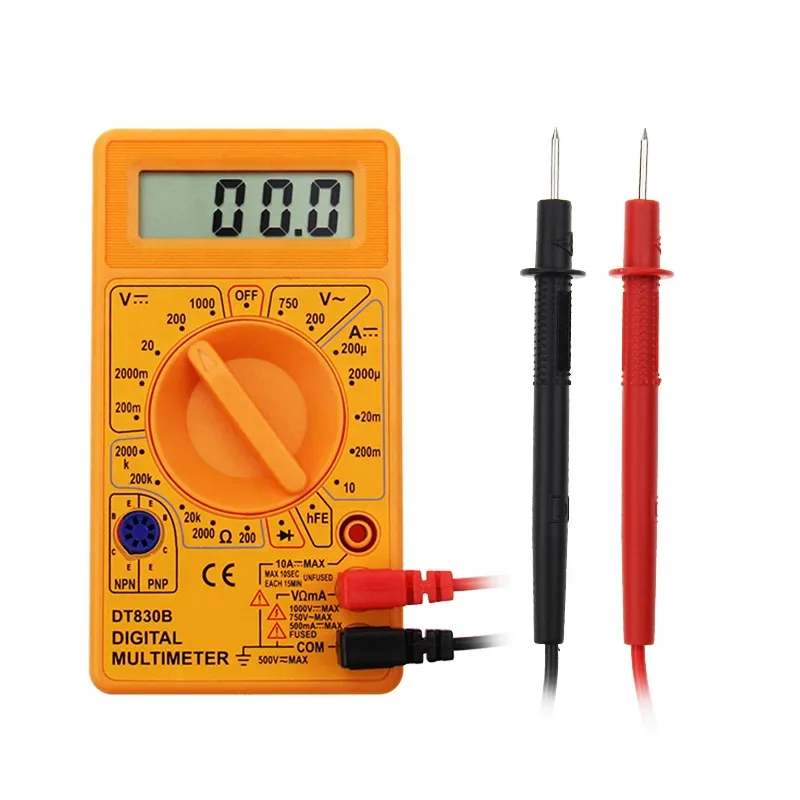

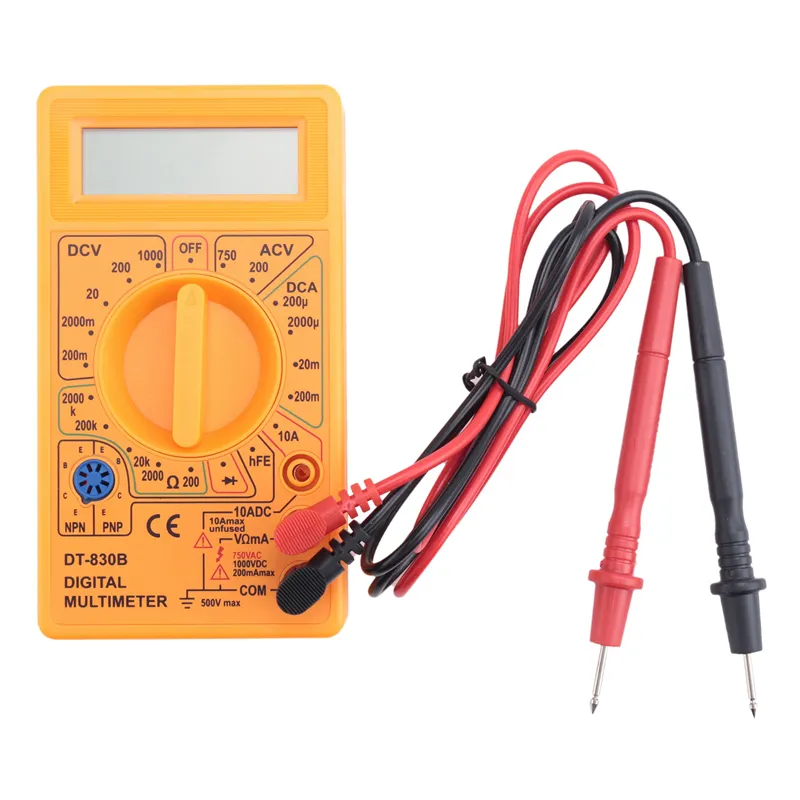

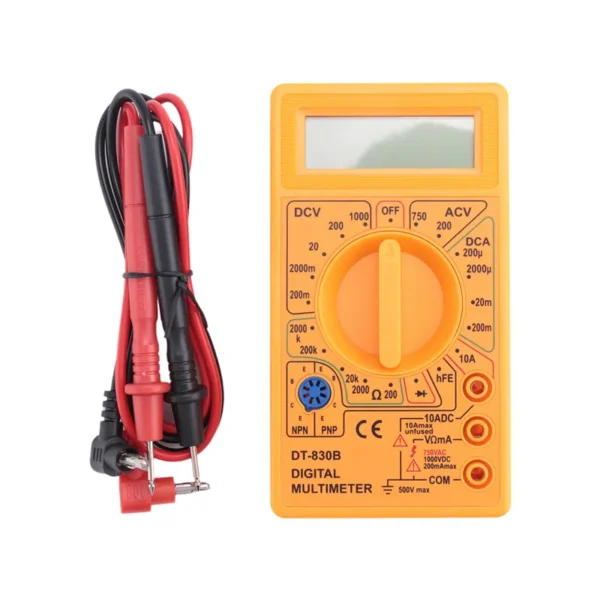

DT-830D Mini Pocket Digital Multimeter
- DT-830D Digital Multimeter with Buzzer Square Wave Output Voltage Ampere Ohm Tester Probe DC AC LCD Overload Protection
- With double fuse, safe and reliable.
- 3 1/2 Digital LCD display, maximum display 1999.
- Diode and transistor testing, continuity and buzzer measurement.
In stock
₨ 750
In stock
DT-830D Mini Pocket Digital Multimeter DMM
Features:
- Simple and easy, suitable for beginners.
- With double fuse, safe and reliable.
- 3 1/2 Digital LCD display, maximum display 1999.
- Diode and transistor testing, continuity and buzzer measurement.
- With test probe leads, wide range of application.
Specifications:
- Colour: yellow
- Material: ABS
- Size: 12.4 x 6.9 x 2.4cm
Package Contents:
1 * Multimeter with Probes
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.with a plastic protective cover, good contact, safe and reliable.
- Product Name : Digital Multimeter
- DC Voltage Measuring Range : 200mV-1000V, Accuracy Level : ±(1.0%+2dgt)
- AC Voltage Measuring Range : 200V-750V, Accuracy Level : ±(2.0%+10dgt)
- DC Current Measuring Range : 200μA-200mA, Accuracy Level : ±(1.5%+2dgt)
- Resistance Measuring Range : 200Ω-2000KΩ, Accuracy Level : ±(1.2%+2dgt)
Operating Instructions:
- To avoid electrical shock hazard and/or damage of the instrument. Do not measure voltages that might exceed 500V above earth ground.
- Before the use of instrument,inspect test leads,connectors and probes for cracks,or crazes in the insulation
- Diode and Triode : YES
- Power Supply : 9V.ONE Battery
- Max. Display : 1999
- Dimension : 122*67*21mm
- Color : Yellow
