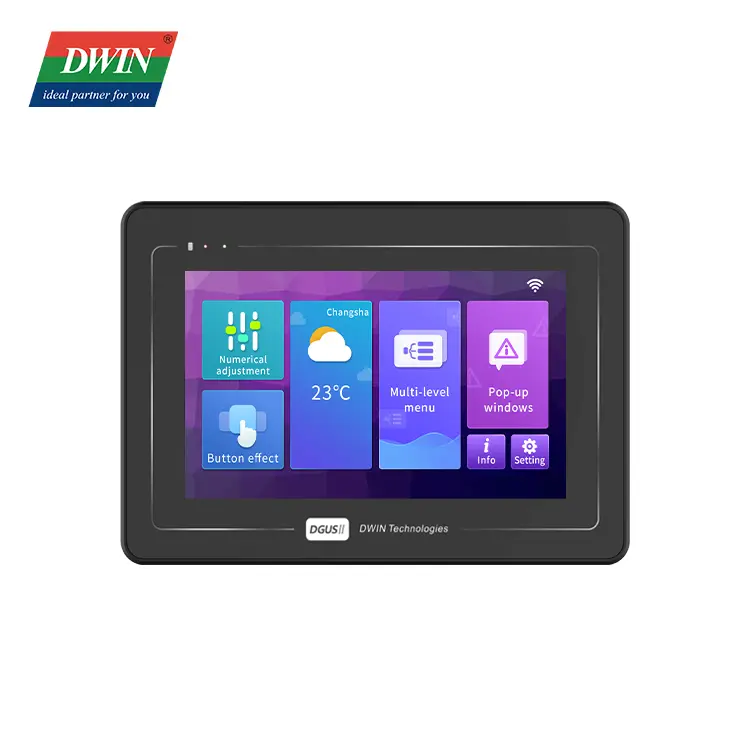

DWIN 7.0 inch IPS TFT, Capacitive Touch, RGB Interface, IPS TFT 1024×600 250nit lCD Display With Case, DMG10600T070_A5WTC

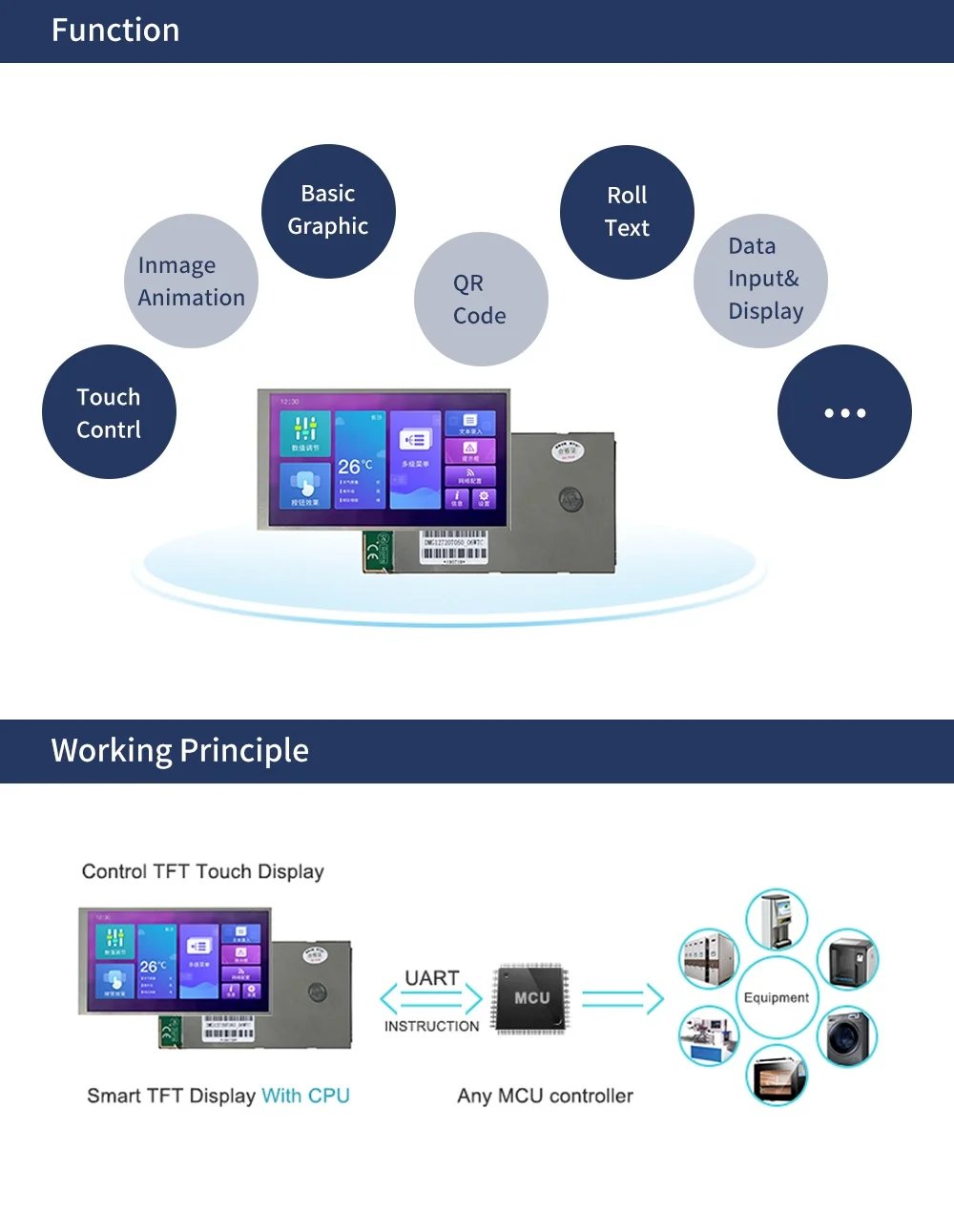

The DWIN DMG10600T070-A5WTC is a 7.0-inch, industrial-grade Intelligent HMI (Human Machine Interface) capacitive touchscreen display module. It is powered by the T5L2 ASIC, supporting the DGUS II system for GUI development. It is commonly used in industrial automation, control panels, and embedded systems.

Features:

• User-Friendly Development: Supports DGUS V7.6 GUI tools (no coding required) or custom C51/ASM development.
• High Performance: Features IPS viewing angles (85/85/85/85) for clear visibility.
• Storage: 16MB NOR Flash available for storing images, fonts, and audio files.
• Connectivity: Supports RS232 and RS485 communication interfaces.

Display

• Color : 16.7M（16777216） colors
• LCD Type : IPS, TFT LCD
• Viewing Angle : Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
• Display Area (A.A）: 154.20mm (W) ×85.88mm (H)
• Resolution : 1024×600
• Backlight : LED
• Brightness : DMG10600T070_A5WTR: 250nit

Touch parameters

• Type : CTP (Capacitive touch panel)
• Structure : G+G structure with surface cover of Asahi tempered glass
• Touch Mode : Support point touch and drag
• Surface Hardness : 6H
• Light Transmittance : Over 90%
• Life : Over 1,000,000 times and depending on the working environment

Voltage & Current

• Power Voltage : 7~36V
• Operation Current : VCC = +12V, Backlight on, 300mA – VCC = +12V, Backlight off, 150mA

Reliability Test

• Working Temperature : -20~70℃
• Storage temperature : -30~80℃
• Working Humidity : 10%~90%RH

Interface

• Baudrate : 3150~3225600bps
• Output Voltage : Output 1, -5.0~-3.0V – Output 0, 3.0~5.0V
• Input Voltage(R*D) : Input 1, -15.0~-5.0V – Input 0, 5.0~15.0V
• User Interface : 8Pin_3.81mm Socket, 4Pin_3.81mm Socket(CAN*1) – UART2: N81 – UART4: N81/E81/O81/N82, 4 modes(OS configuration) – UART5: N81/E81/O81/N82, 4 modes(OS configuration)
• Expand Flash : 16MBytes NOR Flash, for fonts, pictures and audio files. – Rewrite cycle: over 100,000 times
• SD interface : FAT32. Download files by SD interface can be displayed in statistics. – Download rate: 4Mb/s
• PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS  – kernel and make the product return to normal.
