ECG Module AD8232 Heart ECG Monitoring Sensor Module Kit for Arduino

The AD8232 ECG module heart ECG monitoring sensor module Kit For Arduino is a cost-effective board use to measure the electrical activity of the heart. This electrical activity can be categorized as an ECG or Electrocardiogram and output as an analog reading.

ECGs can be extremely noisy. The AD8232 Single Lead Heart Rate Monitor acts as an op-amp to help obtain a clear signal from the PR and QT Intervals easily. The ECG module AD8232 heart ECG monitoring sensor module is an integrated signal conditioning block for ECG and other bio-potential measurement applications.

The ECG Module AD8232 Heart ECG Monitoring Sensor Module Kit for Arduino is designed to extract, amplify, and filter small bio-potential signals in the presence of noisy conditions; such as those created by motion or remote electrode placement.

The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can solder pins, wires, or other connectors too. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board.

Application:

• Fitness and sports heart rate monitoring
• Portable ECG
• Remote health monitor
• Game peripheral equipment
• Bioelectricity signal collection

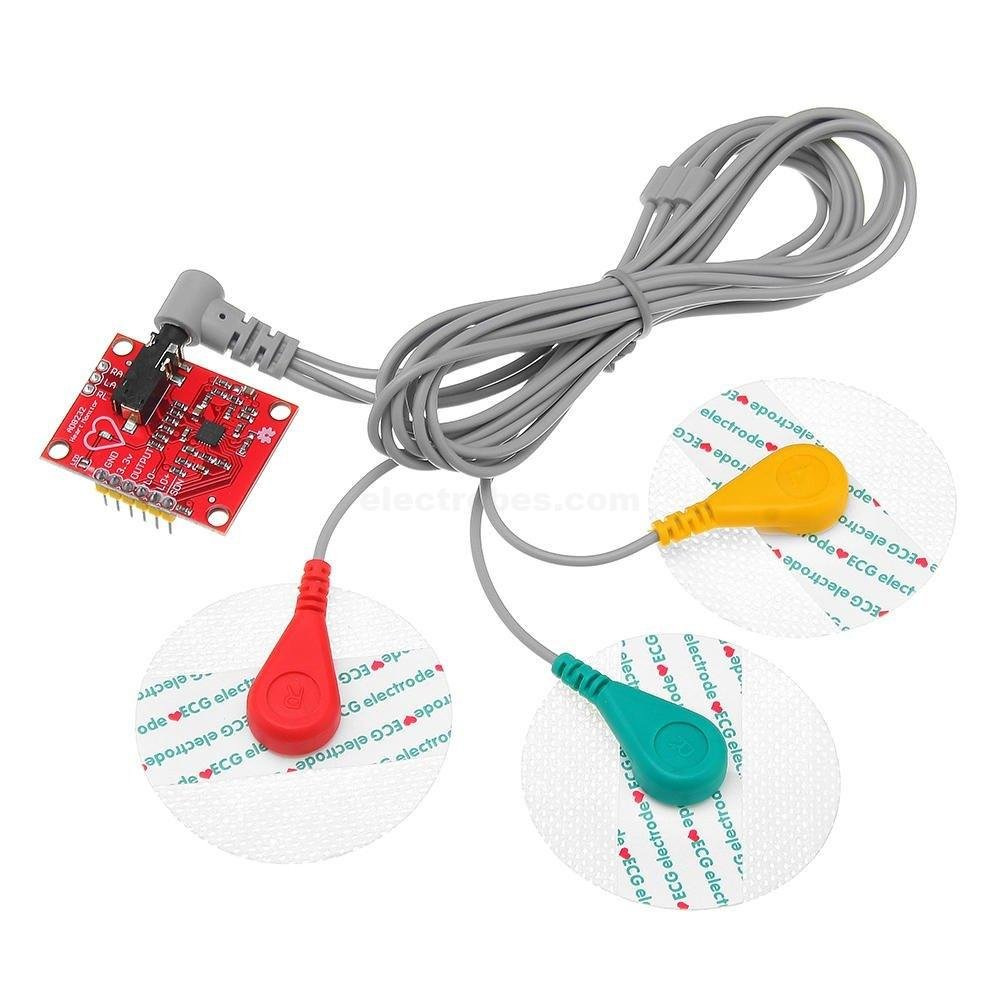

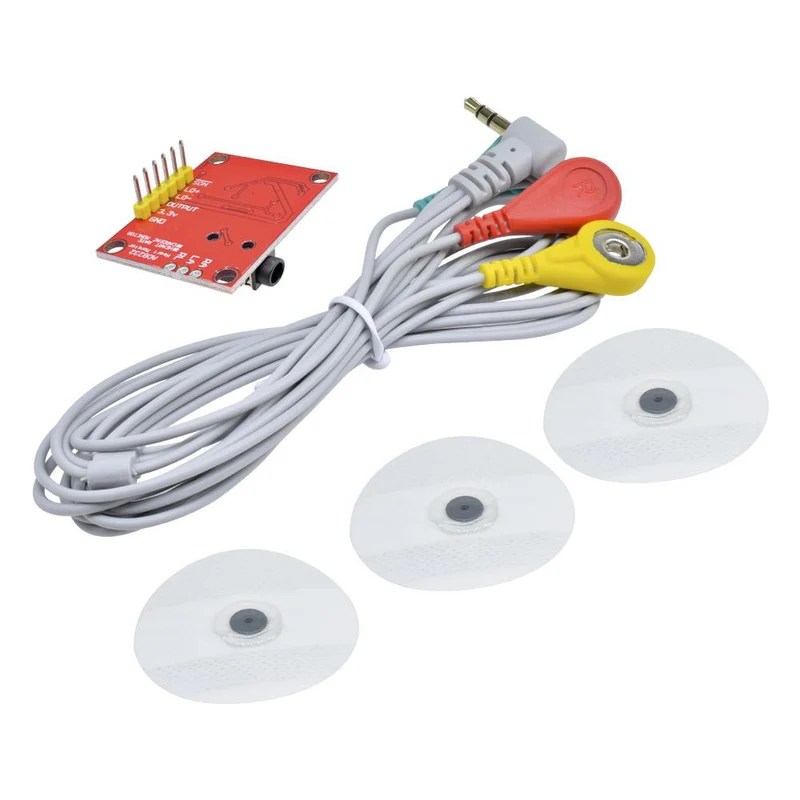

Packaging Included :

• 1 x AD8232 Based ECG Sensor Board
• 1 x Lead Cable
• 3x Disposable Pads
