ELEGOO Mercury XS Bundle with Separate Wash and Cure Station

  • 360° all-round exposure
  • Dual function of washing and curing
  • Large washing volume of 7000ml
  • Easy and intuitive operation
  • UV Protection Cover
  • Wide Compatibility
Compare
Availability:

Available on backorder

 140,000

Available on backorder

Estimated Delivery Time: 20-25 days

ELEGOO Mercury XS Bundle with Separate Wash and Cure Station for Large Resin 3D Printed Models, Compatible with Saturn and Mars LCD 3D Printers, with a Handheld UV Lamp

Features:

  • [360° all-round exposure] The post-curing station adopts 2 L-shape light bars (each built-in 14 UV LED lights), and added 4 UV LED beads beneath the turntable. Work with 360°auto-rotating turntable and a handheld UV lamp that cures the nooks and crannies and interior of 3D prints, so that the entire model is cured thoroughly without dead ends.
  • [Dual function of washing and curing] ELEGOO Mercury XS contains 1 washing station and 1 post-curing station, with the dual function of cleaning and curing to remove uncured resin of 3D printed models and optimized your print quality, making your post-processing simple and efficient.
  • [Large washing volume] With an 7000ml large capacity sealed water tank, you can directly wash large models printed by ELEGOO Saturn and Mars 3, or clean parts in batches, which offers substantial time savings and improves your productivity.
  • [Easy and intuitive operation] With a single knob, just press and hold to turn on the machine, then rotate the knob to set an appropriate time for washing or curing, and your models will be ready in a short time. The UV cover can block 99.9% of ultraviolet rays and protect your eyesight during post-curing.
  • [Wide compatibility] Directly compatible with ELEGOO Saturn series or Mars series 3D printers and the most similar build volume LCD/DLP/SLA 3D resin printers on the market, making your 3D resin print post-processing simple, professional, and efficient. Note: Compared with the ELEGOO Mercury X Bundle Wash and Cure Station, the ELEGOO Mercury XS Bundle Wash and Cure Station has an additional handheld light and glasses.

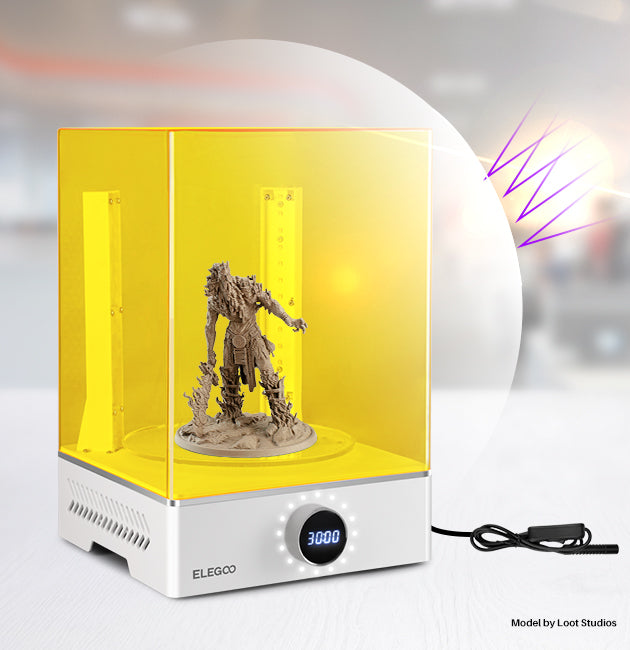

360° all-round exposure

2 adjustable L-shaped light bars and increased 4 LED lights under the 360° rotating turntable paired with Fresnel lens to emit UV light with a uniform wavelength of 405nm, ensuring that the model is evenly exposed from all angles.

ELEGOO Mercury XS Bundle with Separate Wash and Cure Station for Large Resin 3D Printed Models, Compatible with Saturn and Mars LCD 3D Printers, with a Handheld UV Lamp at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila PakistanELEGOO Mercury XS Bundle with Separate Wash and Cure Station for Large Resin 3D Printed Models, Compatible with Saturn and Mars LCD 3D Printers, with a Handheld UV Lamp at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan

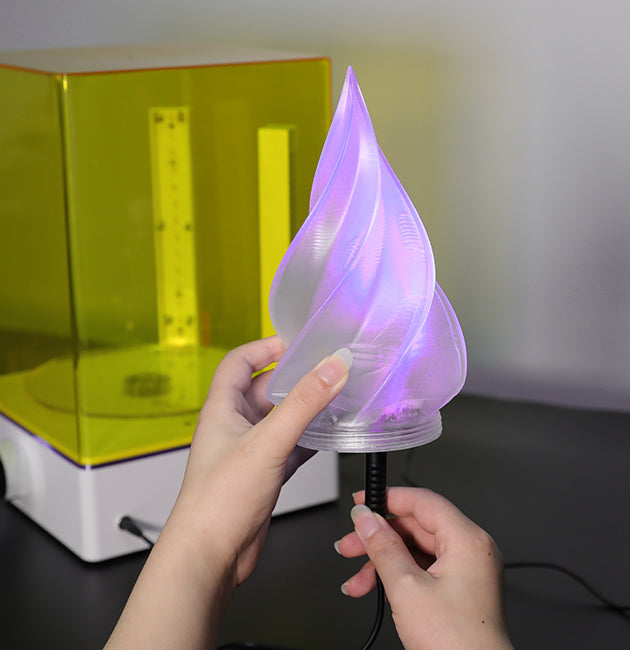

A handheld UV lamp

Additionally, there is a handheld UV lamp to cure the interior or nooks and crannies of 3D printed parts for smoother surface and incredible print quality, also ideal for curing assembled models.

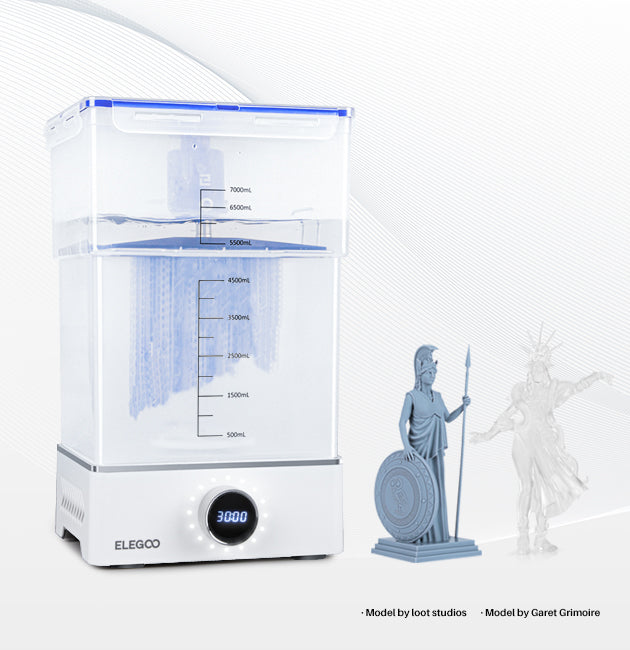

Large washing volume

With an 7000ml large capacity sealed water tank, you can directly wash large models printed or clean parts in batches, which offers substantial time savings and improves your productivity.

Friendly Tips: Kindly be aware that for the Saturn 4 series and Jupiter series, the build platform must be removed for cleaning, which is different from other applicable models. For other models, please refer to the MAXIMUM WASH VOLUME in the specification section and assess whether the platform needs to be removed for cleaning based on the model’s height.

UV Protection Cover

The transparent cover of the curing machine can block up to 99.9% of ultraviolet rays to improve resin solidification rate and protect your eyesight during curing process. A safety option automatically switches off the UV lights when you remove the cover.

Convenient Operation Settings

Simply press and hold the knob for 3 seconds to turn on, with a neatly interface for easily operating the washing and curing functions. The settings time can be adjusted for maximum 30 minutes according to your needs.

ELEGOO Mercury XS Bundle with Separate Wash and Cure Station for Large Resin 3D Printed Models, Compatible with Saturn and Mars LCD 3D Printers, with a Handheld UV Lamp at best price online in islamabad rawalpindi lahore peshawar faisalabad karachi hyderabad quetta wah taxila Pakistan

Operation Instructions:

1. After the model is printed, please clean and blow-dry the model before putting it into the machine.
2. If the model become yellow after curing, please reduce the curing time. Over curing will lead to a yellowish model.
3. Recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%.
4. Please do not use it for more than 40 minutes at a time to avoid overheating
5. Cure Time: If model diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly.
6. Special Notes: The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.

Mercury XS Wash Machine

  • Control Method: Knob + Button
  • Rated Power: 12W
  • Input Voltage: 110V/240V 50/60Hz
  • Time Setting: 0-30mins
  • Machine Size: 255mm*155mm*385.5mm
  • Maximum Wash Volume: (with platform)180mm*121mm*153mm (without platform)201mm*124mm*255mm
  • Machine Net Weight: 2.27kg

Mercury XS Cure Machine

  • Control Method: Knob + Button
  • Rated Power: 36W
  • Input Voltage: 110V/240V 50/60Hz
  • Time Setting: 0-30mins
  • Machine Size: 246mm*230mm*363.5mm
  • Maximum Curing Size: 200mm*260mm
  • Machine Net Weight: 2.4kg
