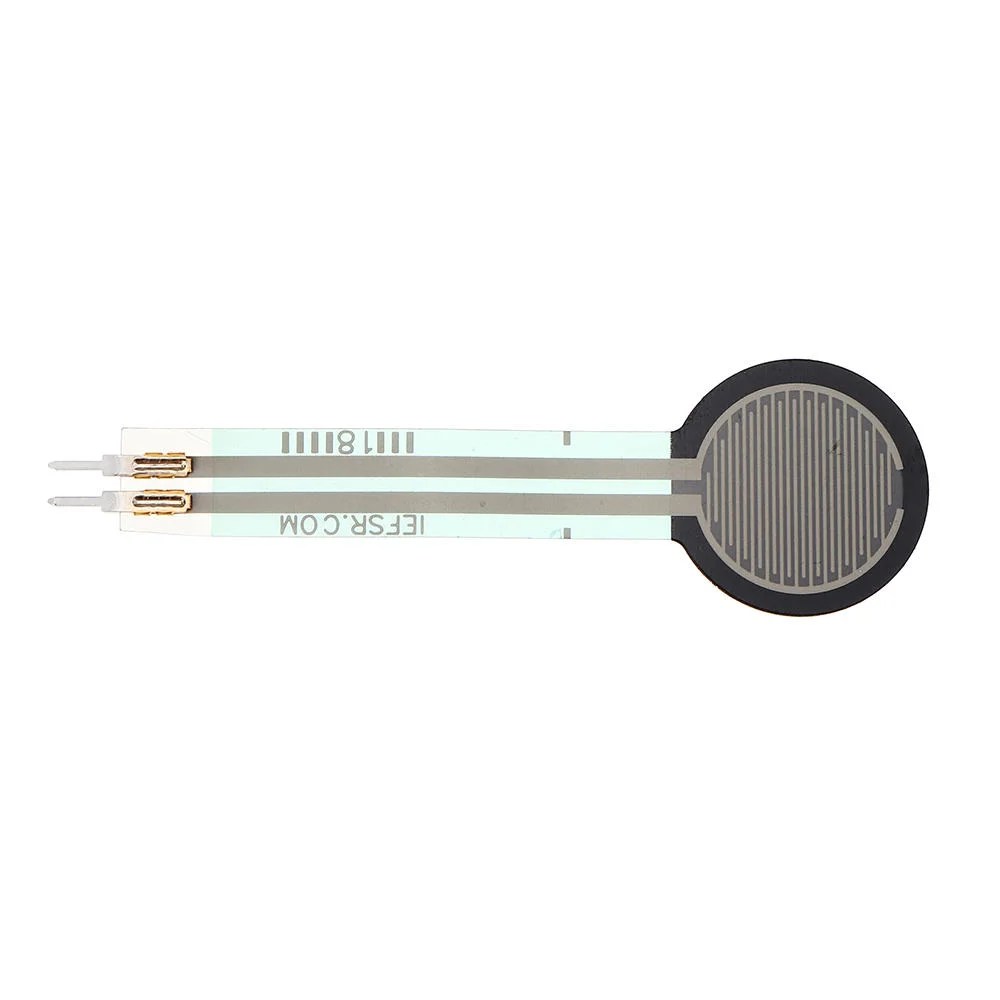

FSR Force Sensitive Resistor 0.75 Inch FSR Pressure Sensor Module

FSR a light weight, small size, ultra-thin resistive pressure sensor. This kind of pressure sensor is to take place in FSR film sensor area pressure into the change of the resistance value, thus for pressure information. The lower the pressure, the greater the resistance. Allow its use in place of pressure 100 g – 10 kg. The terminal holder sensor can be used in the manipulator with or without holding items, robot first step walk the ground sensors, mammals bite test of biological experiments, application scope and widely.

More document please click to download: FSR402

RP-C18.3 flexible pressure sensor is made of ultra-thin film of excellent mechanical property, excellent conductive materials and nanometer pressure sensitive layers. There are thin film and pressure sensitive layer on the upper layer of the sensor, and thin film and conductive circuit on the lower layer. These two layers are glued together by double sided tape. When outside pressure applies to the active area, the disconnected circuit of the lower layer will be connected through the pressure sensitive layer of the upper layer, by which to convert pressure into resistance. The output resistance decreases as pressure increases.

Features:

The flexible sensor has the characteristics of flexible ultra-thin, ultra-low power consumption and extreme speed response, etc. Small size, this flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate. This pressure sensor has the characteristic of high stability, high consistency. Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. When sensor detects outside pressure, the resistance of sensor will change. Pressure signal can be converted into a corresponding electrical signal output using simple circuit.

Package Content:

1 x FSR Force Sensitive Resistor 0.75 Inch FSR Pressure Sensor
