HC-05 Bluetooth Module for Arduino
HC-05 Bluetooth Module for Arduino is designed for wireless communication. This module can be used in a master or slave configuration. Buy online in Pakistan.
Availability:
In stock
₨ 750
In stock

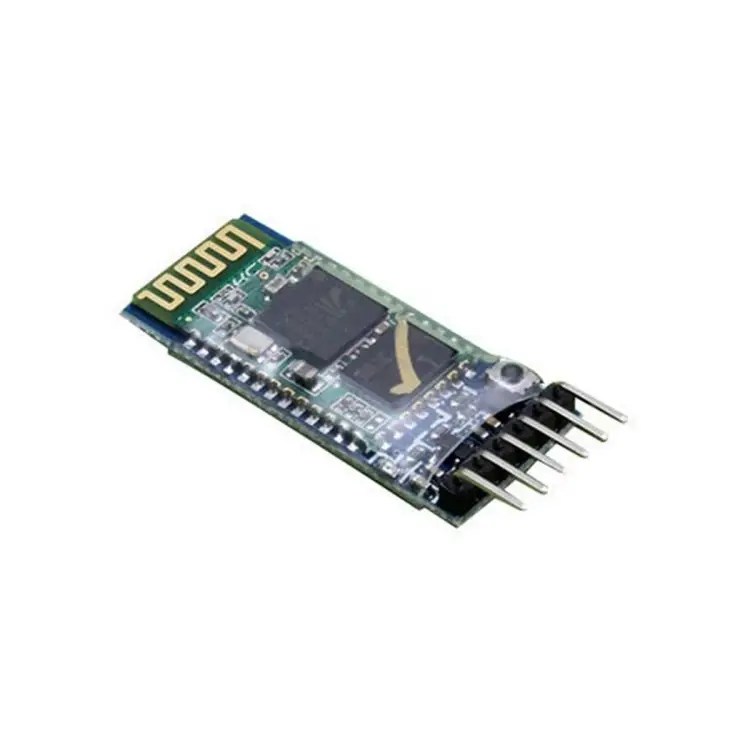

HC-05 Bluetooth Wireless Communication Module for Arduino
Description:
- HC-05 is a Bluetooth module which is designed for wireless communication. This module can be used in a master or slave configuration.
- It is used for many applications like wireless headset, game controllers, wireless mouse, wireless keyboard and many more consumer applications.
- It has range up to <100m which depends upon transmitter and receiver, atmosphere, geographic & urban conditions.
- It is IEEE 802.15.1 standardized protocol, through which one can build wireless Personal Area Network (PAN). It uses frequency-hopping spread spectrum (FHSS) radio technology to send data over air.
- It uses serial communication to communicate with devices. It communicates with microcontroller using serial port (USART).

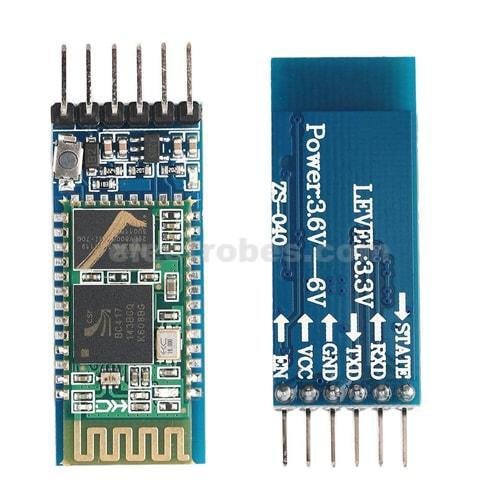

Pin Configuration
| Pin Number | Pin Name | Description |
| 1 | Enable / Key | This pin is used to toggle between Data Mode (set low) and AT command mode (set high). By default it is in Data mode |
| 2 | Vcc | Powers the module. Connect to +5V Supply voltage |
| 3 | Ground | Ground pin of module, connect to system ground. |
| 4 | TX – Transmitter | Transmits Serial Data. Everything received via Bluetooth will be given out by this pin as serial data. |
| 5 | RX – Receiver | Receive Serial Data. Every serial data given to this pin will be broadcasted via Bluetooth |
| 6 | State | The state pin is connected to on board LED, it can be used as a feedback to check if Bluetooth is working properly. |
| 7 | LED | Indicates the status of Module
|
| 8 | Button | Used to control the Key/Enable pin to toggle between Data and command Mode |
- Typical -80dBm sensitivity
- Up to +4dBm RF transmit power
- Low Power 1.8V Operation ,1.8 to 3.6V I/O
- PIO control
- UART interface with programmable baud rate
- With integrated antenna
- With edge connector
