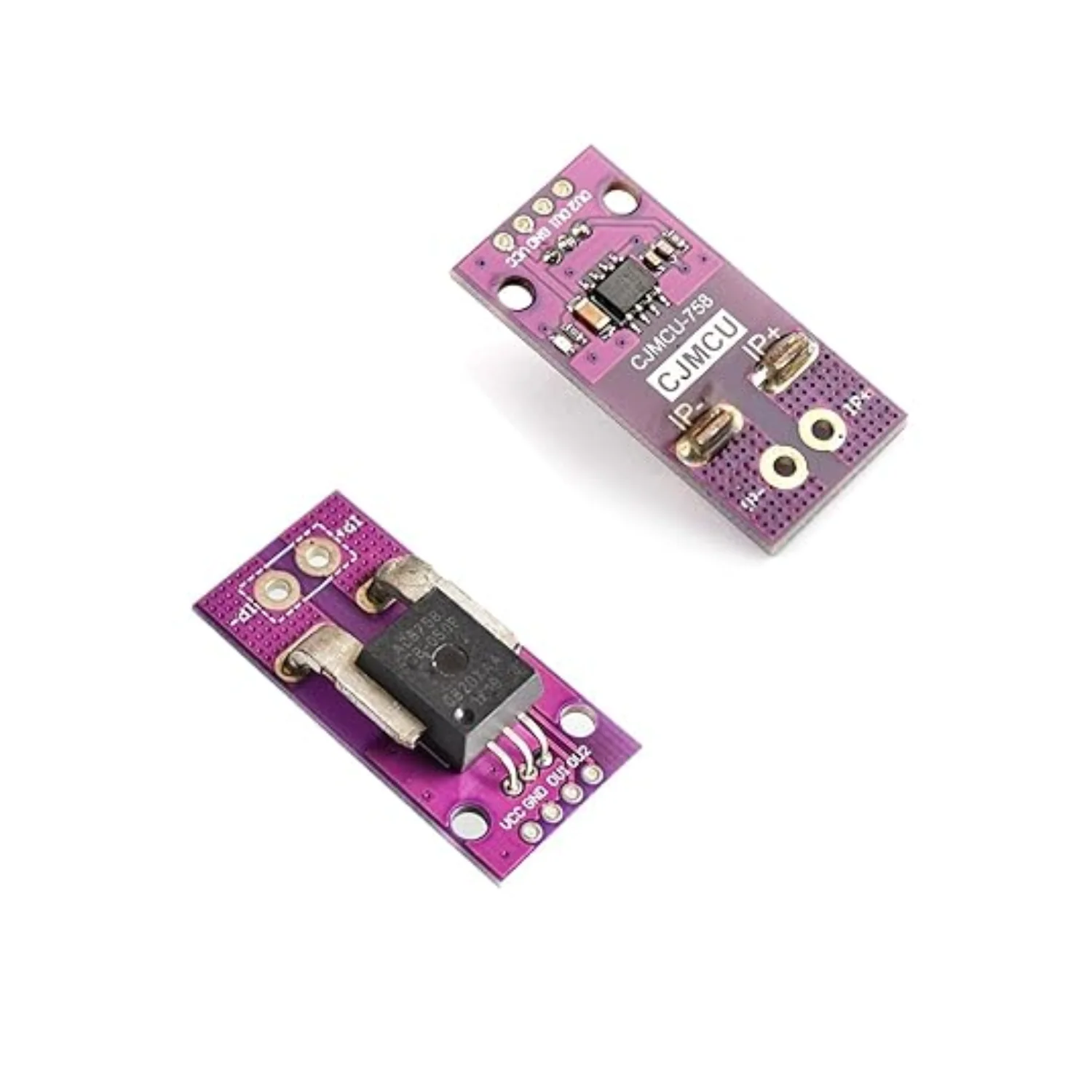

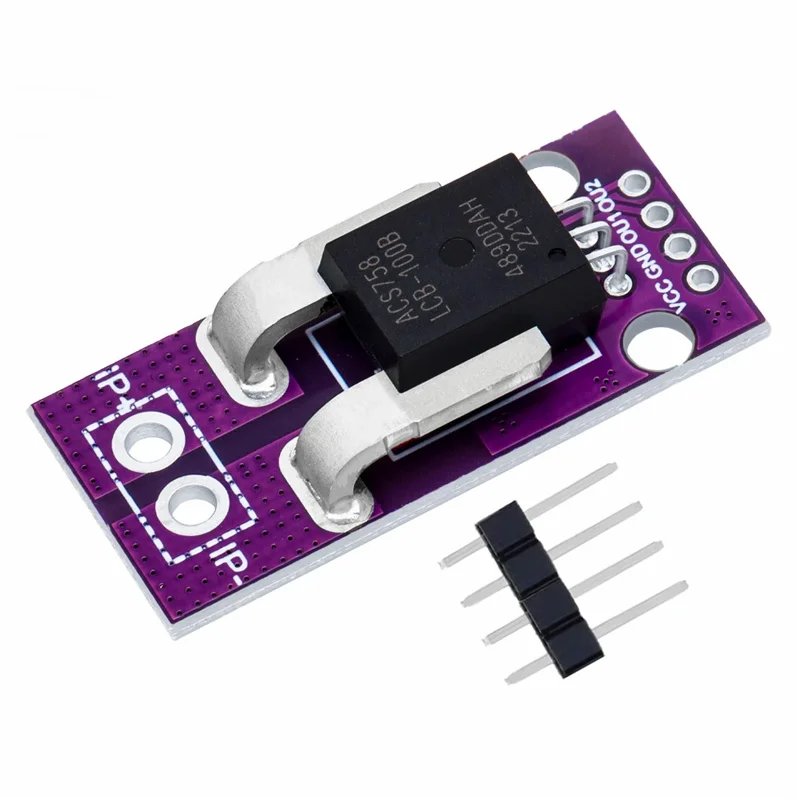

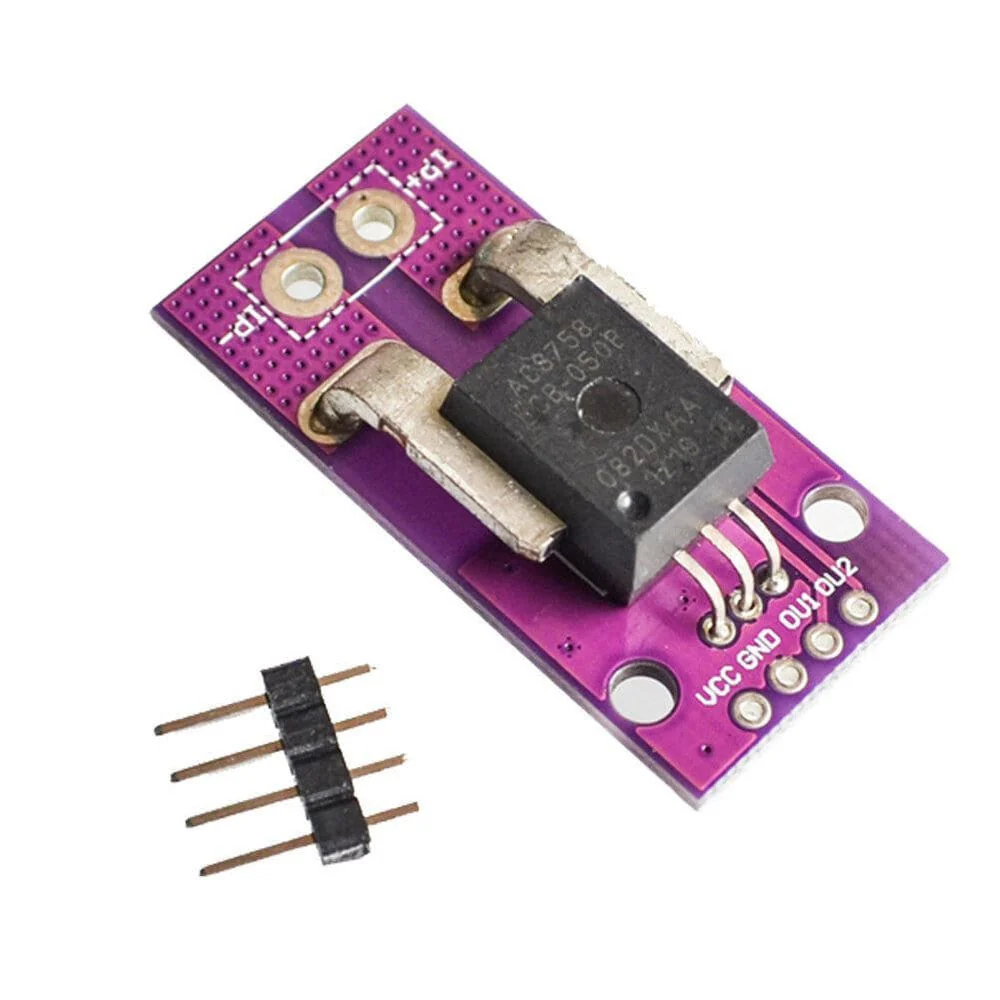

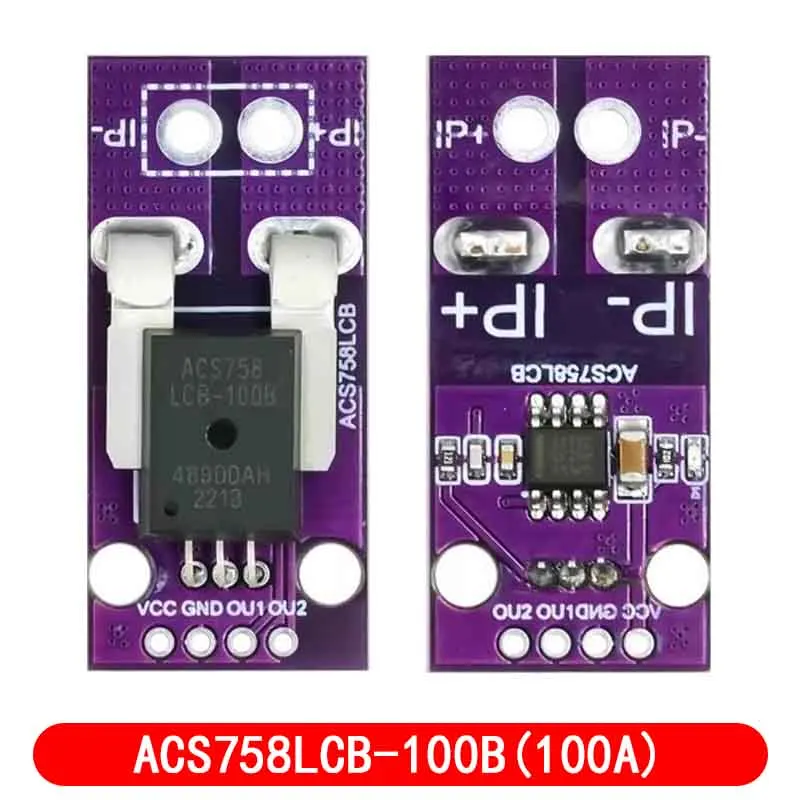

ACS758 MCU-758 Current Module Linear Hall Current Sensor ACS758LCB-100B-PFF-T Current Detection 3-5V Environmental Protection

Description:

The MCU-758 ACS758LCB-100B-PFF-T Hall Current Sensor Module is a high-precision, bidirectional current sensing module based on the Allegro ACS758 Hall-effect IC. It is designed to measure both AC and DC currents up to ±100A with excellent accuracy and electrical isolation.

This module uses Hall-effect technology, allowing non-intrusive current measurement without direct electrical contact with the measured circuit. It provides a ratiometric analog voltage output proportional to the current flowing through the conductor.

It is widely used in applications such as motor control, power monitoring, inverters, battery management systems, and overcurrent protection circuits.

Specifications:

• Model: ACS758LCB-100B-PFF-T
• Current Range: ±100A (bidirectional)
• Sensor Type: Hall Effect (Open Loop)
• Supply Voltage: 3.0V – 5.5V
• Output Type: Analog Voltage (ratiometric)
• Sensitivity: ~40 mV/A
• Accuracy: ±2% typical
• Bandwidth: Up to 120 kHz
• Response Time: ~4 µs
• Current Consumption: Max 13.5 mA
• Operating Temperature: -40°C to +150°C
• Internal Conductor Resistance: ~100 µΩ
• Output Offset Voltage: Vcc/2 (zero current point)
• Isolation: High (Hall-effect based, no direct electrical contact)

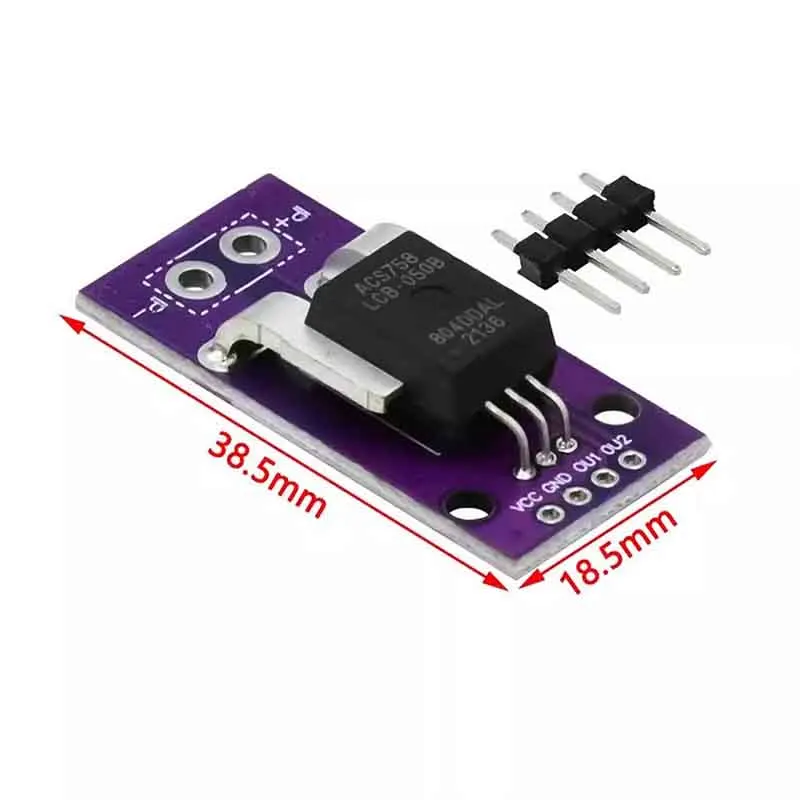

• Dimensions: Approx. 38 × 18 mm

Key Features:

•  Measures both AC and DC current
• Bidirectional sensing (positive & negative current)
• High accuracy and low noise output
• Electrical isolation between load and control circuit
• Fast response time (µs range)
•  Built-in temperature compensation for stable readings
•  Integrated shield reduces noise and interference
•  Low power consumption
•  Compact module with easy mounting
