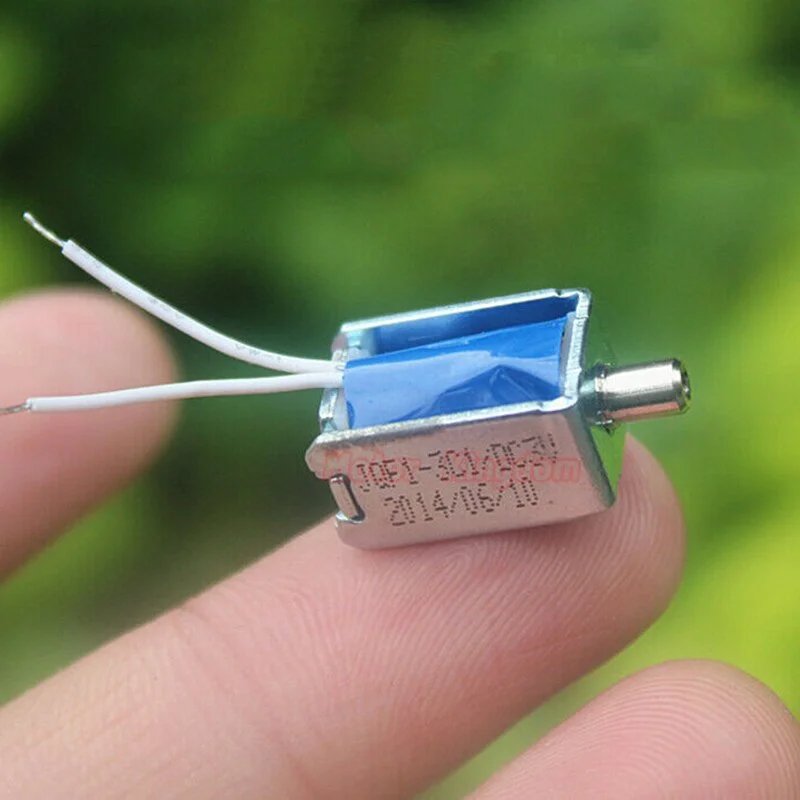

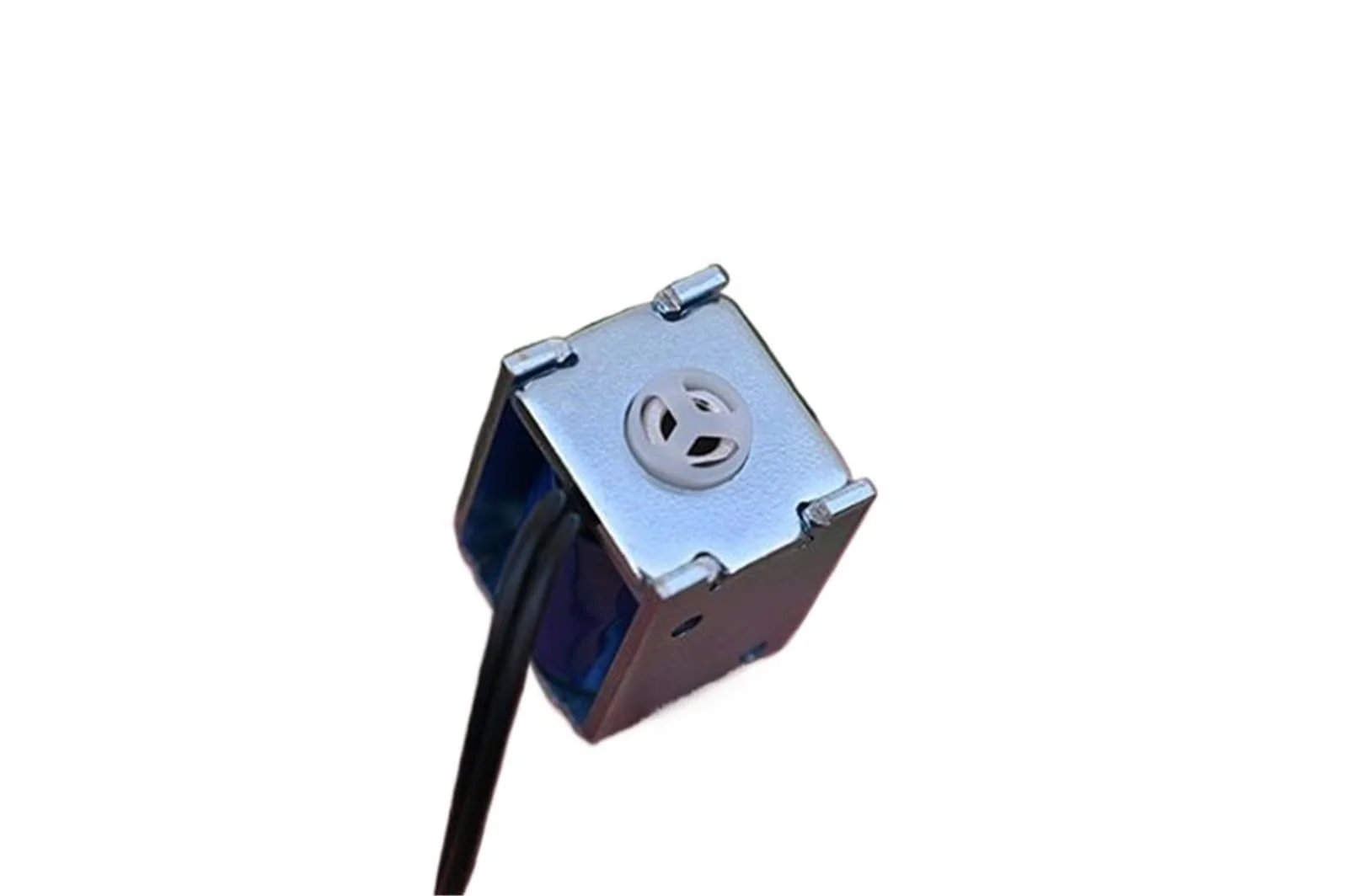

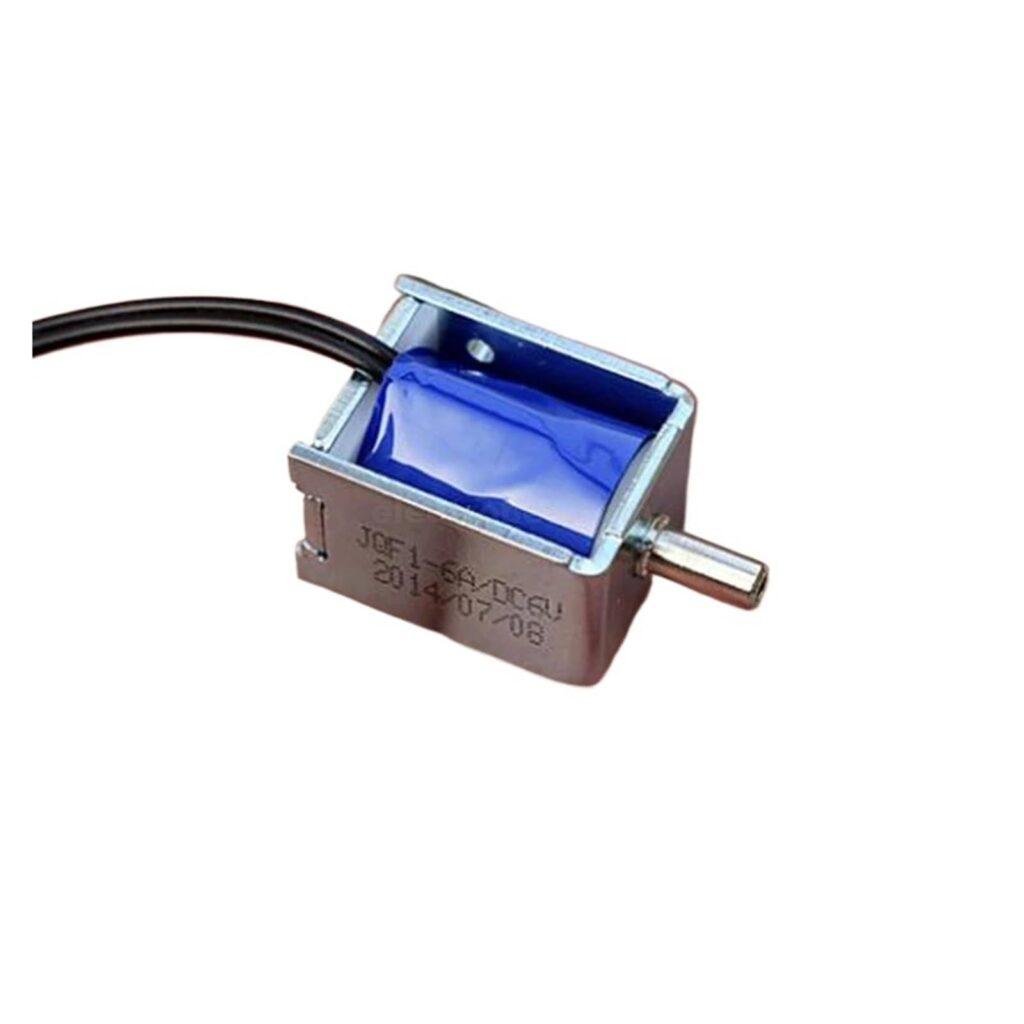

JQF1 DC 3V Mini Solenoid Valve Normally Open Air
Description
The JQF1 DC 3V Mini Solenoid Valve is a compact, lightweight, and energy-efficient normally open (NO) air valve designed for low-voltage control applications. Operating at just 3V DC, this valve is ideal for battery-powered and portable systems where low power consumption is essential.
When powered off, the valve remains open, allowing air to flow freely. When energized, it closes instantly, providing fast and reliable airflow control. Its small size and durable construction make it perfect for DIY electronics projects, medical devices, automation systems, pneumatic control, and robotics.
Specifications:
- Rated voltage: DC 3V Rated
- current: 80mA DC
- Impedance: 39O±10%
- Rated power: 0.25
- Working pressure: < 300 mmHg Air
- Tightness: < 3 mmHg
- Min Deflation time: < 5 Second (the time required for a 100cc container to go from 280 mmHg to 15 mmHg)
- Tube diameter: F 3mm
- Rated voltage: DC 3V Rated
- current: 80mA DC
- Impedance: 39O±10%
- Rated power: 0.25
- Working pressure: < 300 mmHg Air
- Tightness: < 3 mmHg
- Min Deflation time: < 5 Second (the time required for a 100cc container to go from 280 mmHg to 15 mmHg)
- Tube diameter: F 3mm
