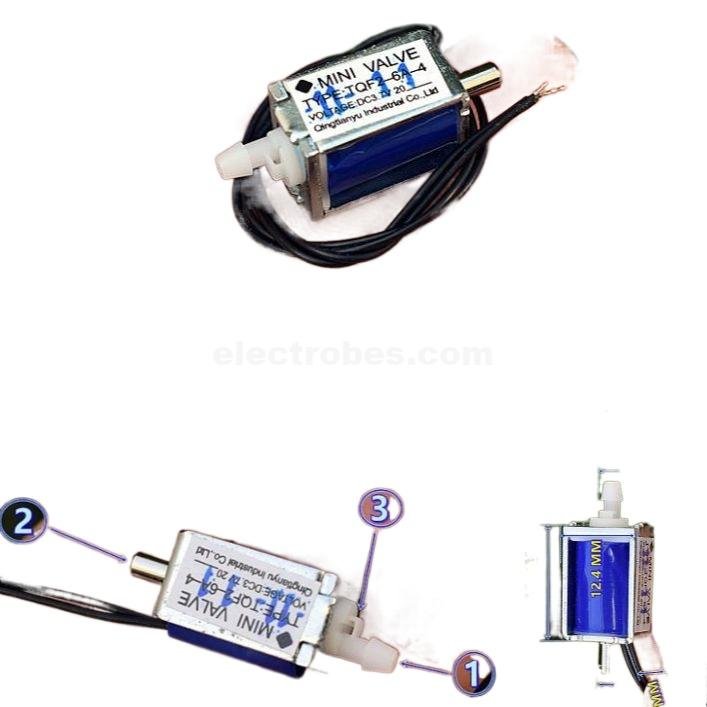

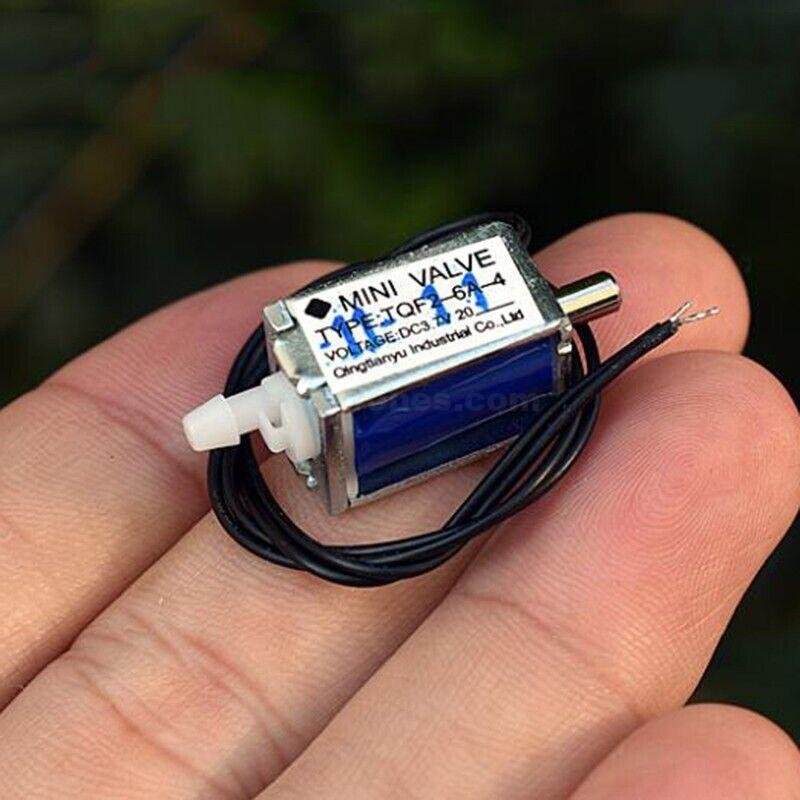

KSV05A DC 3V-5V Micro Mini Electric Solenoid Valve Normally Open Air Valve

KSV05A offers great performance in a very economical design. This Micro Solenoid Valve is best suited for OEM applications where the valve performance is acceptable and where low component cost is necessary. The DC Air Gas valve plunger and spring are fabricated from steel and therefore the valve is limited to use with air and other inert gases. Product uses are on medical equipment such as venting a cuff on automatic blood pressure measurement equipment, appliance applications, and a range of industrial low-pressure pneumatic control applications. of DIY purposes.

Specifications Of KSV05A:

• Model: KSV05A
• voltage: 3 to 5 V DC
• Leakage: <3mmHg/min
• Max pressure: 300mmHg
• Type: Normal open
• Rated life cycle: 30000cycles @ ON 7s and OFF 5s
• Resistance: 23+- 10% Ohm
• weight: 10g
• Size: 10*12*20 mm
• Application: Medical device, Laboratory, Environmental solutions, others.

Package Include:

• 1 x Dc Solenoid Valve KSV05A
