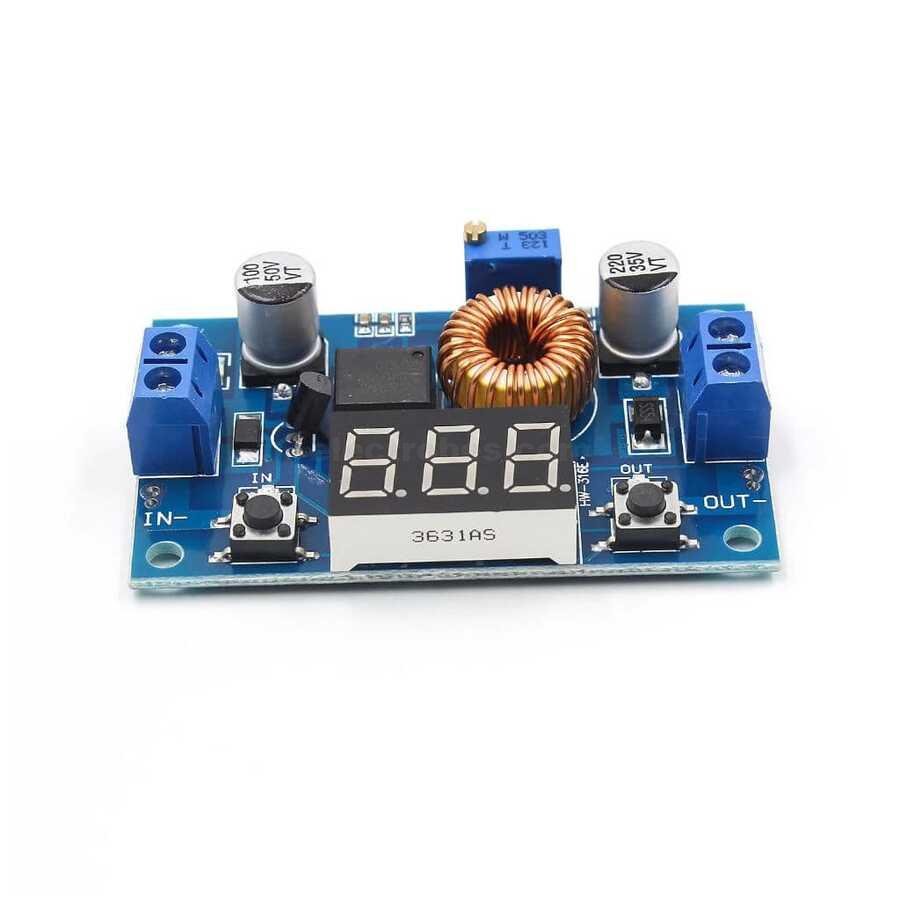

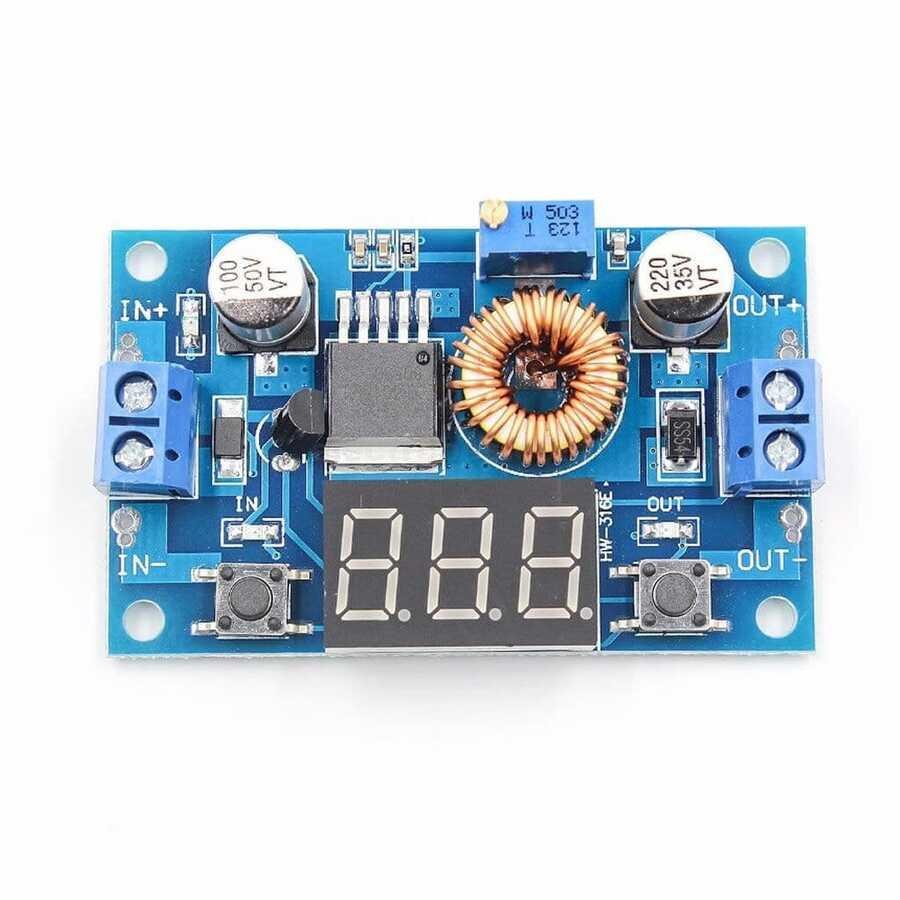

XL4015 5A DC-DC Voltage Regulator Supply Module With Display
In stock
₨ 550
In stock
The XL4015 Digital Display DC-DC Adjustable Voltage Stepper features high efficiency and low ripple. This voltage reducer and voltmeter is a DC-DC module that uses a 5A load and operates at a fixed frequency of 180 KHz. It is a module that can gradually adjust the input voltage and output voltage and displays it on its digital screen. The input voltage is 4-38V and the output voltage is obtained by reducing the voltage between 1.25V-36V thanks to the trimpot on the board. Also, this product has overheat protection and short circuit protection feature.
XL4015 Digital Display DC-DC Adjustable Voltmeter Technical Specifications:
- Model: XL4015
- Input Voltage: 4-38V/DC
- Output Voltage: 1.25-36V/DC
- Output Current: 5A (Max.)
- Output Power: 75W
- Working Frequency: 180KHz
- Size Range: 4-40V/DC
- Conversion Efficiency: Up to 96%
- Voltmeter Error Accuracy: ±0.05V
- Input Reverse Polarity Protection: No
- Display: Digital – Color
- Size: 60x37x14mm
Voltmeter calibration method:
(1) Output voltage calibration steps
Step 1 : Adjust the right button so that the OUT LED lighted, the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and OUT LED flashes in synchronization so that you enter the output voltage calibration mode.
(2) Input voltage calibration steps

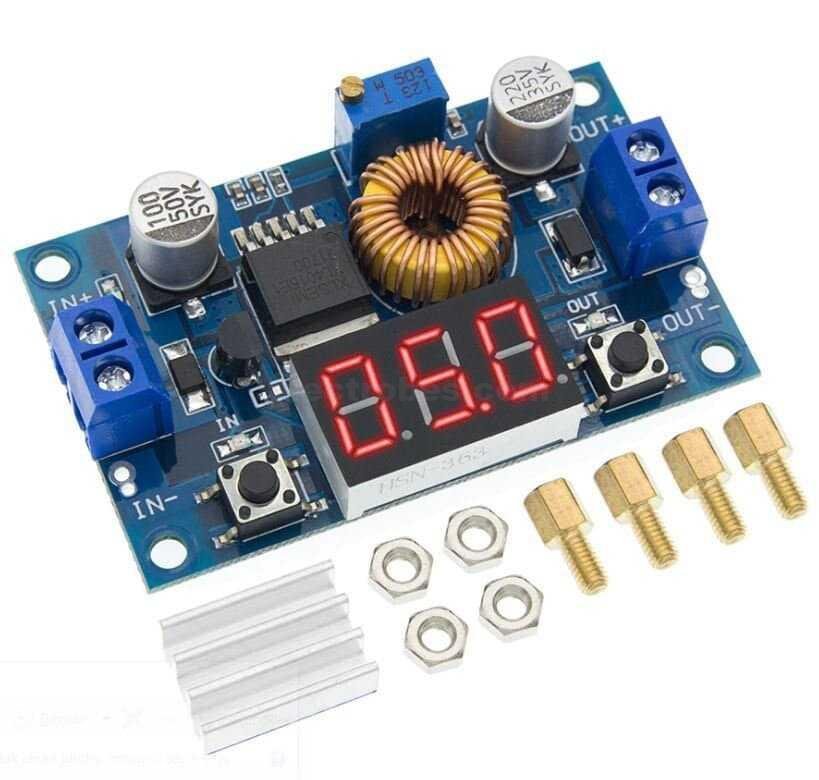

Package Included:
- 1 x XL4015 Digital Voltmeter Step-down Power Module
- 4 x Nuts
- 4 x 3mm Spacer
- 1 x Mini Aluminum Heatsink
- Input Supply Voltage: DC 5V ~ 38V
- Output voltage: 1.25V ~ 36V (adjustable)
- Output Current: 5A max
- Output power: 75 Watt
- Voltmeter error: 0.05V
- Conversion efficiency: 96%
- Length: 60.8mm
- Width: 38mm
- Height: 12mm
- Weight: 35 gm
