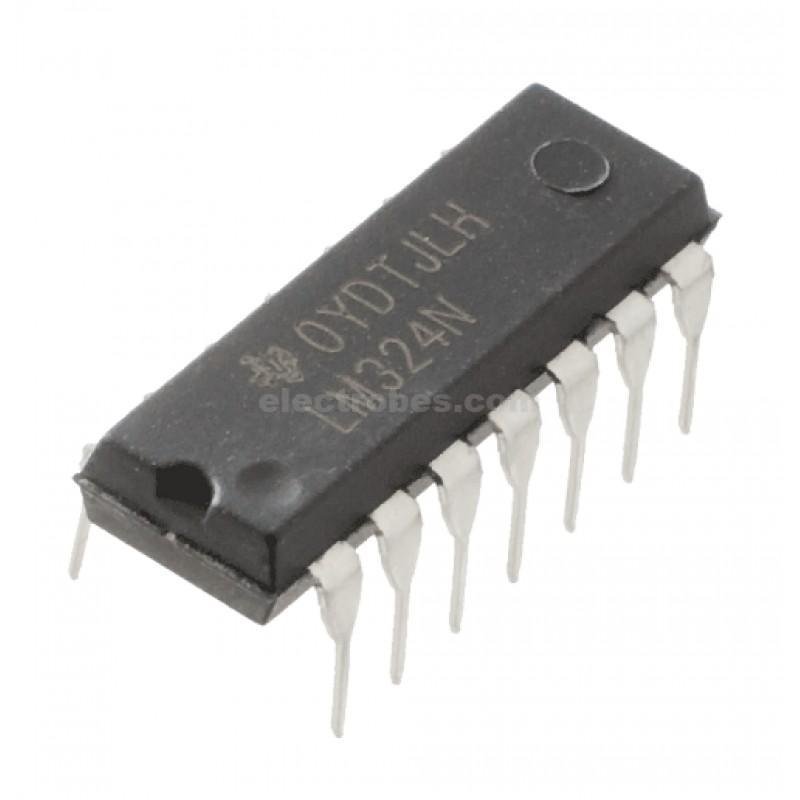

LM324 Quad OP-AMP IC
- Integrated with four Op-Amps in a single package
- Wide power supply Range
- Singe supply – 3V to 32V
- Dual supply – ±1.5V to ±16V
- Low Supply current – 700uA
- Single supply for four op-amp operation enables reliable operation
- Operating ambient temperature – 0˚C to 70˚C
- Soldering pin temperature – 260 ˚C (for 10 seconds – prescribed
Availability:
In stock
₨ 30
In stock
Brief Description
LM324 is a Quad op-amp IC integrated with four op-amps powered by a common power supply. The differential input voltage range can be equal to that of power supply voltage. The default input offset voltage is very low which is of magnitude 2mV. The operating temperature ranges from 0˚C to 70˚C at ambient whereas the maximum junction temperature can be upto 150˚C. Generally, op-amps can perform mathematical operations.

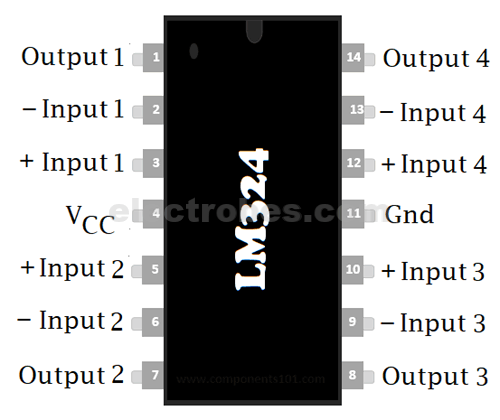

Pin Configuration
| Pin Number | Pin Name | Description |
| 1 | OUTPUT1 | Output of Op-Amp 1 |
| 2 | INPUT1- | Inverting Input of Op-Amp 1 |
| 3 | INPUT1+ | Non-Inverting Input of Op-Amp 1 |
| 4 | VCC | Positive Supply Voltage |
| 5 | INPUT2+ | Non-Inverting Input of Op-Amp 2 |
| 6 | INPUT2- | Inverting Input of Op-Amp 2 |
| 7 | OUTPUT2 | Output of Op-Amp 2 |
| 8 | OUTPUT3 | Output of Op-Amp 3 |
| 9 | INPUT3- | Inverting Input of Op-Amp 3 |
| 10 | INPUT3+ | Non-Inverting Input of Op-Amp 3 |
| 11 | VEE,GND | Ground or Negative Supply Voltage |
| 12 | INPUT4+ | Non-Inverting Input of Op-Amp 4 |
| 13 | INPUT4- | Inverting Input of Op-Amp 4 |
| 14 | OUTPUT4 | Output of Op-Amp 4 |
LM324 Quad Op-Amp IC features and specifications
- Integrated with four Op-Amps in a single package
- Wide power supply Range
- Singe supply – 3V to 32V
- Dual supply – ±1.5V to ±16V
- Low Supply current – 700uA
- Single supply for four op-amp operation enables reliable operation
- Operating ambient temperature – 0˚C to 70˚C
- Soldering pin temperature – 260 ˚C (for 10 seconds – prescribed)
Applications:
- Transducer Amplifiers
- Filter circuits, Voltage followers
- Integrator, Differentiator, Summer, adder, Voltage follower, etc.,
- DC gain blocks
- Comparators (Loop control & regulation)
