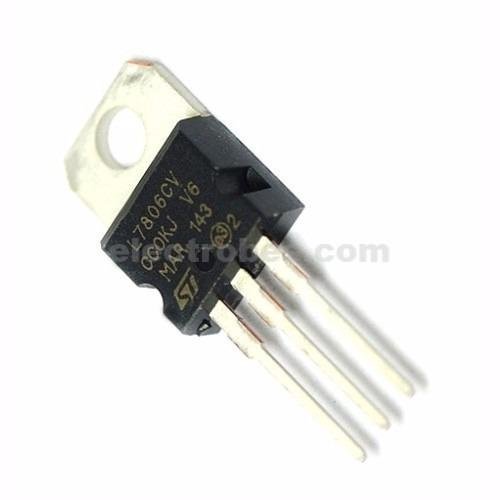

LM7806 1A Standard Positive Voltage Regulator IC

1A Standard Positive Voltage Regulator
General Description
• The LM78xx series is three terminal standard positive voltage regulator designed for
a wide range of applications that required supply current up to 1A.
• The LM78xx series is available in 10 fixed output voltage:4.7V,5V,6V,7V,8V,9V,10V,
12V,15V,18V and 24V.
• The LM78xx series provides internal current limiting, thermal shutdown protection and
Safe-area operation compensation which make them virtually immune from output load,
and the output current could up to 1A if adequate heat sinking provide.

Applications

• High Efficiency Linear Regulator
• Post Regulation for Switching Supply
• Microprocessor Power Supply
• Mother Board
