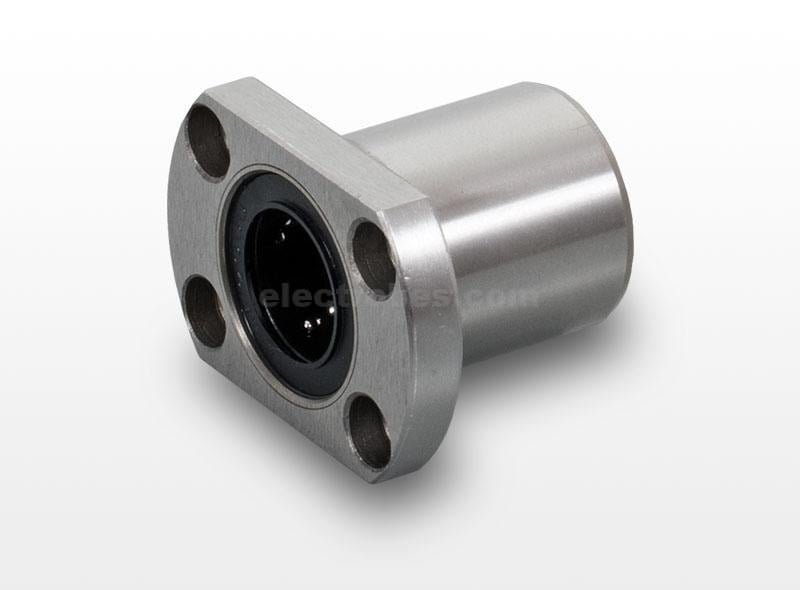

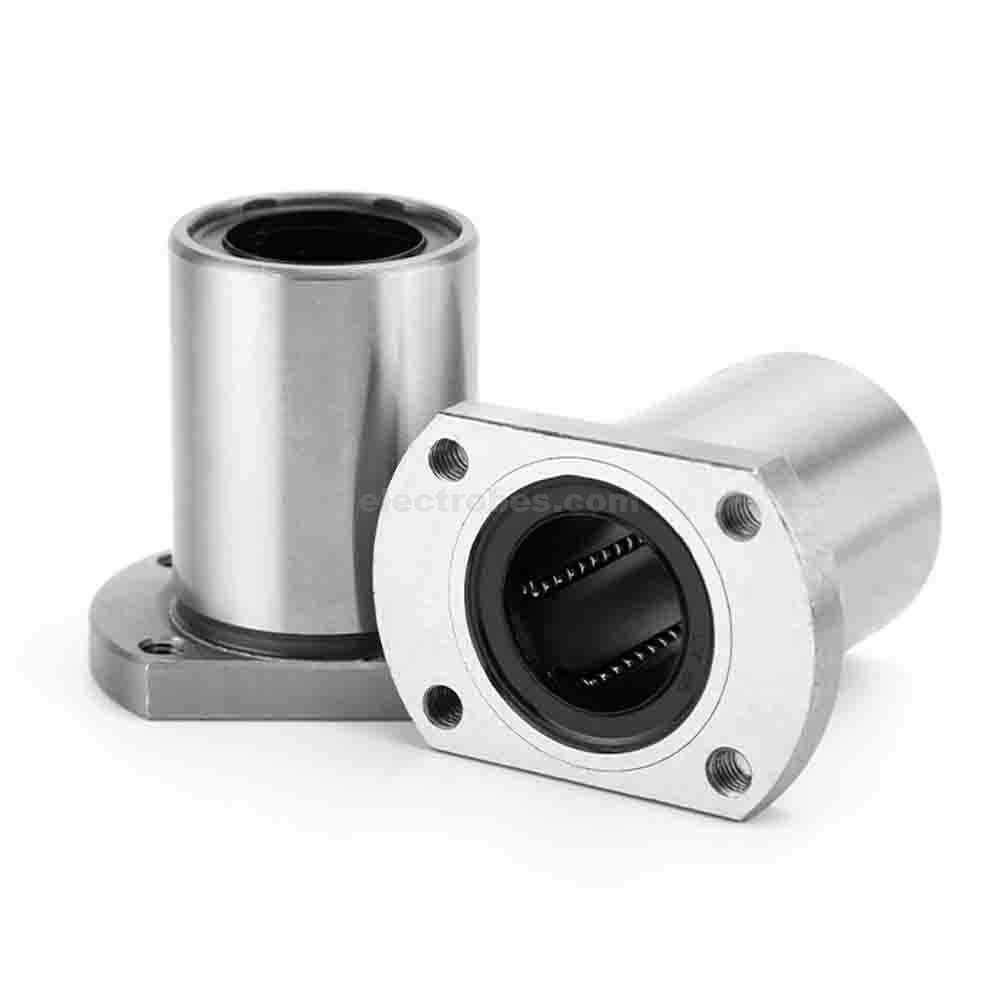

LMH8UU 8mm Flange Mounted Linear Bearing Motion Bushing Ball Bearing CNC 3D printer
LMH linear bushing has oval shaped flange positioned at the beginning of bearing. Outer diameter of body is smaller compare to bush type LMEH. It also has double lip seals and resin ball cage. It can be used in linear motion application where fixing true holes in bushing flange is required.
In stock
₨ 420
In stock
LMH linear bushing has oval shaped flange positioned at the beginning of bearing. Outer diameter of body is smaller compare to bush type LMEH. It also has double lip seals and resin ball cage. It can be used in linear motion application where fixing true holes in bushing flange is required.
- LMH8UU Ball Bushing
- Type: Flanged Linear Motion Ball Bushing
- Inner Diameter: 8mm
- Outer Diameter: 15mm
- Length: 24mm
- Dynamic load rating: 205 N
- Static load rating: 264 N
Related products
- 3D Printer Parts, CNC & 3D Printers

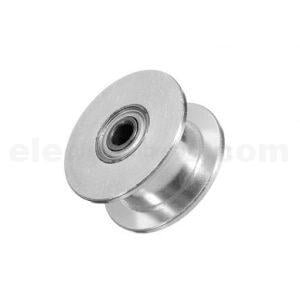

Toothless 5mm GT2 Timing Belt Idler Pulley With Bearing For 3D Printer
