Gy-87 10dof IMU MPU6050 HMC5883L BMP180 Module for Arduino
MPU9250 GY-9250 9-AXIS 10DOF Accelerometer, Gyroscope, Compass Magnetic Field Sensor Module provides 9-axis Motion Tracking device. Buy online in Pakistan
In stock
₨ 1,200
In stock

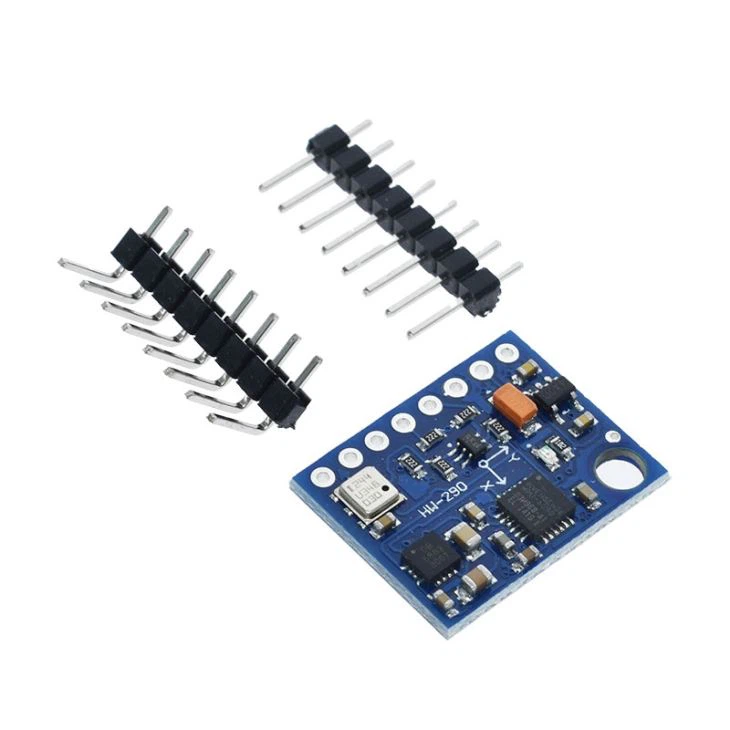

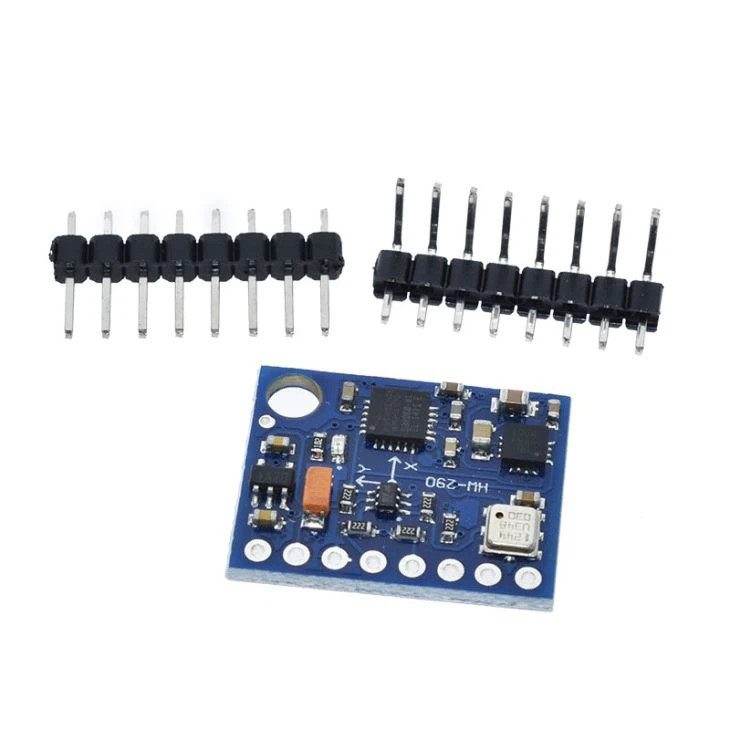

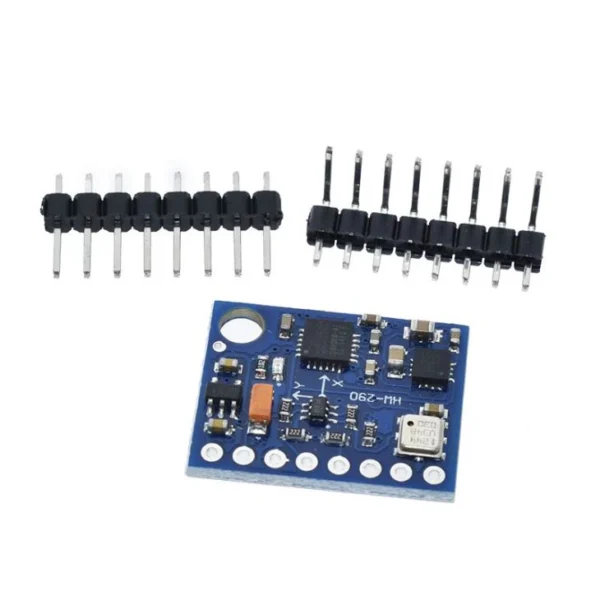

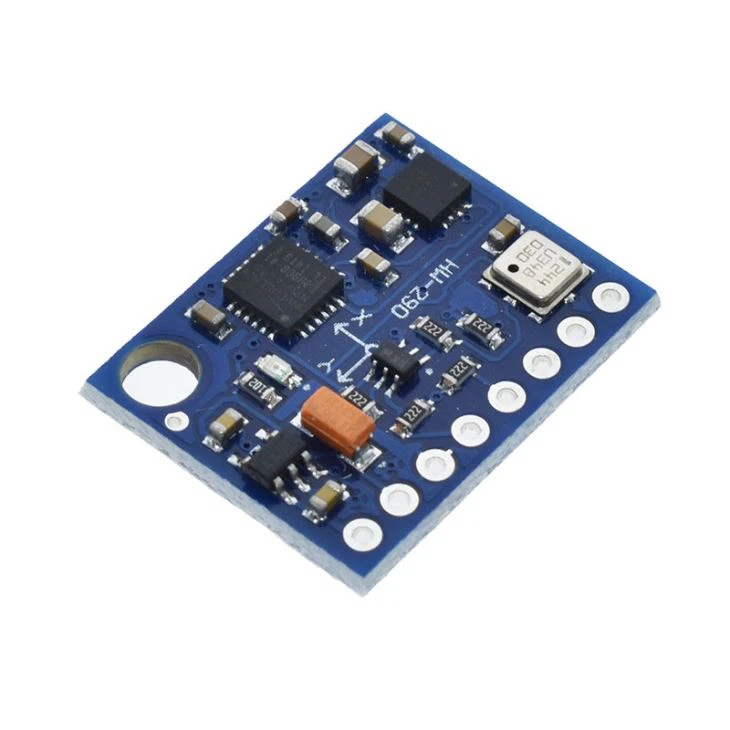

GY-87 10DOF Module MPU6050 HMC5883L BMP180 GY87 Sensor Module GY87 For Arduino
Features:
- 10DOF modules (three-axis gyroscope + triaxial accelerometer + triaxial magnetic + pressure)
- Immersion Gold PCB technology adoption
- Chip: MPU6050 + HMC5883L + BMP180
- Power supply: 3V-5V
- Communication: IIC communication protocol (fully compatible with 3-5v system, including LLC circuit)
- Dimensions: 2.2 x 1.7cm
How to Use:
- Connect the GY-87 module to a microcontroller (such as Arduino) using the I2C connection (SDA and SCL).
- Make sure the input voltage is within specifications (3.3V or 5V).
- Use an appropriate library to read data from the sensor (for example, Wire.h for I2C on Arduino).
- Microcontroller program to process acceleration, orientation, pressure, or compass direction data.
Care Tips:
- Avoid exposure to excessive moisture to prevent corrosion of the connector pins.
- Make sure the connection cable is securely connected to avoid signal interference.
- Use a protective case or case when using in extreme environments.
- Store in a dry place and protect from dust when not in use.

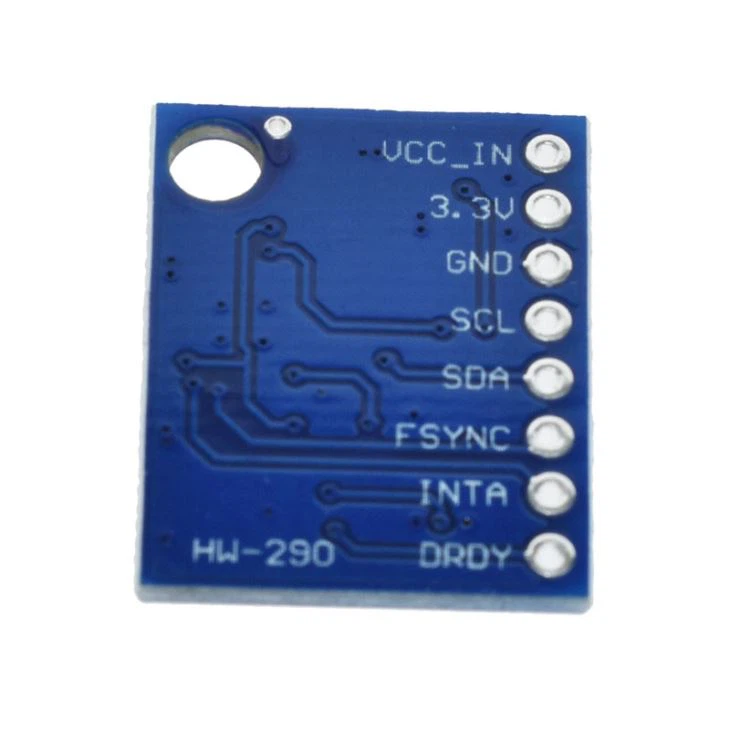

- VCC_IN: Module power supply – 5V
- 3V: Module power supply – 3.3V
- GND: Ground
- SCL: Serial Clock for I2C protocol
- SDA: Serial Data for I2C protocol
- FSYNC: Synchronous digital input (I2C speed setting)
- INTA: MPU6050 IC interrupt pin
- DRDY: Data ready pin for HMC5883L IC
