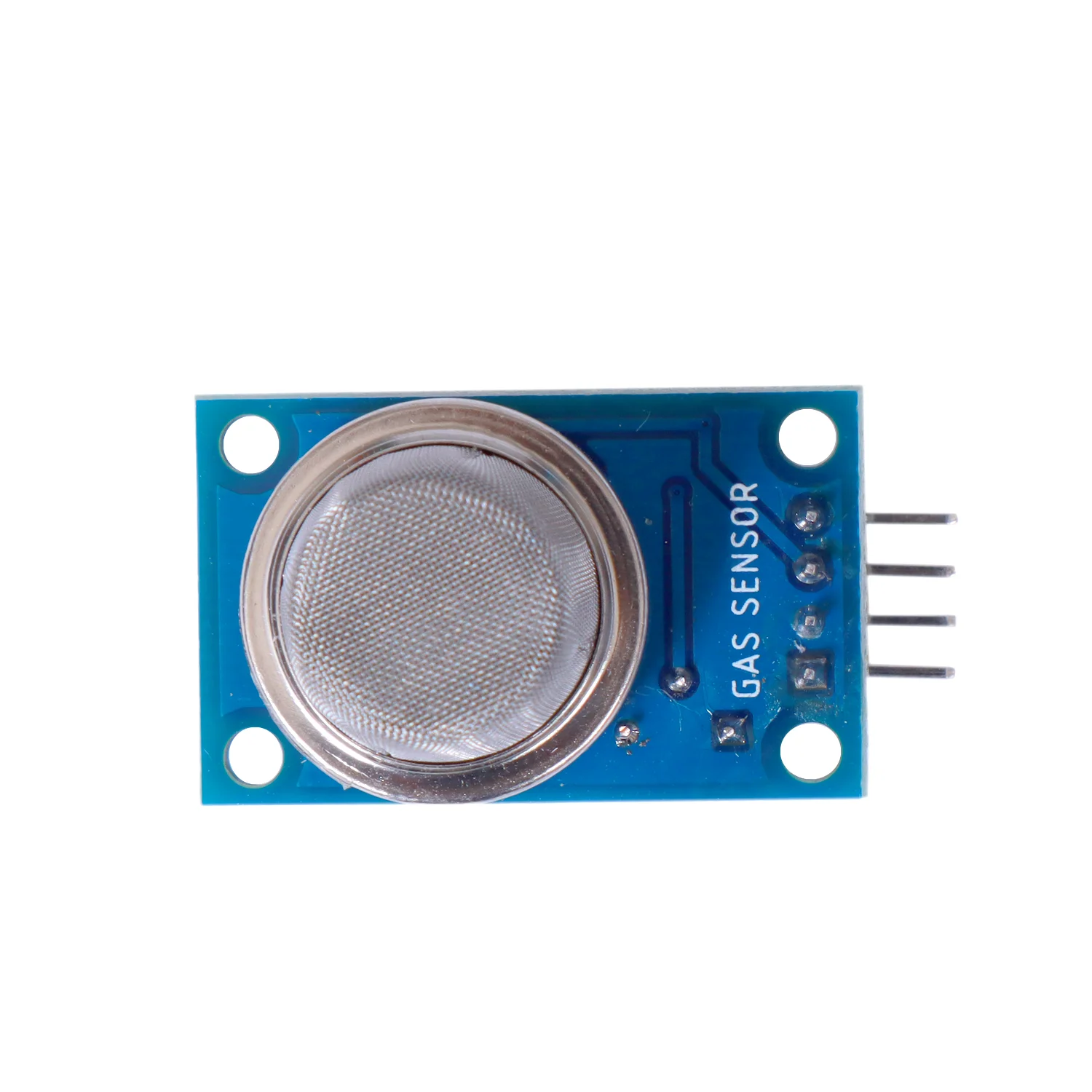

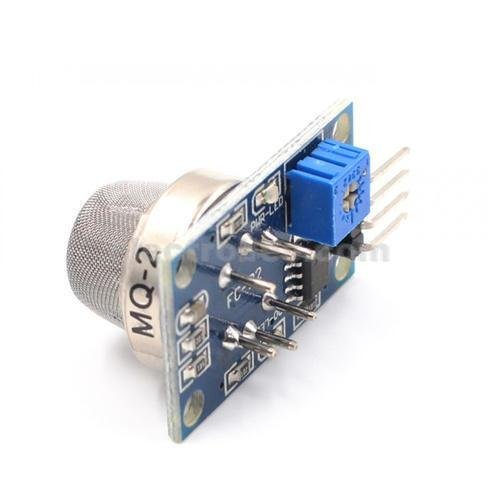

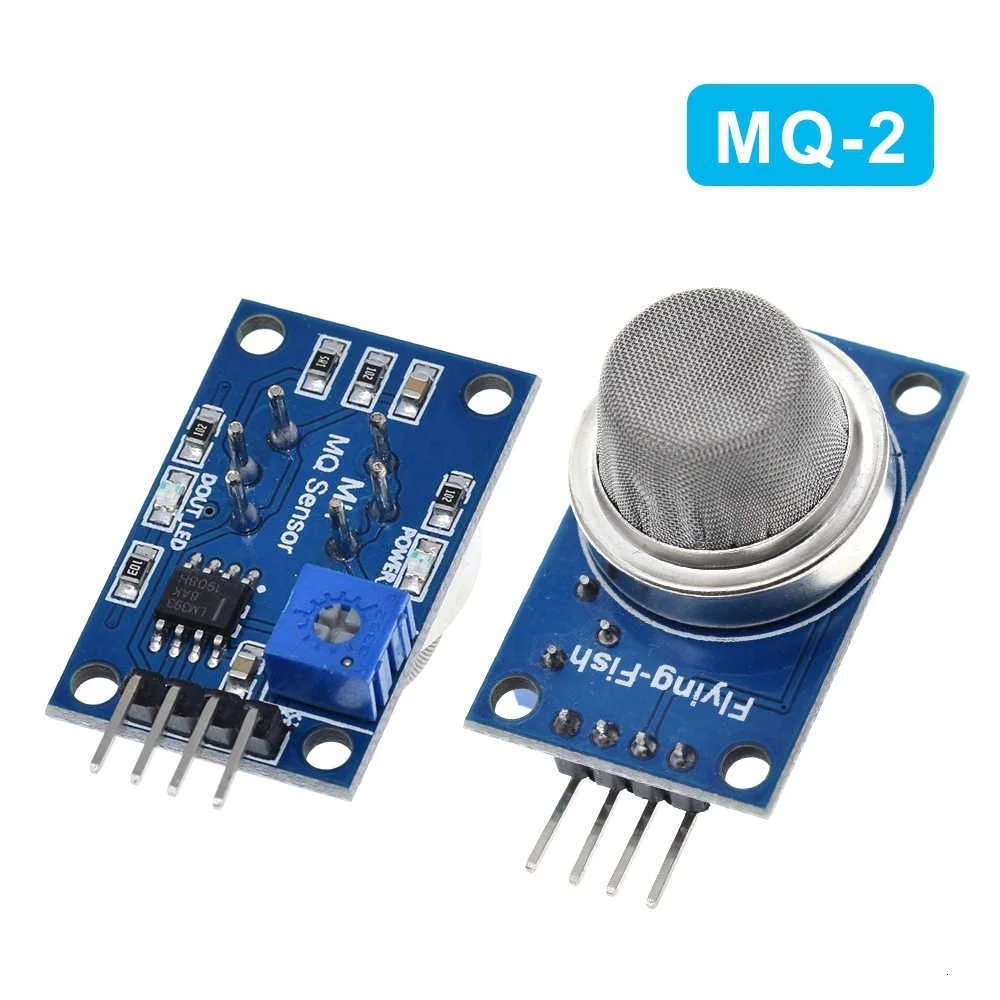

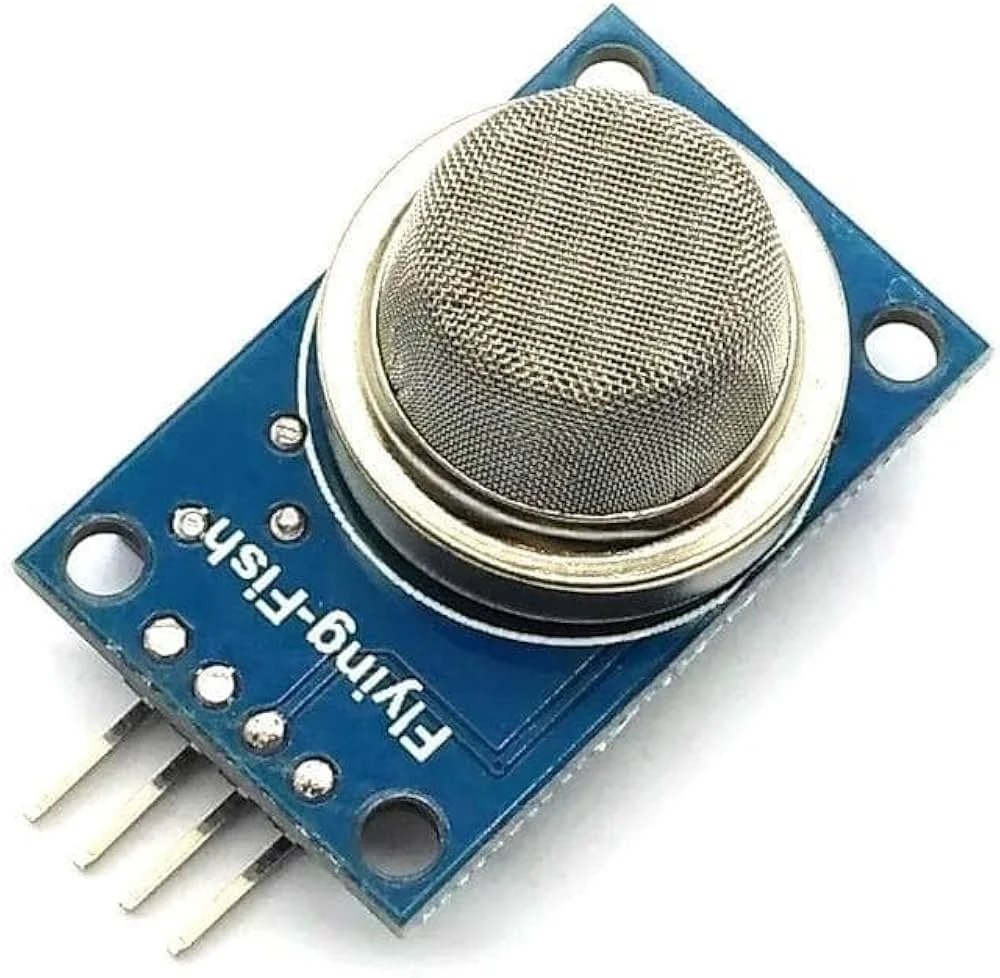

MQ-2 Smoke Hydrogen Propane Gas Sensor Module
MQ-2 Smoke Hydrogen Propane Gas Sensor Module Output voltage boosts along with the concentration of the measured gases increases. Buy online in Pakistan.
In stock
₨ 300
In stock
Features:
- Sensitive for LPG, propane, hydrogen
- Output voltage boosts along with the concentration of the measured gases increases
- Fast response and recovery
- Features boost circuit
- Adjustable sensitivity
- Signal output indicator
Pin Configuration:
| Pin No: | Pin Name: | Description |
| For Module | ||
| 1 | Vcc | This pin powers the module, typically the operating voltage is +5V |
| 2 | Ground | Used to connect the module to system ground |
| 3 | Digital Out | You can also use this sensor to get digital output from this pin, by setting a threshold value using the potentiometer |
| 4 | Analog Out | This pin outputs 0-5V analog voltage based on the intensity of the gas |
| For Sensor | ||
| 1 | H -Pins | Out of the two H pins, one pin is connected to supply and the other to ground |
| 2 | A-Pins | The A pins and B pins are interchangeable. These pins will be tied to the Supply voltage. |
| 3 | B-Pins | The A pins and B pins are interchangeable. One pin will act as output while the other will be pulled to ground. |
Applications
- Gas leakage detector
- Operating Voltage is +5V
- Can be used to Measure or detect LPG, Alcohol, Propane, Hydrogen, CO and even Methane
- Sensitive for LPG, propane, hydrogen
- Analog output voltage: 0V to 5V
- Digital Output Voltage: 0V or 5V (TTL Logic)
- Preheat duration 20 seconds
- Can be used as a Digital or analog sensor
- The Sensitivity of Digital pin can be varied using the potentiometer
