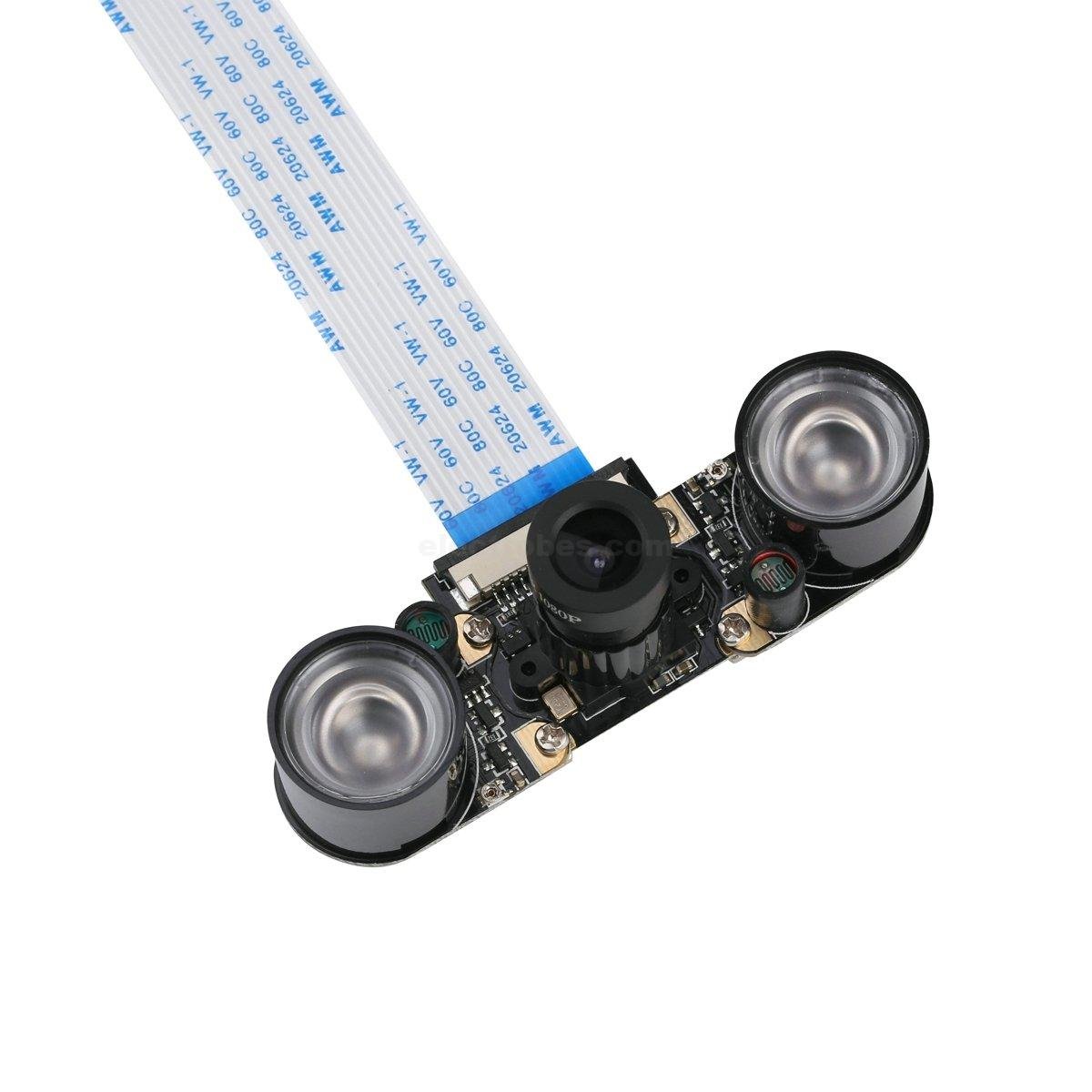

Nigh Vision Raspberry Pi Camera Board v1.3 (5MP, 1080p)

Night Vision Raspberry Pi Camera Board v1.3 It’s able to deliver a crystal clear 5MP resolution image, or 1080p HD video recording at 30fps. Buy online in Pakistan.

Compare
Availability:

In stock

 3,800

In stock

The Raspberry Pi Camera Board plugs directly into the CSI connector on the Raspberry Pi. It’s able to deliver a crystal clear 5MP resolution image, or 1080p HD video recording at 30fps! Latest Version 1.3! Custom designed and manufactured by the Raspberry Pi Foundation in the UK, the Raspberry Pi Camera Board features a 5MP (2592-1944 pixels) Omnivision 5647 sensor in a fixed focus module. The module attaches to Raspberry Pi, by way of a 15 Pin Ribbon Cable, to the dedicated 15-pin MIPI Camera Serial Interface (CSI), which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data to the BCM2835 processor. The board itself is tiny, at around 25mm x 20mm x 9mm, and weighs just over 3g, making it perfect for mobile or other applications where size and weight are important. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video recording. The camera is supported in the latest version of Raspbian, the Raspberry Pi’s preferred operating system.

Hardware connection:
  • Soft cable, 90-degree vertical connector, HDMI port next to it. When connecting the contact side facing the HDMI interface.
  • Tear protective film on the lens
  • Night vision visibility
  • Bare boards, pay attention to ESD damage, beware of static electricity!

Features:

  • Raspberry Pi night vision camera , compatible with Raspberry Pi 4 Model B, Raspberry Pi 3 Model B+ and Model B
  • 5 million pixel OV5647 camera
  • Lens : 1/4 5M
  • Aperture (F): 1.8
  • Focal length (Focal Length): 3.6MM ( adjustable)
  • FOV (Diagonal): 75.7 degrees
  • Best pixel sensor : 1080p
  • Size : 25mm x 24mm x 22mm
  • Sleek , perfect design
  • Metal frame, both the screw holes , but also a power connector
  • 3.3V power supply interface can be accessed sensitive infrared lamp or other device
  • Can access sensitive lights
  • Four screw holes can be installed Sensitive infrared light Or other fill light , you can switch freely , no longer worried about the light is too weak, underexposed.
  • Sensitive infrared light
  • Transparent lights for 1W high power infrared light photoreceptor 850
  • Photoresistor : detecting ambient light intensity
  • Adjustable resistance: open automatically adjust the ambient light intensity of infrared light threshold

Packing List:

Raspberry Pi night vision camera × 1 pcs
15pin FCC cable × 1 pcs
LED Flashlight × 2pcs

  • Night Vision function
  • Fully Compatible with Both the Model A and Model B Raspberry Pi
  • 5MP Omnivision 5647 Camera Module
  • Still Picture Resolution: 2592 x 1944
  • Video: Supports 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 Recording
  • 15-pin MIPI Camera Serial Interface – Plugs Directly into the Raspberry Pi Board
  • Size: 20 x 25 x 9mm
  • Weight 3g
  • Fully Compatible with many Raspberry Pi cases
