Discrete Electronic Components, General Electronics

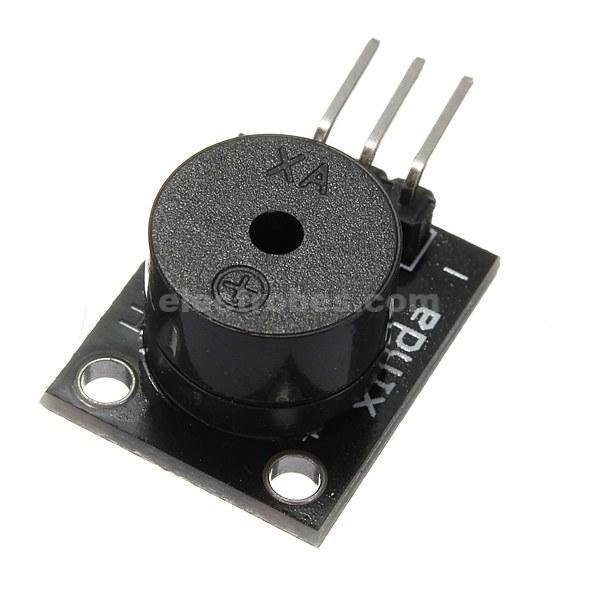

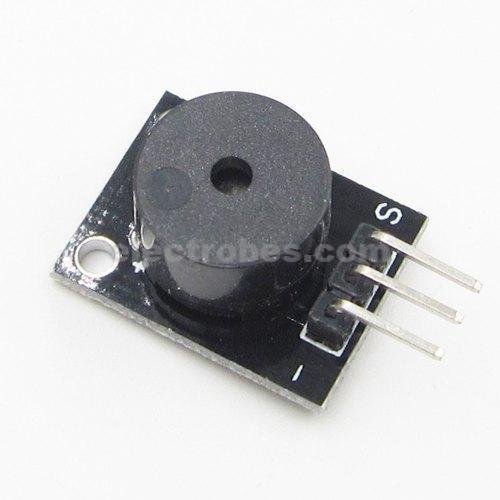

Passive Buzzer Speaker Sensor Module
Availability:
In stock
₨ 80
In stock
Passive Speaker Sensor Buzzer module for Arduino. No oscillation source, need square wave (frequency 2K-5K ) to drive. The Passive Buzzer module consists of a passive piezoelectric buzzer, it generates a sound of approximately 2kHz – 5kHz that can be controlled by arduino PWM pin.
| Operating Voltage | 3.5V ~ 5.5V |
| Maximum Current | 30mA / 5VDC |
| Resonance Frequency | 2500Hz ± 300Hz |
| Minimum Sound Output | 85Db @ 10cm |
| Working Temperature | -20°C ~ 70°C [-4°F ~ 158°F] |
| Storage Temperature | -30°C ~ 105°C [-22°F ~ 221°F] |
| Dimensions | 18.5mm x 15mm [0.728in x 0.591in] |
