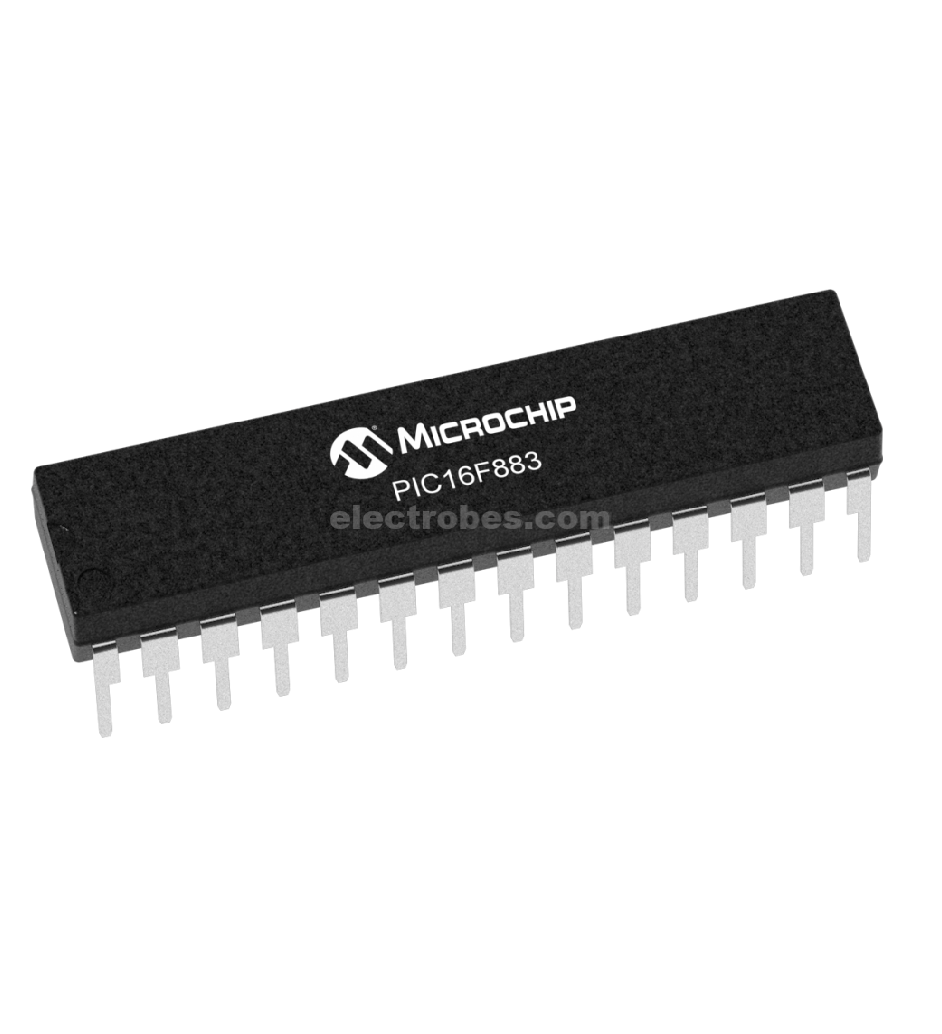

PIC16F883 8 bit MCU PIC Microcontroller IC
CompareOut of stock
₨ 400
Out of stock
PIC16F883 8 bit MCU PIC Microcontroller IC
This powerful yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into a 28 pin package.The PIC16F883 features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 11 channels of 10-bit Analog-to-Digital (A/D) converter, 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and an Enhanced Universal Asynchronous Receiver Transmitter (EUSART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances or consumer applications.
- Program Memory Type: Flash
- Program Memory (KB): 7
- CPU Speed (MIPS): 5
- RAM Bytes: 256
- Data EEPROM (bytes): 256
- Digital Communication Peripherals 1-UART, 1-A/E/USART, 1-SPI, 1-I2C1-
- MSSP(SPI/I2C)
- Capture/Compare/PWM Peripherals 1 CCP, 1 ECCP
- Timers: 2 x 8-bit, 1 x 16-bit
- ADC: 11 ch, 10-bit
- Comparators: 2
- Temperature Range (C): -40 to 125
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 28
- Cap Touch Channels: 11
