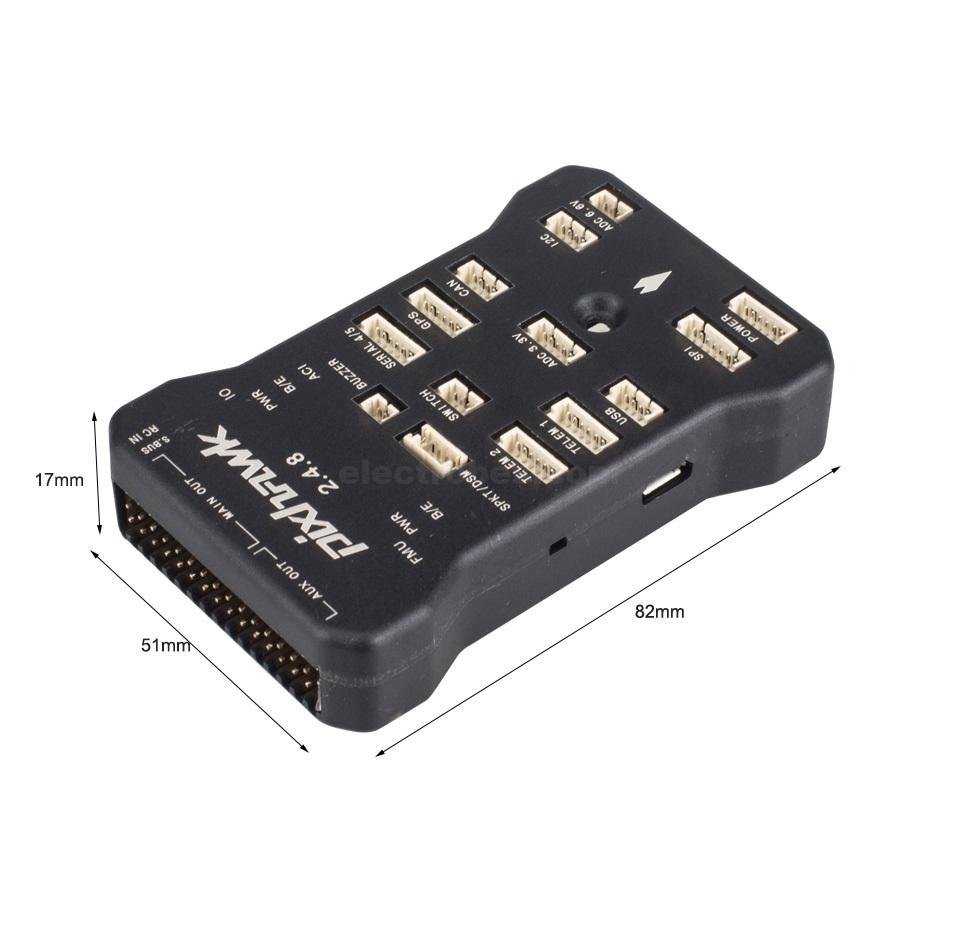

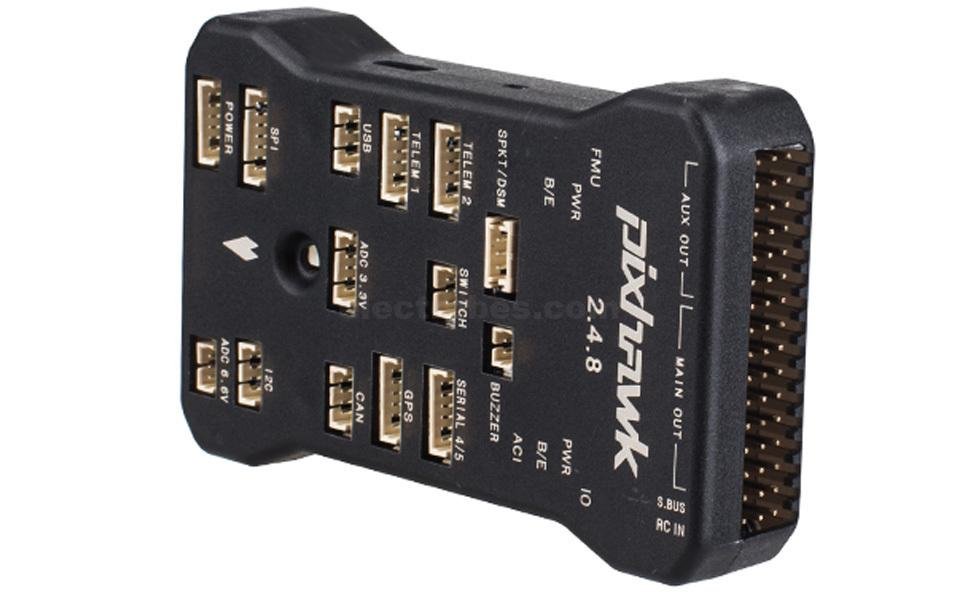

Pixhawk 2.4.8 Flight Controller PX4 for FPV And Quadcopter
The Pixhawk FC has become recognized as one of the most advanced, low-cost autopilot systems available. It is a brilliant piece of kit that can turn any fixed-wing aircraft, rotary-wing, multirotor or even boats and cars into a fully autonomous vehicle; capable of performing a wide range of tasks, even pre-programmed GPS missions with waypoints. The list of what this flight controller is capable of has quickly been surpassed by what it cannot, with an ever expanding set of features, flight modes, and supported platforms. Furthermore, the Pixhawk project is supported by a number of development communities making it one of the most flexible and reliable platforms for vehicle control.
Pixhawk is an open-hardware project and as such there are many versions of the Pixhawk FC available. The version of the Pixhawk being sold here is based on the original 3DR Version 1 FMUv2 Autopilot design. 3DR no longer make the FC, but as it’s based open source hardware design and runs open-source firmware we’ve had the Pixhawk manufactured ourselves to the same specification, with a couple of tweaks to improved reliability further.
Get all types of sensors, modules, drone frames, and much more from Pakistan’s best online store.
Benefits of Pixhawk 2.4.8 Flight Controller Kit:
- It includes integrated multithreading.it gives Unix/Linux like programming environment.it provides sophisticated scripting of missions and flight behavior.
- A custom PX4 driver layer ensuring tight timing for processing. APM and PX4 make the vehicles totally autonomous and lowers the barriers to entry for the new autonomous exciting world.
- Pixhawk module accompanied by peripheral options, a digital airspeed sensor, an external multi-color LED indicator, and a magnetometer. here all peripherals automatically detected and processed.
Features of Pixhawk 2.4.8 kit :
- 32 bit ARM Cortex M4 high-performance processors can run the real-time operating system.
- The servo output (14 PWM)
- UART, 12C, SPI, CAN is Bus interface
- The primary controller fails over to the backup control is safe in it.
- Automatic and manual modes are provided here.
- it provides redundant power input.
- LED lights are Multicolor.
- Multi-tone buzzer interface
- Micro SD card space
Interface:
- 5 UART 1 High Voltage compatible, 2 with hardware flow control
- 2.2 CAN
- DSM / DSM-X 3. Spektrum compatible satellite receiver input
- SBUS 4. Futaba input and output compatible
- PPM signal input
- RSSI (PWM or input voltage)
- I2C
- SPI
- 3.3 and 6.6 VADC inputs
- 10 external US MICRO
Packing list:
- Pixhawk 2.4.8 32bit ARM Cortex Flight Controller x 1
- Safety button x 1
- Buzzer x 1
- 8G TF card(IO firmware has written) x 1
- SD Card Jacket module x 1
- I2C Splitter Expand Module Board x 1
Microprocessor
- 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
- Frequency: 168MHZ, 256K RAM
- 32 STM32F103 backup processor
Sensor
- L3GD20 3-axis digital gyroscope 16
- LSM303D 3-axis accelerometer 14 / Magnetometer
- MPU6000 6-axis accelerometer / magnetometer
- MS5607 precision barometer
Interface - 0.5 high voltage compatible UART 1, 2 with hardware flow control
- 2 CAN
- Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
- Futaba SBUS compatible inputs and outputs
- PPM Signal Input
- RSSI (PWM or voltage) Input
- I2C & SPI
- 3.3 and 6.6VADC input
- External MICRO USB Interface

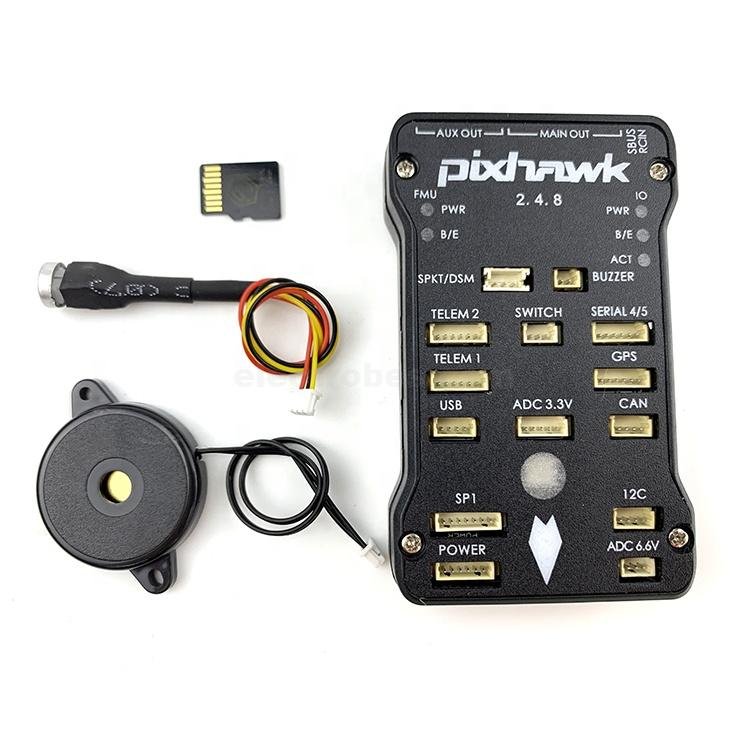

Packing list:
- 1 x Pixhawk 2.4.8 32bit ARM Flight Controller
- 1 x Original shell
- 1 x Safety button
- 1 x Buzzer
- 1 x 16G Micro SD card with reader (IO firmware has written)
- 1 x Pixhawk I2C Splitter Expand Module
- 1 x Servo cable
- 1 x 4pin turn 4pin cable
- 1 x 3pin DuPont line
