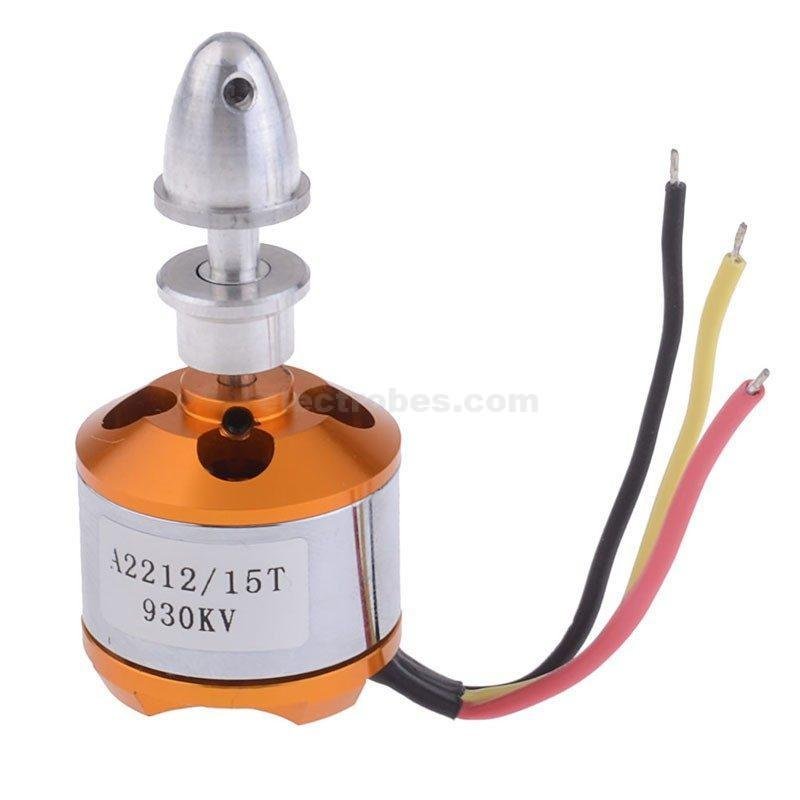

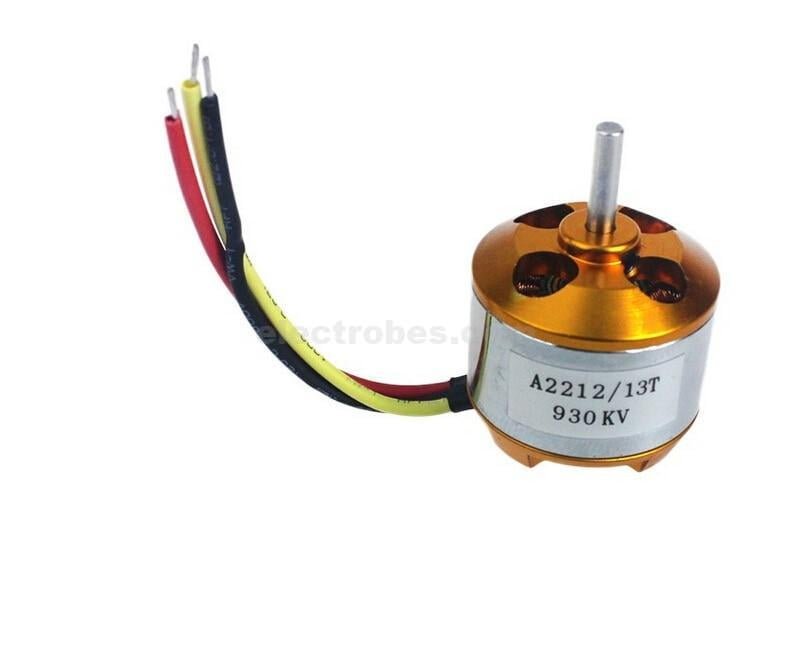

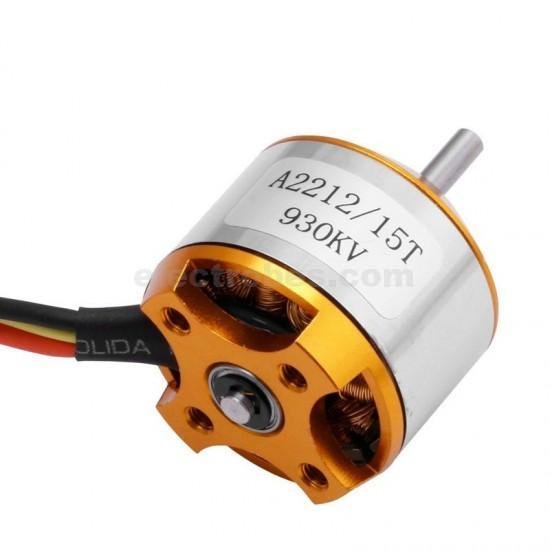

930KV A2212 Brushless DC Motor BLDC Rotor for Quadcopter Drone
This A2212 930KV is the type of one of the most popular brushless out runner motors among RC hobbyists. 930KV BLDC MOTOR is a motor for the airplane aircraft quadcopter. High-quality materials include long life Japanese bearings, the precision-balanced rotor which makes this brushless motor very smooth and reliable, even at the maximum RPM. The metal gears help with the movement, they will rotate in the proper direction. The brushless motors more powerful for their weight than brushed motors, and they last way longer.
Out of stock
₨ 1,200
Out of stock
- Planes And Copters, Robotics & Machines
930KV A2212 Brushless DC Motor BLDC Rotor for Quadcopter Drone
Planes And Copters, Robotics & Machines930KV A2212 Brushless DC Motor BLDC Rotor for Quadcopter Drone
This A2212 930KV is the type of one of the most popular brushless out runner motors among RC hobbyists. 930KV BLDC MOTOR is a motor for the airplane aircraft quadcopter. High-quality materials include long life Japanese bearings, the precision-balanced rotor which makes this brushless motor very smooth and reliable, even at the maximum RPM. The metal gears help with the movement, they will rotate in the proper direction. The brushless motors more powerful for their weight than brushed motors, and they last way longer.
SKU: 1174
930KV A2212 Brushless DC Motor BLDC Rotor for Quadcopter Drone
This is a brushless out runner motor specifically made for quadcopters and multi rotors. It is a 930kV motor. It provides high performance, super power and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inch to 10 inch propellers. Use this to build powerful and efficient quadcopters.
The comes complete with mounting bolts, prop adapters and power leads. It can be used with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.
Features:
- Weight: 52 gm
- Runs on 2-3 Cell Li-Po battery
- ESC Requirement minimum 25A
- Length 43.5mm with shaft
- Diameter 28.5mm
- Shaft Diameter 3.17mm
- 980 RPM/V no load speed
- Free Load Current 2.5A
- Maximum Efficiency : 80%
- Thrust with 1047 Prop at 12V: 880gm

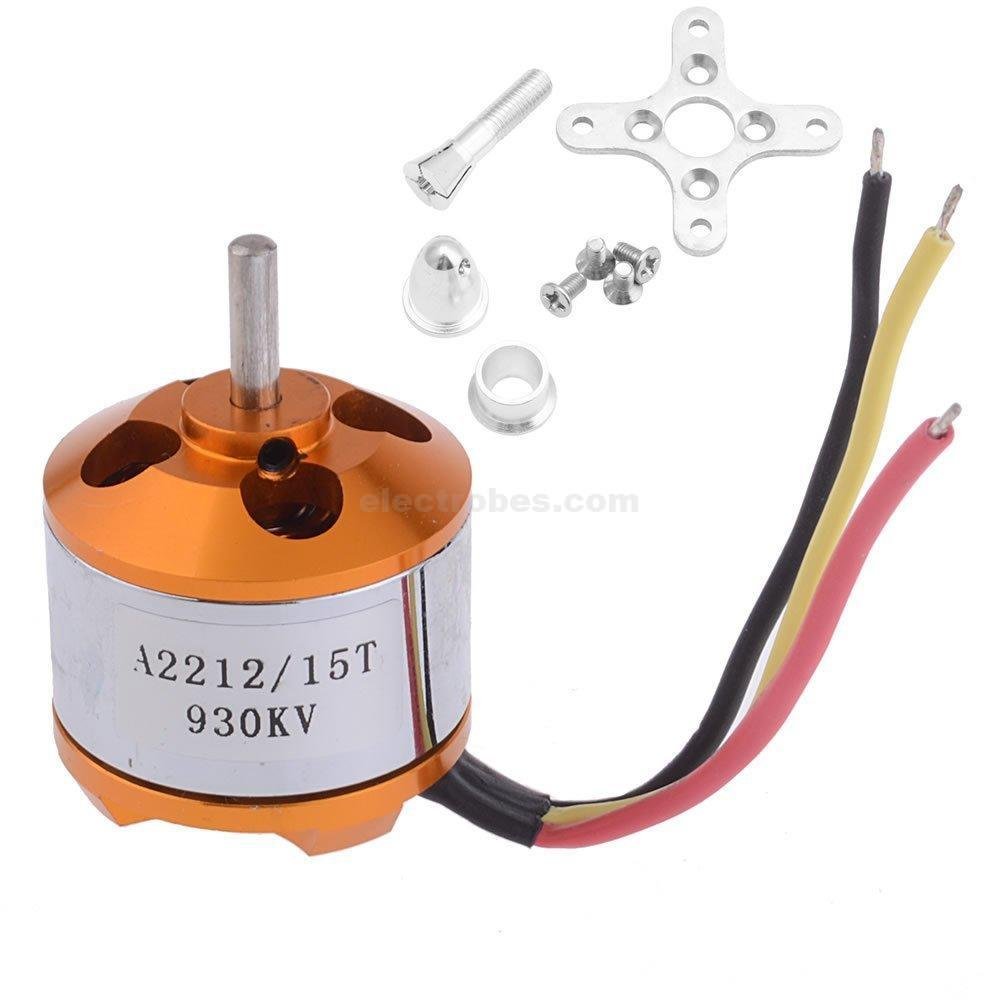

Package Included:
1x Propeller Adaptor
1x Motor Mount
1 set of Mounting Screws
- KV: 930
- No load Current : 10 V @ 0.5 A.
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly

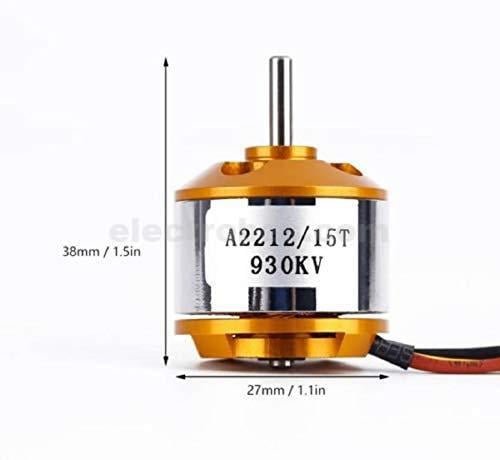

- Motor Dimensions: Φ27.5 x 30mm
- Shaft Diameter: Φ3.17mm
- Shaft diameter : 3.175mm.
- Minimum ESC Specification: 18A (30A Suggested)
- Thrust @ 3S with 1045 propeller: 800gms approx
- Thrust @ 3S with 0945 propeller: 475gms approx
- Thrust @ 3S with 0845 propeller: 475gms approx
