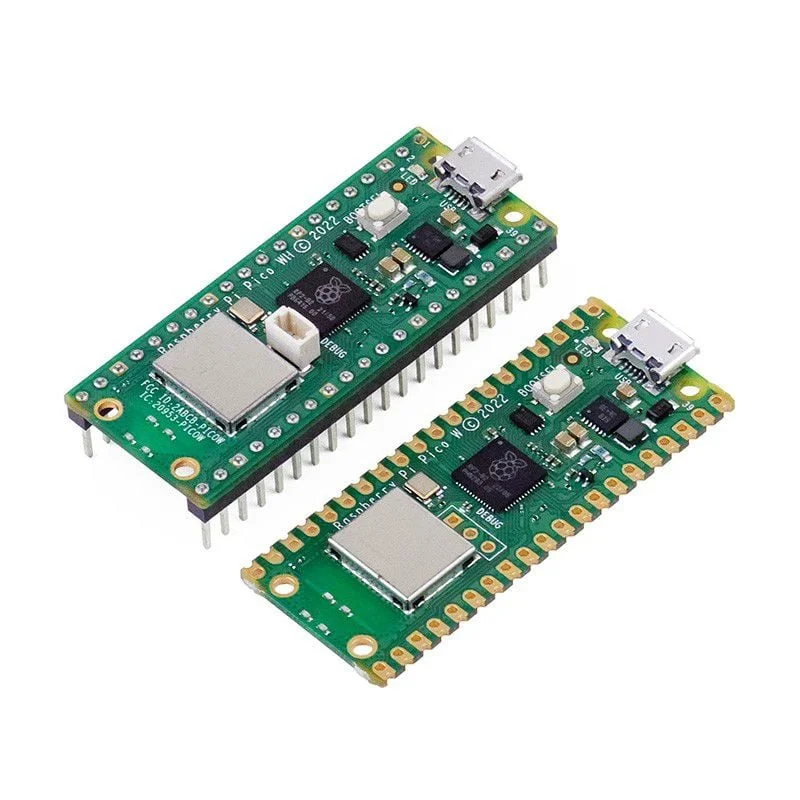

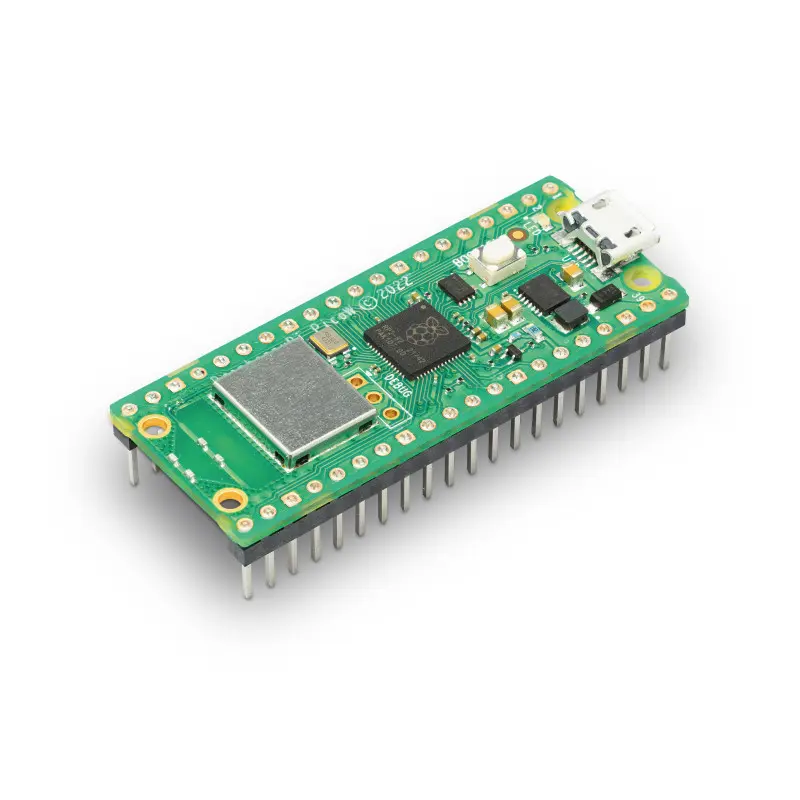

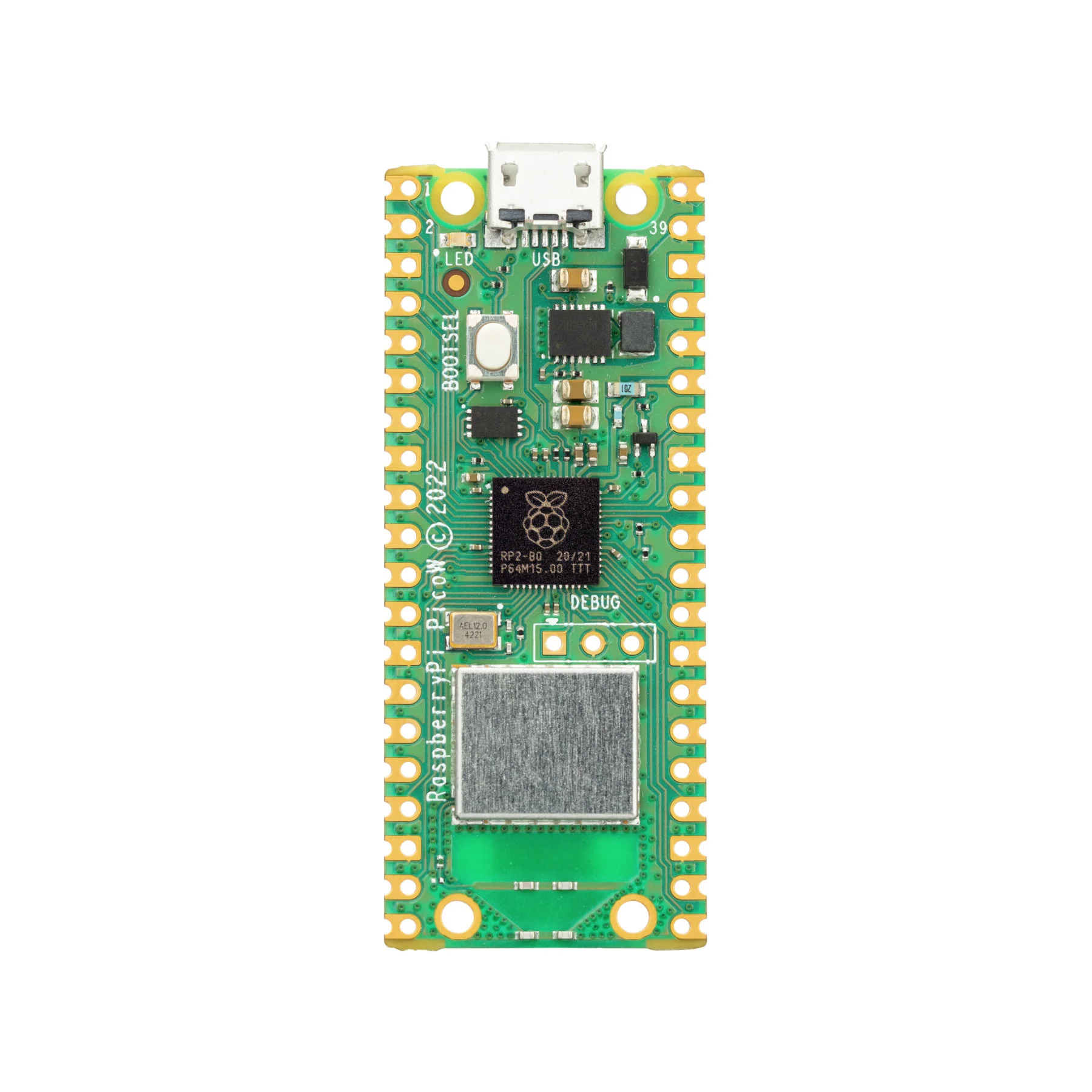

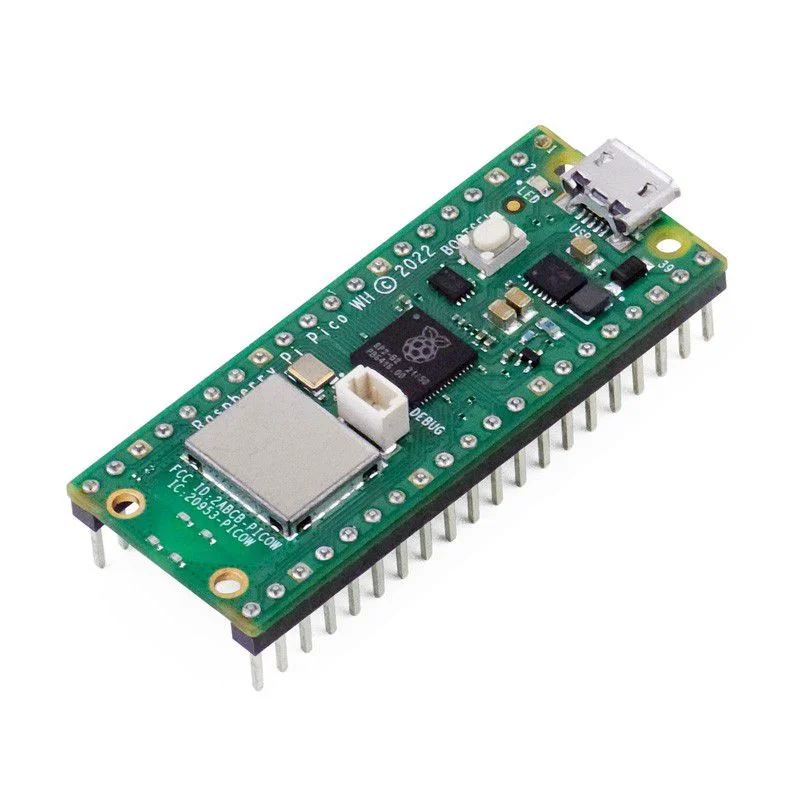

Raspberry Pi Pico WH 2.4GHz Wifi Based Microcontroller with Pre-Soldered Header Pins

Product Description:

The Raspberry Pi Pico WH with Soldered Headers is a compact and powerful microcontroller development board featuring built-in Wi-Fi connectivity for IoT and embedded projects. Based on the high-performance RP2040 dual-core ARM Cortex-M0+ processor, the Pico W delivers excellent performance, low power consumption, and flexible interfacing capabilities.

This version comes with pre-soldered header pins, making it easy to plug directly into breadboards and prototype circuits without any soldering required. With onboard 2.4GHz Wi-Fi, multiple GPIO pins, and support for popular programming environments such as MicroPython and C/C++, the Pico W is perfect for beginners, students, and professionals.

Ideal for IoT devices, automation systems, robotics, smart home projects, and wireless sensor applications.

 Specifications:

• Board Name: Raspberry Pi Pico WH
• Processor: RP2040 Dual-core ARM Cortex-M0+
• Clock Speed: Up to 133 MHz
• Wireless Connectivity: 2.4GHz Wi-Fi (802.11n)
• Flash Memory: 2MB onboard QSPI Flash
• SRAM: 264KB
• GPIO Pins: 26 multifunction GPIO pins
• Analog Inputs: 3 × 12-bit ADC channels
• Communication Interfaces:
  • UART
  • SPI
  • I2C
  • PWM
• USB Interface: Micro USB
• Operating Voltage: 1.8V – 5.5V input
• Logic Level: 3.3V
• Headers: Pre-soldered male headers
• Programming Support: MicroPython, C/C++, Arduino IDE
• Operating Temperature: -20°C to +85°C

 Key Features:

• Built-in Wi-Fi Connectivity
  Perfect for IoT and wireless communication projects.
•  Powerful RP2040 Dual-Core Processor
  Fast and efficient performance for embedded applications.
•  Pre-Soldered Headers
  Ready to use with breadboards and prototype setups.
•  Flexible GPIO Support
  Multiple digital and analog interfaces for sensors and modules.
•  Easy Programming
  Compatible with MicroPython, Arduino IDE, and C/C++ SDK.
•  Low Power Consumption
  Suitable for battery-powered and portable devices.
•  Compact & Lightweight Design
  Ideal for embedded systems and DIY electronics projects.
•  Great for Learning & Development
  Excellent choice for students, makers, and professionals.

Package Includes:

1 x Raspberry Pi Pico-WH
