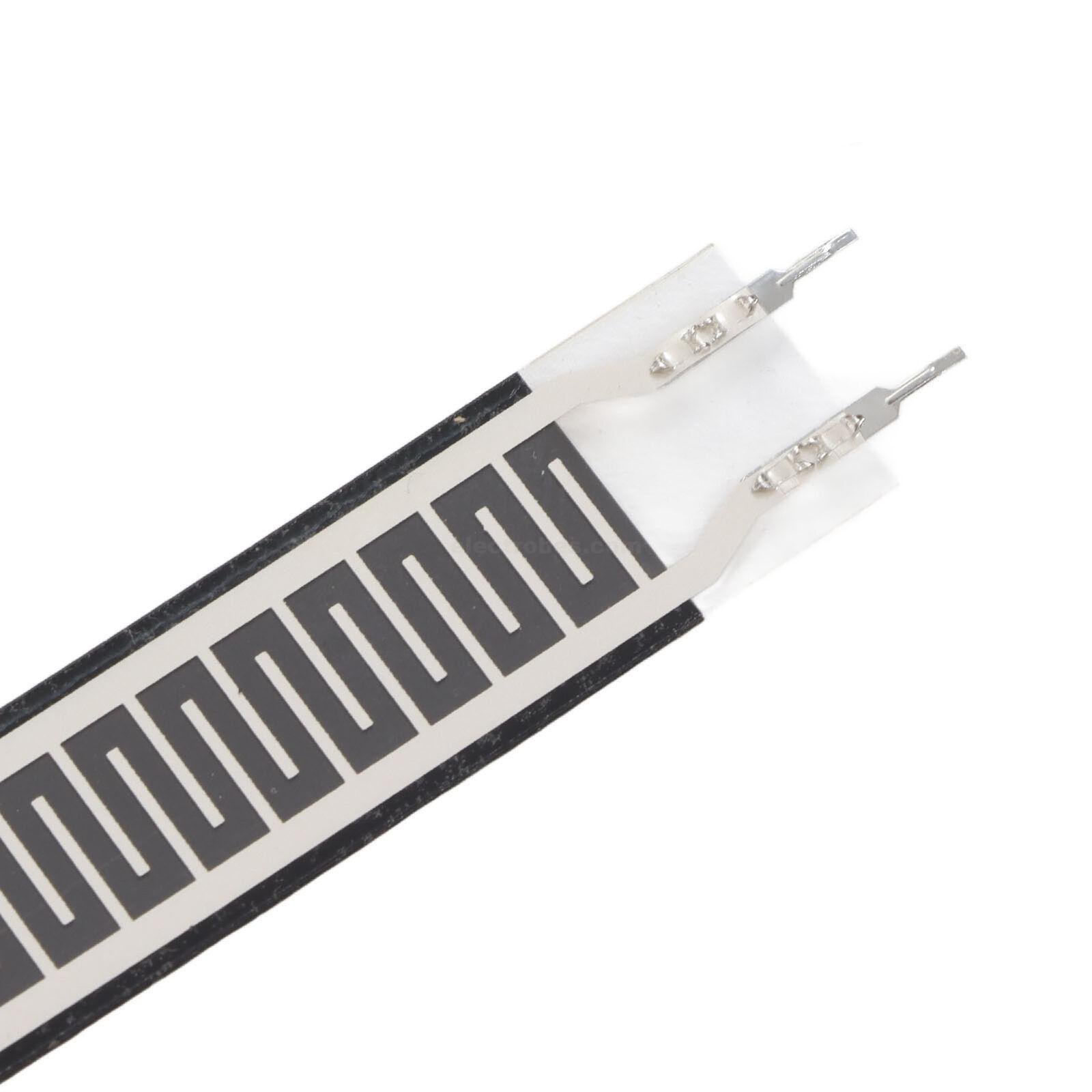

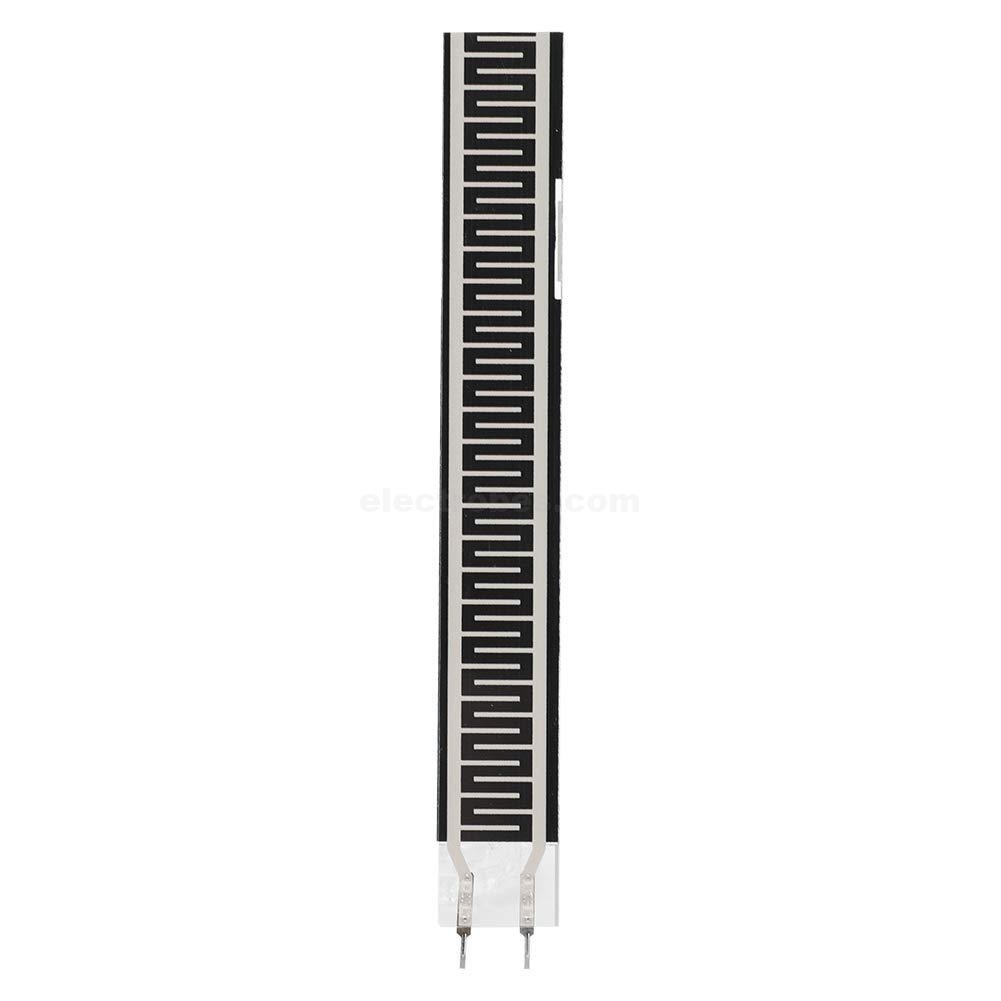

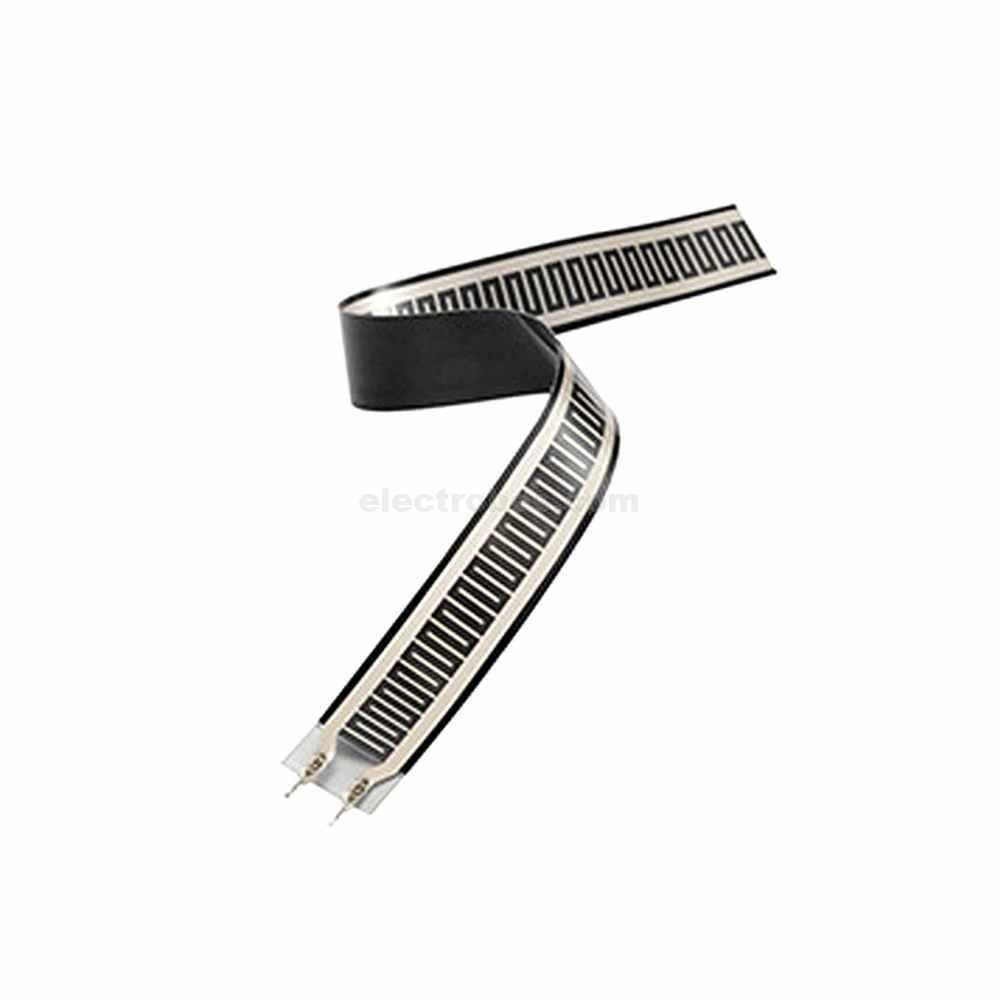

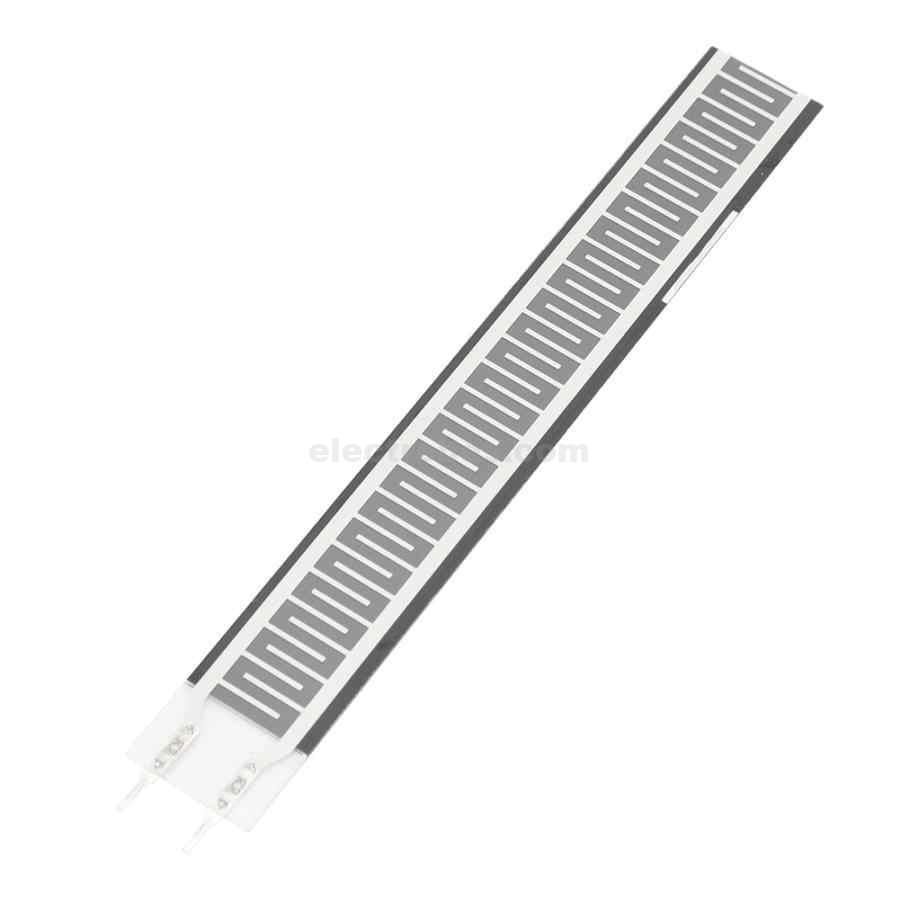

RP-L-110 FSR Force Sensitive Resistor Pressure Sensor
Resistance Pressure Sensor High Precise Resistive Film Pressure Sensor Force Sensitive Resistor RP-L-110
Availability:
In stock
₨ 1,250 ₨ 1,500
In stock
RP-L-110 Resistance Pressure Sensor High Precise Resistive Film Pressure Sensor Force Sensitive Resistor
Features:
- The flexible sensor has dual functions of waterproof and pressure sensing, flexible and ultra-thin, resistant to bending, and extremely fast response, etc.
- The pressure sensor adopts high-sensitivity flexible nanometer materials, which can realize high sensitive detection of pressure, and has a long service life, please use it with confidence.

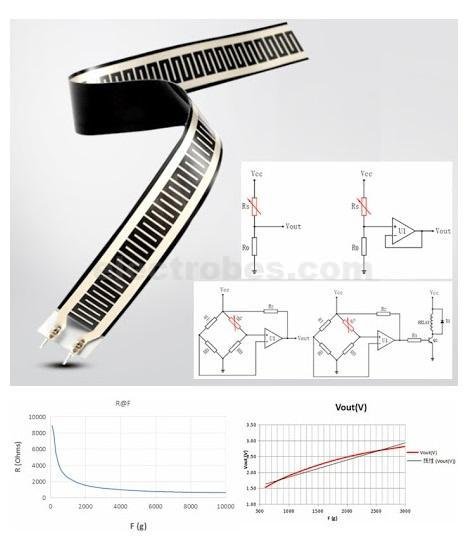

- When sensor detects outside pressure, the resistance of sensor will change. Pressure signal can be converted into a corresponding electrical signal output using simple circuit.
Specifications:
- Model: RP-L-110,

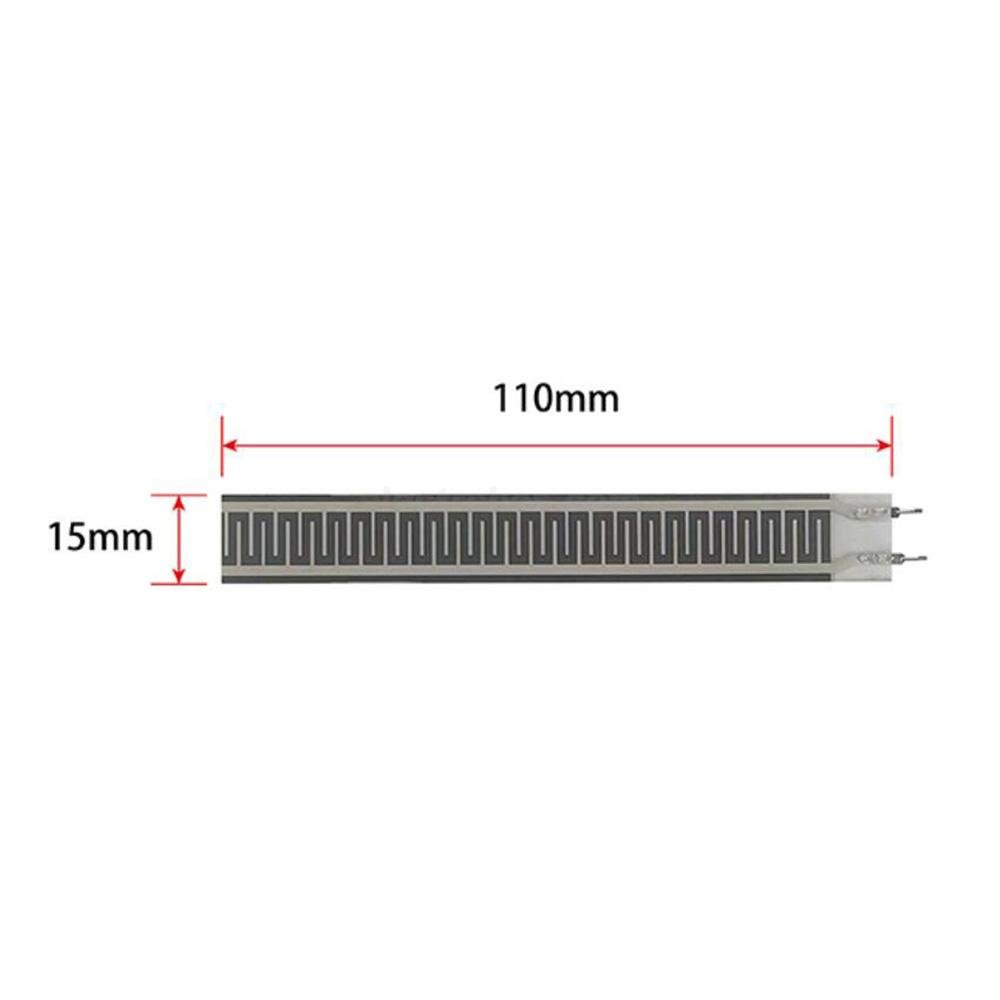

- Length: 100 mm/3.9in,
- Width:10mm/04in,
- Range: 0 ~ 500g,
- Thickness: less than 0.25mm,
- Response time: less than 10ms,
- Recovery time: less than 15ms,
- Working temperature:- 20℃~ 60℃.
Package Content:
1 x RP-L-110 FSR Force Sensitive Resistor Pressure Sensor
- Model: RP-L-110,
- Length: 100 mm/3.9in,
- Width:10mm/04in,
- Range: 0 ~ 500g,
- Thickness: less than 0.25mm,
- Response time: less than 10ms,
- Recovery time: less than 15ms,
- Working temperature:- 20℃~ 60℃
