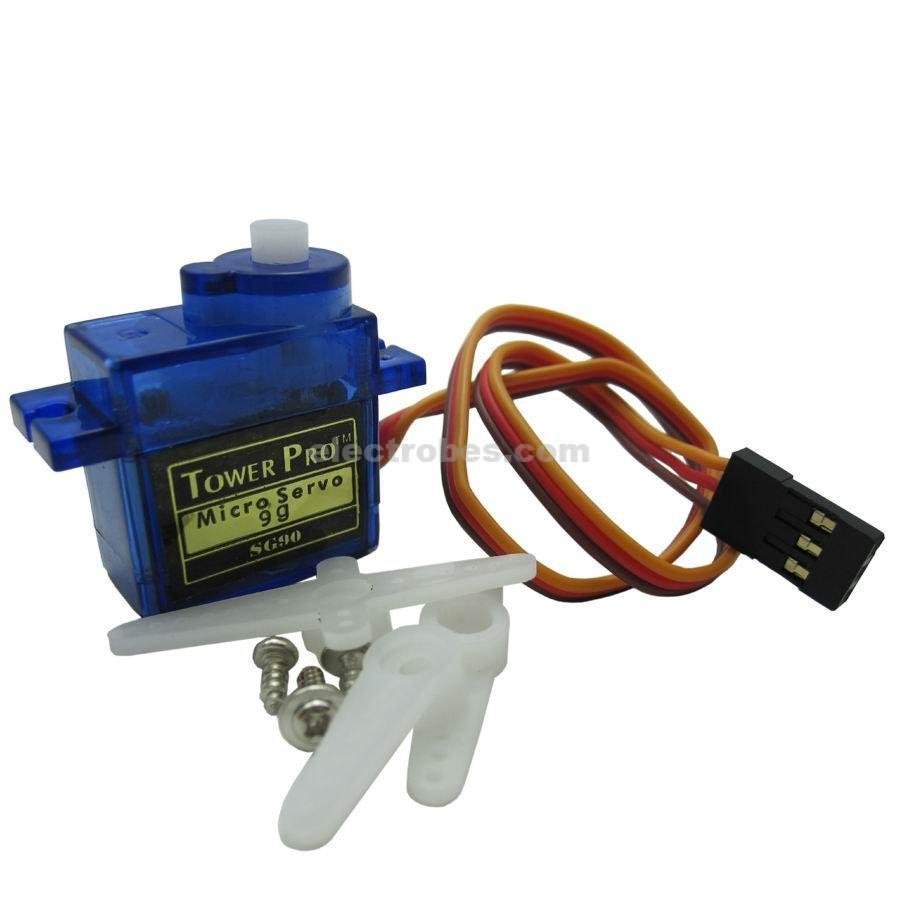

SG-90 Servo Motor 360 Degree Rotation

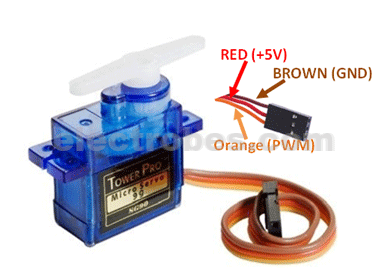

Wire Configuration

SG-90 Servo Motor Equivalent

MG90S Metal Gear, MG996 High Torque Metal Gear,

Selecting your Servo Motor

There are lots of servo motors available in the market and each one has its own specialty and applications. The following two paragraphs will help you identify the right type of servo motor for your project/system.

Most of the hobby Servo motors operates from 4.8V to 6.5V, the higher the voltage higher the torque we can achieve, but most commonly they are operated at +5V.  Almost all hobby servo motors can rotate only from 0° to 180° due to their gear arrangement so make sure you project can live with the half circle if no, you can prefer for a 0° to 360° motor or modify the motor to make a full circle. The gears in the motors are easily subjected to wear and tear, so if your application requires stronger and long running motors you can go with metal gears or just stick with normal plastic gear.

How to use a Servo Motor

After selecting the right Servo motor for the project, comes the question how to use it. As we know there are three wires coming out of this motor. The description of the same is given on top of this page. To make this motor rotate, we have to power the motor with +5V using the Red and Brown wire and send PWM signals to the Orange color wire. Hence we need something that could generate PWM signals to make this motor work, this something could be anything like a 555 Timer or other Microcontroller platforms like Arduino, PIC, ARM or even a microprocessor like Raspberry Pi. Now, how to control the direction of the motor? To understand that let us a look at the picture given in the datasheet.

From the picture we can understand that the PWM signal produced should have a frequency of 50Hz that is the PWM period should be 20ms. Out of which the On-Time can vary from 1ms to 2ms. So when the on-time is 1ms the motor will be in 0° and when 1.5ms the motor will be 90°, similarly when it is 2ms it will be 180°. So, by varying the on-time from 1ms to 2ms the motor can be controlled from 0° to 180°

Applications

• Used as actuators in many robots like Biped Robot, Hexapod, robotic arm etc..
• Commonly used for steering system in RC toys
• Robots where position control is required without feedback
• Less weight hence used in multi DOF robots like humanoid robots

Note:

This motor works on delay and works similar as a gear motor, it will not rotate by degrees.
