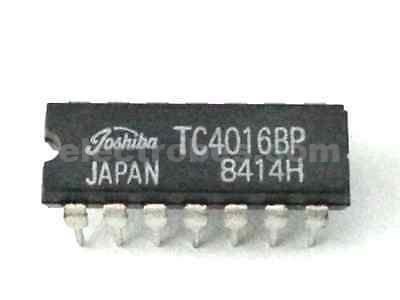

CD4016 / TC4016 Quad Bilateral Switch IC
• Wide Analog-Input-Voltage Range . . . . . . . . . 0V to 10V
• Low “ON” Resistance
– 45Ω (Typ) . . . . . . . . . . . . . . . . . . . . . . . . . . .VCC = 4.5V
– 35Ω (Typ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . VCC = 6V
– 30Ω (Typ) . . . . . . . . . . . . . . . . . . . . . . . . . .1fcVCC = 9V
• Fast Switching and Propagation Delay Times
• Low “OFF” Leakage Current
• Built-In “Break-Before-Make” Switching
• Suitable for Sample and Hold Applications
• Wide Operating Temperature Range . . . -55oC to 125oC
• HC Types
– 2V to 10V Operation
– High Noise Immunity: NIL = 30%, NIH = 30% of VCC
at VCC = 5V
Only 2 left in stock
₨ 35
Only 2 left in stock
Description
The TC/CD4016BC is a quad bilateral switch intended for the
transmission or multiplexing of analog or digital signals. It is
pin-for-pin compatible with CD4066BC.
The TC/CD74HC4016 contains four independent digitally controlled analog switches that use silicon-gate CMOS technology to achieve operating speeds similar to LSTTL with the low power consumption of standard CMOS
integrated circuits. Each switch has two input/output terminals (nY, nZ) and an active high enable input (nE). Current through the switch will not cause additional VCC current provided the analog voltage is maintained between VCC and GND.
Applications
• Analog signal switching/multiplexing
Signal gating
Squelch control
Chopper
Modulator/Demodulator
Commutating switch
• Digital signal switching/multiplexing
• CMOS logic implementation
• Analog-to-digital/digital-to-analog conversion
• Digital control of frequency, impedance, phase, and
analog-signal gainApplications
• Analog signal switching/multiplexing
Signal gating
Squelch control
Chopper
Modulator/Demodulator
Commutating switch
• Digital signal switching/multiplexing
• CMOS logic implementation
• Analog-to-digital/digital-to-analog conversion
• Digital control of frequency, impedance, phase, and
analog-signal gain
