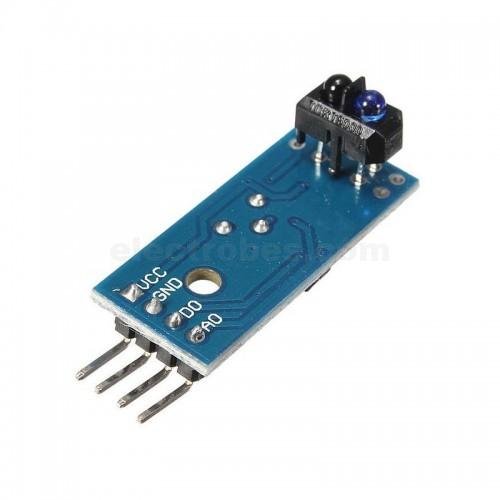

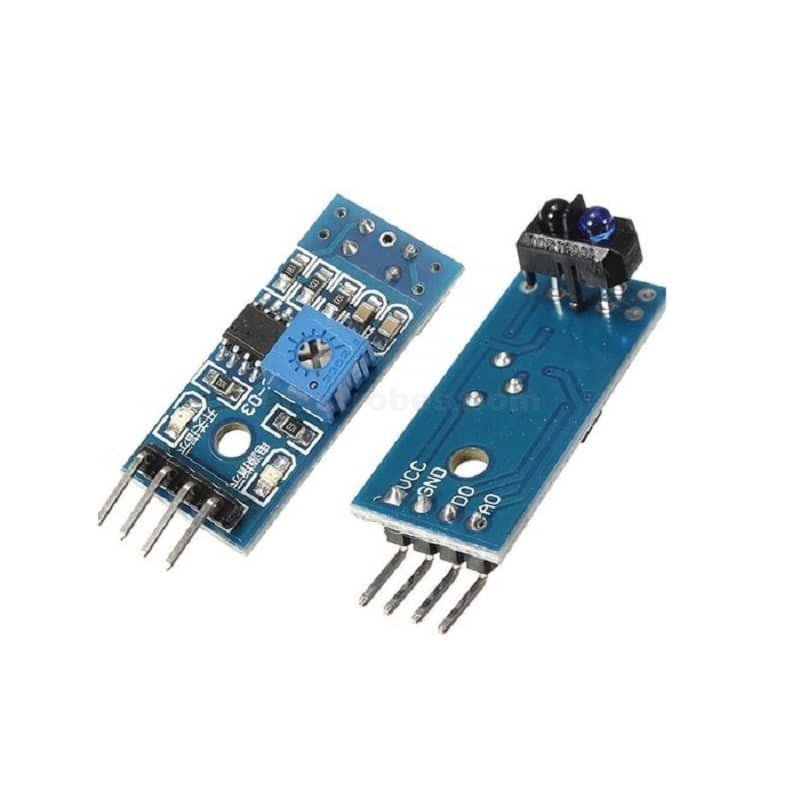

TCRT5000 IR Sensor Module Line Tracking Line Following

The TCRT5000 infrared sensor module features strong drive ability, good waveform, and clear signal.

This module can provide high performance for applications such as fax machines, paper shredders, paper testing and for your projects requiring watt-hour meter pulse data sampling, black and white detection, obstacle detection and more

The TCRT5000 infrared sensor module has strong drive ability, good waveform, and clear signal making it ideal for your projects which require obstacle detection, watt-hour meter pulse data sampling and more.

Description:

• Adopt TCRT5000 infrared reflection sensor
• Detection distance: 1mm~8mm, the focus distance is 2.5mm
• Comparator output, clean signal, good waveform, strong driving capability, over 15mA.
• Adjustable sensitivity with multi-turn adjustable precision potentiometer
• Fixed bolt hole for easy installation, working voltage 3.3V-5V

Specification:

• Material:
• Watt meter pulse data sampling
• Fax machine shredder paper detection
• Obstacle detection
• Black and white line detection
• Output form: digital switching output (0 and 1)
• Small board PCB size: 3.2cm x 1.4cm/1.26 x 0.55inch
• Use wide voltage LM393 comparator

Module function introduction:

The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or reflected back but the intensity is not enough, the phototransistor is always in the off state, and the output end of the module is low. Flat, indicating that the diode is always off; when the detected object appears in the detection range, the infrared light is reflected back and the intensity is large enough, the phototransistor is saturated, and the output of the module is high, indicating that the diode is illuminated. Circuit diagram AO is the voltage difference of the sensor when it receives different reflections, it is analog signal, DO is digital signal output

Package Includes:

1 x Infrared Reflection Infrared Switching Obstacle Line Tracking Sensor Module
