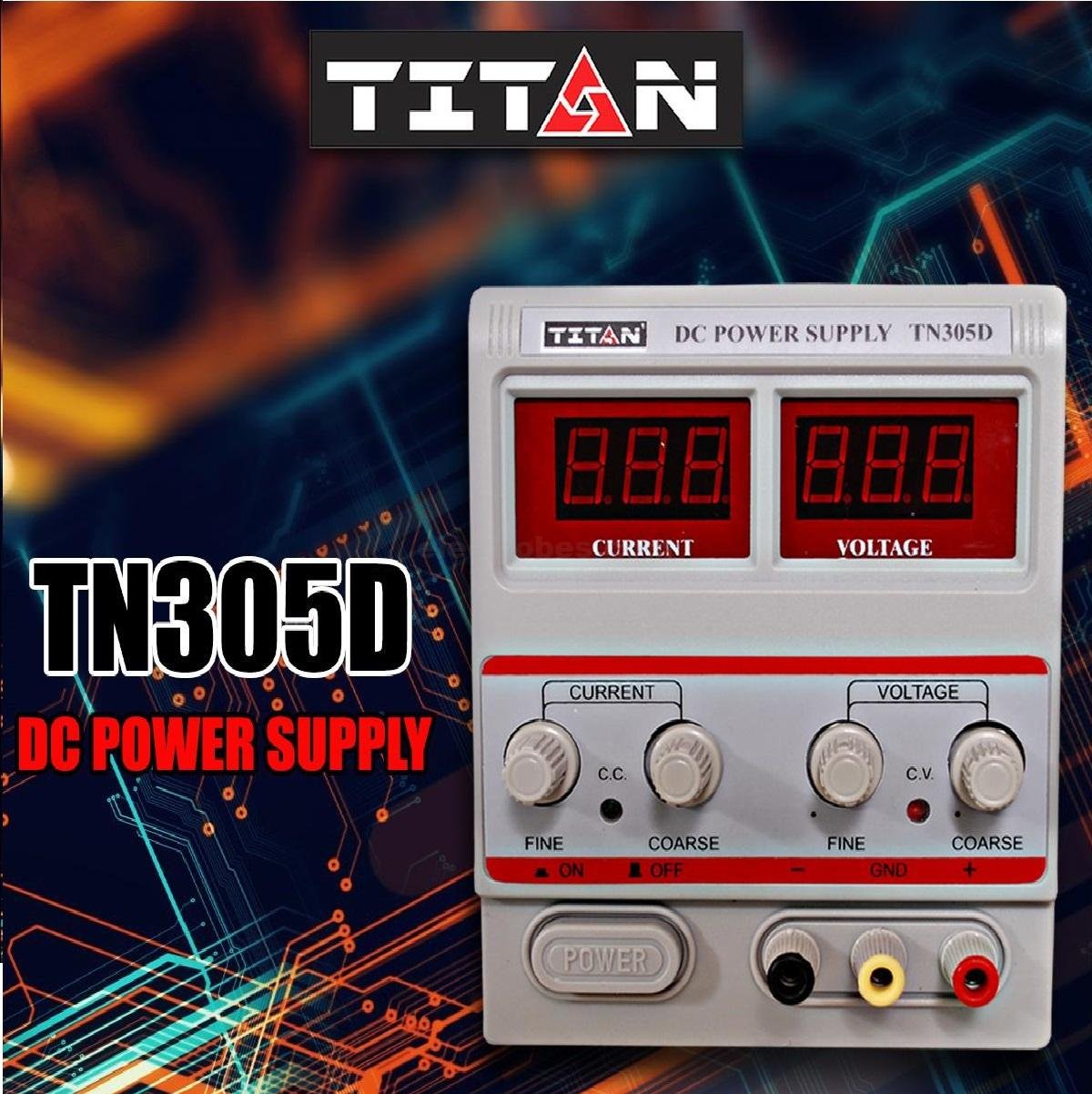

Titan TN-305D 220V DC Power Supply Precision Lab Variable 30V 5A Adjustable Regulator
The series of single power supplies for currents up to 5A are reliable and precise laboratory equipment with regulated and stabilized DC voltage and regulated (limited) current consumption. The output voltage and current are smoothly regulated by the coarse and fine adjustment knobs separately for the input current and voltage; can operate in voltage (CV) or current (CC) output mode. The power supplies are protected against the effects of short circuits and thus against overload and damage. Cooling is provided by the built-in fan. They are equipped with 2 readable LED displays. The power supplies can be used in the design of electronics products, scientific works, in laboratories, on production lines and in teaching.
Out of stock
₨ 10,500
Out of stock
Titan TN-305D DC Power Supply Precision Lab Variable 30V 5A Adjustable Regulated Power Source
Titan TN-305D or TN305D variable voltage DC power supply unit now features a Dual LED display with highly accurate LED digital readout. This high voltage dc power supply has maximum output of 30V at 5A. The dc voltage supply has high stabilized output voltage. The Titan power supply is best lab power supply short circuit protection. Overloading and current protection.
Application:
- Products Related to Auto
- Products Related to Electron
- Products Related to Computer
- Research Institutions
- Educational Institutions can use it like a research equipment.
Characteristics:
- High quality and reliability
- Clear digital LED displays
- Operation in voltage (CV) or current (CC) stabilization mode

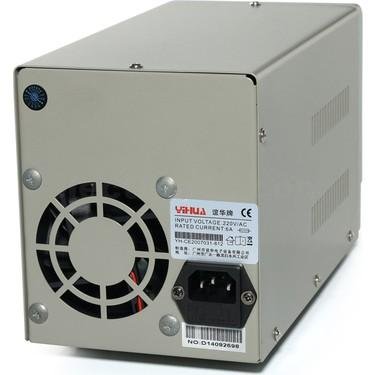

Protection against short circuit and overload - Built-in fan
- Thermal fan switch
- Ability to work with a current limitation of 990mA (indications with an accuracy of 1mA) and 5A (indications with an accuracy of 10mA)
Technical parameters
- Supply voltage 220V AC ± 10%, 50 / 60Hz
- Working environment -10 ÷ 40 ° C, RH <90%
- Storage environment -10 ÷ 40 ° C, RH <80%
Voltage stabilization
- The output voltage is adjustable from 0 to 30V in a linear manner
- Voltage stabilization factor 0.01% + 2mV
- Load stabilization factor 0.01% + 2mV
- Recovery time 100μs
- Ripple and noise 0.5m Arms (effective value)
Current stabilization
- The output current is adjustable from 0-5A in a linear way
- Current stabilization factor 0.1% + 3mA
- Load stabilization factor 0.2% + 3mA
- Ripple and noise 2m Arms (effective value)
- Input voltage:220V AC±10% 50Hz
- Voltage Output: 0-30V
- Current Output: 0-5A
- Operating temperature: -10C -40C
- Relative humidity < 90%
- Storage temperature: -10C – 40C
- Relative humidity < 80%
- Display accuracy: ±1% ±1 unit
- Constant Voltage state:
- Voltage stability: ?0.01% + 2mV
- Load stability: ?0.01%+2mV
- Resume time: ?100us
- Ripple noise:?1mVRMS(RMS)
- Temperature coefficient: ?200PPM/C
- Constant Current state:
- Power supply stability ?0.1% + 3mA
- Load changes stability ?0.2% + 3mA
- Ripple noise: ?2mARMS
- Weight: 4.52kg
- Dimensions mm: 275x126x155
