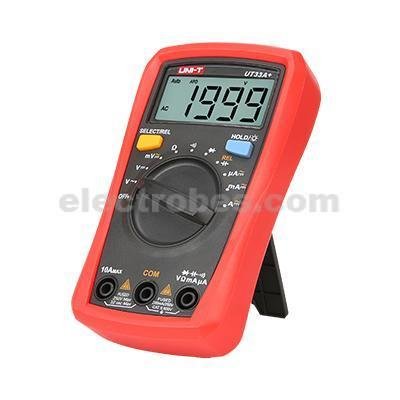

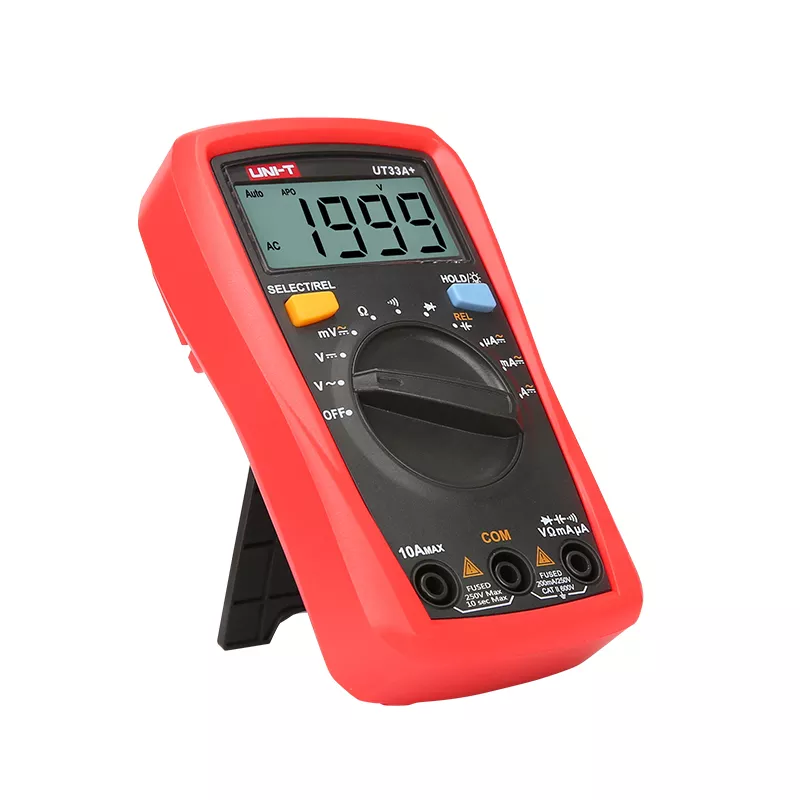

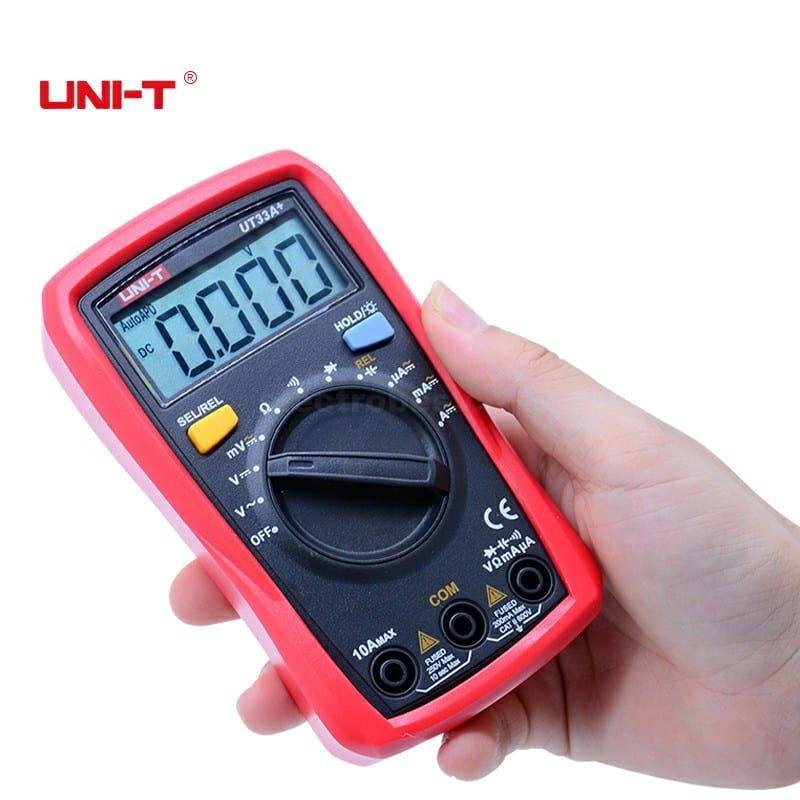

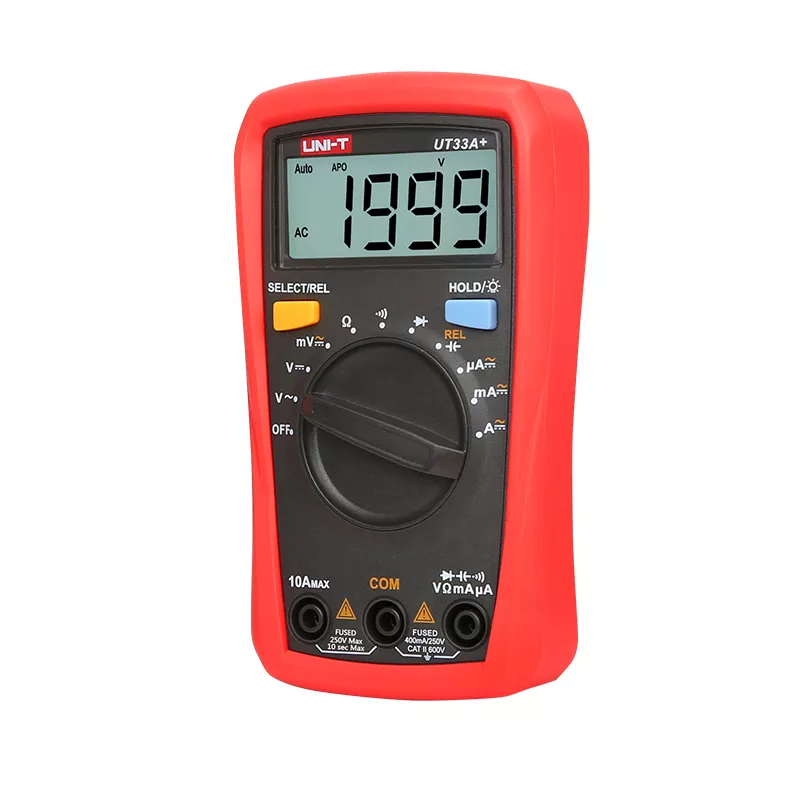

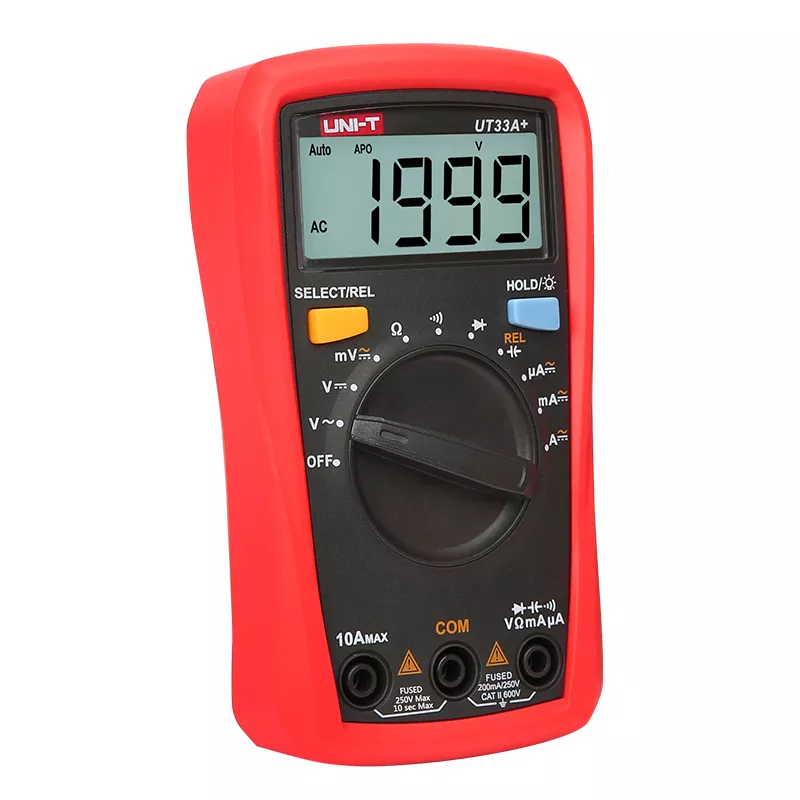

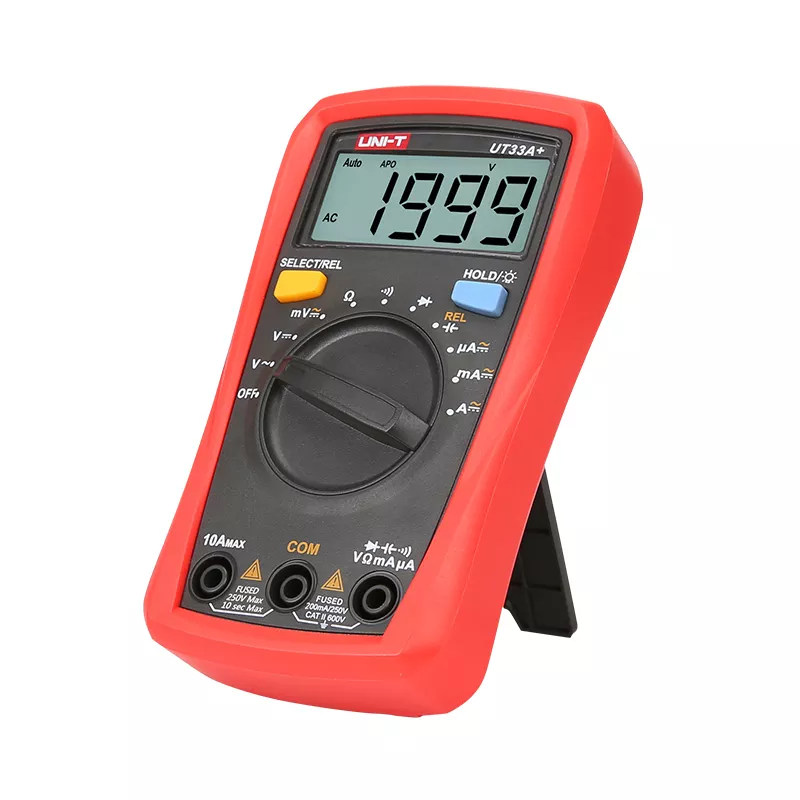

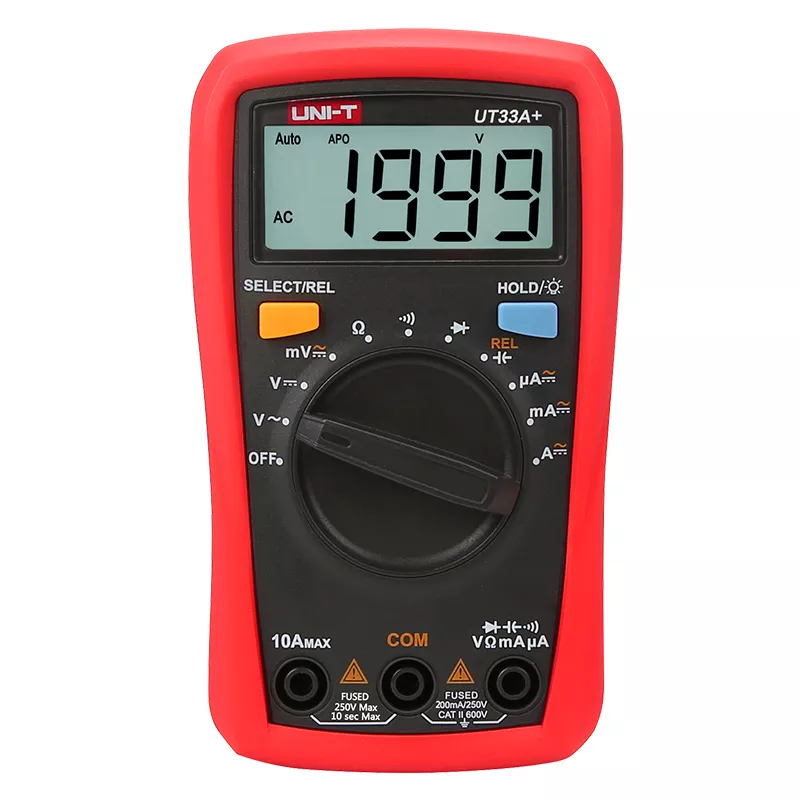

UNI-T UT33A+ Palm Size Digital Multimeter DMM
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).
In stock
₨ 3,600
In stock

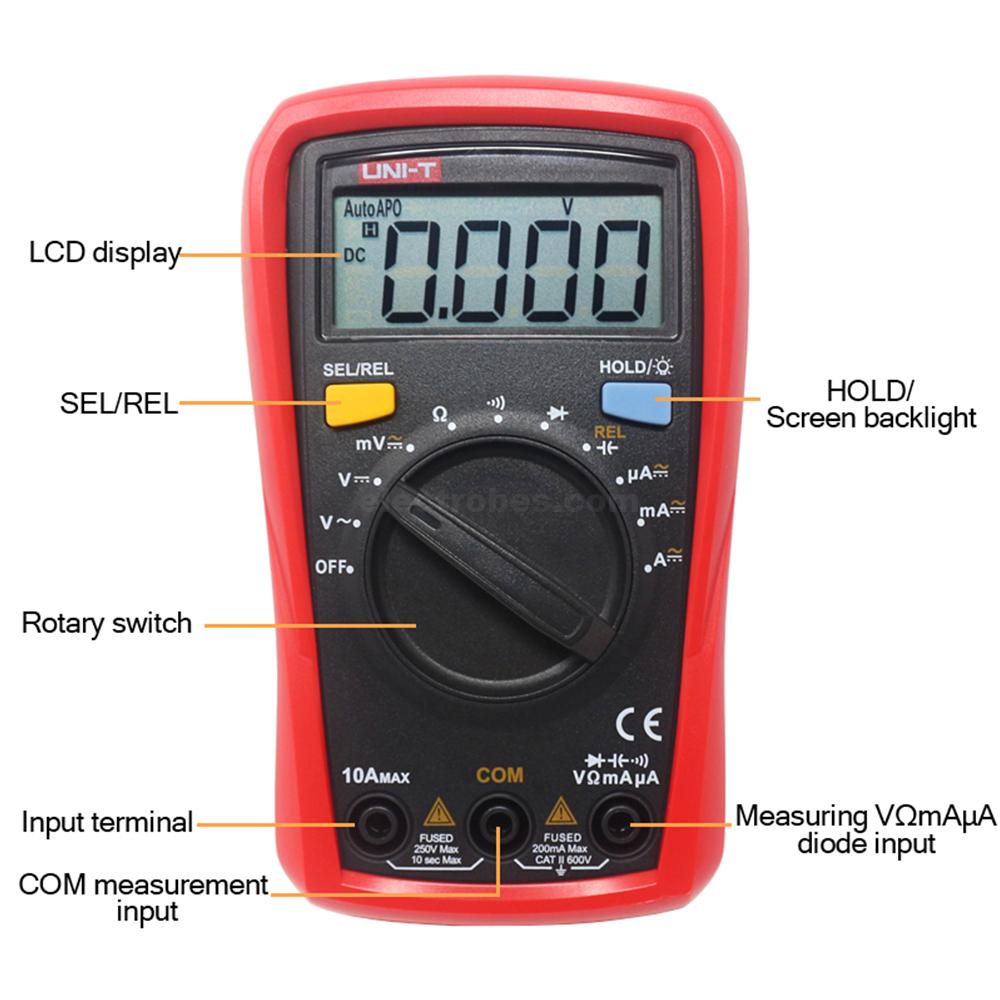

UNI-T UT33A+ Palm Size Digital Multimeter DMM
UNI-T UT33 series is kind of palm size handheld pocketable digital multimeter.
It measures DC/AC Voltage, DC Current and Resistance with accuracy. It has an unique Data Hold function, not available in other palm size meters. Great value! Low cost and convenient for everyday test.
Features Of UNI-T 33A+ DMM:
- Professional fully featured palm-size digital multimeter
- It measures AC/DC voltage, resistance, diode check etc.
- Display: maximum reading 1,999
- DC voltage: 200mV/2000mV/20V/200V/500V (+/-0.5%+2)
- AC voltage: 200V/500V (+/-1.2%+10)
- DC current: 2000uA/20mA/200mA/10A (+/-1.0%+2)
- Resistance: 200ohm/2000ohm/20Kohm/200Kohm/20Mohm (+/-0.8%+2)
- Temperature: -40’C ~ 1000’C (+/-1.0%+3) / -40’F ~ 1832’F (+/-1.0%+4)
- Input impedance for voltage test: 10Mohm
- Other functions: Diode testing, continuity buzzer, low power indicating, data hold, backlight
Special Functions Of Digital multimeter UT 33APlus:
- Low Battery Indicator: Yes
- Data Hold: Yes
- Display: Yes
- Auto power off: Yes
- Diode Test: Yes
- Continuity Buzzer: Yes
- Function Protection: Yes
- Shockproof Protection: Yes
- Operation Method: Auto Range
- Powered by: 2 x AAA Battery
Specifications
| Specifications | Range | UT33A+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 600V | ±(0.7%+3) |
| DC current (A) | 10A | ±(1%+2) |
| AC current (A) | 10A | ±(1.2%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ/200MΩ |
±(0.8%+2) |
| Capacitance (F) | 2mF | ±(4%+8) |
| Features | ||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |
| 2m drop test/ Test probe holder | √ | |
| Range selection | Auto | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 66mm x 51mm | |
| Product net weight | Red and grey | |
| Product color | 206g (batteries included) | |
| Product size | 134mm x 77mm x 47mm | |

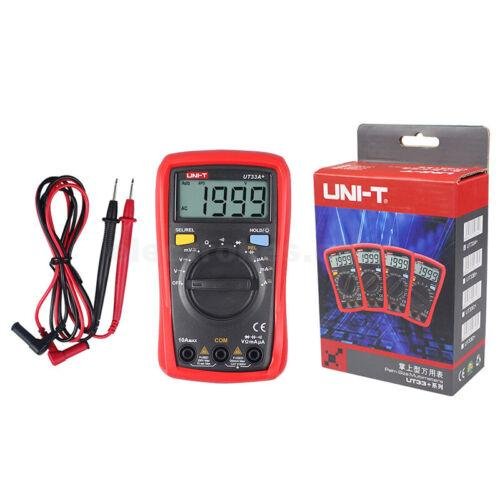

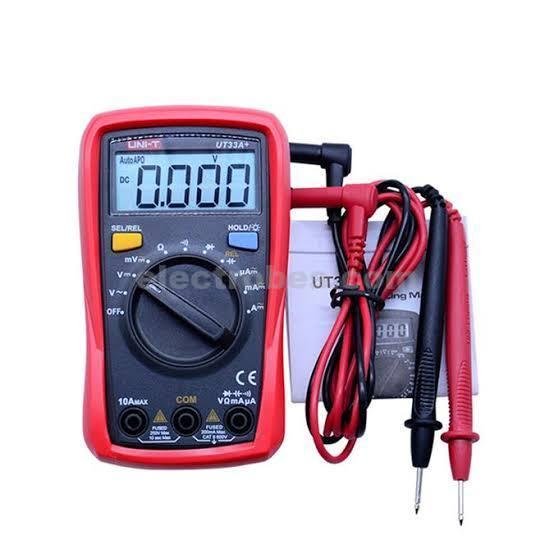

| Standard accessories | Batteries, test leads | |
| AC Voltage | 2V/20V/200V/750V |
| DC Voltage | 200mV/2V/20V/200V/1000V |
| AC Current | 2mA/200mA/20A |
| Features | Diode test Auto power off Complies with the safety standards of Double Insulation, overvoltage CAT I |
| DC Current | 2mA/20mA/200mA/20A |
| Model No. | UNI-T UT33A+ |
| DC Voltage Accuracy | 0.5%+1 |
| Digit Display | 4 Digit |
| Resistance Range | 200/2k/20k/2M/20M/200M |
| True RMS/AVG responding | YES |
| Display Type | LCD |
| Portable | YES |
| Brand | UNI-T |
| AC Current Accuracy | 0.8%+3 |
| Resistance Accuracy | 0.8%+1 |
| Capacitance Accuracy | 4%+3 |
| Temperature Range | -40 – 1000 |
| Temperature Accuracy | 1%+3 |
| Low Battery Indication | Yes |
| Auto Power Off | Yes |
| Height | 179 |
| Capacitance | 2nF/200nF/100MICROF |
| Width | 88 |
| Depth | 39 |
| Item weight | 350 |
| Diode Test | Yes |
| Continuity check with beeper | Yes |
