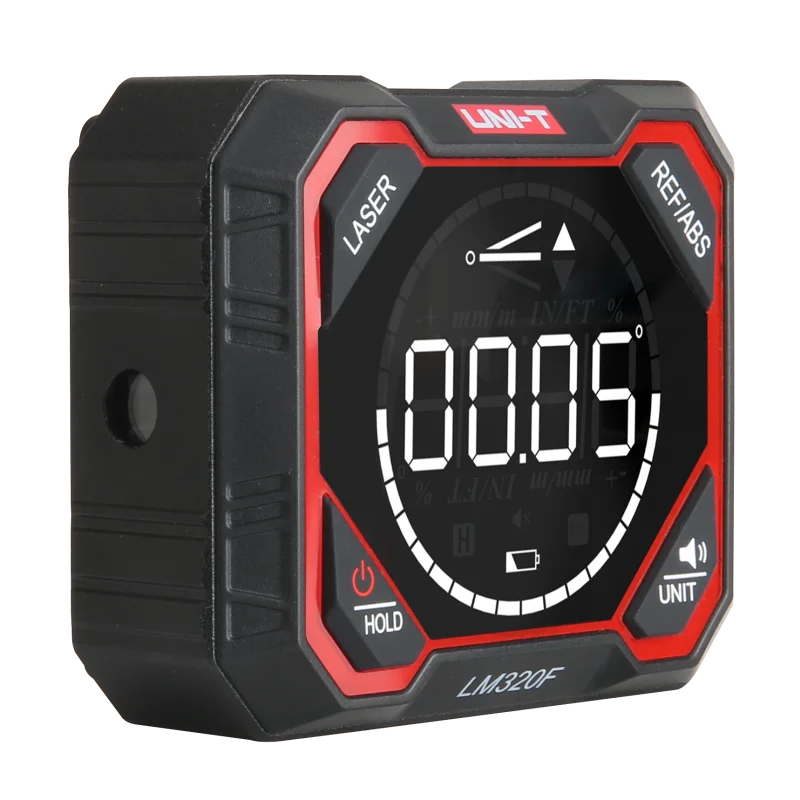

UNI-T LM320F Digital Laser Angle Meter
- High-precision digital inclinometer with laser The UNI-T LM320F/E/D offers accurate angle measurements with a resolution of up to 0.1°, ideal for professional and DIY applications requiring reliable results.
- Multiple laser options for versatile use Choose from LM320D , LM320E , or LM320F to match your specific alignment needs with enhanced visibility and precision.
- 4×90° relative and absolute measurement Supports both relative and absolute angle measurement across a full 4×90° range, enabling flexible positioning and accurate readings in any orientation.

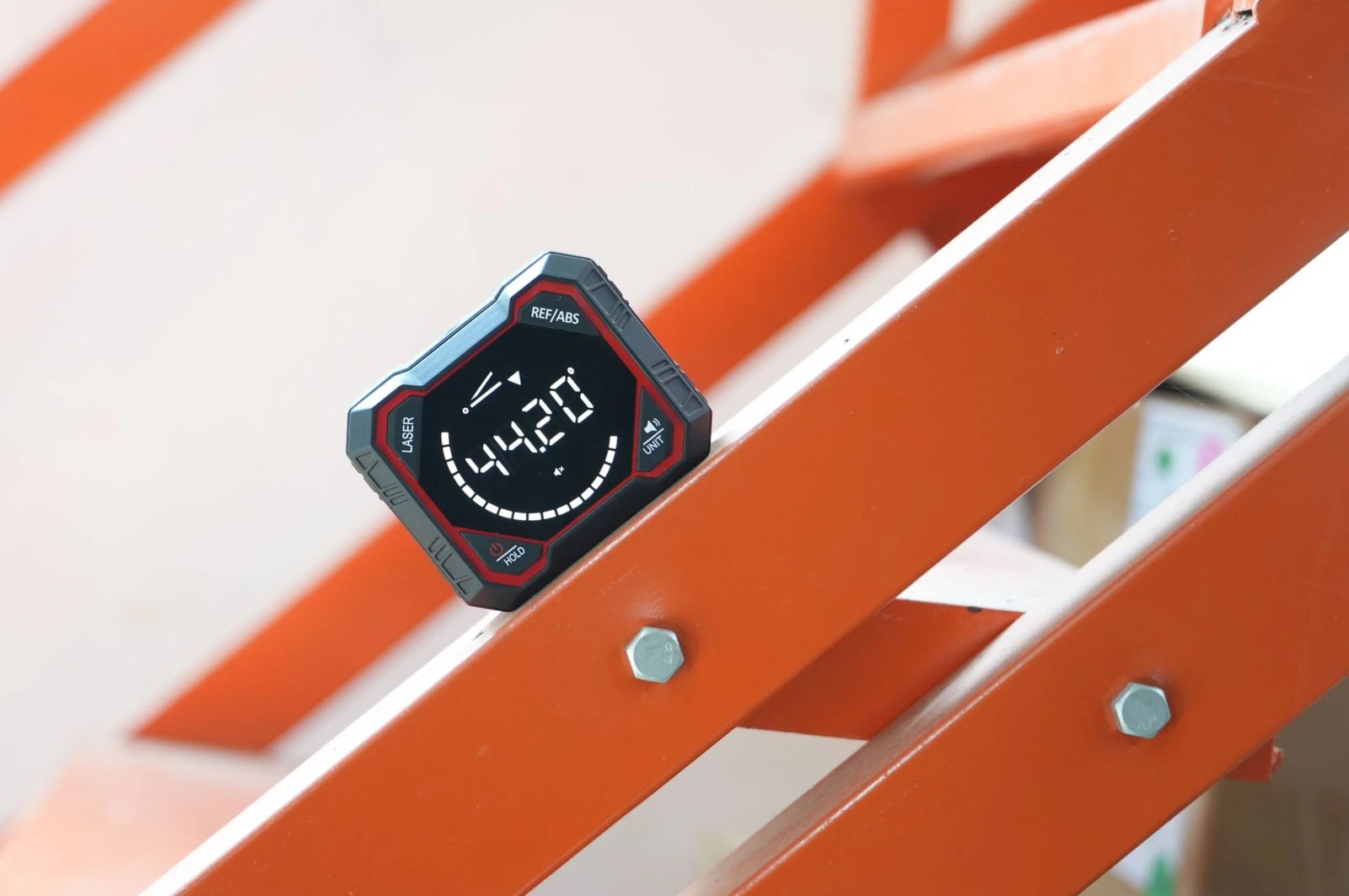

- Magnetic base for secure attachment Equipped with a strong magnetic base, the UNI-T LM320F/E/D securely attaches to metal surfaces, ensuring stable readings during use without manual support.
- Built-in battery for uninterrupted operation Comes with a built-in battery that powers the device for extended use, eliminating the need for external power sources during fieldwork or on-site tasks.
In stock
₨ 8,600
In stock
UNI-T LM320F Digital Laser Angle Meter – 4×90°, ±0.2°, 3 Laser Lines, Four-Sided Magnetic, Rechargeable
The UNI-T LM320F is a compact professional digital angle meter/inclinometer designed for accurate angle measurement, leveling, alignment, construction, mechanical installation, fabrication, and other engineering applications. It combines a digital angle display with three laser lines and a four-sided magnetic base for easier positioning and alignment.
The LM320 series features a strong aluminum alloy body that ensures durability and long-term use. A high-definition color display with automatic rotation allows easy reading from any position.
These angle meters support a full 4×90° measurement range and offer high accuracy up to ±0.2°. Users can switch between multiple units such as degrees (°), percentage (%), mm/m, and in/ft for flexible measurement.
The built-in magnetic base allows stable attachment to metal surfaces. This feature enables hands-free operation during installation and alignment tasks. The LM320E and LM320F models also include laser lines for enhanced positioning and measurement support.
Key Features:
- 4 × 90° measurement range — provides comprehensive measurement up to 360°.
- Angle accuracy: ±0.2°
- Resolution: ±0.05°
- Repeatability: ±0.2°
- 3 laser lines for alignment, positioning, and leveling.
- Laser accuracy: ±3 mm at 5 m.
- Class 2 laser, 630–670 nm, <1 mW.
- Absolute & relative measurement modes for standard or reference-angle measurements.
- Angle Hold/Data Hold function to freeze the measured value.
- Automatic screen rotation for easy reading in different orientations.
- Backlit/high-definition display for improved visibility.
- Measurement units: ° (degrees), %, mm/m, and in/ft.
- Four-sided magnetic base — magnets on the bottom, rear, left and right sides.
- Rechargeable 3.7 V, 1000 mAh lithium battery.
- Approximately 6 hours battery operation.
- Auto power-off after 5 minutes without operation.
- Lightweight aluminum-alloy + ABS construction.
- Operating temperature: 0°C to +50°C.
These devices are widely used in:
- Construction and civil engineering
- Mechanical installation
- Equipment alignment
- Workshop and industrial applications
- The rechargeable lithium battery ensures long working time, while the compact design makes it easy to carry in the field.
Specifications
| Specifications | |||
| Models | LM320D | LM320E | LM320F |
| Measurement Range | 4*90° | 4*90° | 4*90° |
| Resolution | ±0.05° | ±0.05° | ±0.05° |
| Angle Accuracy | ±0.2° | ±0.2° | ±0.2° |
| Repeatability | ±0.2° | ±0.2° | ±0.2° |
| Unit | °; %; mm/m; in/ft. | ||
| Laser Lines | 2 lines | 3 lines | |
| Laser Accuracy | ±3mm/5m | ||
| Magnetic Base | Two-sided magnetic (Bottom and rear) |
Two-sided magnetic (Bottom and rear) |
Four-sided magnetic (Bottom, rear, left and right) |
| Relative/Absolute Angle Measurement | √ | ||
| Angle Hold | √ | ||
| Screen Rotation | √ | ||
| Auto Power Off | √ | ||
| Materials | Al-alloy frame +ABS | ||
| Power Supply | 1000mAh lithium battery | ||
| Working Temperature | 0℃~ + 50℃ | ||
| Laser Class | Class 2 | ||
| Laser Type | 630-670nm, <1mW | ||
| Battery Life | 14h | 8h | 6h |
What’s in the Box
- LM320F digital laser angle meter
- USB charging cable
- English user manual
| Measurement range | 4 × 90° (360°) |
|---|---|
| Resolution | 0.05° |
| Angle accuracy | ±0.2° |
| Repeatability | ±0.2° |
| Units | ° / % / mm·m⁻¹ / in·ft⁻¹ |
| Laser lines | 3 lines |
| Laser accuracy | ±3 mm / 5 m |
| Laser | Class 2, 630–670 nm, <1 mW |
| Magnetic base | Four-sided (bottom, rear, left & right) |
| Battery | 1000 mAh lithium (rechargeable) |
| Battery life | ~6 h |
| Working temperature | 0 °C ~ 50 °C |
