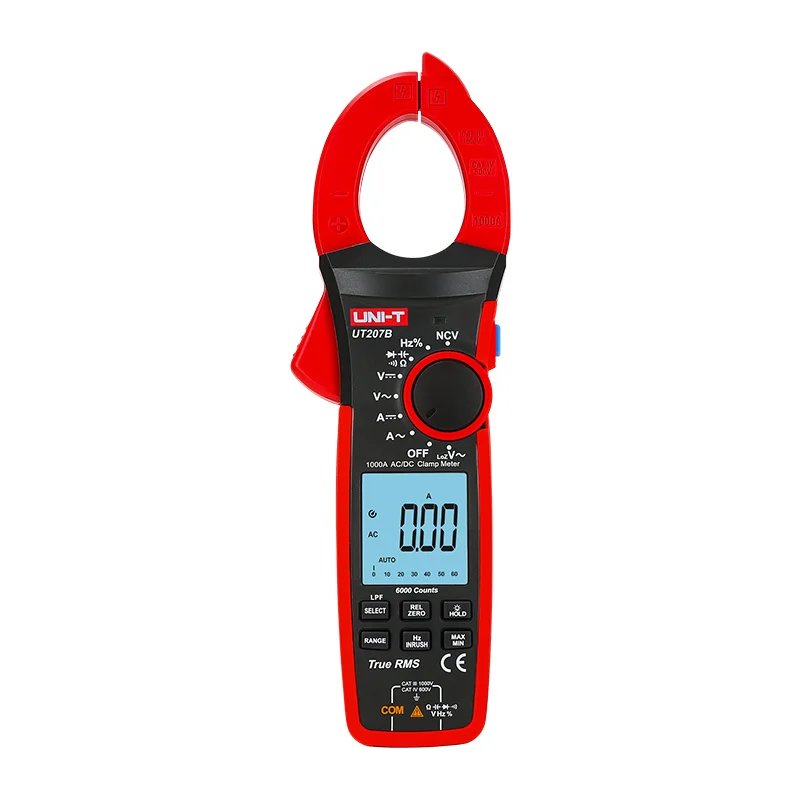

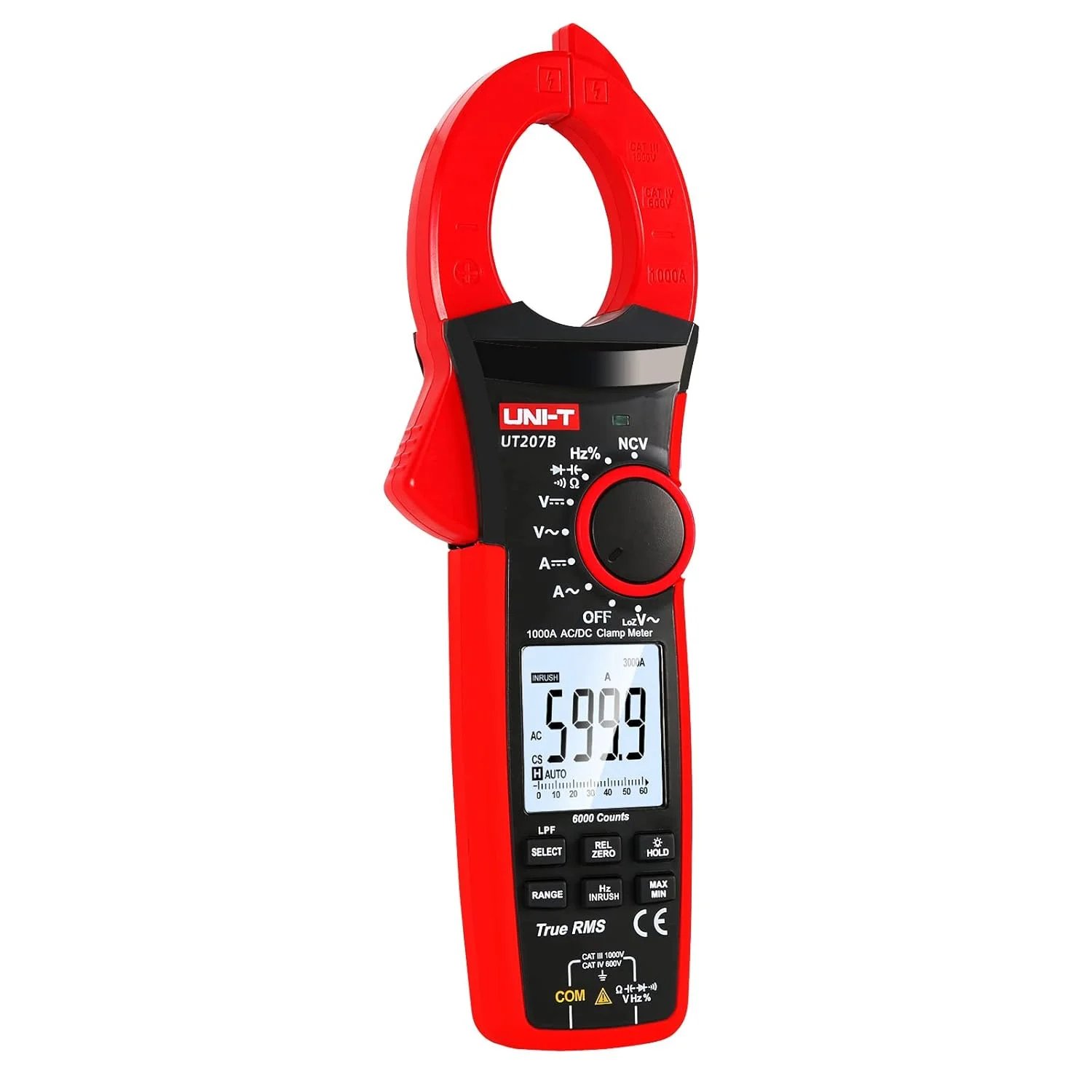

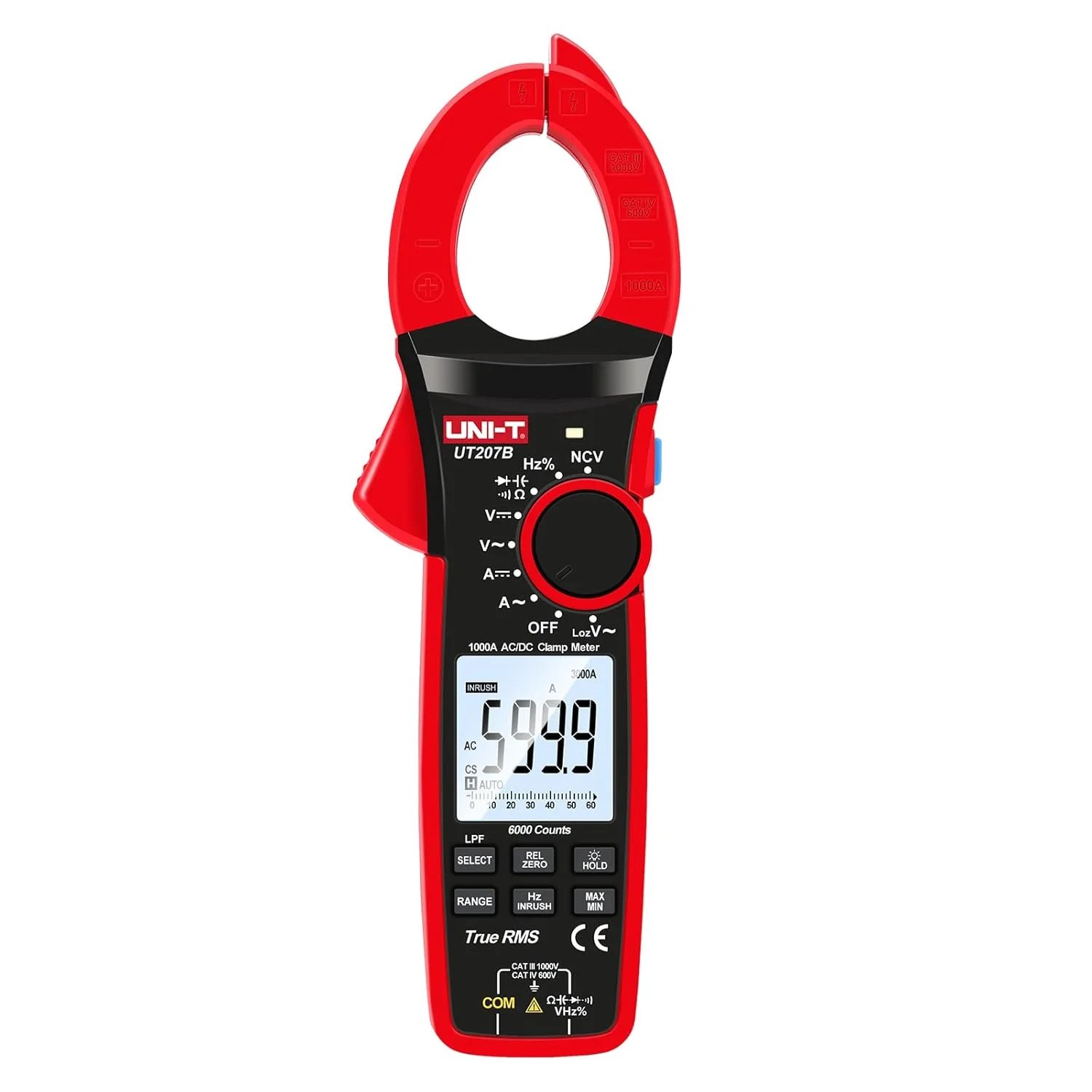

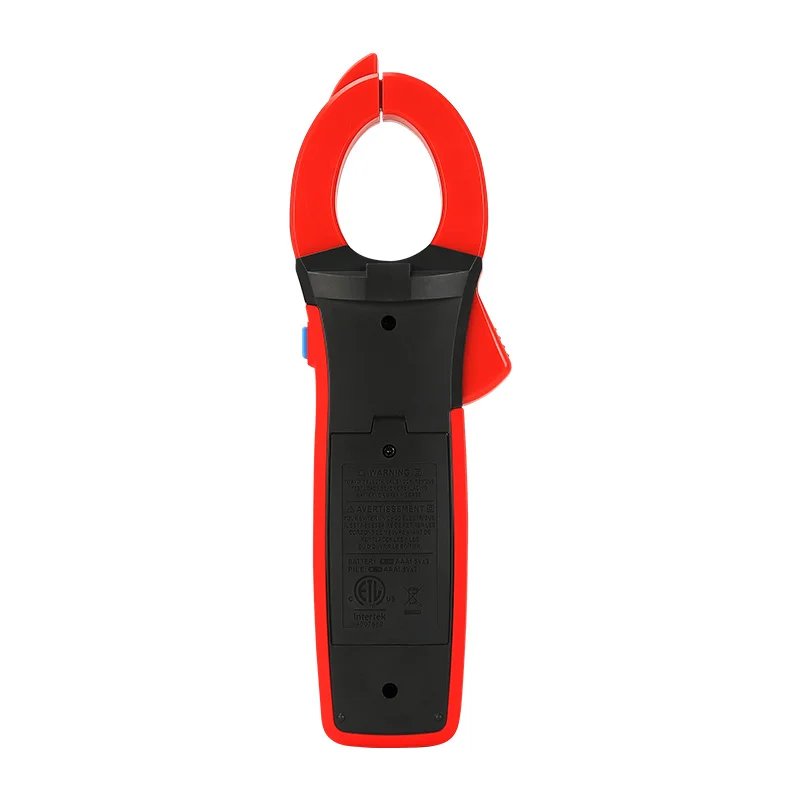

UNI-T UT207B Digital Clamp Meter AC Current Ammeter Multimeter
UNI-T Digital Clamp Meter UT207B Inrush Current AC/DC 1000A True RMS HVAC Volt Amp Ohm Meter Clamp On Multimeter Auto Ranging 6000 Counts, Frequency AC DC Voltage LPF ACV Capacitance Duty Cycle Tester at best price in Pakistan
In stock
₨ 15,000
In stock
UNI-T Digital Clamp Meter UT207B Inrush Current AC/DC 1000A True RMS HVAC Volt Amp Ohm Meter Clamp On Multimeter Auto Ranging 6000 Counts, Frequency AC DC Voltage LPF ACV Capacitance Duty Cycle Tester
UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current. The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe toextend the AC current measurement range to 3000A.
Features of UT200 Series 1000A True RMS Digital Clamp Meters:
- Inrush current mode for capturing transient current. UT207B 1000A True RMS digital clamp meter. Autoscale memory. NCV detection. Low pas filter(LPF ACV). LoZ ACV. Low voltage frequency (Hz). Current frequency. High voltage frequency.
- 6,000 counts & auto ranging. Measures ac/dc current (1000A max), ac current frequency response, inrush current, ac/dc voltage (1000V max), resistance, capacitance, duty cycle, continuity and diode. Relative mode. Zero mode.
- Safe & Durable. NCV Multi-Segment Display and audio/visual alarm. Safety rating CAT III 1000V / CAT IV 600V. Input impedance (ACV/DCV). Nonslip rubber grip and easy to carry. Auto backlight.

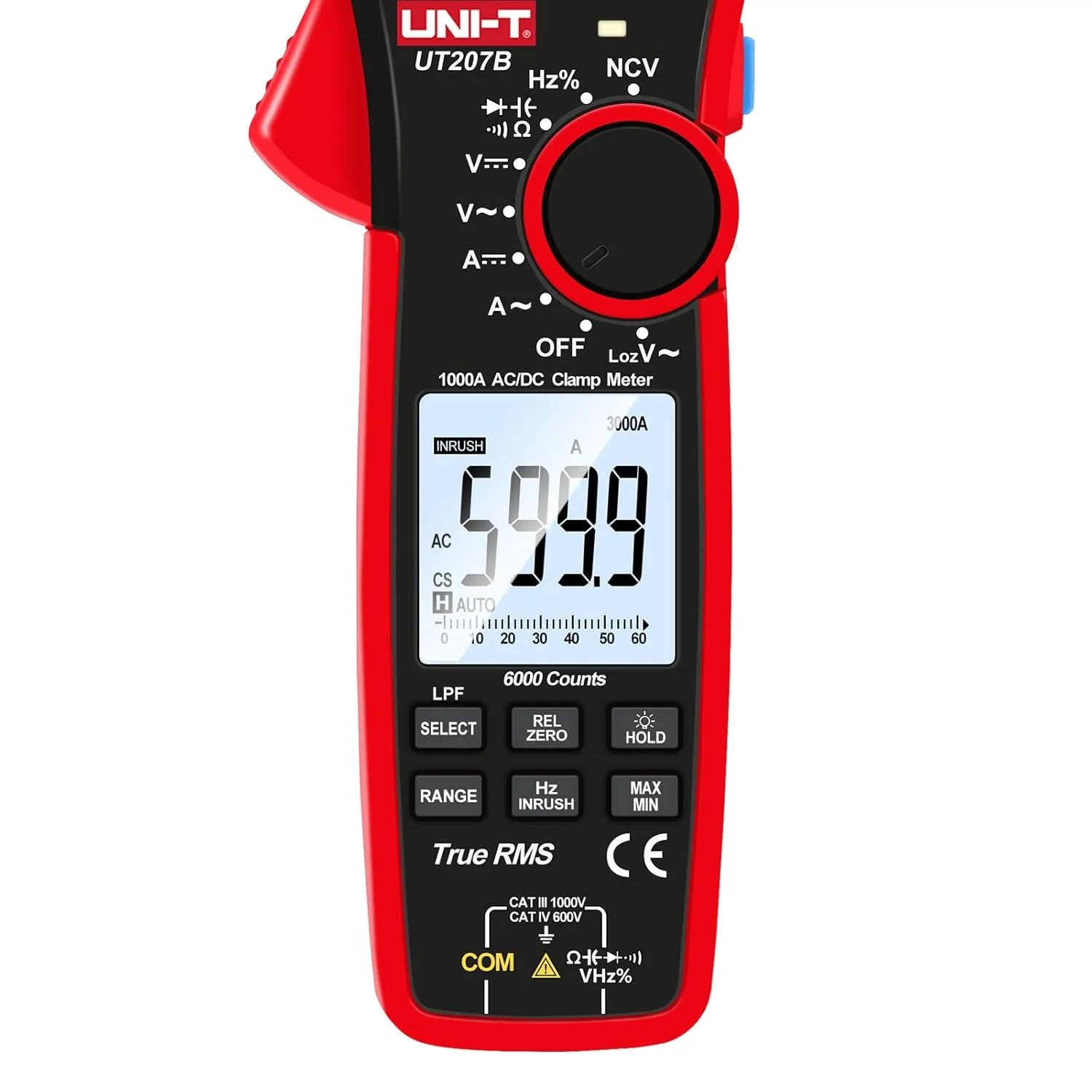

- Easy to use with 42mm jaw opening. Large LCD screen. Wake-up function. Flashlight. Data hold. MAX/MIN.

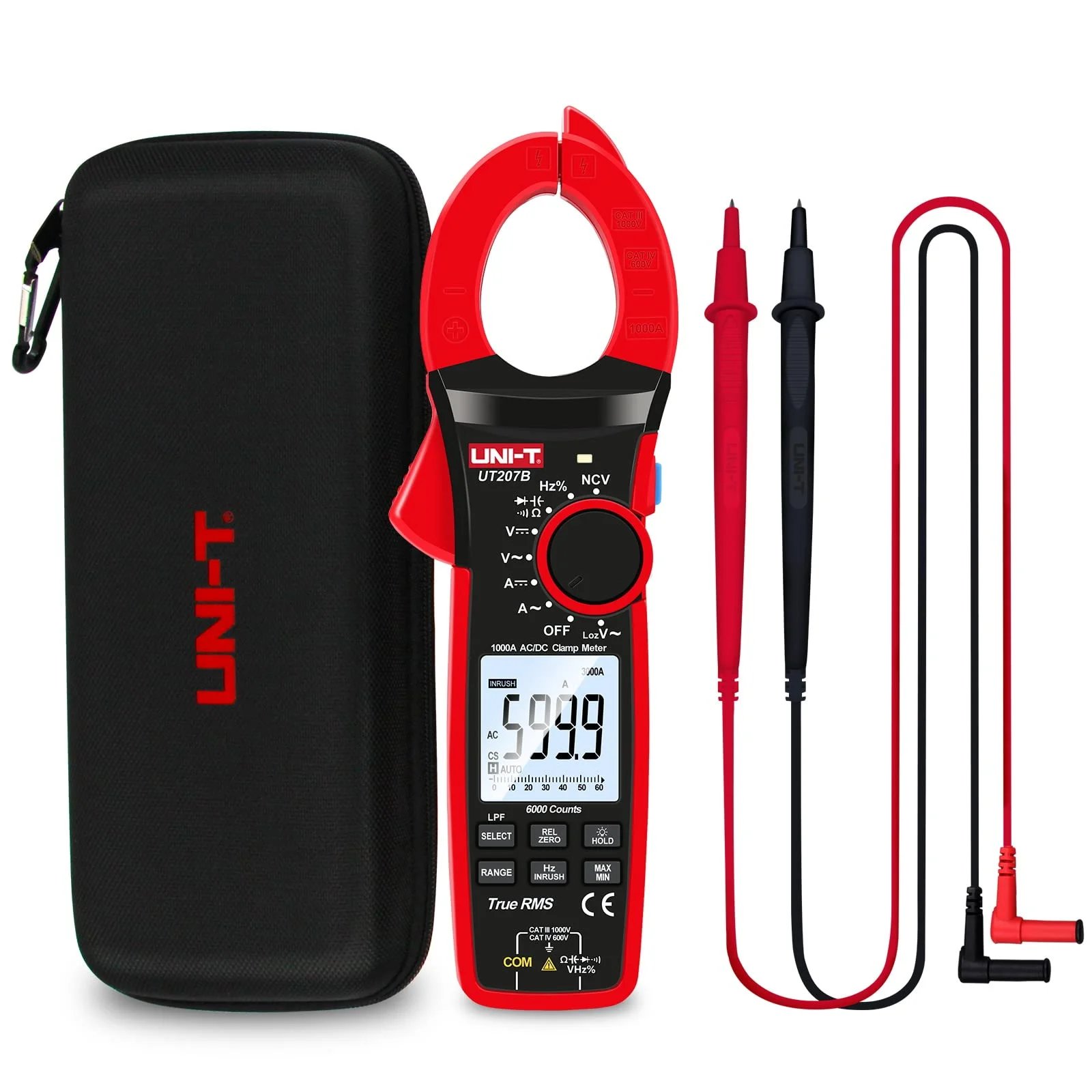

Package includes:
1 x UT207B clamp meter,
1 x UNI-T test leads(pair),
1 x carrying case,
1 x paper manual,
Specifications of UT200 Series 1000A True RMS Digital Clamp Meters
| Specifications | Range | UT205E | UT206B | UT207B | UT208B |
| AC current (A) | 1000A | ±(2%+5) | ±(2%+5) | ±(2%+5) | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) | ±(2%+5) | ||
| AC current frequency response | 50Hz~60Hz | 50Hz~60Hz | 40Hz~400Hz | 40Hz~400Hz | |
| Inrush current (A) | 1000A | ±(10%+10) | ±(10%+10) | ±(10%+10) | |
| AC voltage (V) | 1000V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) |
| Low pas filter (LPF ACV) | 1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| AC voltage frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
| LoZ ACV | 1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| Resistance (Ω) | 60MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ±(4%+5) |
| Temperature | -40℃~1000℃ | ±(1%+2) | ±(1%+2) | ||
| -40℉~1832℉ | ±(1%+4) | ±(1%+4) | |||
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) |
| Analog bar | 31 | 31 | 31 | ||
| Flexible current probe (optional) | Extends up to 3000A | √ | √ | ||
| Zero mode | √ | √ | |||
| Display count | 6000 | 6000 | 6000 | 6000 | |
| Jaw opening | 42mm | 42mm | 42mm | 42mm | |
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 3 | ||||
| Display | 43mm x 45mm | ||||
| Product net weight | UT205E/UT206B: 465g; UT207B/UT208B: 420g | ||||

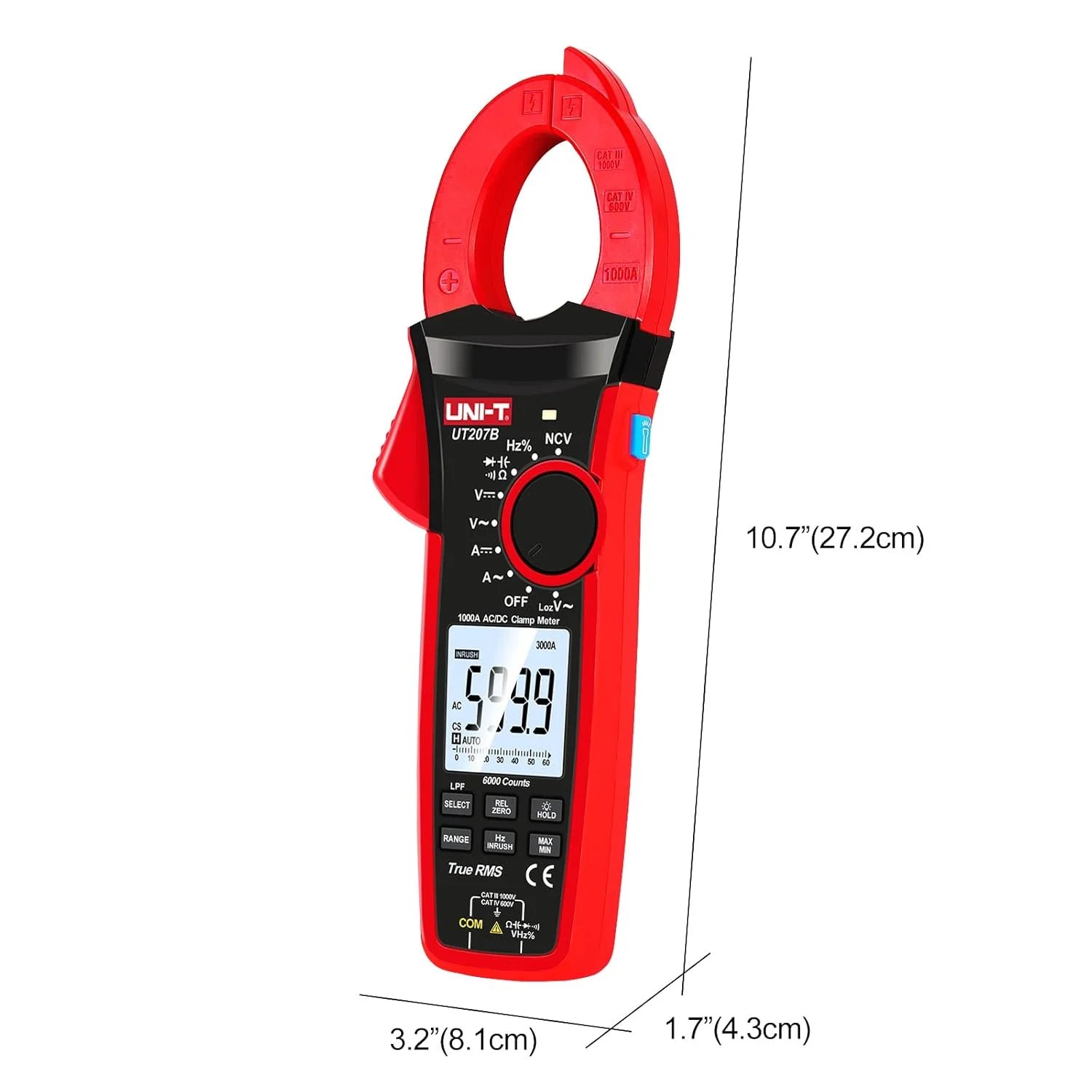

| Product size | 272mm x 81mm x 43.5mm | ||||
| Standard accessories | Test leads, batteries, point contact temperature probe (UT206B/UT208B), English manual | ||||
| Standard individual packing | Gift box, carrying bag | ||||
| Standard quantity per carton | UT205E/UT206B/UT207B: 10pcs; UT208B: 5pcs | ||||
| Standard carton measurement | UT205E/UT206B/UT207B: 355mm x 330mm x 315mm; UT208B: 355mm x 330mm x 165mm | ||||
| Standard carton gross weight | UT205E/UT206B/UT207B: About 7.1kg; UT208B: About 4.5kg | ||||
Based on 1 review
Only logged in customers who have purchased this product may leave a review.
Related products
-
Discrete Electronic Components, Resistors, Potentiometer & Knobs
10K Ohm Rotary Potentiometer Variable Resistor Trimpot with Lever
Discrete Electronic Components, Resistors, Potentiometer & Knobs10K Ohm Rotary Potentiometer Variable Resistor Trimpot with Lever
This 10K trimmable potentiometer has a small knob built right in and it’s breadboard friendly to boot! Perfect for your next LCD contrast adjuster, opamp setting, or volume level. This model is B10K within the datasheet.
SKU: 0201 -
Discrete Electronic Components, Resistors, Potentiometer & Knobs

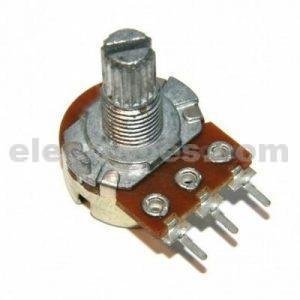

1K Ohm Rotary Potentiometer Variable Trimpot Resistor
