UNI-T UT204+ Digital Clamp Meter AC/DC Current Tester True RMS Auto Range Temperature measurement High Precision Multimeter
UNI-T UT204+ Digital Clamp Meter Multimeter NCV Auto Range True RMS MAX/MIN AC DC Current Voltage Capacitance Resistance Tester. AC DC Current Clamp Meter, having a hinged jaw integrated into an electrical. The jaws around a wire, cable or other conductors at any point in an electrical system, then measure current in that circuit without disconnecting/de-energizing it.
In stock
₨ 11,300
In stock
UNI-T UT204+ Digital Clamp Meter Multimeter NCV Auto Range True RMS MAX/MIN AC DC Current Voltage Capacitance Resistance Tester
UNI-T Digital Multimeter target measures current and probes measures voltage. AC DC Current Multimeter, having a hinged jaw integrated into an electrical. The jaws around a wire, cable or other conductors at any point in an electrical system, then measure current in that circuit without disconnecting/de-energizing it.
Features Of UT 204+ Digital Clamp Meter:
- Auto range.
- True RMS.
- Non-contact voltage test (NCV).
- Live wire test.
- Continuity test.
- Diode test.
- MAX/MIN.
- Relative mode.
- ZERO mode.
- Data hold.
- Low battery indication.
- Auto power off.
Technical Specifications of Uni-t UT204+
| Function | Range | Accuracy |
|---|---|---|
| DC Current | 600 A | ±(2%+5) |
| AC Current | 600 A | ±(2%+5) |
| DC Voltage | 600 V | ±(0.5%+2) |
| AC Voltage | 600 V | ±(0.8%+5) |
| AC voltage frequency | 10 Hz~60 kHz | ±(0.5%+2) |
| Resistance | 40 Ω 6 kΩ ~ 600 kΩ 60 MΩ | ±(1.0%+2) ±(0.8%+2) ±(2.5%+5) |
| Capacitance | 60 nF ~ 600 µF 60 mF | ±(4%+5) ±(10%) |
| Temperature | -40°C~1000°C | ±(1.5%+5) |
| Frequency | 10 Hz~10 MHz | ±(0.1%+4) |
| General Specifications | ||
| Display | 6000 count, 37 mm × 25 mm | |
| Jaw opening | 28 mm | |
| Power | 1.5V battery (R03) × 2 pcs. | |
| Dimensions | 215 mm × 63 mm × 36 mm | |
| Weight | 235 g | |
Applications:
- Industrial electricity
- Residential electricity
- Air conditioning
- Automobile
User Manual
Download UNI-T UT204+ User Manual

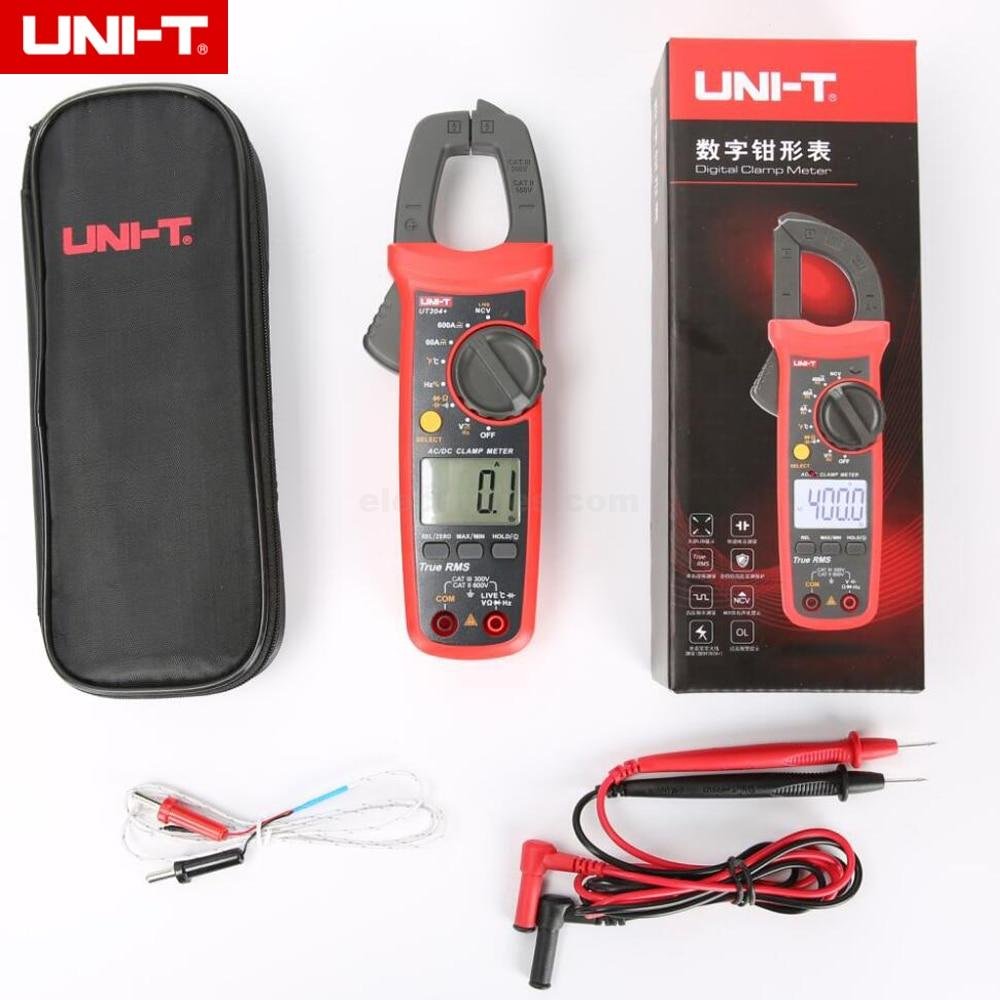

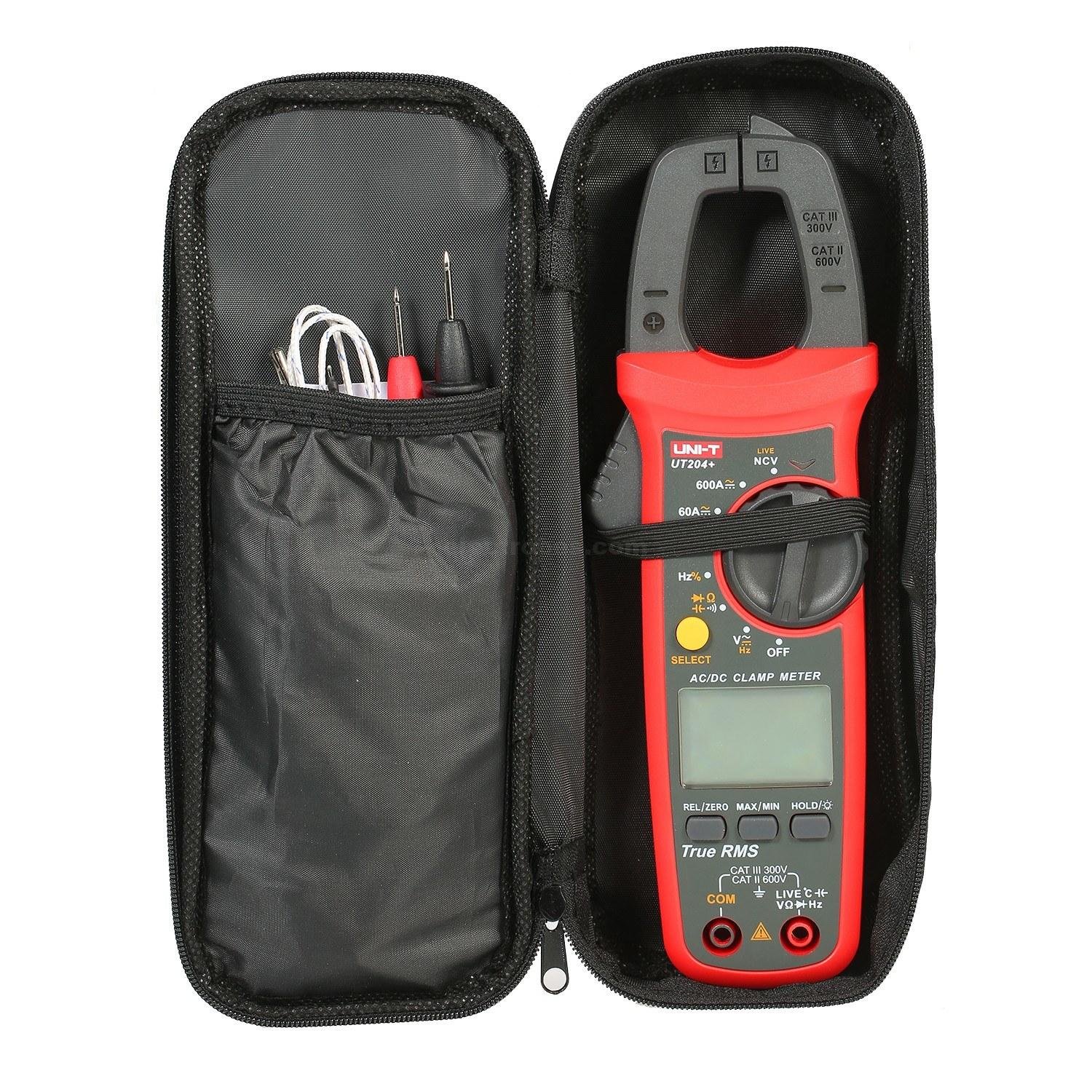

Package List:
1 * Clamp Meter
2 * Test
1 * Temperature Probe
1 * Storage Bag
1 * Manual (English)
- Material: ABS
- Safety Rating: CAT II 600V, CAT III 300V
- Display Count: Max. 6000

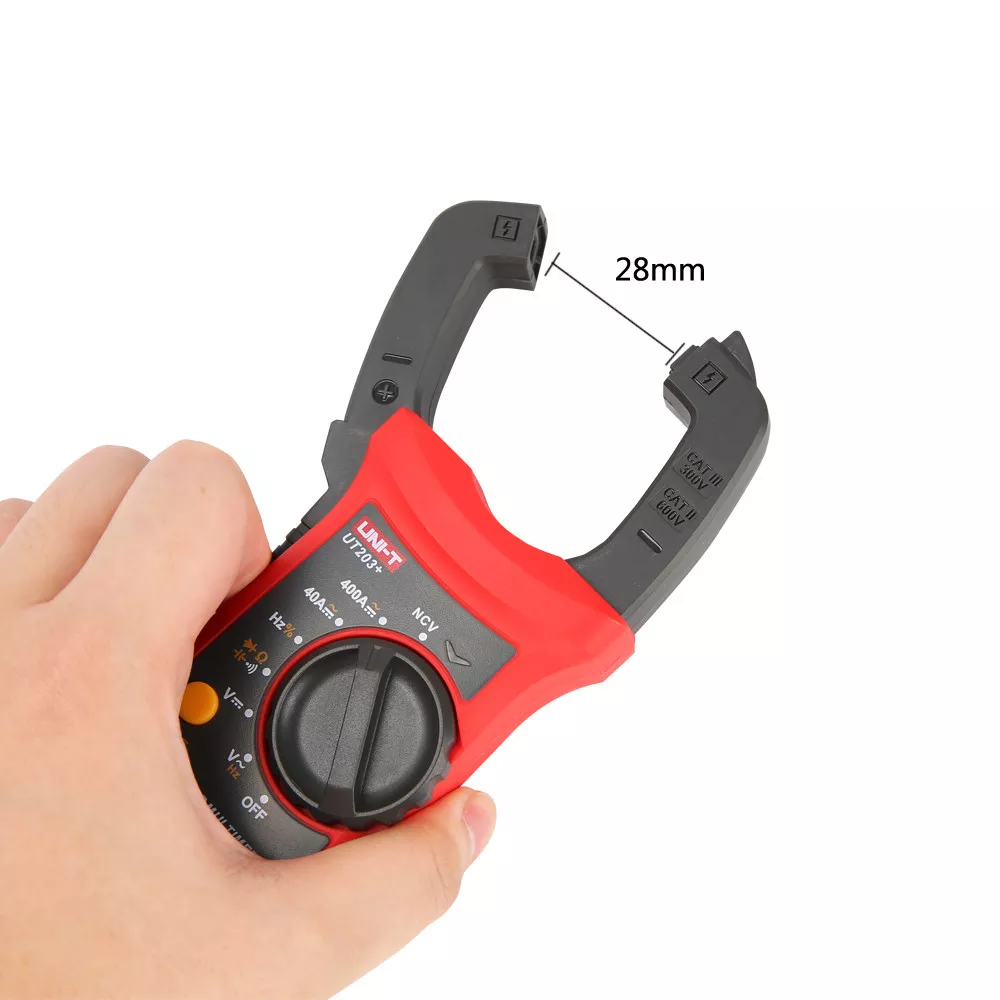

- Jaw Opening: 28mm
- Auto off: 15 minutes: Auto
- AC Current : 60.00A/600.0A
- AC Current Resolution: 0.01A/0.1A
- DC Current : 60.00A/600.0A
- DC Current Resolution: 0.01A/0.1A
- AC Voltage : 6.000V/60.00V/600.0V
- AC Voltage Resolution: 0.001V/0.01V/0.1V
- AC Voltage Frequency: 10Hz~60kHz
- AC Voltage Frequency Resolution: 0.01Hz~0.01kHz
- DC Voltage : 600.0mV/6.000V/60.00V/600.0V
- DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V
- Resistance : 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
- Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
- Capacitance : 60.00nF/600.0nF/6.000uF/60.00uF/600.0uF/6.000mF/60.00mF
- Capacitance Resolution: 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
- Temperature : -40~40℃/40~500℃/500~1000 (-40~104℉/104~932℉/932~1832℉)
- Temperature Resolution: 1℃(1℉)
- Frequency : 10Hz~10MHz
- Frequency Resolution: 0.01Hz~0.01MHz
- Duty Cycle : 0.1%~99%
- Duty Cycle Resolution: 0.1%
- Continuity : 600.0Ω
- Continuity Resolution: 0.1Ω
- Diode : 6.000V
- Diode Resolution: 0.001V
- Operating Temperature: 0~30℃(humidity ≤ 80%RH), 30~40℃(humidity ≤ 75%RH), 40~50℃(humidity ≤ 45%RH)
- Storage Temperature & Humidity: -20~60℃, ≤ 80%RH
- Altitude: 2,000 meters

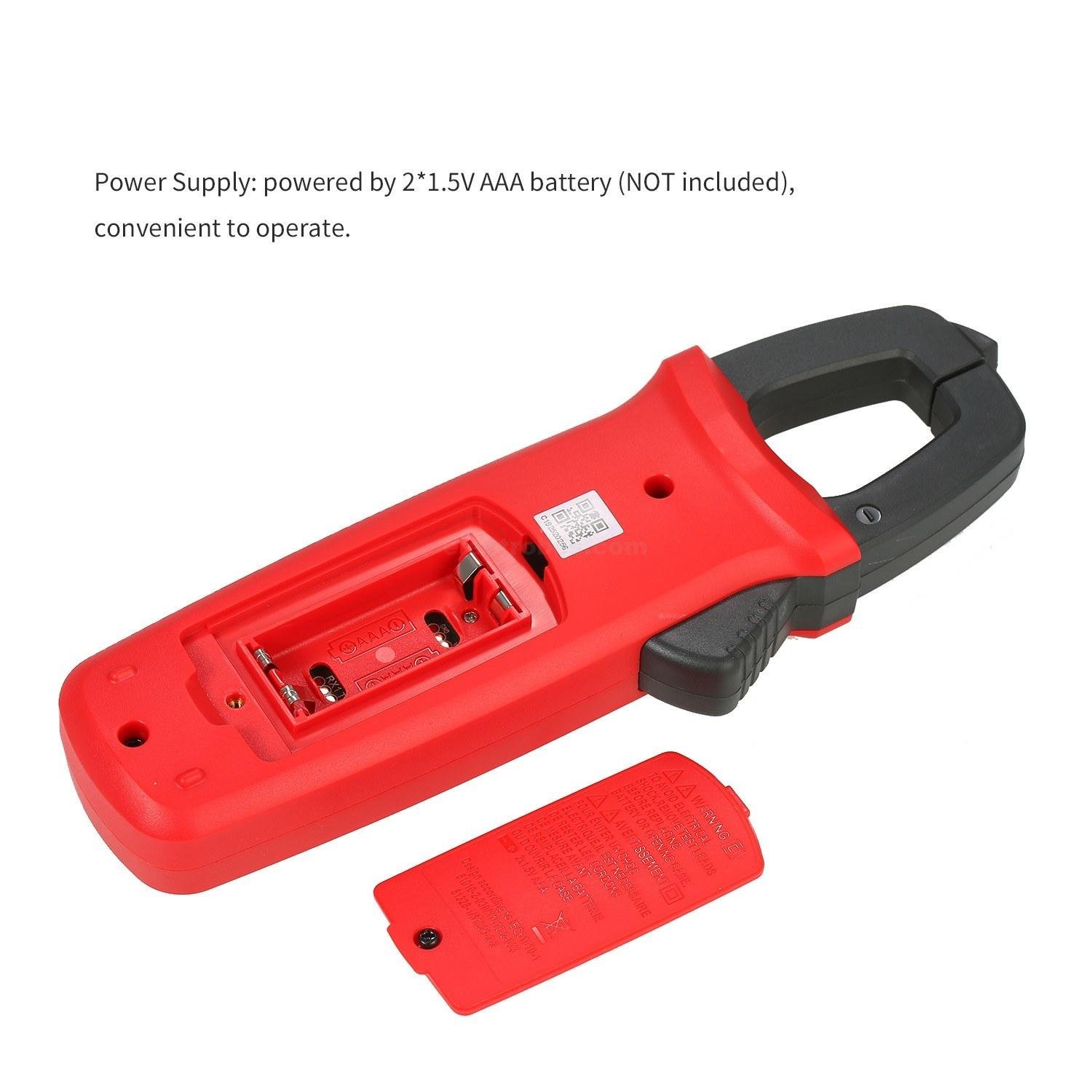

- Power Supply: 2 * 1.5V AAA battery (NOT included)
- Item Size: 215 * 63.5 * 36mm / 8.46 * 2.5 * 1.41in
- Item Weight: 278g / 9.82oz
- Package Weight: 371g / 13.11oz
- Package Size: 23.5 * 9.2 * 5.3cm / 9.25 * 3.62 * 2.09in
