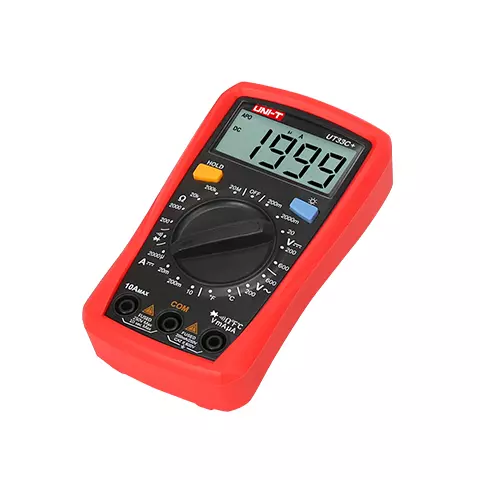

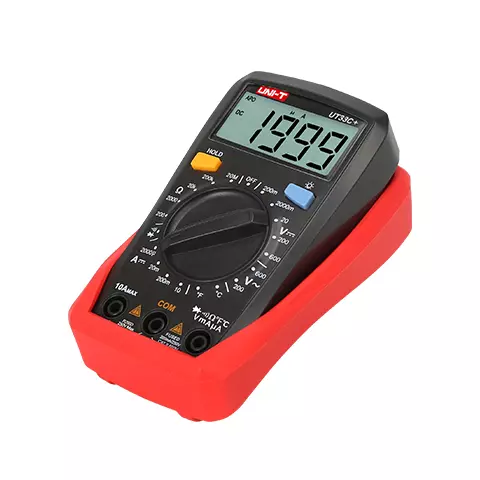

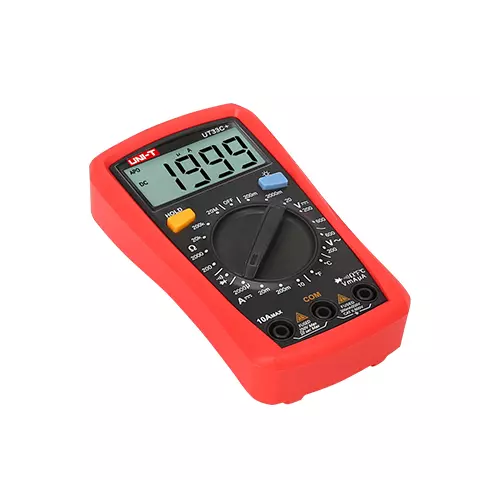

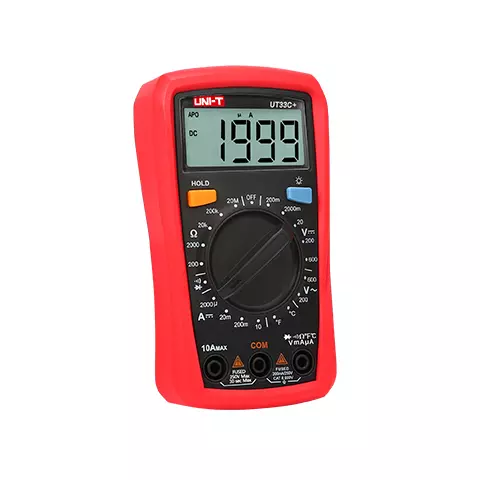

UNI-T UT33C+ Palm Size Digital Multimeter DMM
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).
In stock
₨ 3,100
In stock
UNI-T UT33C+ Palm Size Digital Multimeter DMM
UNI-T UT33C series is palm size handheld portable digital multimeter DMM that measures DC/AC Voltage, DC Current, Temperature and Resistance with accuracy. It has an unique Data Hold function, not available in other palm size meters. Low cost and convenient for everyday test.
Special Functions Of UT 33C PLUS Digital Multimeter:
- Diode
- Continuity Buzzer
- Data Hold
- Display Backlight
- Low Battery Display
- Input Impedance for DC
- Voltage Measurement: Around 10MW
- Max. Display: 1999
Features of UNI-T UT33C+ DMM:
- Functions:
- AC/DC voltage and DC current
- resistance
- temperature (ºC and ºF)
- diode test
- continuity test (with buzzer)
- Manual range selection
- Data Hold function
- Test probe holder
- Backlit LCD
- Auto power off
- Auto backlight off
Technical Specifications of UT 33C
| Function | Range | Accuracy |
|---|---|---|
| DC voltage | 200 mV/2 V/20 V/200 V/600 V | ±(0.5%＋2) |
| AC voltage | 200 V/600 V | ±(1.2%+3) |
| DC current | 2000 μA/20 mA/200 mA/10 A | ±(1%+2) |
| Resistance | 200 Ω/2 kΩ/20 kΩ/200 kΩ/20 MΩ | ±(0.8%+2) |
| Temperature | -40℃~1000℃ | ±(1%+4) |
| -40℉~1832℉ | ±(1.5%+5) | |
| General Specifications | ||
| Display | LCD, 2000 count | |
| Power | 1.5V battery (R03) × 2 pcs. | |
| Drop test | 2 m | |
| Dimensions | 134 mm × 77 mm × 47 mm | |
| Weight | 206 g (with batteries) | |
User Manual
Download UNI-T UT33C+ user manual
Package Contents
- 1 x Pocket Digital Multimeter UNI-T UT33C+
- 2 x Test Leads
- 1 x K-type Thermocouple
- 1 x Protective Case
- 1 x User Manual
| Manufacturer PN | UT33C |
| Size | 130 x 73.5 x 35mm |
| Weight | 316g |
| Max. range Vac | 250V |
| Max. range Vdc | 250V |
| Max. range Idc | 10A |
| Capacitance | No |
| Inductance | No |
| Frequency | No |
| Temperature | Yes |
| TRUE RMS | No |
| PC connection | No |
| Range | Manual |
| Manufacturer | UNI-T |
| Power | 9V Battery (6F22) |
| LCD Size | 48 x 16mm |
