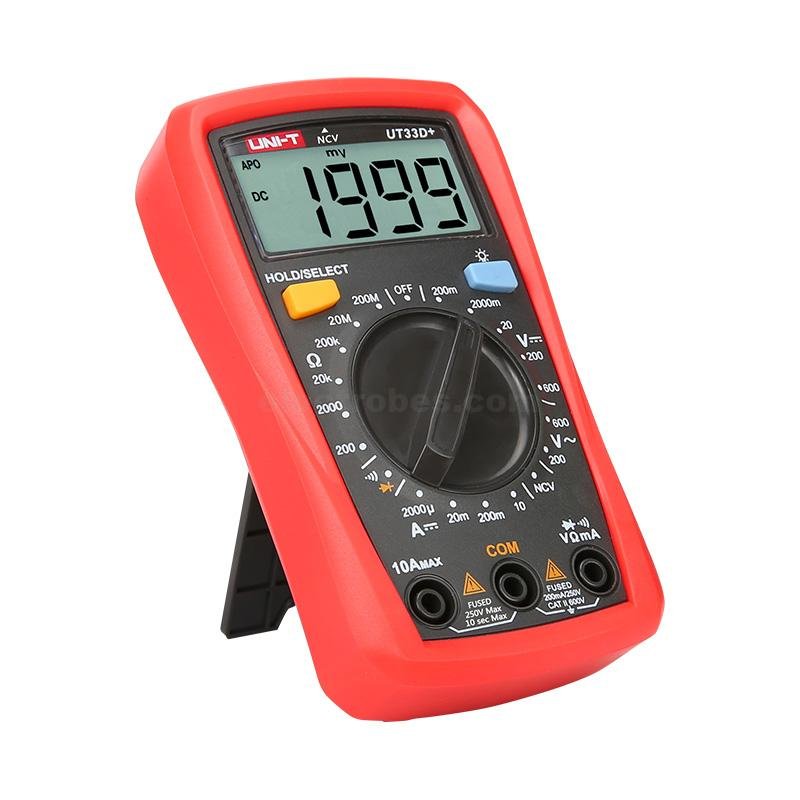

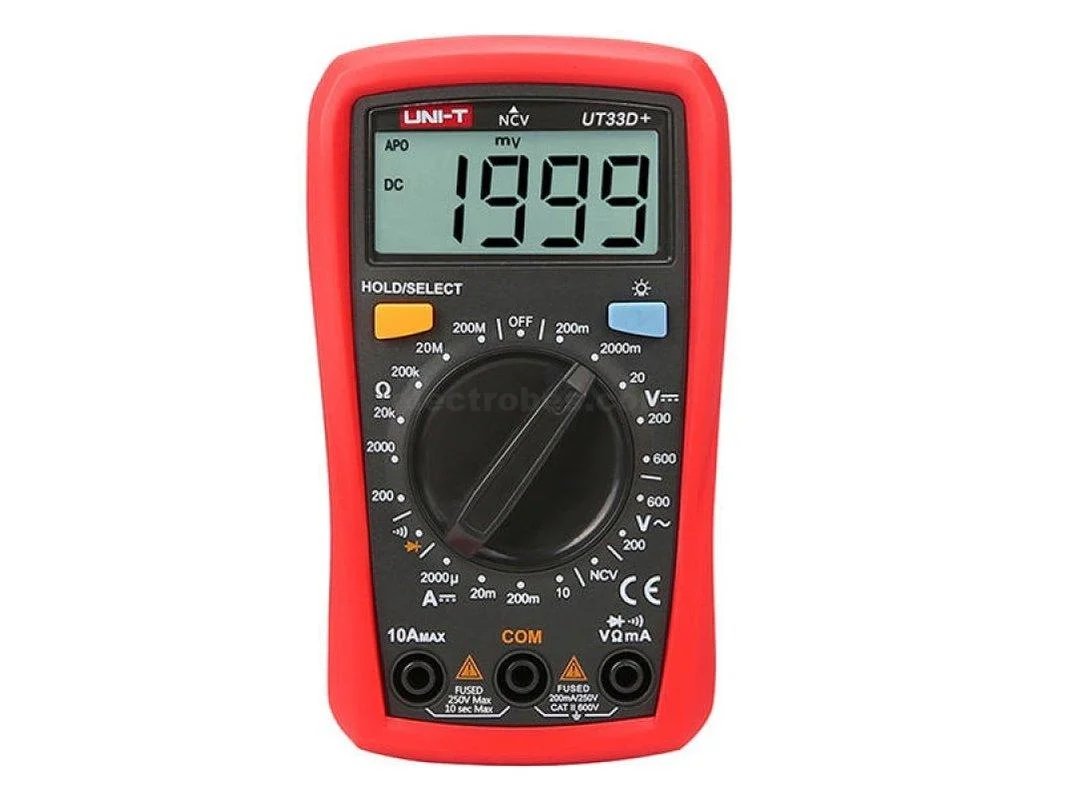

UNI-T UT33D+ Palm Size Digital Multimeter
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).
In stock
₨ 2,450
In stock
UNI-T UT33D+ Palm Size Digital Multimeter DMM
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); UT33D + for the NCV non-contact with electricity, resistance range up to 200MΩ entry-level digital multimeter; is the electrical priority of the digital multimeter.
UNI-T UT33D+ is a pocket size digital multimeter which can measure AC/DC voltage, DC current, resistance, tests diodes and checking continuity, non-contact voltage detection (NCV).
Features of UNI-T UT33D+ Digital Multimeter:
- Measurement functions:
- AC/DC voltage
- DC current
- resistance
- continuity test (with buzzer)
- diode test
- non-contact voltage detection (NCV)
- Data Hold function
- Low battery indication
Technical Specifications
| Display | 1999 digit LCD, backlight, 48 × 16 mm | |
| DC voltage | Range | 200 mV / 2000 mV / 20 V / 200 V / 600 V |
| Accuracy | ±(0.5%+2) | |
| AC voltage | Range | 200 V / 600 V |
| Accuracy | ±(1.2%+10) | |
| DC current | Range | 2000 µA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(1%+2) | |
| Resistance | Range | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ / 200 MΩ |
| Accuracy | ±(0.8%+2) | |
| Power | 9 V battery (6F22) | |
| Dimensions | 130 × 73.5 × 35 mm | |
| Weight | 156 g | |
Special Functions of UNI T UT 33D+ DMM:
- Low Battery Indicator: Yes
- Diode Test: Yes
- Continuity Buzzer: Yes
- Operation Method: Auto Range
- Powered by: 2 x AAA Battery

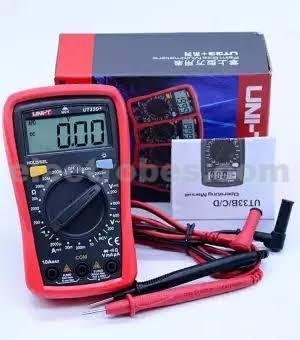

Package Contents
- Multimeter UNI-T UT33D+ (1 pc.)
- Test leads (1 pair)
- User manual (1 pc.)
Video
| AC Voltage | 2V/20V/200V/750V |
| DC Voltage | 200mV/2V/20V/200V/1000V |
| AC Current | 2mA/200mA/20A |
| Features | Diode test Auto power off Complies with the safety standards of Double Insulation, overvoltage CAT I |
| DC Current | 2mA/20mA/200mA/20A |
| Model No. | UNI-T UT33D+ |
| DC Voltage Accuracy | 0.5%+1 |
| Digit Display | 4 Digit |
| Resistance Range | 200/2k/20k/2M/20M/200M |
| True RMS/AVG responding | YES |
| Display Type | LCD |
| Portable | YES |
| Brand | UNI-T |
| AC Current Accuracy | 0.8%+3 |
| Resistance Accuracy | 0.8%+1 |
| Capacitance Accuracy | 4%+3 |
| Temperature Range | -40 – 1000 |
| Temperature Accuracy | 1%+3 |
| Low Battery Indication | Yes |
| Auto Power Off | Yes |
| Height | 179 |
| Capacitance | 2nF/200nF/100MICROF |
| Width | 88 |
| Depth | 39 |
| Item weight | 350 |
| Diode Test | Yes |
| Continuity check with beeper | Yes |
| NCV | Yes |
