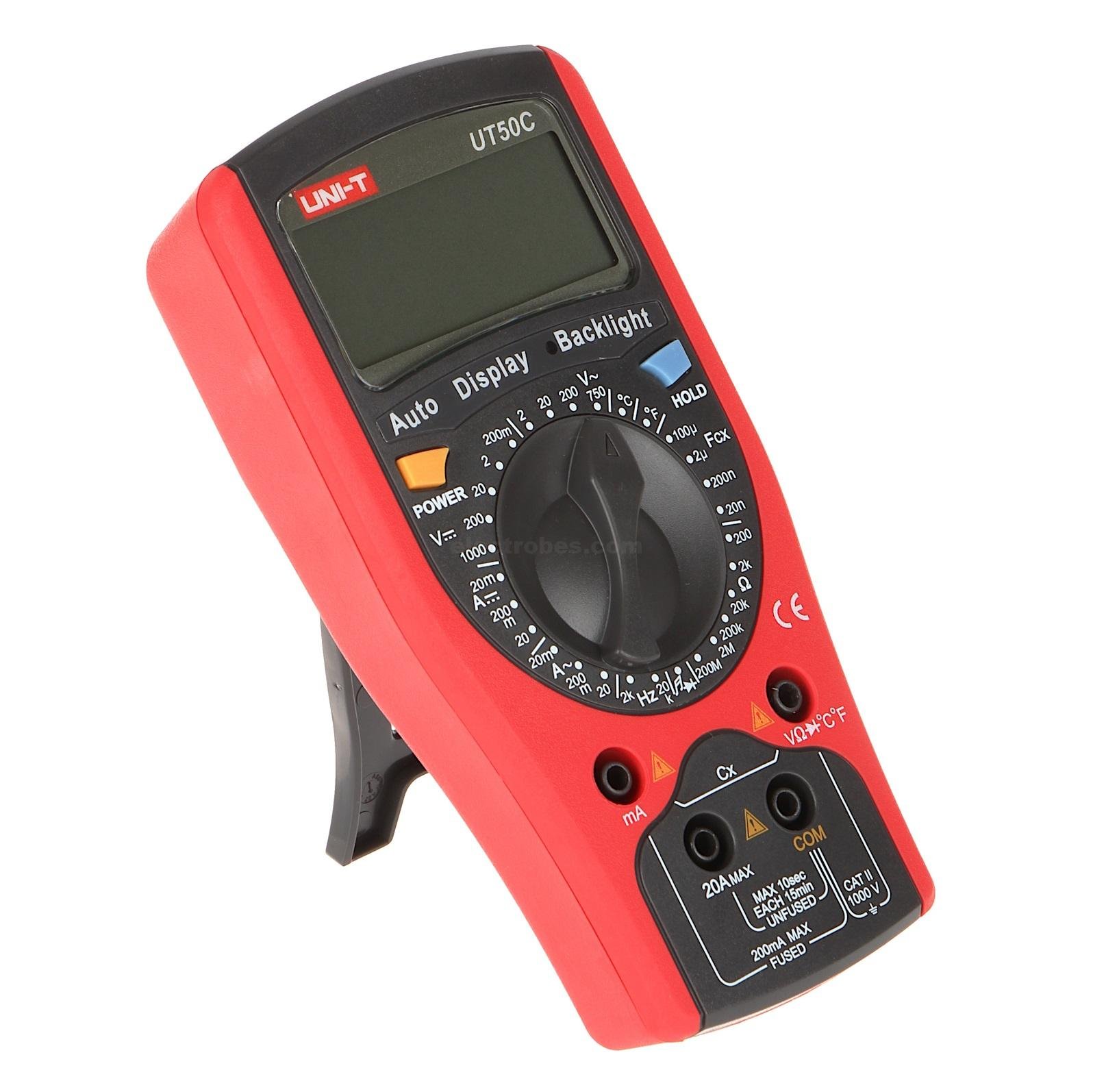

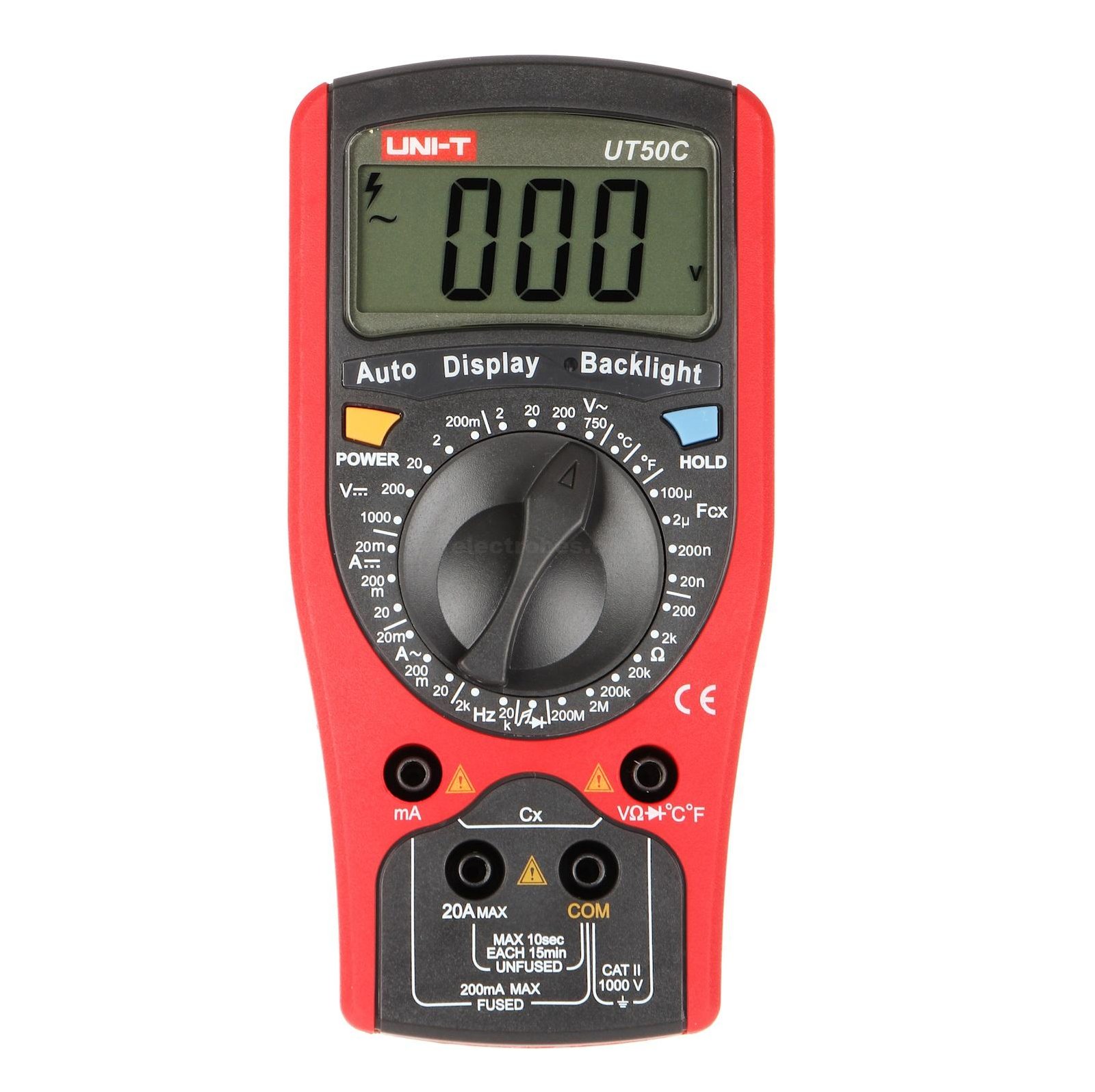

UNI-T UT50C Portable DMM Digital Multimeters
UNI-T UT 50-II SERIES Digital multimeter Series Present UT-50C with AC current measuring range of 20 mA/200mA/20A modern design with automatic backlight. Handheld DMM ut50c is an electronic measuring instrument that combines several measurement functions in one unit. A Pocket-size Multitester can measure voltage, current, and resistance. Analog multimeters use a microammeter with a moving pointer to display readings. Palm-size UNI-T digital Multimeter uses a large-scale integrated circuit with a double integrated A/D converter as its core and has full range overload protection. UNI T UT50C has Adopted an advanced “co-injection” technique in order to provide sufficient insulation and anti-shaking.
In stock
₨ 3,700
In stock
UNI-T UT 50-II SERIES digital multimeter UT-50C with AC current measuring range of 20 mA/200mA/20A modern design with automatic backlight is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter can measure voltage, current, and resistance. Analog multimeters use a microammeter with a moving pointer to display readings.
Features:
- Diode
- Continuity buzzer
- Data Hold
- Icon display
- Sleep mode
- Low battery display
- Input impedance for DC voltage: 10M Ohm
- Display backlight – auto sensor

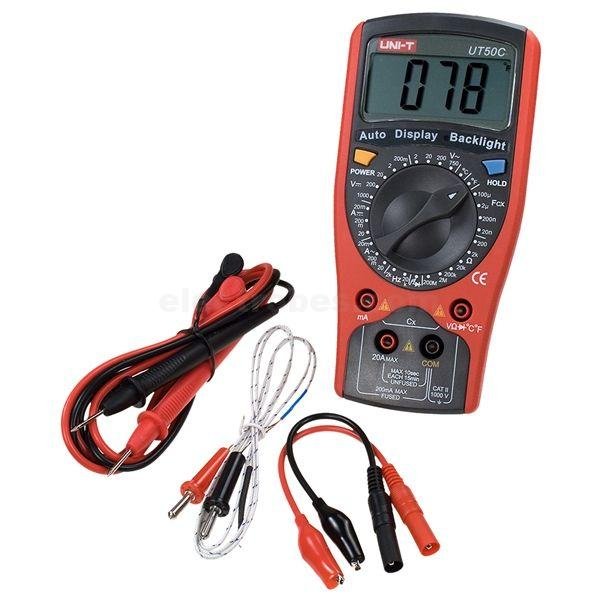

Package List:
1 * UNI-T UT50C DMM Digital Multimeters
1 * Test Lead
1 * Test Clip
1 * Point Contact Temperature Probe
1 * English Manual
| Specifications | Range | Best Accuracy |
| Model | UT50C | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
| AC Voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) |
| DC Current (A) | 20mA/200mA/20A | ±(0.8%+1) |
| AC Current (A) | 20mA/200mA/20A | ±(1%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ±(0.8%+1) |
| Capacitance (F) | 20nF/200nF/2μF/100μF | ±(4%+3) |
| Temperature (°F) | -40oF~1832oF | ±(1%+4) |
| Temperature (°C) | -40℃~1000℃ | ±(1%+3) |
| Frequency (Hz) | 2kHz/20kHz | ±(1.5%+5) |
| Features | ||
| Full Icon Display | √ | |
| Diode | √ | |
| Continuity Buzzer | √ | |
| Low Battery Display | √ | |
| Input Impedance for DC Voltage Measurement | 10MΩ | √ |
| Data Hold | √ | |
| Display Backlight | Auto | √ |
| Max. Display | 1999 | √ |
| Auto Power Off | √ | |
| General Characteristic | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 95mm×25mm | |
| Product Colour | Red and Grey | |
| Product Net Weight | 275g | |
| Product Size | 165mm×80mm×38.3mm | |
| Standard Accessories | Test Lead, Battery, Point Contact Temperature Probe, Test Clip | |
| Standard Individual Packing | Gift Box，English Manual | |
