UNI-T UTP3305-II Linear DC Supply 3CH 335W 32V Adjustable Laboratory Power Supply
- Channels: 3
- Type: linear DC power supply
- TOTAL POWER : 335W
- OUTPUT VOLTAGE: 32V
- OUTPUT CURRENT: 5A
- RESOLUTION: 10mV/1mA
- SETTING ACCURACY: Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
₨ 63,500
UNI-T UTP3305-II/UTP3303-II Linear DC Power Supply 3CH 335W 32V Adjustable Dual Channel and Fixed Single-Channel Output

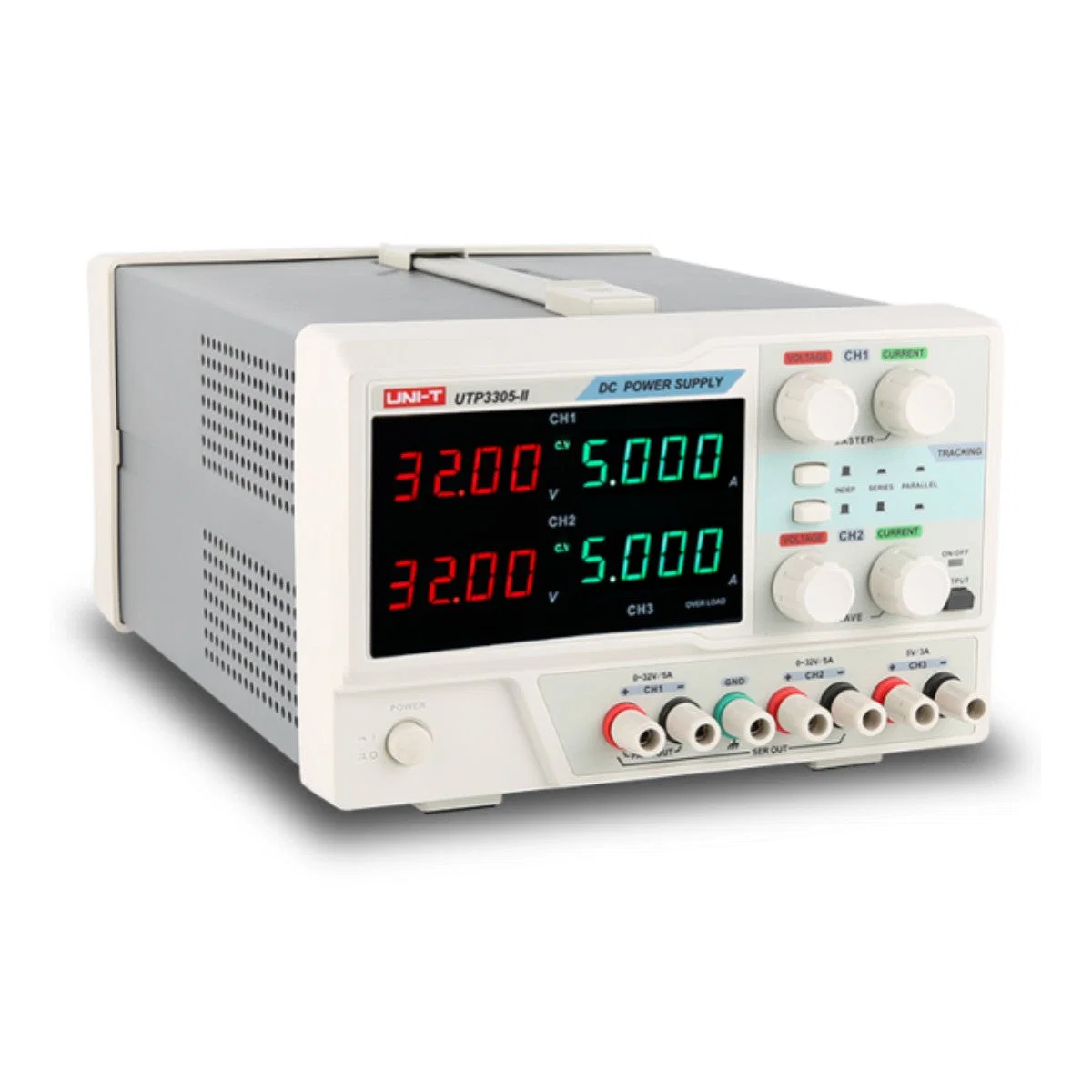

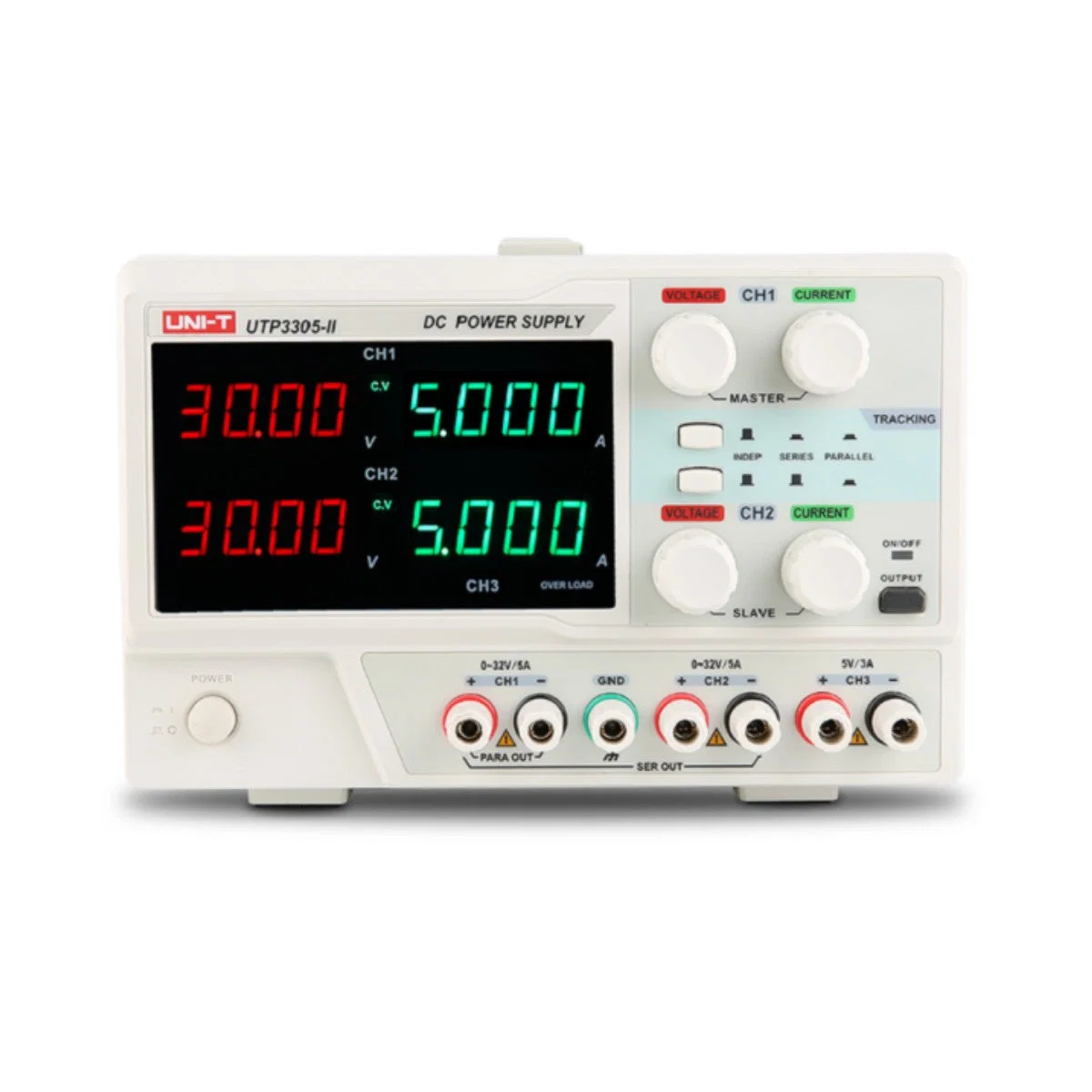

UNI-T UTP3305-II is a precision-grade three-channel linear DC bench power supply — 335 W total, with two adjustable 0–32 V / 0–5 A channels plus a fixed 5 V / 3 A logic rail. Four-digit LED readouts at 10 mV / 1 mA, series/parallel tracking and ultra-low ripple make it ideal for analog and RF development. Genuine UNI-T product supplied by Digilog.pk with warranty.
Key Features
- 3 channels, 335 W: CH1/CH2 0–32 V / 0–5 A adjustable, CH3 fixed 5 V / 3 A
- Four-digit LED display, 10 mV / 1 mA resolution per channel

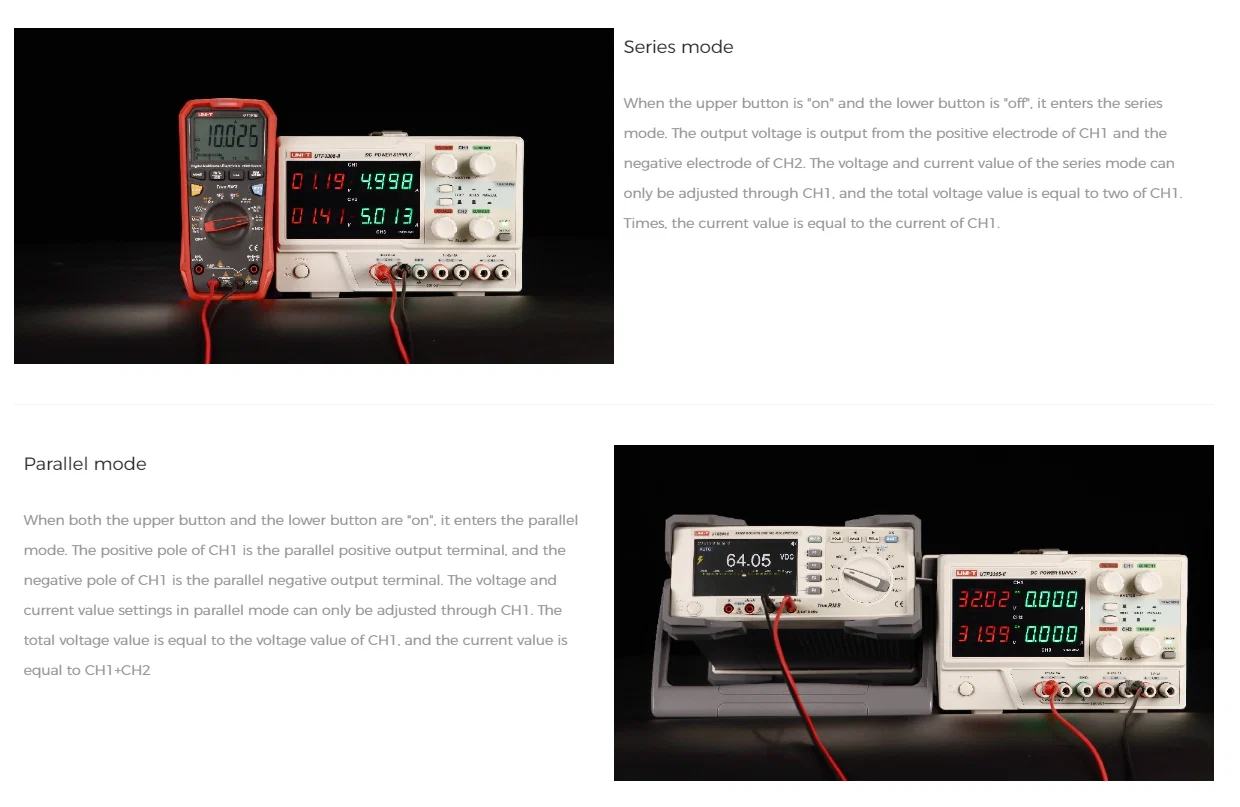

- Series (up to 64 V) and parallel (up to 10 A) tracking modes
- Tight regulation: load reg CV < 0.01% + 3 mV, tracking ±(0.1% + 30 mV)
- Linear topology, ≤ 1 mVrms ripple — no switching artifacts or EMI
- Temperature-controlled fan, OVP/OCP via current limit
Technical Specifications
| Channels | 3 (CH1/CH2 adjustable + CH3 fixed) |
|---|---|
| CH1 / CH2 | 0 – 32 V / 0 – 5 A each |
| CH3 | 5 V / 3 A (fixed) |
| Output Power | 335 W total |
| Resolution | 10 mV / 1 mA |
| Load Regulation | CV < 0.01% + 3 mV / CC < 0.2% + 3 mA |
| Ripple & Noise | ≤ 1 mVrms |
| Modes | Independent / Series / Parallel |
| Display | 4-digit LED (V & I) |

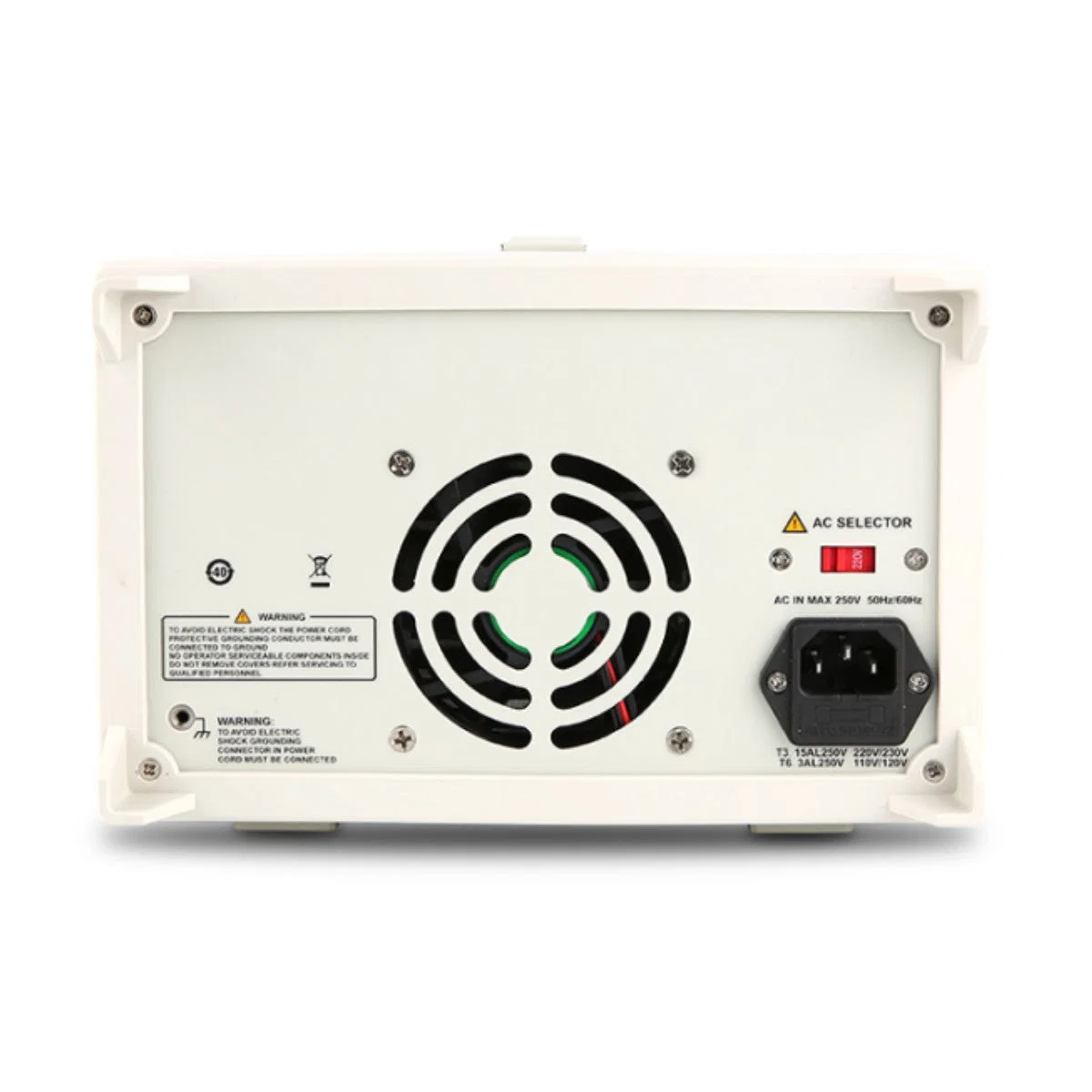

| Cooling | Temperature-controlled fan |
What’s in the Box
- UTP3305-II DC power supply
- AC power cord
- Output test leads
- English user manual
| Feature | Specification |
|---|---|
| Model Number | UTP3305-II |
| Channels | 3Ch |
| Output Voltage | 32V |
| Output Current | 5A |
| Total Power | 335W |
| Max V Resolution | 10mV |
| Max A Resolution | 1mA |
| Type | Linear DC Power Supply |
| Setting Accuracy | Voltage:＜0.01%＋3mV, Current:≤0.2%+3mA |
| Warranty | 3 years |
| Shipping Dimensions | 505×270×335(mm) |
| Shipping Weight | 9.6Kg |
| For additional product specifications, please refer to the attached PDF. |
|
