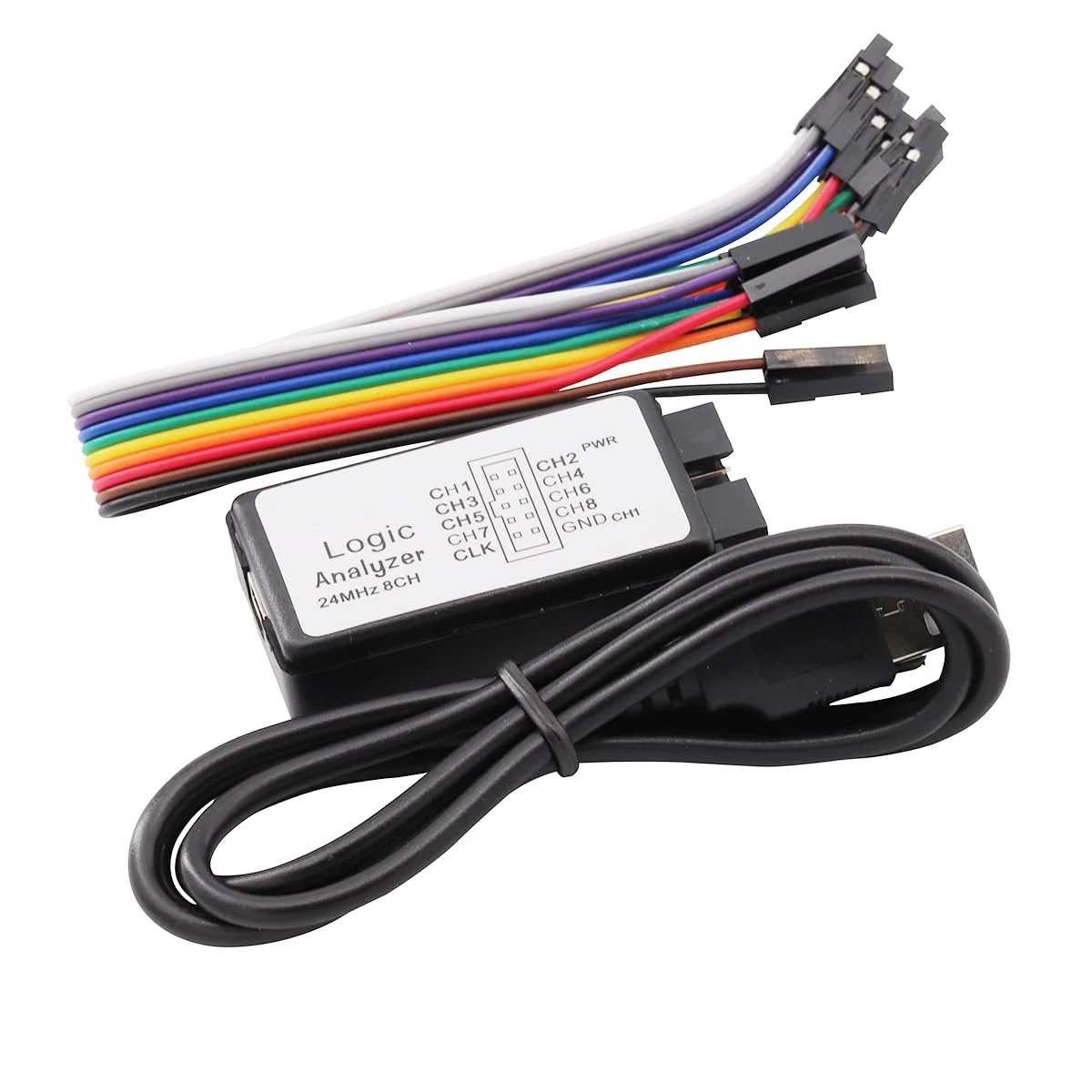

USB Logic Analyzer Set 24MHz Mini Logic Analyzer 8 Channel Input Logic Analyzer Device with USB Cable and Jump Wire

Product Description:

The USB Logic Analyzer 24MHz (8 Channel) is a compact and powerful debugging tool designed for analyzing digital signals in embedded systems and electronics projects. It supports real-time signal capture and protocol decoding, making it ideal for developers working with Arduino, Raspberry Pi, microcontrollers, and digital circuits.

With a sampling rate up to 24MHz and 8-channel input, this mini logic analyzer allows users to monitor and troubleshoot communication protocols such as I2C, SPI, UART, and more. It connects easily to a PC via USB and works with popular open-source software like Saleae Logic, providing a user-friendly interface for signal visualization and analysis.

Specifications:

• Product Type: USB Logic Analyzer
• Channels: 8 digital input channels
• Maximum Sampling Rate: 24MHz
• Input Voltage Range: 0V – 5V (TTL compatible)
• Interface: USB 2.0
• Compatibility: Windows / Linux / macOS (with supported software)
• Supported Protocols: I2C, SPI, UART, 1-Wire, etc.
• Software Support: Saleae Logic / compatible open-source tools
• Form Factor: Mini compact design
• Connection: USB cable + jumper wires

Key Features:

8-Channel Digital Input – Monitor multiple signals simultaneously
24MHz Sampling Rate – Accurate signal capture
Protocol Decoding Support – I2C, SPI, UART, and more
USB Plug & Play – Easy connection to PC
Compact & Portable Design – Ideal for field and lab use
Wide Compatibility – Works with multiple operating systems
User-Friendly Software Interface – Easy waveform analysis

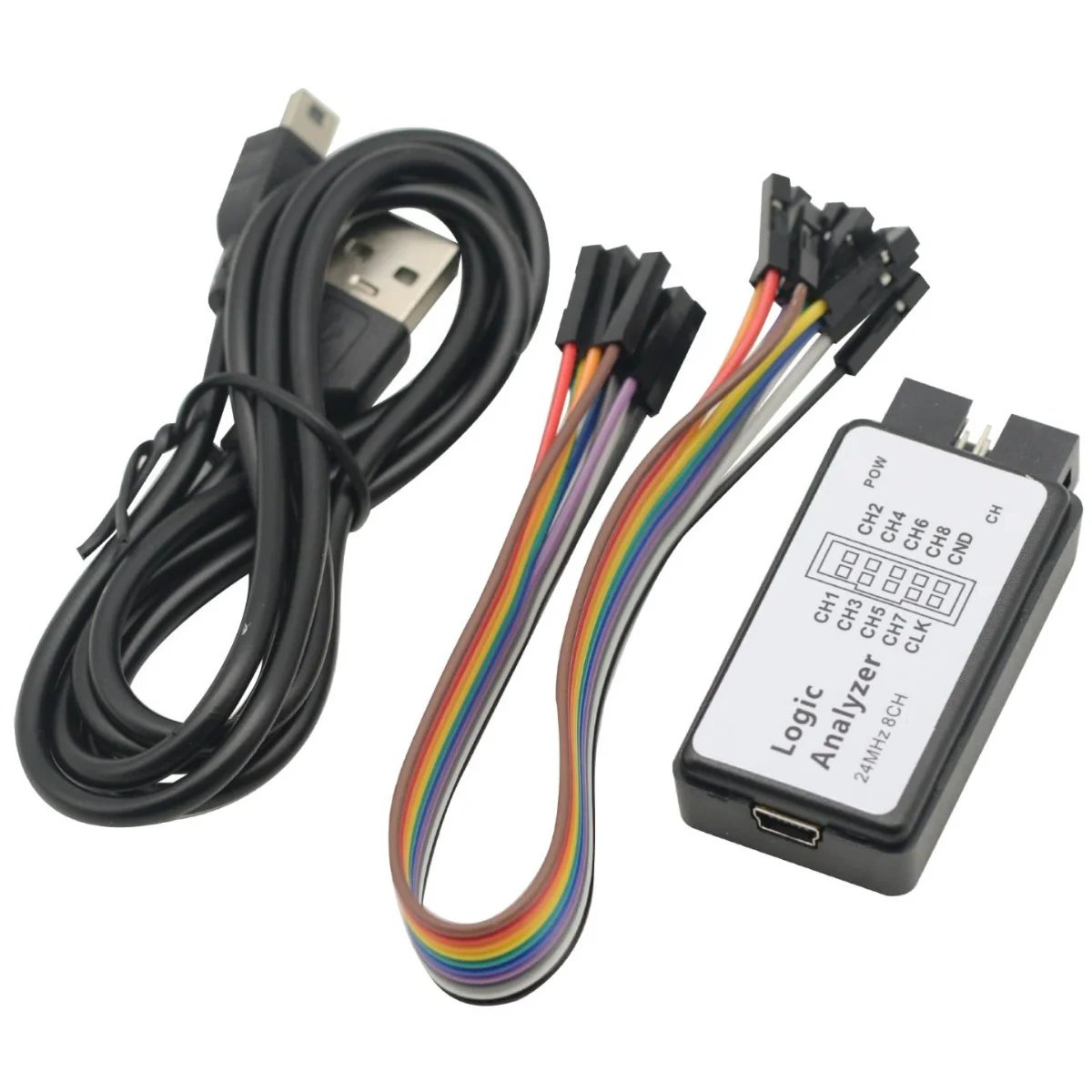

Includes Accessories – USB cable and jumper wires

Applications:

• Embedded system debugging
• Microcontroller development (Arduino, STM32, etc.)
• Communication protocol analysis
• Digital circuit troubleshooting
• Electronics education and training
• DIY electronics projects
